Husky 50-Face Single

29.5k
0
5 / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

17/06/2014

Download BIM

Add to collection

Available for:

P C Henderson's Husky Sliding 50 caters for wooden, wood framed, composite and metal doors weighing up to 50kg

Ideal for medium weight room partitions and wardrobe doors weighing up to 50kg
Cater for doors with a maximum width of up to 1250mm
Kit comes complete with track, face fixed brackets, hangers, guide, clips stop and track stop
Included clip stop which holds door in open or closed position
Available with a choice of steel, aluminium or anodised aluminium track
System can be faced fixed or soffit fixed to allow for flexibility of installation
Available with an integrated dual soft close and open to prevent slamming doors
A Simultaneous Action kit is available for biparting doors - simply move one door and the other will move simultaneously
Installation video available here

This download is for the P C Henderson Husky 50-Face Single Door and contains the following types;

H50/15 - 1500mm track
H50/18 - 1800mm track
H50/20 - 2000mm track
H50/24 - 2400mm track

_BIMspec_GUID0
_created byMark Thompson
_current revision0
_distributed bywww.bimstore.co.uk
Aluminium Track Order CodeH50/15A
Analytic Construction<None>
Assembly CodeC1020100
Bar Code0.000000
DescriptionVersatile and silent, the Husky Sliding door system is ideal for creating wardrobe doors and room dividers with one or more timber, timber framed, composite or metal doors at each side. The Husky 50 supports doors of up to 50kg, and optional fitting kits allow additional doors to be fitted to a maximum door width of 1250mm. Kits contain galvanised steel or aluminium tracks, nylon rollers and precision floor guides complete this high quality, low maintenance system.

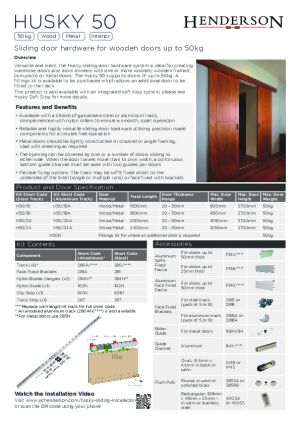

DocumentationLink URLwww.pchenderson.com/pdf/Husky_50_Data_Sheet_-v2_en.pdf
Expected Life0
Fascia MaterialFascia-Aluminium

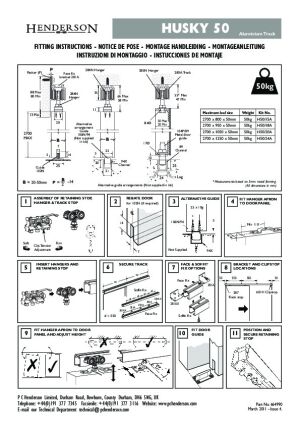

Fitting Instructionswww.pchenderson.co.uk/pdf/664990_Husky_50_Aluminium_Track_LVL04_en.pdf
FunctionInterior
Height0 mm
Kit ContentsTrack - Alumnium (280A) or Steel (280), Fixing Brackets - Aluminium (281A) or Steel (281), 2 Nylon Bodied Hangers (284 or 284N), Nylon Guide (102N), Clip Stop (601H), Track Stop (287)
Leaf MaterialLeaf-Metal
Leaf Offset5 mm
ManufacturerP C Henderson
Maximum Door Weight50.00 kg
Maximum Leaf Height2700 mm
Maximum Leaf Thickness50 mm
Maximum Leaf Width800 mm
ModelHusky 50
NameHusky 50
No. Of Doors1
Product Documentation Linkwww.pchenderson.com/pdf/Husky_50_Data_Sheet_-v2_en.pdf
Product Page URLwww.pchenderson.com/sliding_door_gear_product.php?config=Straight+Sliding&category=Domestic&range=Room+Dividers&id=123
Rough Height0 mm
Rough Width0 mm
Steel Track Order CodeH50/15
Thickness0 mm
Top Overlap13 mm
Track Height87 mm
Track MaterialTrack-Steel_280
Track Offset13 mm
Type CommentsSliding Door - up to 2700mm x 800mm
Type NameSliding Door - up to 2700mm x 800mm
Uniclass 2Ss-25-30-20-77
URLwww.pchenderson.com/index.php
Wall ClosureBy host
Warranty DescriptionHenderson products are guaranteed for a period of 10 years from the date of purchase against mechanical faults arising from defects in materials or design.
Warranty Duration Unit10 years
Width0 mm
