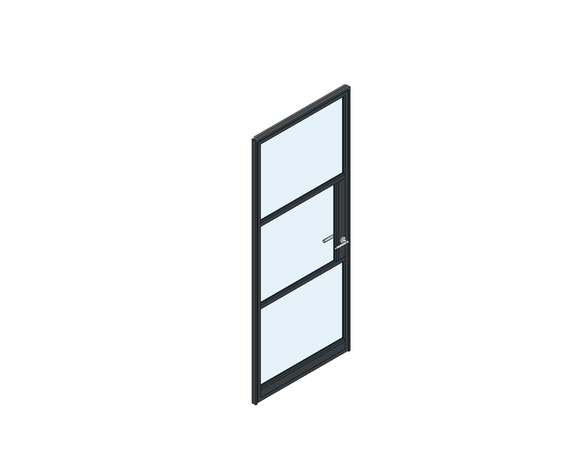

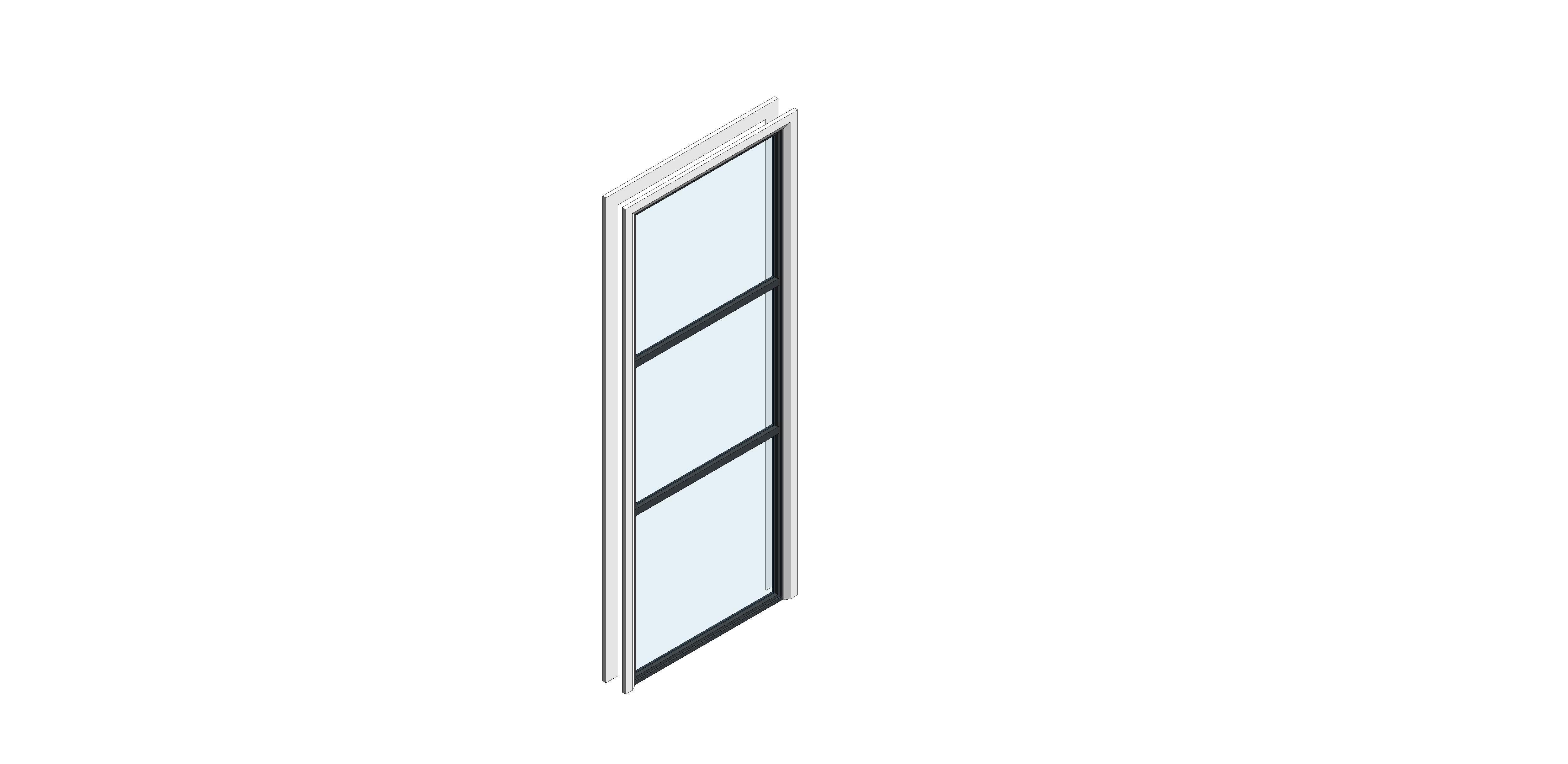

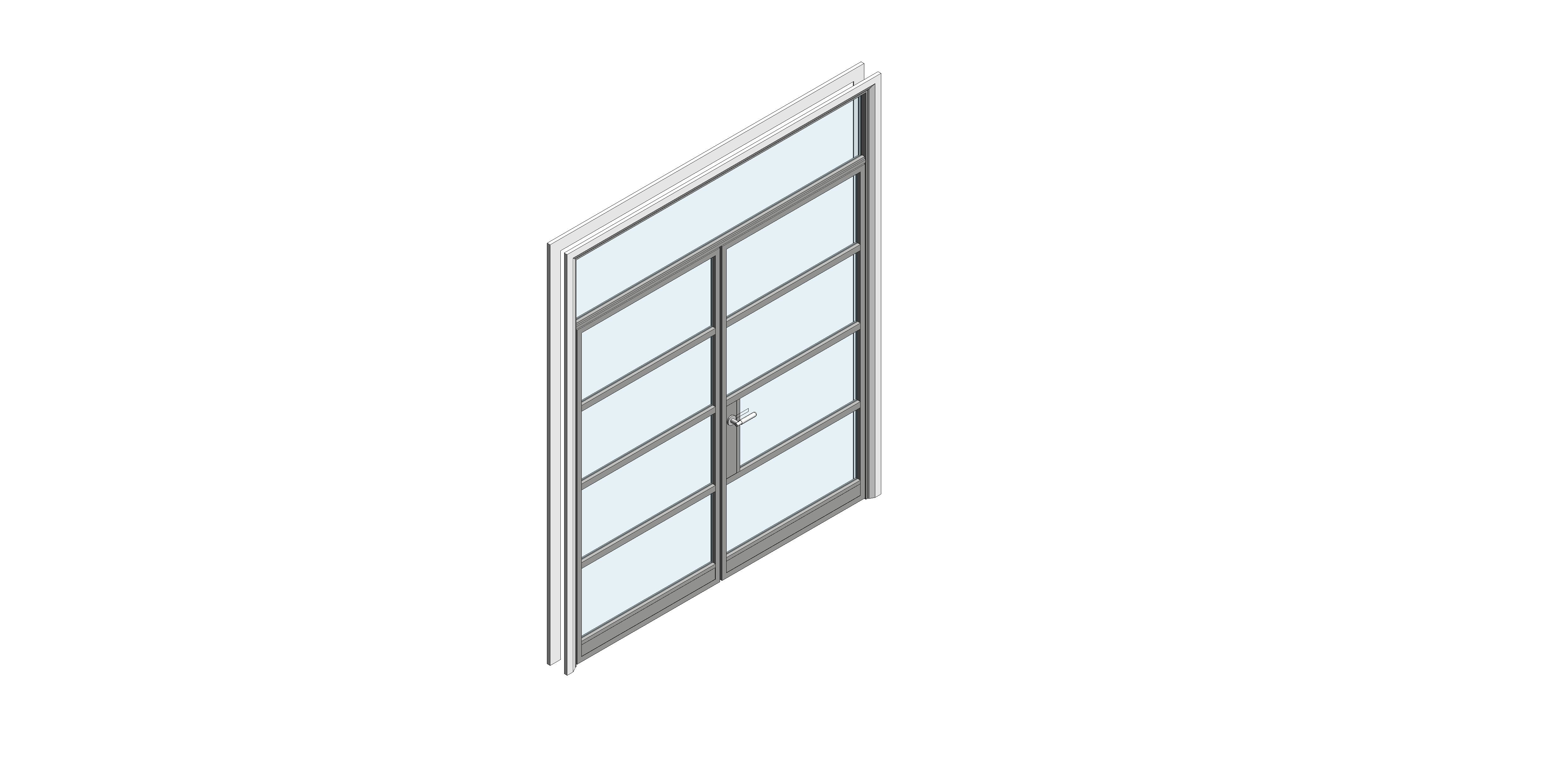

OI-30 Internal Door

by Origin Doors & Windows

Download Add to collection

Description

Extending the simplicity and effortless style of the OI-30’s design, the slim frames are available in over 150 RAL colours, ensuring that they complement and add to the flow of your internal space.

The Origin OI-30 allows you to choose every feature - from selecting chamfered or square beading options, choosing your perfect handle, specifying the right configuration and size for you, and more. This all depends on your preferred door style and the space you have available. You may also want to match your internal room divider to the interior design of your home.

Object Data

1 Revision

Last Updated

16/07/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_AuthorHarry Toor
_Authorized ByOrigin Global
_BS Bible Version1
_BS Spec Guid0
_Created ByHarry Toor
_Current Revision1
_Distributed Bywww.origin-global.com
_Object User Guideorigin.turtl.co/story/oi-30-soho/page/1
Analytic ConstructionMetal frame with single clear glass
Architrave Set back12 mm
Assembly CodeB2030110
Asset TypeFixed
BIM Object NameOriginGlobal_Windows_Internal_Single_OI-30
Classification NameUniclass2015
Classification ValuePr_30_59_24_02
Code PerformancePr_30_59_24_02 ISO 14001 / Barrier testing BS 6180:2011
ColorAvailable in over 150 RAL colours
Constituentsn/a
Created Byenquiry@origin-global.com
Created On2025-05-16T09:00:00
Define Thermal Properties bySchematic Type
DescriptionInternal Single Door
Documentation Certificatestrade.origin-global.com/products#internal-doors
Documentation Installation Guideorigin.turtl.co/story/oi-30-soho/page/1
Documentation Literatureorigin.turtl.co/story/oi-30-soho/page/1
Documentation Maintenanceorigin-global.com/
Documentation Technicalorigin.turtl.co/story/oi-30-soho/page/1
Door Panel Height2362 mm
Door Panel Offset1 mm
Door Panel Thickness32 mm
Door Panel Width944 mm
Duration UnitYears
Expected Life0
FinishHigh grade powder coating
Frame Thickness17 mm
FunctionInterior
Glass Width948 mm
GradeHigh grade Aluminium
Handle X Distance60 mm
Handle Z Distance900 mm
Heat Transfer Coefficient (U)6.5580 W/(m²·K)
Height2400 mm
Height to Top Lock Rail1000 mm
KeynoteL20
ManufacturerRevit
Manufacturer NameOrigin Global
MaterialAluminium
Material FrameOrigin Global - Aluminium - RAL 9006 - Light Silver Metallic
Material SashOrigin Global - Aluminium - RAL 9006 - Light Silver Metallic
ModelOI-30
Model NumberOI-30
Model ReferenceInternal Single
NBS DescriptionInternal Window
NBS Noten/a
NBS Object NameOrigin Global - Internal Window
NBS Ofiice Master Tagn/a
Nominal Depth40 mm
Nominal Height2400 mm
Nominal Width1000 mm
OperationSingleFixed
Production Year2025
Replacement Costn/a
Rough Height2400 mm
Rough Width1000 mm
ShapeRectangle
Size1000mm (w) x 2400mm (h)
Solar Heat Gain Coefficient0
Spare Partsn/a
Stop Thickness19 mm
Stop Depth32 mm
Structural Tolerances5 mm
Thermal Resistance (R)0.1525 (m²·K)/W
Thickness32 mm
Tolerance6 mm
Type CommentsInternal Single
Type NameInternal Single
Under Cut10 mm
URLtrade.origin-global.com/products#internal-doors
Usage TypeInternal
Vis - IronmongeryYes
Visual Light Transmittance0
Wall ClosureBy host
Warranty DescriptionUp to a 20-year guarantee (Guarantee based on location of where the doors will be installed. Full terms and conditions can be found on the Origin website - origin-global.com/terms-and-conditions).
Warranty Duration Laborn/a
Warranty Duration Parts20
Warranty Duration UnitYears
Warranty Guarantor Laborenquiry@origin-global.com
Warranty Guarantor Partsenquiry@origin-global.com
Width1000 mm
