Husky 100-Bi Passing Door

28.8k
0
4.3 / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

17/06/2014

Download BIM

Add to collection

Available for:

P C Henderson's Husky Sliding 100 caters for wooden, wood framed, composite and metal doors weighing up to 100kg.

Features and Benefits:

For bipassing, heavy weight doors weighing up to 100kg
Cater for doors with a maximum width of up to 1250mm
Kit comes complete with track, face fixed brackets, hangers, guide, clips stop and track stop
Inlucded clip stop which holds door in open or closed position
Available with a choice of steel, aluminium or anodised aluminium track
Installation video available here

This download is for the P C Henderson Husky 100-Face Single Door and contains the following types;

H100/15 - 150mm track length
H100/18 - 1800mm track length
H100/20 - 2000mm track length
H100/24 - 2400mm track length

_BIMspec_GUID0
_created byMark Thompson
_current revision0
_distributed bywww.bimstore.co.uk
Aluminium Track Order CodeH100/15A
Analytic Construction<None>
Assembly CodeC1020100
DescriptionVersatile and silent, the Husky Sliding door system is ideal for creating wardrobe doors and room dividers with one or more timber, timber framed, composite or metal doors at each side. The Husky 50 supports doors of up to 50kg, and optional fitting kits allow additional doors to be fitted to a maximum door width of 1250mm. Kits contain galvanised steel or aluminium tracks, nylon rollers and precision floor guides complete this high quality, low maintenance system.
DocumentationLink URLwww.pchenderson.com/pdf/Husky_50_Data_Sheet_-v2_en.pdf
Expected Life0
Fascia MaterialFascia-Aluminium

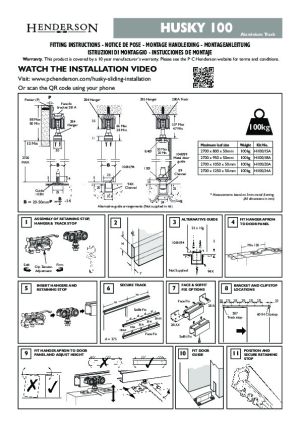

Fitting Instructionswww.pchenderson.com/pdf/664991_Husky_100_Aluminium_Track__LVL04_en.pdf
FunctionInterior
Height0 mm
Kit ContentsTrack - Alumnium (280A) or Steel (280), Fixing Brackets - Aluminium (281A) or Steel (281), 2 Nylon Bodied Hangers (284 or 284N), Nylon Guide (102N), Clip Stop (601H), Track Stop (287)
Leaf MaterialLeaf-Metal
ManufacturerP C Henderson
Maximum Door Weight100.00 kg
Maximum Leaf Height2700 mm
Maximum Leaf Thickness50 mm
Maximum Leaf Width800 mm
ModelHusky 100 Bi-Passing Door
NameHusky 100 Bi-Passing Door
No. Of Doors2

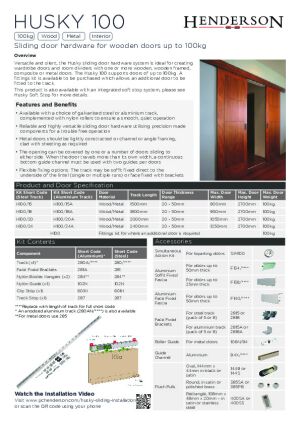

Product Documentation Linkwww.pchenderson.com/pdf/Husky_100_Data_Sheet_-v2_en.pdf
Product Page URLwww.pchenderson.com/sliding_door_gear_literature.php?config=Straight+Sliding&category=Domestic&range=Room+Dividers&id=126
Rough Height0 mm
Rough Width0 mm
Steel Track Order CodeH100/15
Thickness0 mm
Track Depth62 mm
Track MaterialTrack-Steel_280
Type CommentsBi-Passing Sliding Door - up to 2700mm x 800mm
Uniclass 2Ss-25-30-20-77
URLwww.pchenderson.com/index.php
Wall ClosureBy host
Warranty DescriptionHenderson products are guaranteed for a period of 10 years from the date of purchase against mechanical faults arising from defects in materials or design.
Warranty Duration Unit10 years
Width0 mm
