EasyLink - H Block With PICV/Strainer

2k
0
- / 5
Rate this product

Object Data

1 Revision

Last Updated

16/11/2023

Download BIM

Add to collection

Available for:

H Block complete with PICV and Strainer. For direct mounting to terminal units in heating and cooling applications at 40mm centres. Integral Venturi metering station. Left and right hand versions available. Albion’s 0-10V modulating actuator (ART C23E) can also be added to the PICV for proportional control.

BSP Female x Union Solder.

Max Pressure: 20 Bar
Differential Pressure: 800kPa (8 Bar)

0°C to +120°C

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/easylink-h-block-with-picv-strainer/document/object-user-guide
Accessibility Performancen/a
Actuator Offset106.9 mm
Assembly CodeD20
Asset TypeFixed
BIM Object NameAlbionValves_PipeAccessories_Easylink_HBlockWithPICV/S
BodyDZR Brass, CW602N
Centre Size40mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_63
Code Performancen/a
ColorBrass
Connection Size15.0 mm
ConstituentsElectric Actuator
Control ValvePICV
Created Bysales@albionvalvesuk.com
Created On2023-08-07 T09:00:00
Default Elevation0.0 mm
DescriptionEasylink - PICV - Left Handed - No Strainer
Differential Pressure800 kPa
Documentation Certificateswww.bimstore.co/products/easylink-h-block-with-picv-strainer/document/product-certificates

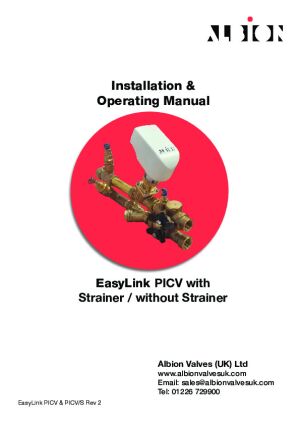

Documentation Installation Guidewww.bimstore.co/products/easylink-h-block-with-picv-strainer/document/installation-guide
Documentation Literaturewww.bimstore.co/products/easylink-h-block-with-picv-strainer/document/product-literature
Documentation Maintenancewww.bimstore.co/products/easylink-h-block-with-picv-strainer/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/easylink-h-block-with-picv-strainer/document/technical-data-sheet
Duration UnitYear
Expected Life0
Featuresn/a
FinishBrass
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
Length244.0 mm
LHYes
LH StrainerNo
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialBrass
Maximum Pressure20 bar
ModelEasylink c/w PICV
Model NumberEasylink - PICV - Left Handed - No Strainer
Model ReferenceEasylink c/w PICV
NBS DescriptionPressure-independent control valves
NBS Noten/a
NBS Object NameAlbion Valves - Pressure-independent control valves
NBS Office Master Tagn/a
NBS Reference90-10-90/420
Nominal Depth0.0 mm
Nominal Height0.0 mm
Nominal Length0.0 mm
O-RingEPDM
Offset 140.0 mm
Offset 240.0 mm
Production Year2023
Referenced Standardn/a
Replacement Costn/a
RHNo
RH StrainerNo
Shapen/a
Size1/2"
Size DN65
Spare Partsn/a
Temperature Range0°C to +120°C
Test Pont Offset88.8 mm
Thread Inch2 1/2
Type CommentsEasylink - PICV - Left Handed - No Strainer
Type NameEasylink - PICV - Left Handed - No Strainer
URLwww.albionvalvesuk.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts5
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partssales@albionvalvesuk.com
Weight2.1kg
