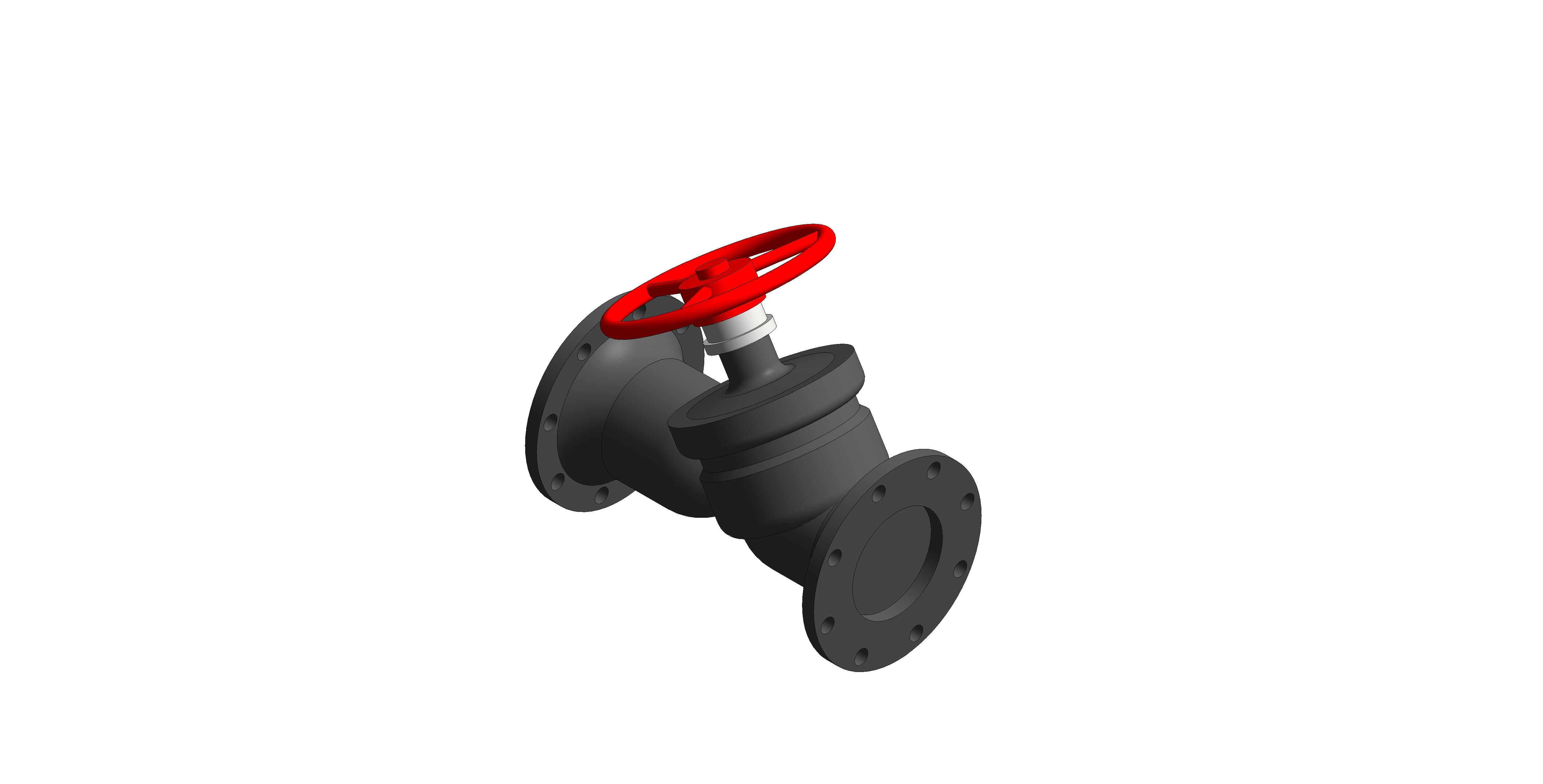

DA931 - Variable Orifice Double Regulating Valve (VODRV) - Ductile Iron
17.3k
0
4.5 / 5Rate this product
Available for:

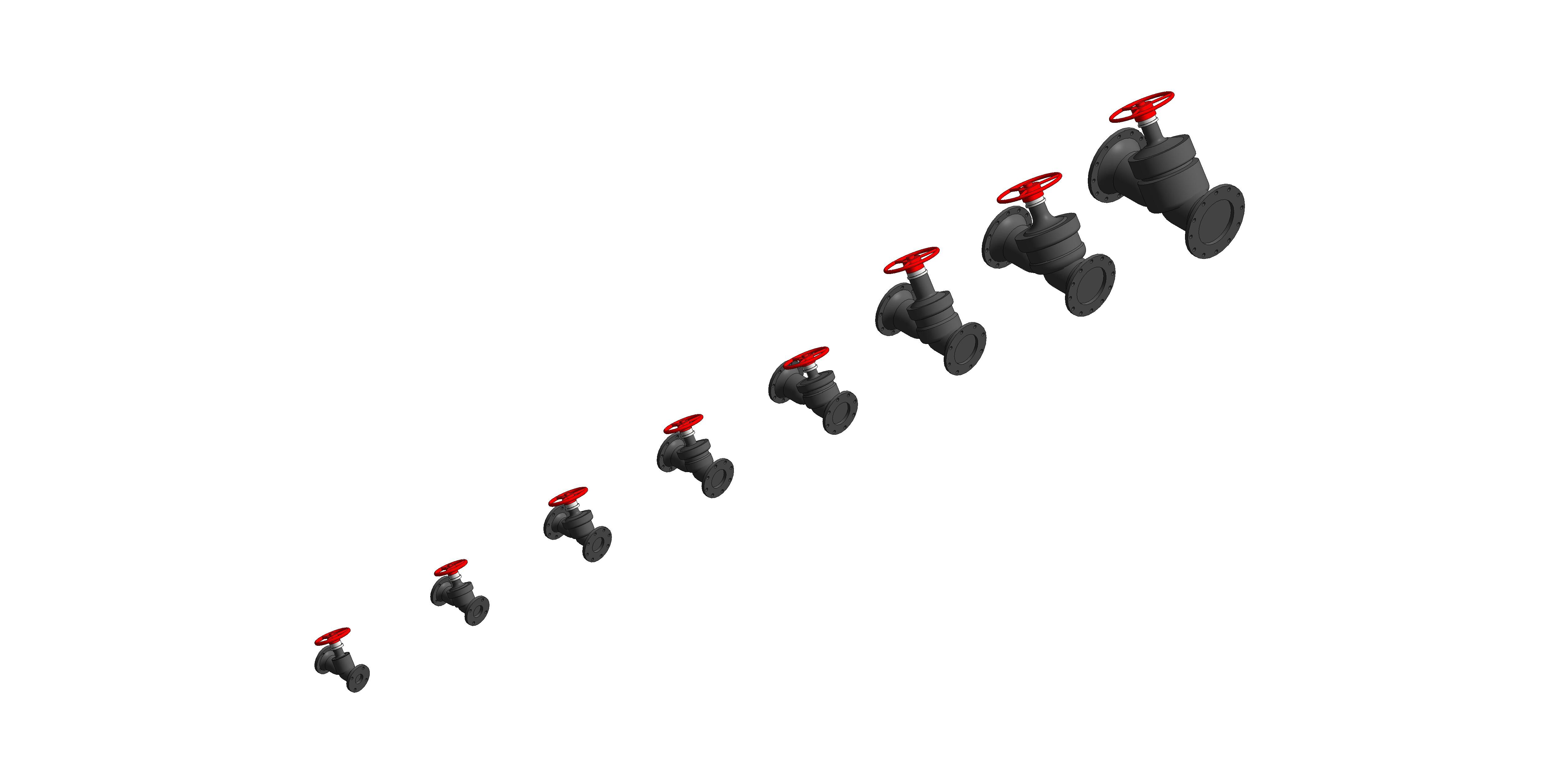

DA931 - DN65 to DN300
Variable Orifice Double Regulating Valve (VODRV) - Ductile Iron
Features & Benefits
- These are Y-Pattern globe valves supplied with two pressure test points P84 to provide flow measurement, regulation and isolation
- The Double Regulating feature allows the valve to be used for isolation and to be reopened to its pre-set position to maintain required flow rate
- Primarily used in injection or other circuits requiring a double regulating valve for system balancing
- Accuracy of flow measurement is ±10% at the full open position of the valve
- Some reduction in accuracy occurs at partial openings of the valve in accordance with BS 7350
Size | DN65 to DN300 |
Pressure Rating | Class 125 |
Flow Rate | Please see Flow Measurement Graphs |
Temperature Rating | 10 - 120°C |
End Connections | Flanged connections - ANSI Class 125 |
Material | Ductile Iron |
