PICV - ART 20F - DN40 - DN50

by Albion Valves

Download Add to collection

Description

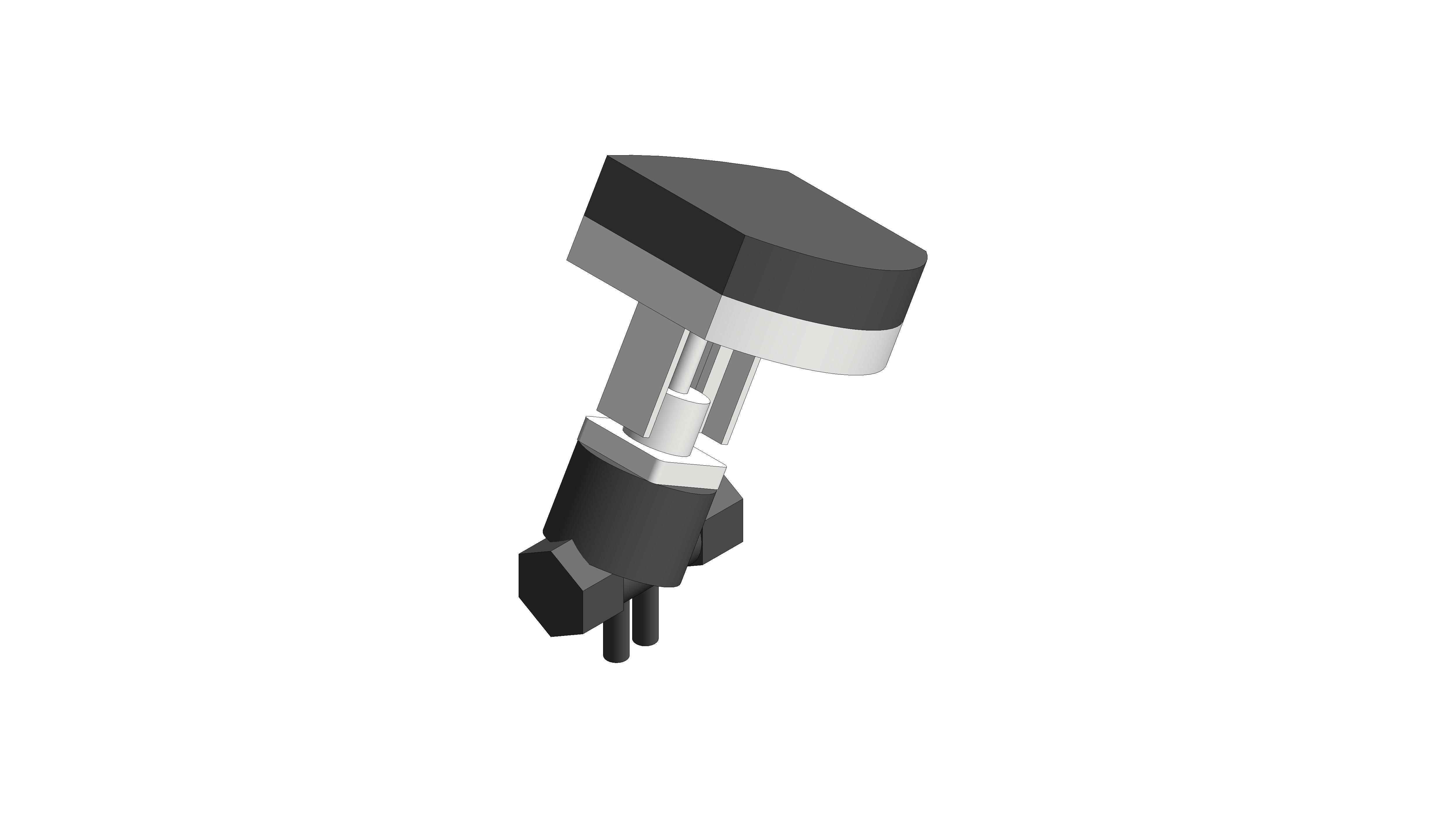

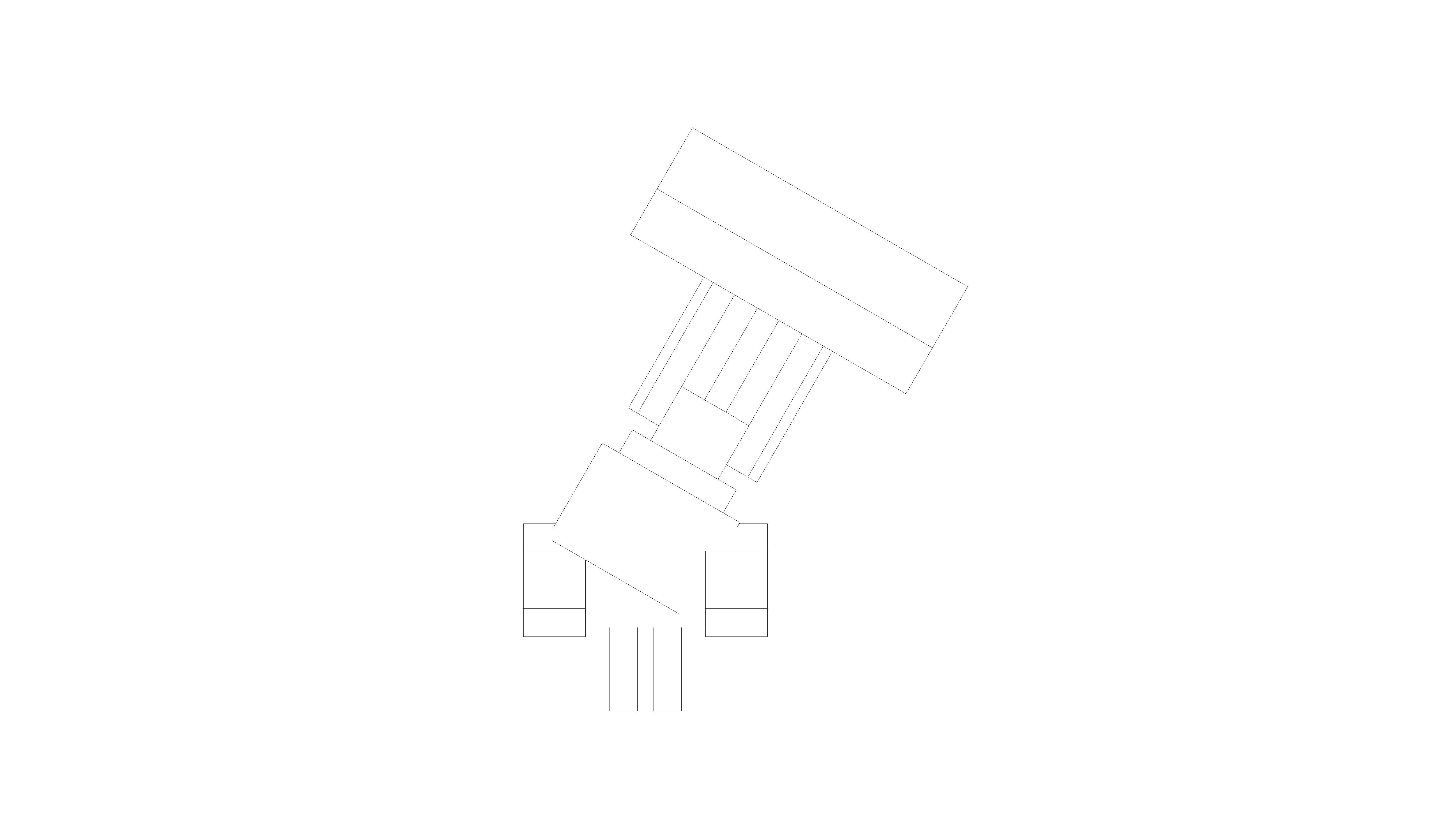

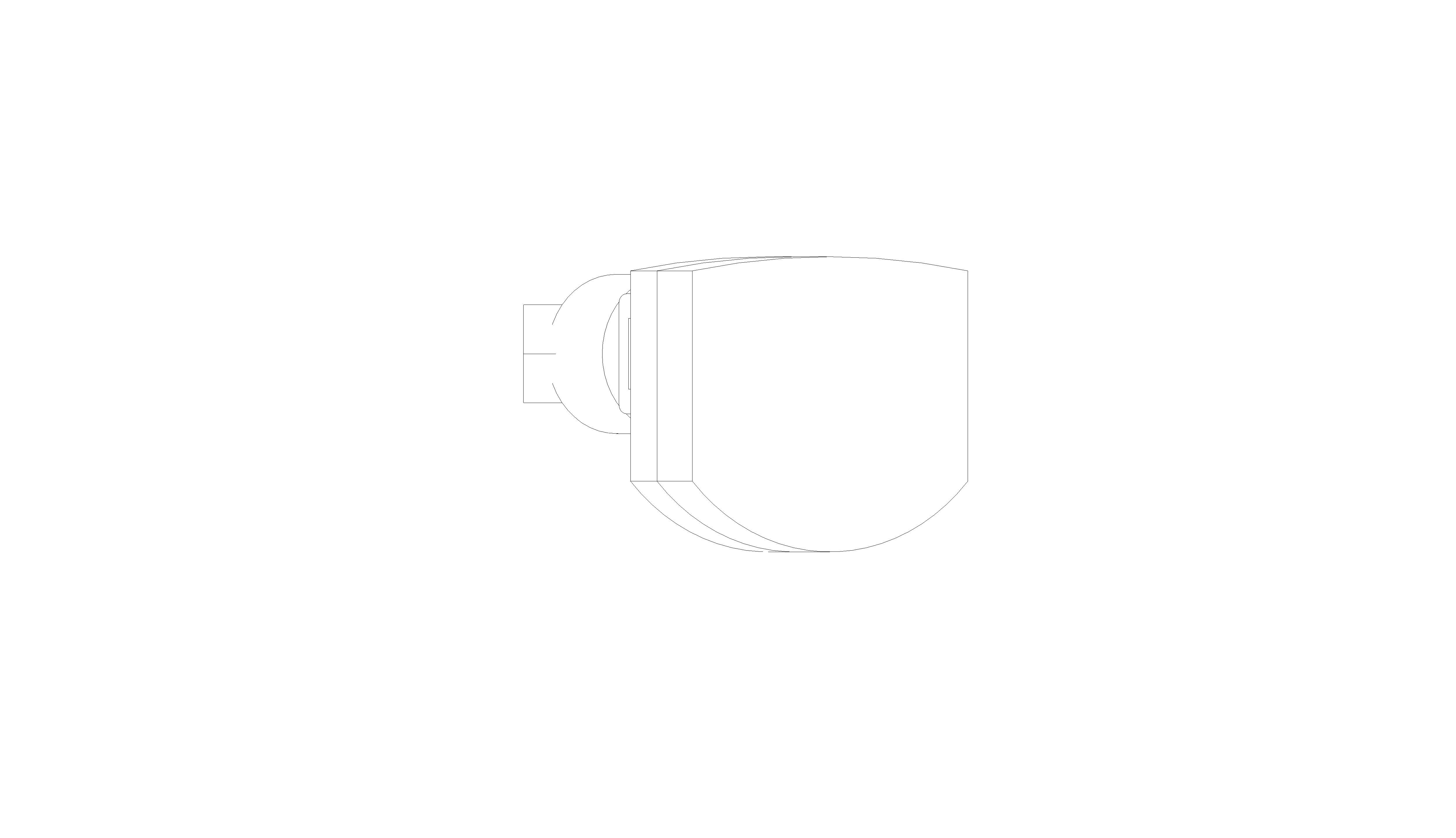

Pressure independent control valve | ART 20F - DN40 - DN50

DN40 with PT Plug and actuator
DN50 with PT Plug and actuator

Object Data

1 Revision

Last Updated

11/11/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

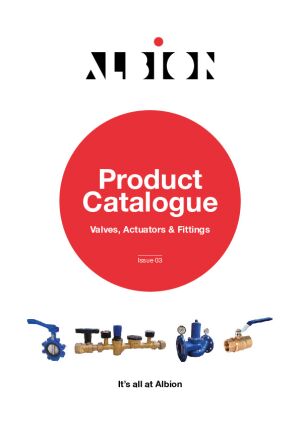

Product Literature

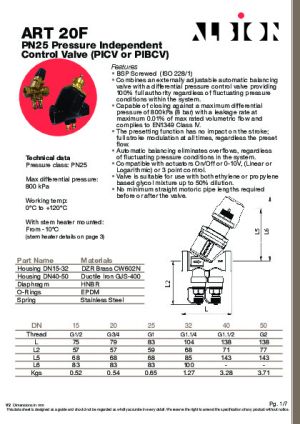

Technical Data Sheet

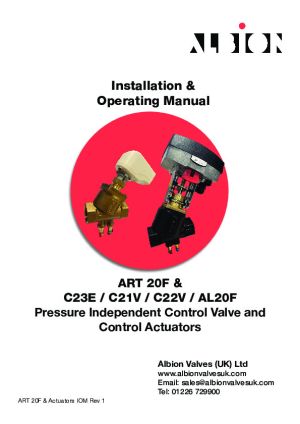

Operator Manual

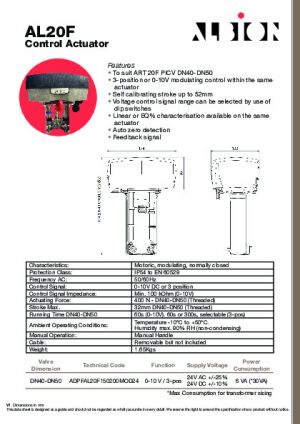

Product Data Sheet

Product Data Sheet

Object metadata

_AuthorMagiCAD Group
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.magicad.cloud/
_Current Revision2
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/4855e695-c6e2-4a58-80f2-d35c51d257a1/document/object-user-guide
A30.00 °
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
BIM Object NameAlbionValves_PipeAccessories_PICVWithActuator_ART20F_(DN40-50)
CATNo
CAT0Yes
Cen Sd_R1_628 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_63
Code Performancen/a
ColorSilver & Black
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2025-09-19T09:00:00
D40 mm
Default Elevation0 mm
DescriptionPressure independent control valve
Documentation Certificateswww.bimstore.co/products/4855e695-c6e2-4a58-80f2-d35c51d257a1/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/4855e695-c6e2-4a58-80f2-d35c51d257a1/document/installation-guide
Documentation Literaturewww.bimstore.co/products/4855e695-c6e2-4a58-80f2-d35c51d257a1/document/product-literature
Documentation Maintenancewww.bimstore.co/products/4855e695-c6e2-4a58-80f2-d35c51d257a1/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/4855e695-c6e2-4a58-80f2-d35c51d257a1/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
H162 mm
H215 mm
H335 mm
H3110 mm
H460 mm
H530 mm
H5140 mm
H674 mm
H6__ve74 mm
H786 mm
Ifc Export AsIfcValveType
Ifc Export TypeREGULATING
KeynoteS
L138 mm
L135 mm
L1__ve35 mm
L268 mm
L2 D138 mm
L2 D_Min30 mm
L313 mm
L490 mm
L529 mm
L610 mm
L790 mm
LL69 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialBrass
ModelART 20F - DN40 to DN50
Model NumberART 20F F/F PT Plug and actuator DN40
Model ReferenceART 20F - DN40 to DN50
NBS DescriptionPressure-independent control valves
NBS Object NameAlbion Valves - Pressure-independent control valves
NBS Office Master Tagn/a
NBS Reference90-10-90/420
Nominal Depth167 mm
Nominal Height330 mm
Nominal Length138 mm
PLGYes
PLG0Yes
Productdata© MagiCAD Group, all rights reserved
Production Year2025
R132 mm
R227 mm
R345 mm
R434 mm
R55 mm
R622 mm
R77 mm
R98 mm
Referenced Standardn/a
Replacement Costn/a
S16 mm
S214 mm
S340 mm
Shapen/a
SizeDN40
Spare Partsn/a
Type CommentsART 20F F/F PT Plug and actuator DN40
Type NameART 20F F/F PT Plug and actuator DN40
URLwww.albionvalvesuk.com/
Valve FinishAlbionValves_Metal_Black
Valve Finish 2AlbionValves_Metal_Silver
W2 D40 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
X15 mm
Z7 mm
Z625 mm
