PICV - ART 20F - DN15-DN32

by Albion Valves

Download Add to collection

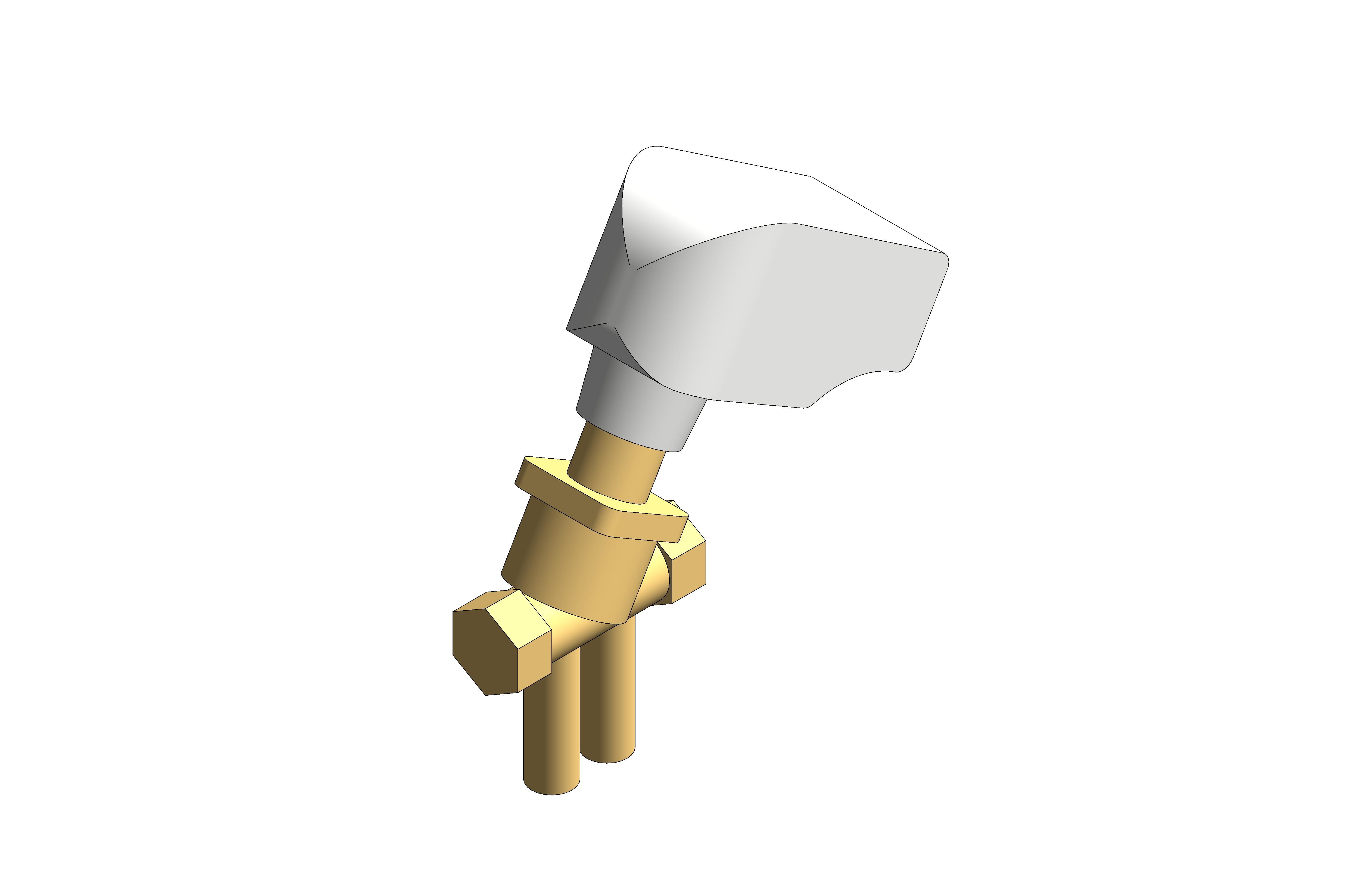

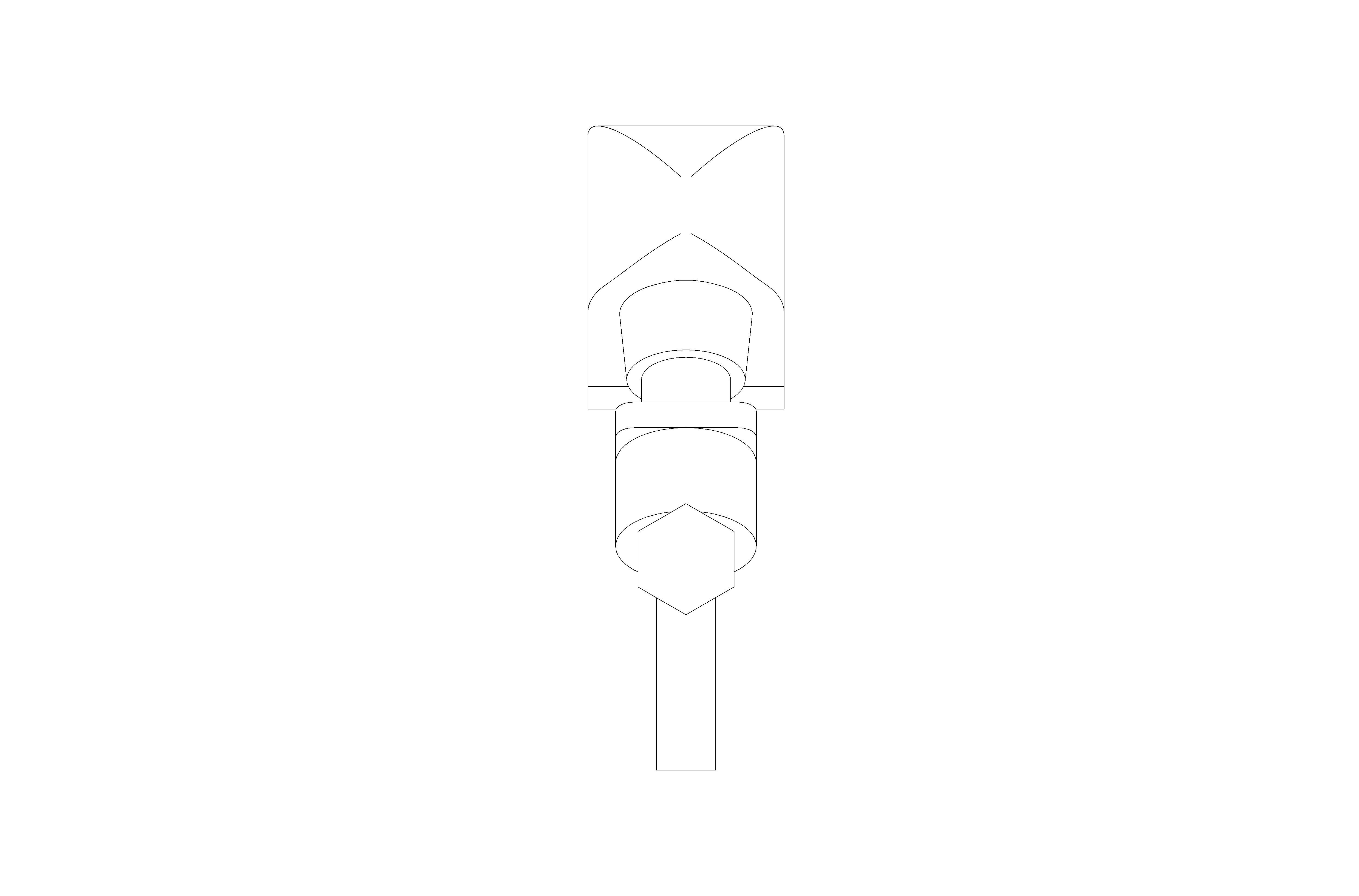

Description

Pressure independent control valve | ART 20F - DN15 - DN32

DN15 - F/F Low 2.5 PT Plug
DN15 - F/F High 2.5 PT Plug
DN15 - F/F High 5.0 PT Plug
DN20 - F/F High 2.5 PT Plug
DN20 - F/F High 5.0 PT Plug
DN25 - F/F Low 5.5 PT Plug
DN25L - F/F High 5.5 PT Plug
DN32 - F/F High 5.5 PT Plug

Object Data

1 Revision

Last Updated

18/11/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

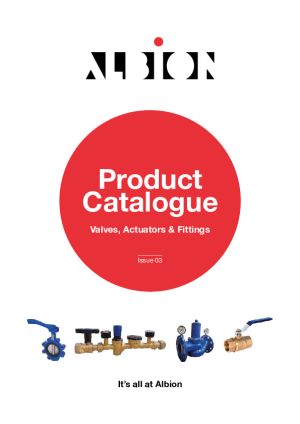

Product Literature

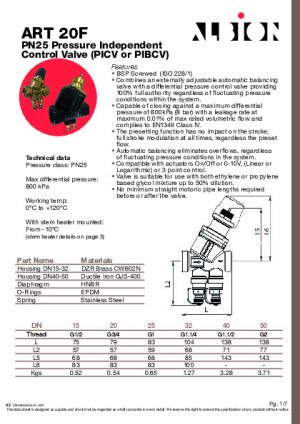

Technical Data Sheet

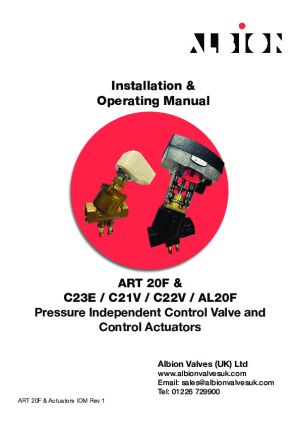

Operator Manual

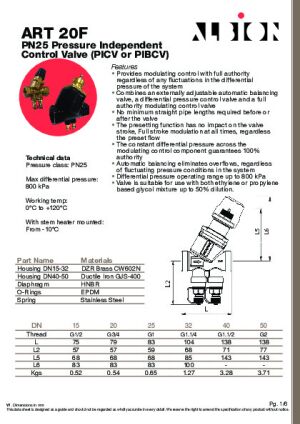

Product Data Sheet

Product Data Sheet

Object metadata

_AuthorMagiCAD Group
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.magicad.cloud/
_Current Revision2
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/44c9f9ab-54ff-40de-a893-8129e7c565b2/document/object-user-guide
A30.00 °
Accessibility Performancen/a
Actuator Height117 mm
Assembly CodeD20
Asset TypeFixed
BIM Object NameAlbionValves_PipeAccessories_PICVWithActuator_ART20F_(DN15-25)
CATNo
CAT0Yes
Cen Sd_R1_613 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_63
Code Performancen/a
ColorYellow & White
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2025-09-19T09:00:00
D15 mm
Default Elevation0 mm
DescriptionPressure independent control valve
Documentation Certificateswww.bimstore.co/products/44c9f9ab-54ff-40de-a893-8129e7c565b2/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/44c9f9ab-54ff-40de-a893-8129e7c565b2/document/installation-guide
Documentation Literaturewww.bimstore.co/products/44c9f9ab-54ff-40de-a893-8129e7c565b2/document/product-literature
Documentation Maintenancewww.bimstore.co/products/44c9f9ab-54ff-40de-a893-8129e7c565b2/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/44c9f9ab-54ff-40de-a893-8129e7c565b2/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
H126 mm
H28 mm
H318 mm
H412 mm
H520 mm
H657 mm
H6__ve57 mm
Ifc Export AsIfcValveType
Ifc Export TypeREGULATING
KeynoteS
L75 mm
L114 mm
L1__ve14 mm
L248 mm
L2 D75 mm
L2 D_Min30 mm
L311 mm
L683 mm
L738 mm
LL38 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialBrass
ModelART 20F - DN15 to DN25
Model NumberART 20F F/F High 2.5 PT Plug DN15
Model ReferenceART 20F - DN15 to DN25
NBS DescriptionPressure-independent control valves
NBS Object NameAlbion Valves - Pressure-independent control valves
NBS Office Master Tagn/a
NBS Reference90-10-90/420
Nominal Depth38 mm
Nominal Height140 mm
Nominal Length75 mm
PLGYes
PLG0Yes
Productdata© MagiCAD Group, all rights reserved
Production Year2025
R115 mm
R212 mm
R319 mm
R419 mm
R55 mm
R612 mm
R716 mm
R819 mm
R98 mm
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN15
Spare Partsn/a
Type CommentsART 20F High 2.5 PT Plug DN15
Type NameART 20F High 2.5 PT Plug DN15
URLwww.albionvalvesuk.com/
Valve FinishAlbionValves_Metal_Yellow
Valve Finish 2AlbionValves_Plastic_White
W2 D15 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
X7 mm
Z0 mm
