ART 671 - Pressure Reducing Valve

1.9k
0
- / 5
Rate this product

Object Data

1 Revision

Last Updated

16/11/2023

Download BIM

Add to collection

Available for:

Pressure Reducing Valve with gauge. Controls static and dynamic pressure. Designed and manufactured to BS EN 1567. Easy to service high temperature cartridge. AISI 304 stainless steel cartridge filter. Supplied with a pressure gauge.

BSP Parallel Male Ends (ISO 228/1).

Max Inlet Pressure: 16 Bar
Outlet Pressure range: 0.5 - 6 Bar
Minimum Inlet Pressure: 1 Bar
Factory Set Pressure: 3 Bar

0°C to +80°C

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-671-pressure-reducing-valve/document/object-user-guide
A40.0 mm
a32.0 mm
Accessibility Performancen/a
Adjustable KnobPolyamid / 6T
Assembly CodeD20
Asset TypeFixed
b20.0 mm
B239.0 mm
BIM Object NameAlbionValves_PipeAccessories_PressureReducingValve_ART671
BodyDZR Brass CW602N/Nickel Plated
c26.0 mm
C186.0 mm
CartridgePolyoxymethelene
Classification NameUniclass2015
Classification ValuePr_65_54_95_66
Code Performancen/a
ColorSilver
Connection Size40.0 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2023-08-07 T09:00:00
d25.0 mm
Default Elevation0.0 mm
DescriptionPressure Reducing Valve with gauge
DiscDZR Brass CW602N
Documentation Certificateswww.bimstore.co/products/art-671-pressure-reducing-valve/document/product-certificates

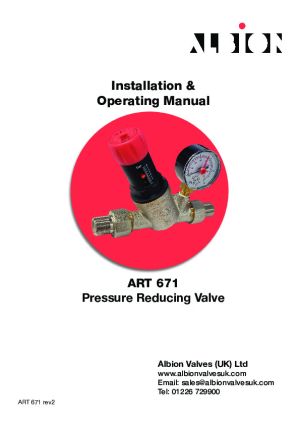

Documentation Installation Guidewww.bimstore.co/products/art-671-pressure-reducing-valve/document/installation-guide

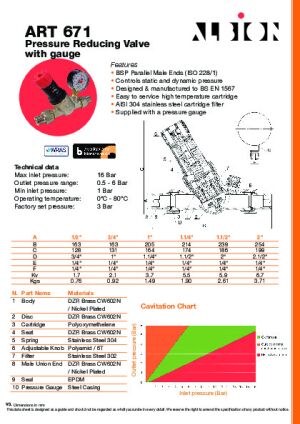

Documentation Literaturewww.bimstore.co/products/art-671-pressure-reducing-valve/document/product-literature
Documentation Maintenancewww.bimstore.co/products/art-671-pressure-reducing-valve/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/art-671-pressure-reducing-valve/document/technical-data-sheet
Duration UnitYear
Expected Life0
Factory Set Pressure3 bar
Features• BSP Parallel Male Ends (ISO 228/1) • Controls static and dynamic pressure • Designed & manufactured to BS EN 1567 • Easy to service high temperature cartridge • AISI 304 stainless steel cartridge filter • Supplied with a pressure gauge
FilterStainless Steel 302
Finishn/a
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
Large BodyYes
Male Union EndDZR Brass CW602N/Nickel Plated
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialDZR Brass
Maximum Inlet Pressure16 bar
Medium BodyNo
Minimum Inlet Pressure1 bar
ModelART 671
Model Number1 1/2"
Model ReferenceART 671
NBS DescriptionPressure reducing valve
NBS Noten/a
NBS Object NameAlbion Valves - Pressure reducing valve
NBS Office Master Tagn/a
NBS Reference90-10-90/410
Nominal Depth0.0 mm
Nominal Height0.0 mm
Nominal Length0.0 mm
Nut Width60.0 mm
Operating Temperature0°C - 80°C
Outlet Pressure Range0.5 - 6 bar
Pressure GaugeSteel Casing/Glycerine Filled
Production Year2023
Referenced StandardISO 228/1, BS EN 1567
Replacement Costn/a
SealEPDM
SeatDZR Brass CW602N
Shapen/a
Size1 1/2"
Size DN40
Small BodyNo
Spare Partsn/a
SpringStainless Steel 304
Thread Inch1.5
Type Comments1 1/2"
Type NameART 671
URLwww.albionvalvesuk.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts5
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partssales@albionvalvesuk.com
Weight2.61kg
