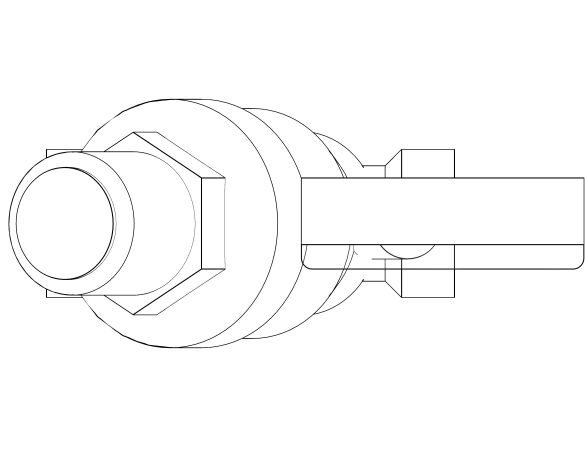

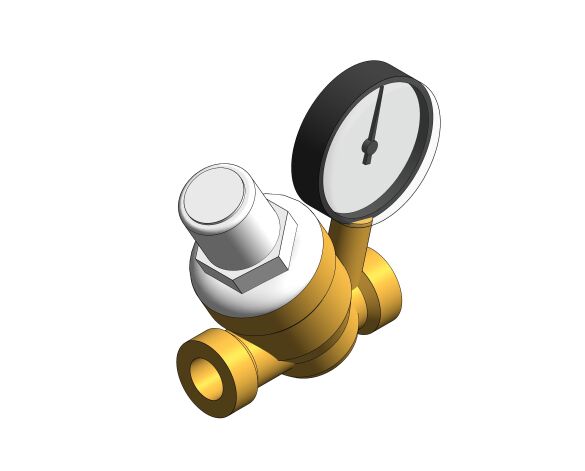

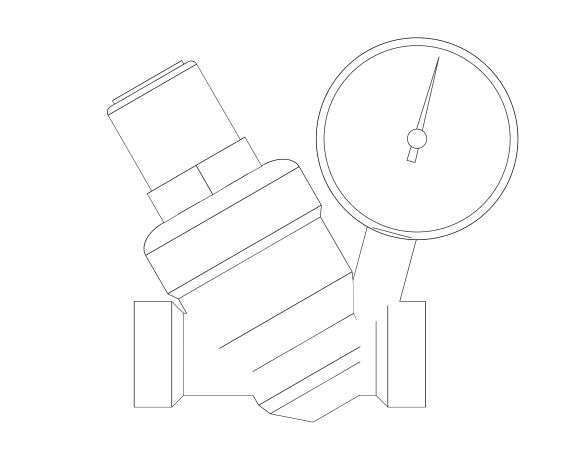

ART 670F - Pressure Reducing Valve

Description

Description
Pressure Reducing Valve with gauge. Sizes 1/2" and 3/4" available BSP Parallel Female Ends. Controls static and dynamic pressure. Easy to service high temperature cartridge. AISI 304 stainless steel cartridge filter.

Connection
BSP Parallel Female Ends

Approvals/ other
WRAS Approved.
Conforms to BS EN 1567.

Pressure
See product datasheet.

Temperature
Max inlet temperature: 80°C

Object Data

1 Revision

Last Updated

02/03/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

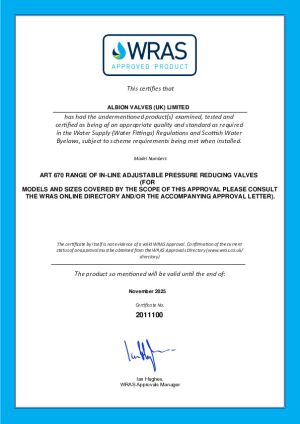

Product Certificates

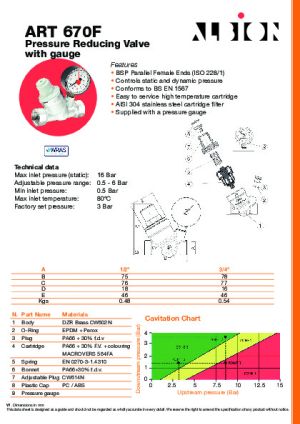

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-670f-art-670m/document/object-user-guide
112.5 mm
29.5 mm
a3.0 mm
A15.0 mm
Accessibility Performancen/a
Adjustable Pressure Range0.5 - 6 Bar
Assembly CodeD20
Asset TypeFixed
b9.7 mm
B75.0 mm
BIM Object NameAlbionValves_PipeAccessories_PressureReducingValve_ART670F
Body Bottom Offset19.0 mm
C76.0 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_66
Code Performancen/a
ColorSilver
Connection Radius7.5 mm
Connection Size15.0 mm
Constituentsn/a
Control Knob Height22.5 mm
Control MaterialPlastic - White
Created Bysales@albionvalvesuk.com
Created On2019-07-01T09:00:00
D18.0 mm
DescriptionART 670F Pressure Reducing Valve with gauge
Dial Height38.0 mm
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/art-670f-art-670m/document/technical-data-sheet
Duration UnitYears
E46.0 mm
Expected Life0
Face MaterialPlastic - Clear
Factory Set Pressure3 Bar
Featuresn/a
FinishCw602N DBZ Brass
Gauge MaterialPlastic - Black
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialCw602N DBZ Brass
Maximum Inlet Pressure(Static)16 Bar
Maximum Inlet Temperature80°C
Minimum Inlet Pressure0.5 Bar
ModelART 670F Pressure Reducing Valve with gauge
Model NumberDN 1/2"
Model ReferenceART 670F Pressure Reducing Valve with gauge
NBS DescriptionPressure Reducing Valve
NBS Object NameAlbion Valves - Pressure Reducing Valve
NBS Reference90-10-90/410
Nominal Depth18.0 mm
Nominal Height94.0 mm
Nominal Length75.0 mm
Nut Width36.0 mm
Production Year2019
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN 1/2"
Size DN15
Spare Partsn/a
Thread Inch1/2
Thread Millimetre12.7 mm
Type CommentsDN 1/2"
Type NameART 670F Pressure Reducing Valve with gauge
URLwww.albionvalvesuk.com/
Valve FinishBrass
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
