DZR Brass Drain Cock Valve, Lock Shield [18/0051]

by Valves Instruments Plus

Download Add to collection

Description

DZR Brass Drain Cock Valve, Lock Shield, Threaded BSP Ends.

Object Data

1 Revision

Last Updated

16/06/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

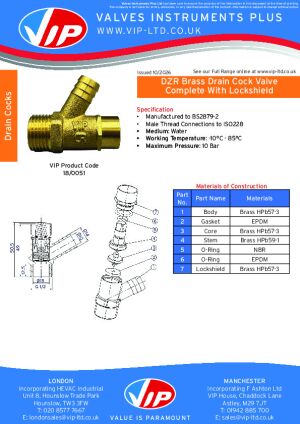

Product Data Sheet

Object metadata

_AuthorAA
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version0
_Created ByAA
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/1fba410b-849a-4b12-8121-2415a2d203ca/document/object-user-guide
Accessibility Performancen/a
Assembly CodeDN15
Asset TypeFixed
A Support 125 mm
A Support 220 mm
BIM Object NameVIP_BSPDZRLockShieldBrassDrainCock_(18-0051)
Body Height26 mm
Body VisibleYes
Body Width 113 mm
Body Width 26 mm
Body Width 320 mm
Body Width 43 mm
Body Width 51 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_30_23
Code Performancen/a
ColorYellow
Connection Size15 mm
Constituentsn/a
Cover MaterialVIP - Stainless Steel
Created Bysales@vip-ltd.co.uk
Created On2025-04-07T09:00:00
Default Elevation0 mm
DescriptionBSP DZR Lock Shield Brass Drain Cock
Diameter16 mm
DN15 mm
Documentation Certificateswww.bimstore.co/products/1fba410b-849a-4b12-8121-2415a2d203ca/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/1fba410b-849a-4b12-8121-2415a2d203ca/document/installation-guide
Documentation Literaturewww.bimstore.co/products/1fba410b-849a-4b12-8121-2415a2d203ca/document/product-literature
Documentation Maintenancewww.bimstore.co/products/1fba410b-849a-4b12-8121-2415a2d203ca/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/1fba410b-849a-4b12-8121-2415a2d203ca/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Handle MaterialVIP - Brass
Height45 mm
Inner Body Diameter 120 mm
Inner Body Diameter 215 mm
Inner Body Diameter 319 mm
Inner Body Support 120 mm
Inner Body Width6 mm
Inner Body Width 26 mm
Inner Circle2 mm
Inner Ring 120 mm
Inner Ring 222 mm
Inner Ring 36 mm
K Coefficient0
KeynoteS
Length50 mm
ManufacturerVIP
Manufacturer NameVIP
Max Temperature110°C
Model18/0050 BSP DZR Lockshield Brass Drain Cock
Model Number18/0051/015
Model ReferenceBSP DZR Lock Shield Brass Drain Cock
NBS DescriptionBSP DZR Lock Shield Brass Drain Cock
NBS Noten/a
NBS Object NameVIP- BSP DZR Lock Shield Brass Drain Cock
NBS Office Master Tagn/a
NBS Reference90-35-95/440 Drain and test valves
Outer Body Diameter 120 mm
Outer Body Diameter 215 mm
Product Feature & BenefitsMade in accordance with S 2879 / 2
Production Year2025
Referenced Standardn/a
Replacement Costn/a
Round Body Height20 mm
Roundbody New5 mm
Shapen/a
SizeDN15
Spare Partssales@vip-ltd.co.uk
Support MaterialVIP - Brass
ThreadsBSP ends
Type CommentsBSP DZR Lock Shield Brass Drain Cock
URLwww.vip-ltd.co.uk/
VIP - BlackVIP - Black
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@vip-ltd.co.uk
Warranty Guarantor Partssales@vip-ltd.co.uk
Working Pressure4 Bar

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
