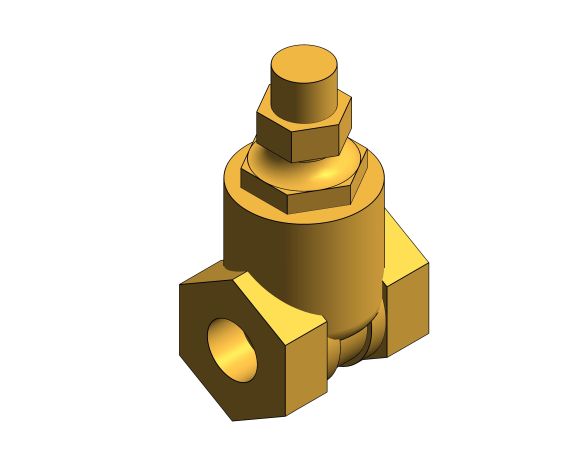

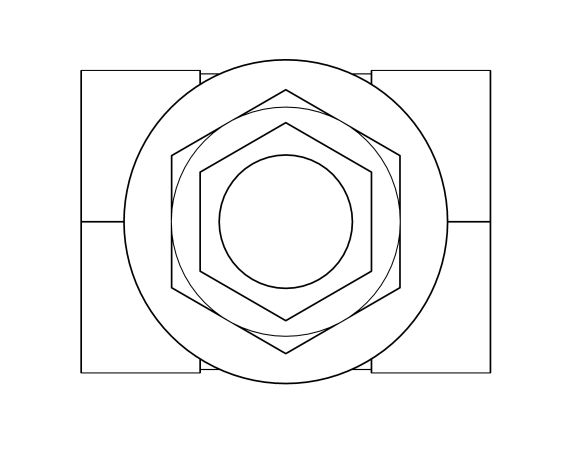

ART 640LS - Gate Valve

by Albion Valves

Download Add to collection

Description

Description
PN20 DZR Brass Gate Valve. Full Bore. Lockshield.

Connection
BSP Taper F/F Ends (ISO 7/1) or NPT (ANSI B1.20.1)

Approvals/ other

WRAS Approved

BS 5154 Approved

Pressure
20 Bar Rated

Temperature
-20°C to +170°C

Object Data

1 Revision

Last Updated

02/03/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Available

Accompanying literature

Object User Guide

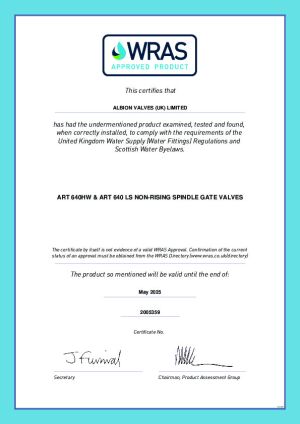

Product Certificates

Technical Data Sheet

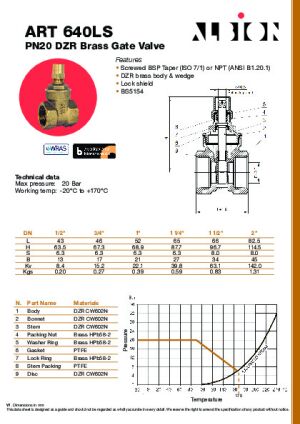

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-640ls/document/object-user-guide
115 mm
217 mm
312 mm
47 mm
59 mm
67 mm
A22 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B31 mm
BIM Object NameAlbionValves_PipeAccessories_GateValve_ART640LS
Bottom A12 mm
Bottom B22 mm
C34 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_96
Code Performancen/a
ColorYellow
Connection Offset10 mm
Connection Size15 mm
Connector Size15 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2019-07-01T09:00:00
D39 mm
DescriptionPN20 DZR Brass Gate Valve
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/art-640ls/document/technical-data-sheet
Duration UnitYears
E43 mm
Expected Life0
F45 mm
Featuresn/a
FinishDZR Brass
G53 mm
Graden/a
H64 mm
H114 mm
H216 mm
H Calc1 mm
Hex Height18 mm
Hex Width32 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
L43 mm
L Calc1 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialDZR Brass
Max Pressure20 Bar
ModelPN20 DZR Brass Gate Valve
Model NumberDN15 - DN1/2"
Model ReferencePN20 DZR Brass Gate Valve
NBS DescriptionWaterworks gate valves
NBS Object NameAlbion Valves - Y-type strainers
NBS Office Master Tagn/a
NBS Reference90-20-80/320
Nominal Depth0 mm
Nominal Height64 mm
Nominal Length43 mm
Offset10 mm
Production Year2019
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN15 - DN1/2"
Size DN15
Spare Partsn/a
Symbol Width14 mm
Thread Inch1/2
Thread Millimetre13 mm
Top Hex24 mm
Top Hex 218 mm
Type CommentsDN15 - DN1/2"
Type NamePN20 DZR Brass Gate Valve
URLwww.albionvalvesuk.com/
Valve FinishBrass
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight0.20 kgs
Working Temperature-10°C to +180°C
