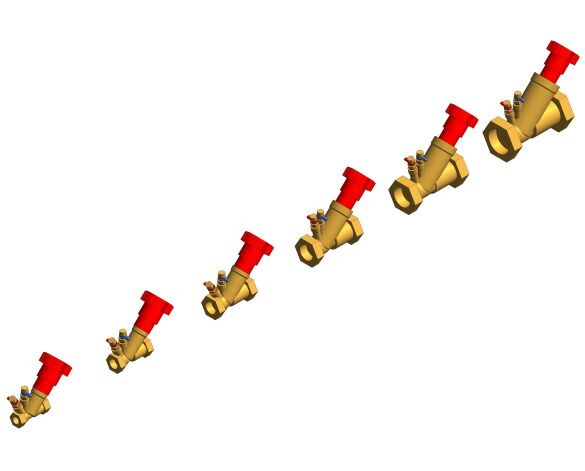

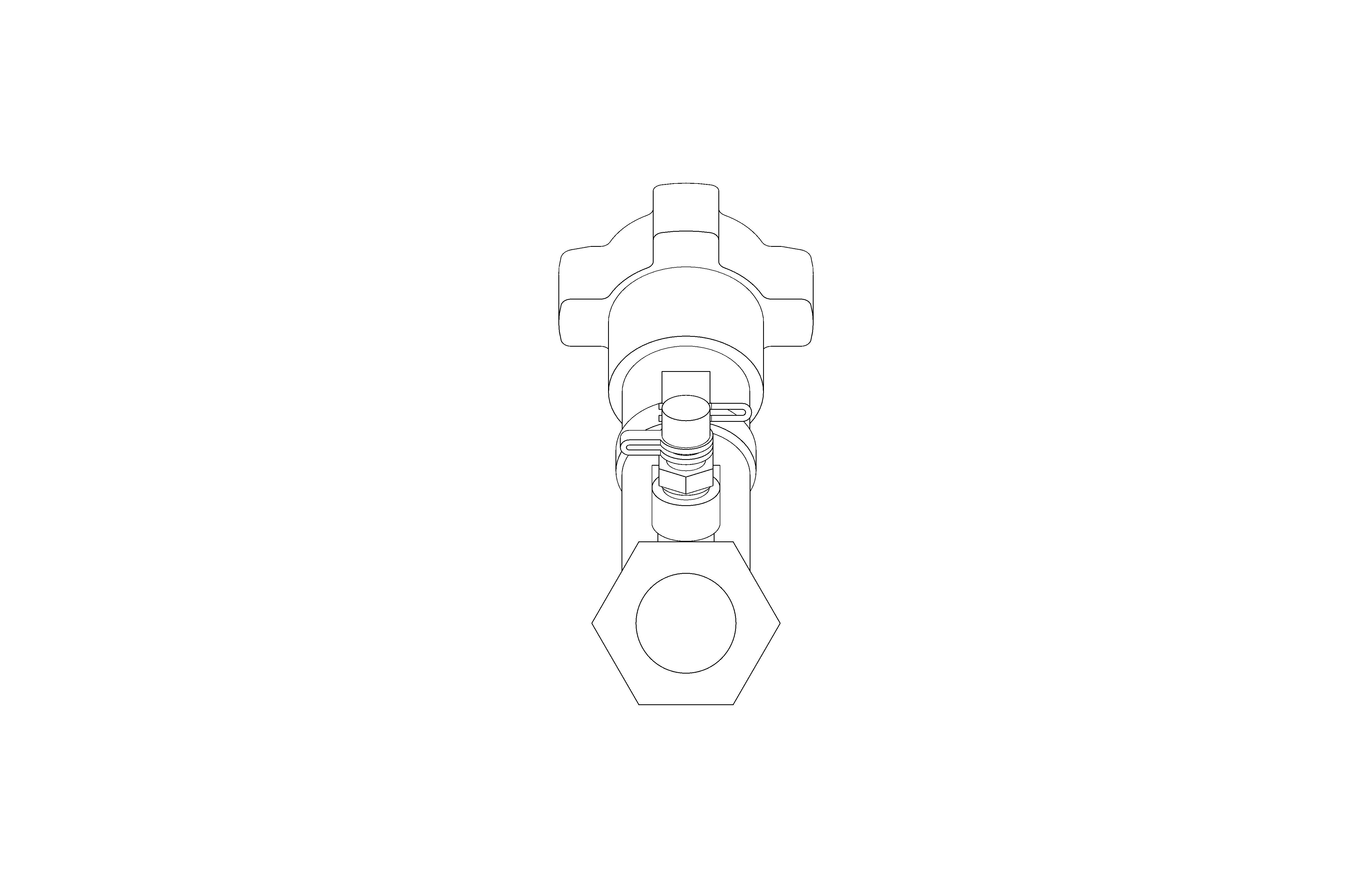

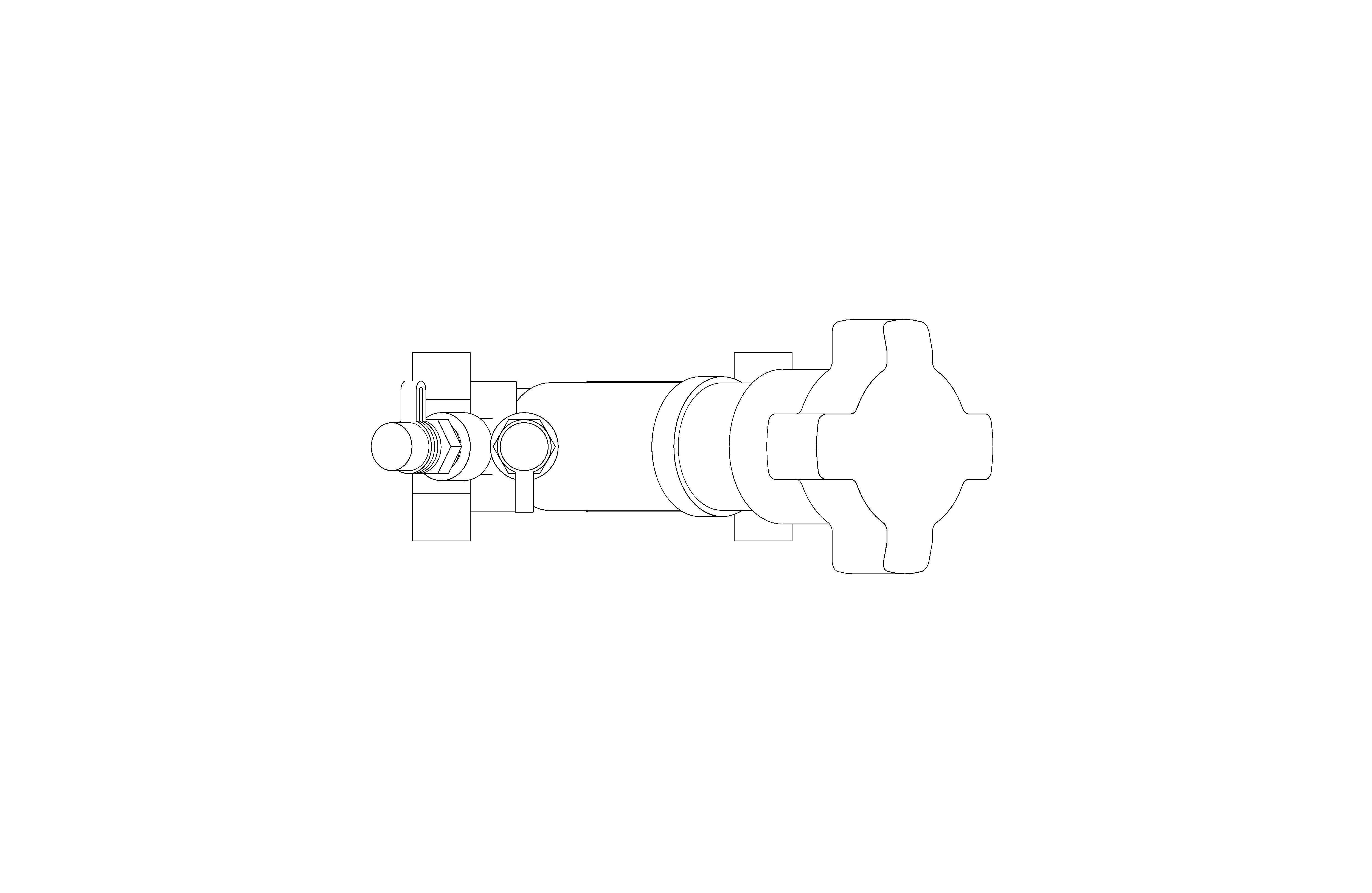

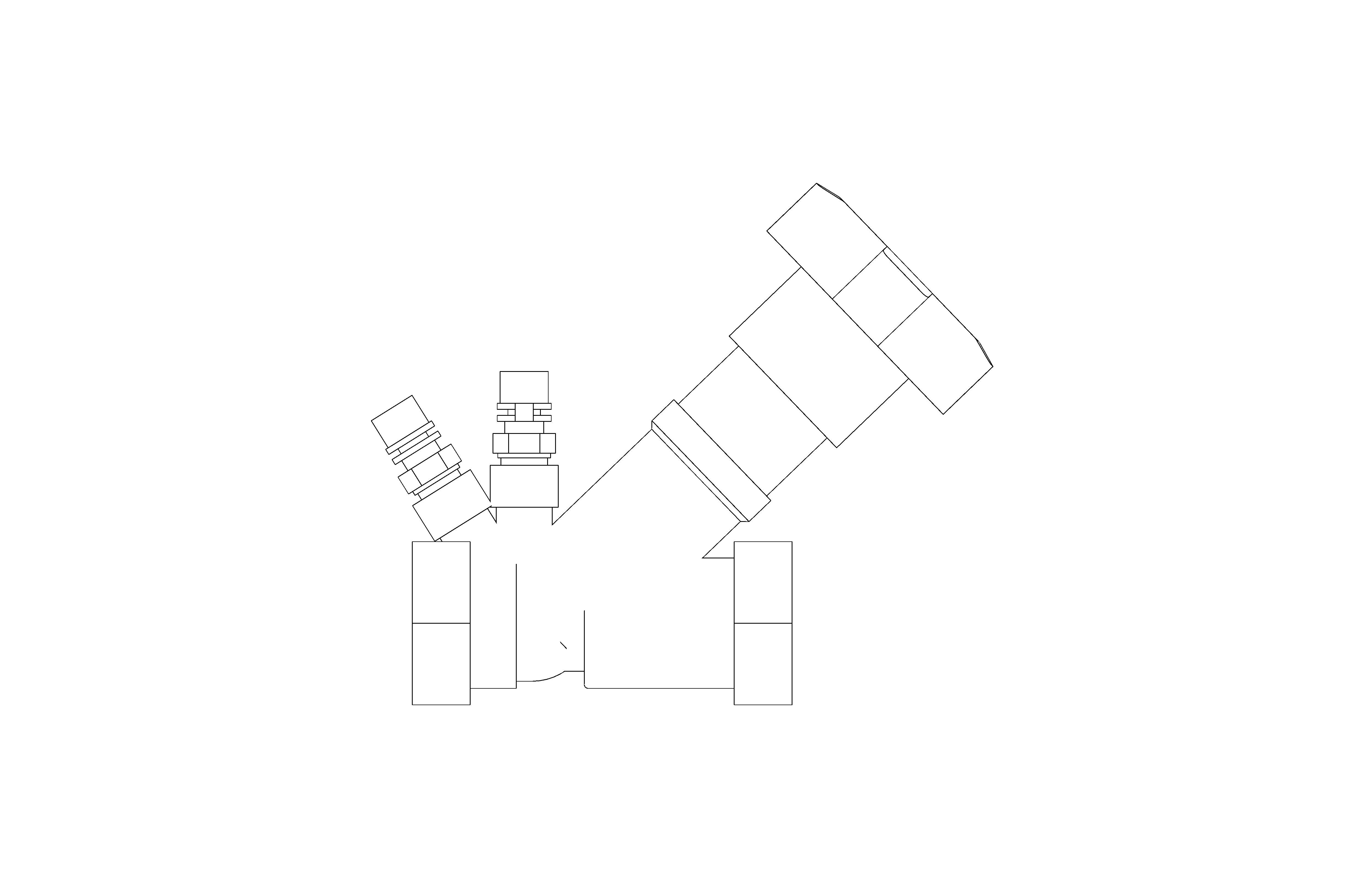

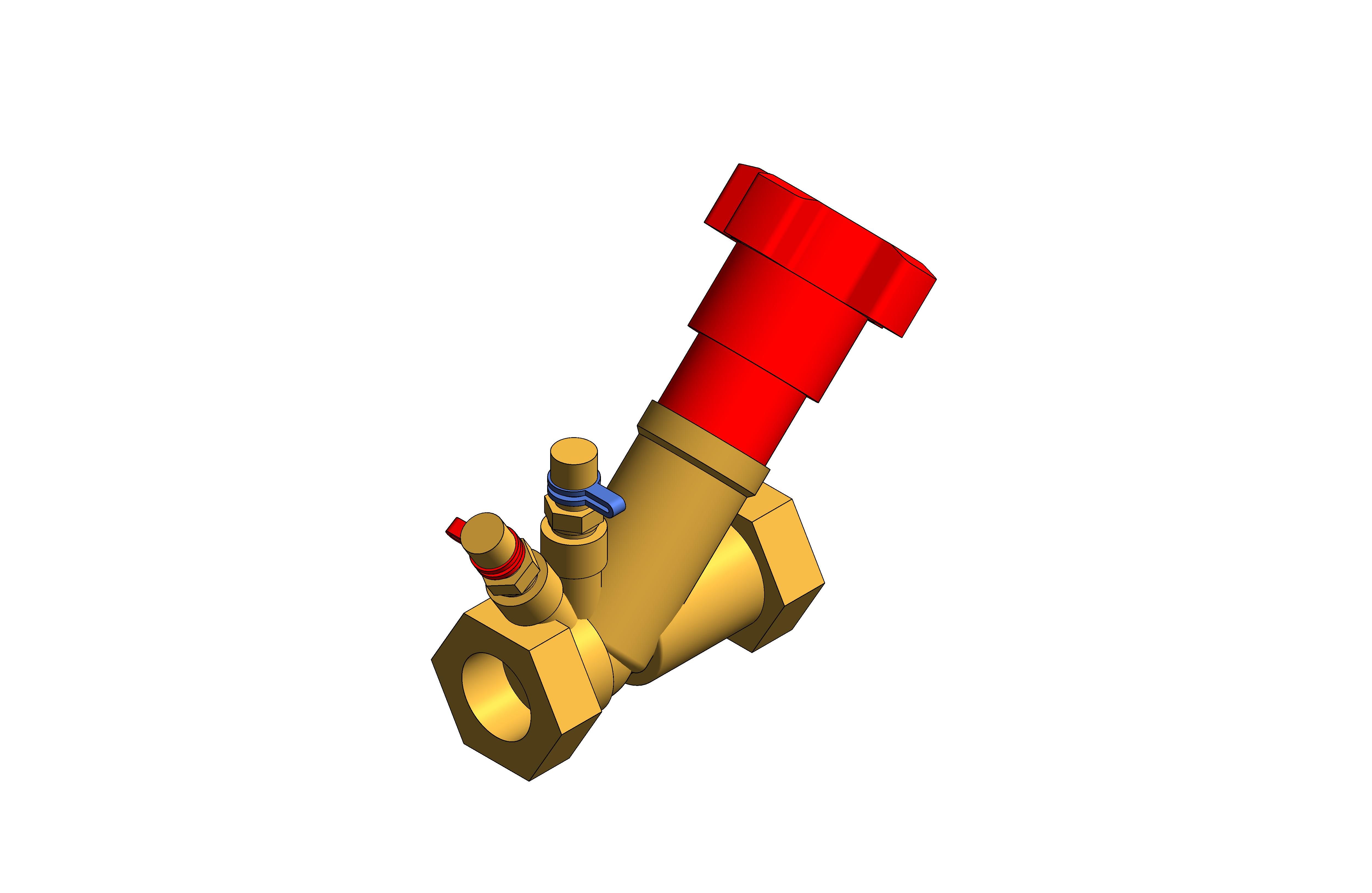

ART 62 - Static Balancing Valve

by Albion Valves

Download Add to collection

Description

DZR Fixed Orifice Double Regulating Valve

Connection

BSP Parallel (ISO 228/1)

Pressure

25 Bar Rated

Temperature

-10°C to +120°C

Approvals

WRAS Approved

Object Data

1 Revision

Last Updated

10/08/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

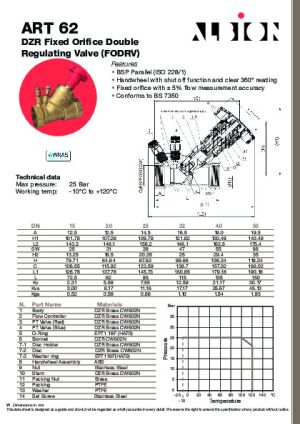

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/e047f552-6c24-4b2a-88a4-b100c6b6a3f4/document/object-user-guide
19.50 mm
21.90 mm
310.50 mm
48.00 mm
a19.50 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b8.40 mm
BIM Object NameAlbionValves_PipeAccessories_StaticBalancingValve_ART62
c33.00 mm
C1107.00 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_64
Code Performancen/a
ColorYellow & Red
Connection Size15.00 mm
Connector Offset12.50 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2025-07-30T09:00:00
Default Elevation0.00 mm
DescriptionDZR Double Regulating Valve (DRV)
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/e047f552-6c24-4b2a-88a4-b100c6b6a3f4/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Handle Centre Height79.70 mm
Handle Centre Length106.60 mm
Handle FinishAlbion_Handwheel_Red
Handle Length110.50 mm
Handle Offset6.00 mm
Hex Dim26.60 mm
Ifc Export AsIfcValveType
Ifc Export TypeREGULATING
KeynoteS
Kv0
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialBrass
Max Pressure25 Bar
ModelART 62 Static Balancing Valve
Model NumberDN15 - DN1/2"
Model ReferenceART 62 Static Balancing Valve
NBS DescriptionPressure-regulating valves
NBS Object NameAlbion Valves - Pressure-regulating valves
NBS Office Master Tagn/a
NBS Reference90-10-90/410
Nominal Depth70.00 mm
Nominal Height115.03 mm
Nominal Length143.30 mm
Nut Depth12.50 mm
Production Year2025
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN15 - DN1/2"
Size DN15
Spare Partsn/a
Tag 1 Angle29.50 °
Tag 1 Length60.00 mm
Tag 1 Offset16.00 mm
Tag 2 Angle0.00 °
Tag 2 Length60.00 mm
Tag 2 Offset14.00 mm
Thread Inch1/2
Thread Millimetre12.70 mm
Type CommentsDN15 - DN1/2"
Type NameART 62 Static Balancing Valve
URLwww.albionvalvesuk.com/
Valve FinishBrass
Valve Handle Inc Handle Tag143.30 mm
Valve Height Inc Handle101.80 mm
Valve Length72.50 mm
Valve Length Inc Handle128.80 mm
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor5
Warranty Duration Parts5
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight0.00 Kgs
Working Temperature-10°C to +120°C

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
