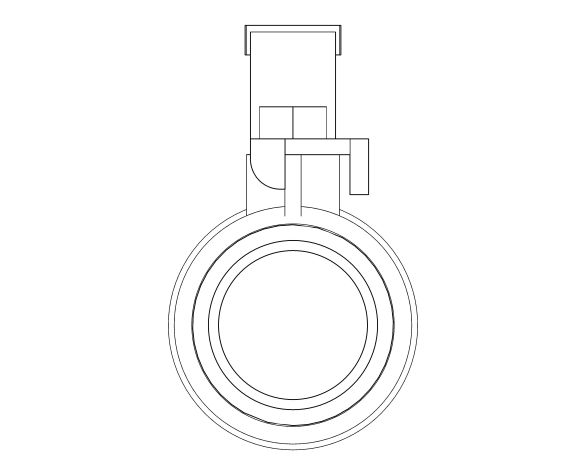

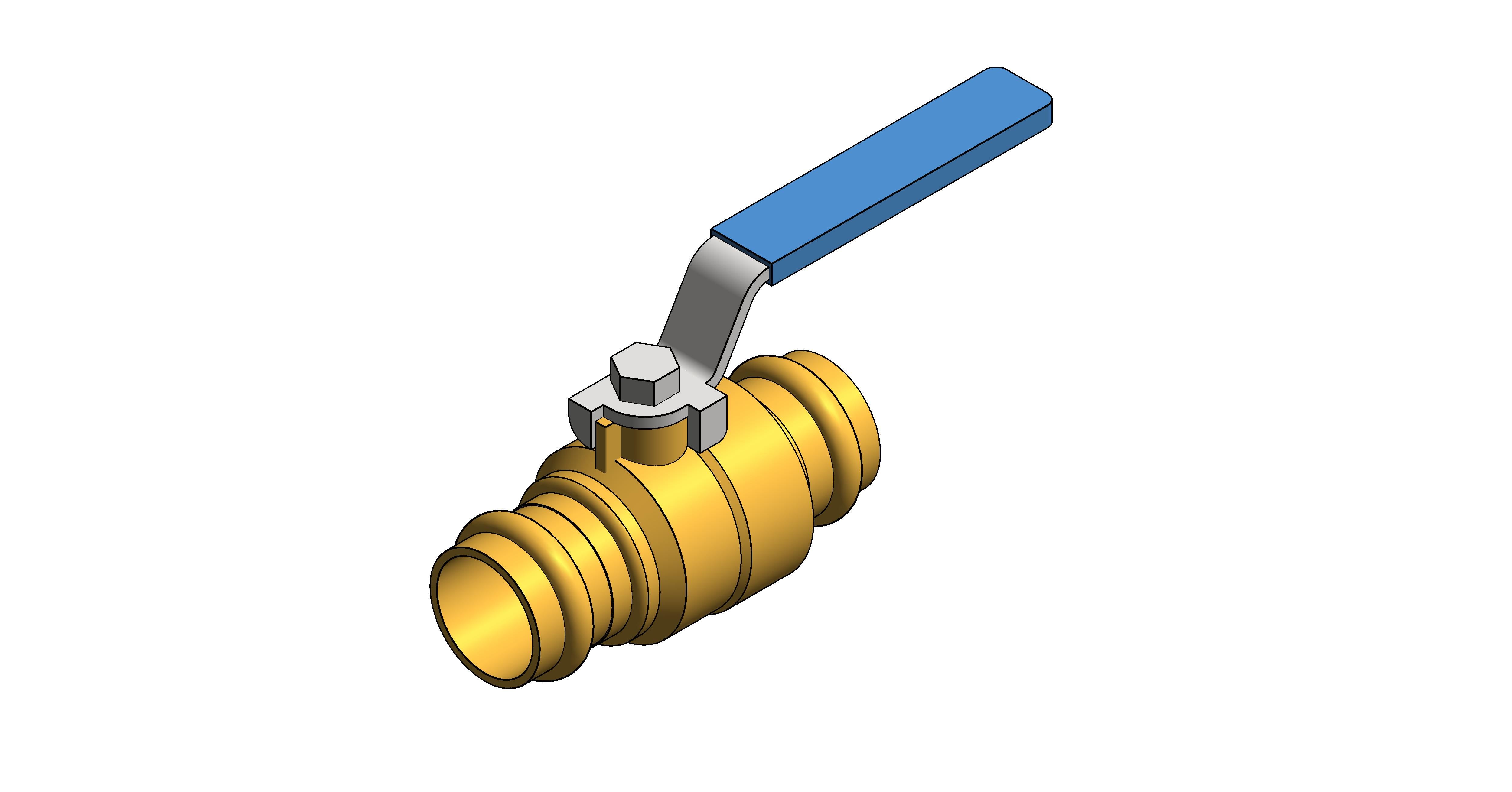

ART 55 PRS - Ball Valve

by Albion Valves

Download Add to collection

Description

Description
DZR Brass Ball valve. Full Bore.

Connection
'M & V' Press Ends

Approvals/ other
CE Approved
WRAS Approved

Pressure
24 Bar Rated (DN15), 20 Bar Rated (DN22 & DN28), 17 Bar Rated (DN35 to DN54)

Temperature
-20°C to +140°C

Object Data

1 Revision

Last Updated

02/03/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Available

Accompanying literature

Object User Guide

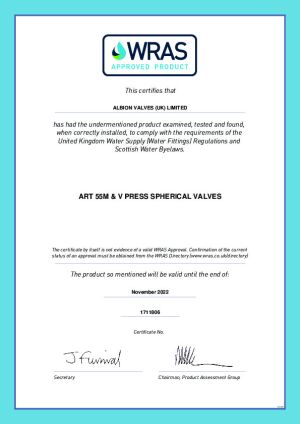

Product Certificates

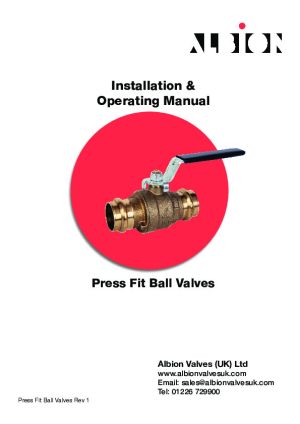

Installation Guide

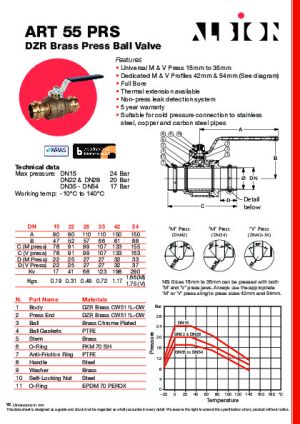

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-55-prs/document/object-user-guide
110.0 mm
212.0 mm
314.1 mm
59.5 mm
623.8 mm
a19.4 mm
A90.0 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B47.0 mm
BIM Object NameAlbionValves_PipeAccessories_BallValve_ART55PRS
c6.1 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_06
Code Performancen/a
ColorYellow
Connection Radius7.5 mm
Connection Size15.0 mm
Constituentsn/a
Cover MaterialPVC Plastic - Blue
Created Bysales@albionvalvesuk.com
Created On2019-08-29 T09:00:00
d21.9 mm
DescriptionPN16 DZR Press Ball Valve
DN15.0 mm
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/art-55-prs/document/technical-data-sheet
Duration UnitYears
e23.9 mm
Expected Life0
f26.9 mm
Featuresn/a
FinishDZR Brass
g29.0 mm
Graden/a
h39.6 mm
Handle MaterialSteel
Handle Offset2.9 mm
i40.5 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
j50.0 mm
k59.5 mm
KeynoteS
l10.0 mm
Large HandleNo
m2.9 mm
m 19.5 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialDZR Brass
Max Pressure24 Bar
Medium HandleNo
ModelPN16 DZR Press Ball Valve
Model NumberDN 54
Model ReferencePN16 DZR Press Ball Valve
n15.0 mm
NBS DescriptionBall valves
NBS Object NameAlbion Valves - Ball Valves
NBS Office Master Tagn/a
NBS Reference90-10-90/330
o15.0 mm
Production Year2019
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN 54
Size DN15
Small HandleYes
Spare Partsn/a
Thread Inch1/2
Thread Millimetre15.0 mm
Type CommentsDN 54
Type NamePN16 DZR Press Ball Valve
URLwww.albionvalvesuk.com/
Valve FinishBrass Chrome Plated
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor5
Warranty Duration Parts5
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Working Temperature-20ºC to +140ºC

Sustainability & Environmental Data

Self Certified Sustainability Data

This data is supplied and self certified by the manufacturer.

Biogenic CO2e (A1-A3,B1-B5,C1-C4) 2 kg
Total CO2e (Fossil) kg
Manufacturing (A1-A3) kg
Transport to Site (A4) kg
On-Site Installation (A5) kg
Use & Maintenance (B1-B5) kg
End of Life (C1,C3,C4) kg
Recycled Content %
Recyclable Content %
Re-use Potential %
Energy Recovery Possibility %
Water Use L
Ozone Depletion Potential mg CFC-11eq
Expiry-

Self Certified Sustainability Data

This data is supplied and self certified by the manufacturer.

Biogenic CO2e (A1-A3,B1-B5,C1-C4) 2 kg
Total CO2e (Fossil) kg
Manufacturing (A1-A3) kg
Transport to Site (A4) kg
On-Site Installation (A5) kg
Use & Maintenance (B1-B5) kg
End of Life (C1,C3,C4) kg
Recycled Content %
Recyclable Content %
Re-use Potential %
Energy Recovery Possibility %
Water Use L
Ozone Depletion Potential mg CFC-11eq
Expiry-

Self Certified Sustainability Data

This data is supplied and self certified by the manufacturer.

Biogenic CO2e (A1-A3,B1-B5,C1-C4) 4 kg
Total CO2e (Fossil) kg
Manufacturing (A1-A3) kg
Transport to Site (A4) kg
On-Site Installation (A5) kg
Use & Maintenance (B1-B5) kg
End of Life (C1,C3,C4) kg
Recycled Content %
Recyclable Content %
Re-use Potential %
Energy Recovery Possibility %
Water Use L
Ozone Depletion Potential mg CFC-11eq
Expiry-

Self Certified Sustainability Data

This data is supplied and self certified by the manufacturer.

Biogenic CO2e (A1-A3,B1-B5,C1-C4) 6 kg
Total CO2e (Fossil) kg
Manufacturing (A1-A3) kg
Transport to Site (A4) kg
On-Site Installation (A5) kg
Use & Maintenance (B1-B5) kg
End of Life (C1,C3,C4) kg
Recycled Content %
Recyclable Content %
Re-use Potential %
Energy Recovery Possibility %
Water Use L
Ozone Depletion Potential mg CFC-11eq
Expiry-

Self Certified Sustainability Data

This data is supplied and self certified by the manufacturer.

Biogenic CO2e (A1-A3,B1-B5,C1-C4) 9 kg
Total CO2e (Fossil) kg
Manufacturing (A1-A3) kg
Transport to Site (A4) kg
On-Site Installation (A5) kg
Use & Maintenance (B1-B5) kg
End of Life (C1,C3,C4) kg
Recycled Content %
Recyclable Content %
Re-use Potential %
Energy Recovery Possibility %
Water Use L
Ozone Depletion Potential mg CFC-11eq
Expiry-

Self Certified Sustainability Data

This data is supplied and self certified by the manufacturer.

Biogenic CO2e (A1-A3,B1-B5,C1-C4) 14 kg
Total CO2e (Fossil) kg
Manufacturing (A1-A3) kg
Transport to Site (A4) kg
On-Site Installation (A5) kg
Use & Maintenance (B1-B5) kg
End of Life (C1,C3,C4) kg
Recycled Content %
Recyclable Content %
Re-use Potential %
Energy Recovery Possibility %
Water Use L
Ozone Depletion Potential mg CFC-11eq
Expiry-

Environmental Product Declarations

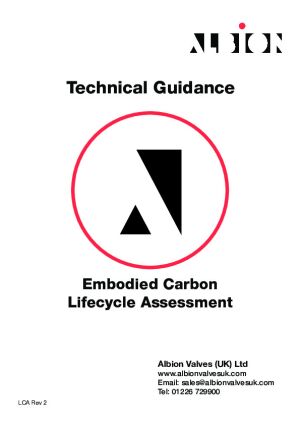

Environmental Product Declaration (EPD)
