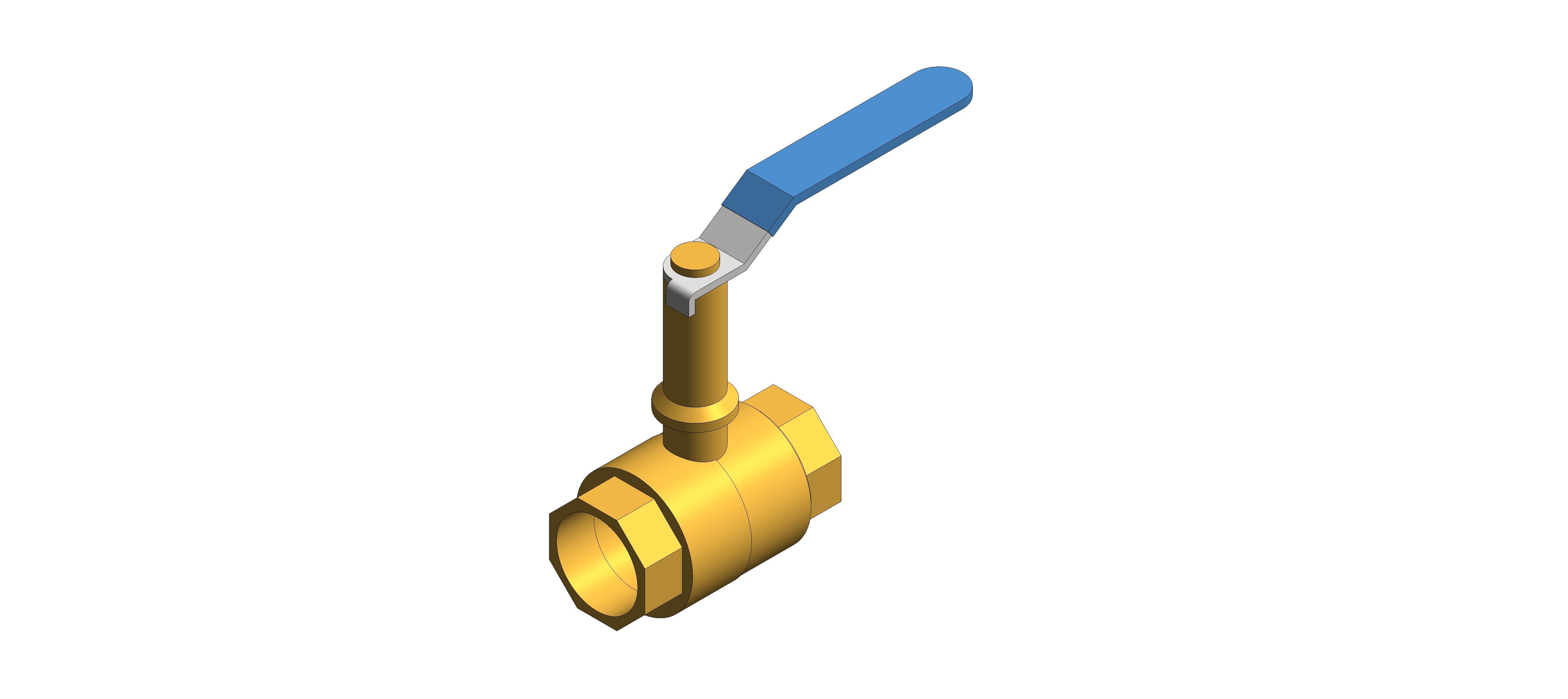

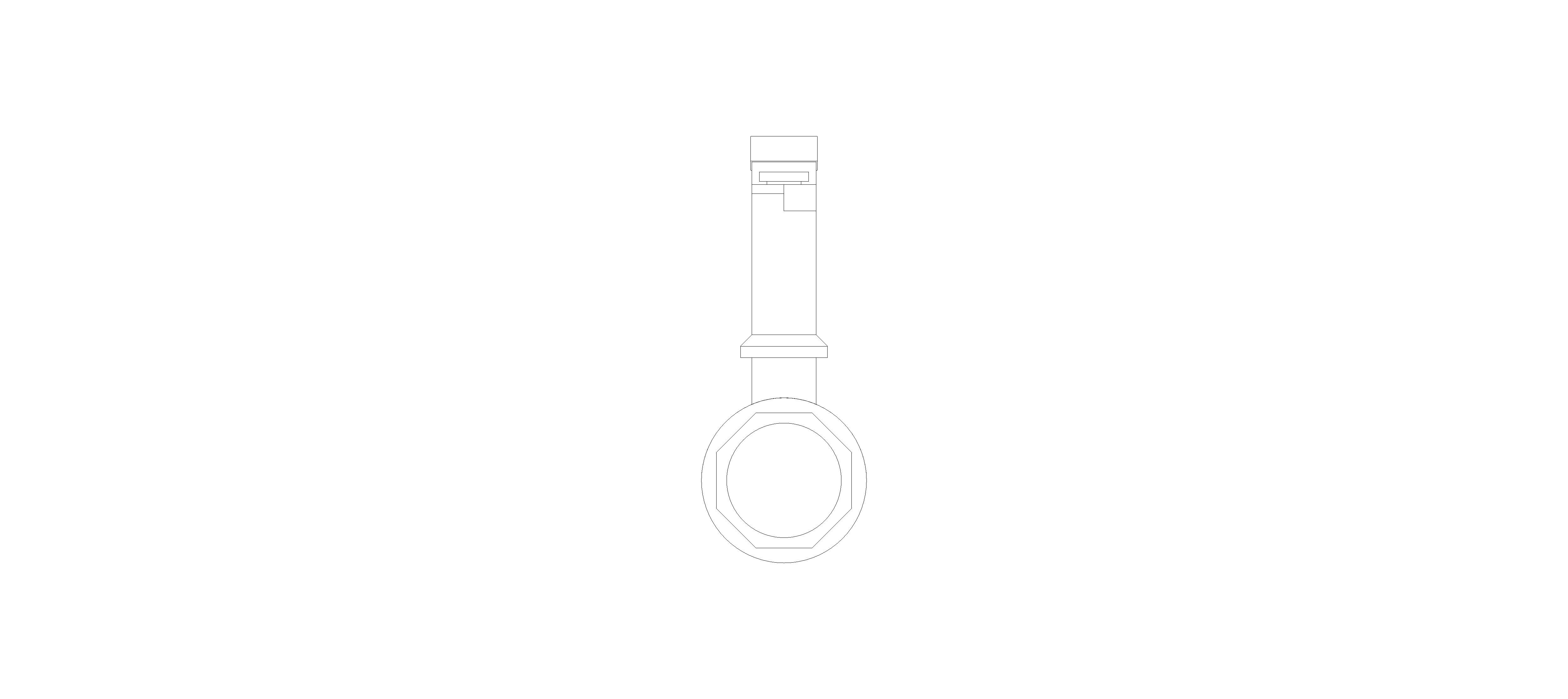

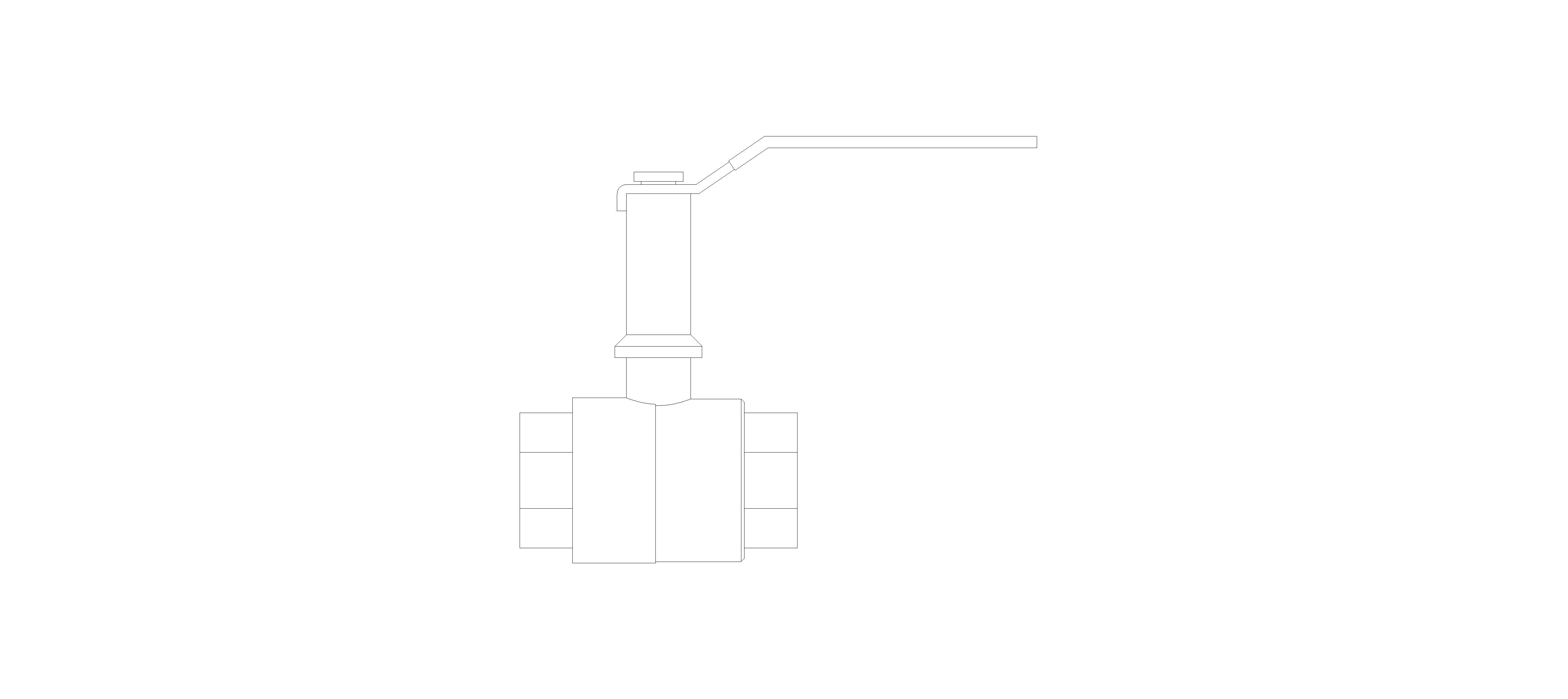

ART 50 97X - Ball Valve complete with Thermal Extension

by Albion Valves

Download Add to collection

Description

2 Piece DZR Brass Ball Valve. Full Bore.

Object Data

2 Revision

Last Updated

08/01/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

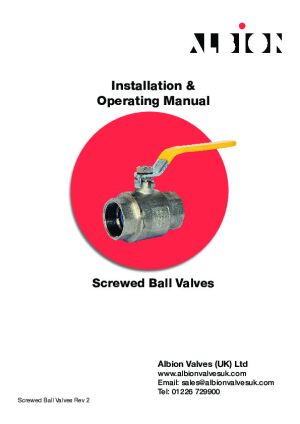

Installation Guide

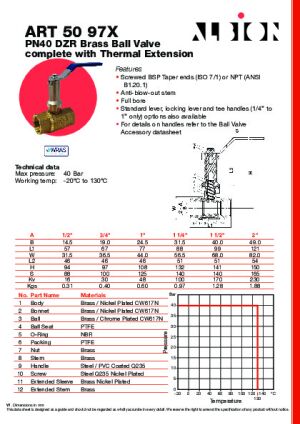

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision2
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/953fc503-fdb2-4237-95cf-6db872570a8f/document/object-user-guide
117.1 mm
21.0 mm
312.0 mm
421.0 mm
a12.0 mm
Accessibility Performancen/a
Af Diameter24.8 mm
Assembly CodeD20
Asset TypeFixed
b7.0 mm
BIM Object NameAlbionValves_PipeAccessories_BallValve_ART50
c4.0 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_06
Code Performancen/a
ColorYellow
Connection Radius7.5 mm
Connection Size15.0 mm
Constituentsn/a
Cover MaterialPVC Plastic - Blue
Created Bysales@albionvalvesuk.com
Created On2025-03-10T09:00:00
d10.0 mm
Default Elevation0.0 mm
DescriptionART 50 Ball Valve
DN15.0 mm
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/wp-content/uploads/2022/07/Screwed-Ball-Valve-IOM-Rev-2.pdf
Documentation Literaturewww.albionvalvesuk.com/part/art-50-with-thermal-extension/
Documentation Maintenancewww.albionvalvesuk.com/wp-content/uploads/2022/07/Screwed-Ball-Valve-IOM-Rev-2.pdf
Documentation Technicalwww.bimstore.co/products/953fc503-fdb2-4237-95cf-6db872570a8f/document/technical-data-sheet
Duration UnitYears
e20.0 mm
Expected Life0
F15.0 mm
Featuresn/a
FinishBrass
Graden/a
H94.0 mm
Handle MaterialSteel
Handle Placement69.0 mm
Handle Thickness2.5 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
L87.5 mm
L152.0 mm
L2100.0 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialDZR Brass
Max Pressure40 Bar
Max Thread Diameter21.0 mm
ModelART 50 PN40 DZR Brass Ball Valve
Model NumberDN 1/2"
Model ReferenceART 50 PN40 DZR Brass Ball Valve
NBS DescriptionBall valves
NBS Object NameAlbion Valves - Ball valves
NBS Office Master Tagn/a
NBS Reference90-10-90/330
Nominal Depth24.0 mm
Nominal Height106.0 mm
Nominal Length57.0 mm
Nut Radius12.4 mm
Nut Width11.0 mm
O14.5 mm
Production Year2024
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SI57.0 mm
SizeDN 1/2"
Size DN15
Spare Partsn/a
Symbol Width19.0 mm
Thread Inch1/2
Thread Millimetre12.7 mm
Type CommentsDN 1/2"
Type NameART 50 PN40 DZR Brass Ball Valve
URLwww.albionvalvesuk.com/
Valve FinishBrass
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight0.31kg
