ART 450 - Flexible Connector

by Albion Valves

Download Add to collection

Description

Description
PN16 Tied Flanged Flexible Connector BS4504

Connection
Flanged PN16

Pressure
16 Bar Rated

Temperature
-20°C to +100°C EPDM
-20°C to +80°C NBR (ART 460)

Object Data

1 Revision

Last Updated

02/03/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

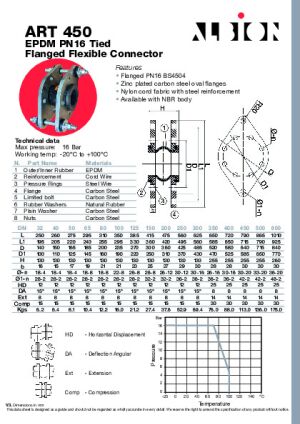

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-450/document/object-user-guide
Accessibility Performancen/a
Angle47.00 °
Assembly CodeD20
Asset TypeFixed
b18 mm
BIM Object NameAlbionValves_PipeAccessories_FlexibleConnector_ART450
BlackEPDM Plastic
Classification NameUniclass2015
Classification ValuePr_65_52_62_62
Code Performancen/a
Colorblack EPDM rubber
Connection Size100 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2019-07-01T09:00:00
D220 mm
D1180 mm
DescriptionPN16 Tied Flanged Flexible Connector
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/art-450/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
FinishCarbon Steel and EPDM
Graden/a
H130 mm
H120 mm
Holes Dia18 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
Inside Diameter100 mm
KeynoteS
L306 mm
L1266 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialCarbon Steel and EPDM
Max Pressure16 Bar
ModelPN16 Tied Flanged Flexible Connector
Model NumberDN100 - DN4"
Model ReferencePN16 Tied Flanged Flexible Connector
n18 mm
n 128 mm
NBS DescriptionPipeline connectors
NBS Object NameAlbion Valves - Pipeline connectors
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth220 mm
Nominal Height306 mm
Nominal Length130 mm
Outside Diameter110 mm
Production Year2019
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN100 - DN4"
Size DN100
Socket Diameter152 mm
Spare Partsn/a
Thread Inch4
Thread Millimetre102 mm
Type CommentsDN100 - DN4"
Type NamePN16 Tied Flanged Flexible Connector
URLwww.albionvalvesuk.com/
Valve FinishSteel, Carbon
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight10.8 Kg
Working Temperature-20°C to +100°C
