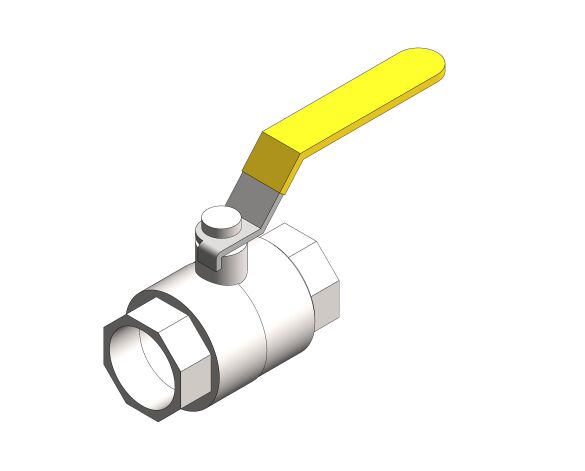

ART 40P - Ball Valve

by Albion Valves

Download Add to collection

Description

Description
2 Piece Brass Ball Valve. Full Bore.

Connection
BSP Parallel F/F Ends (ISO 228/1)

Approvals/ other
CE, WRAS, EN331 Gas

Pressure
Liquids - 40 Bar Rated (¼" to 2")
Liquids - 25 Bar Rated (2½" to 4")
Gas - 5 Bar Rated (¼" to 4")

Temperature
Liquids -20°C to +140°C
Gas -20°C to +60°C

Object Data

1 Revision

Last Updated

02/03/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

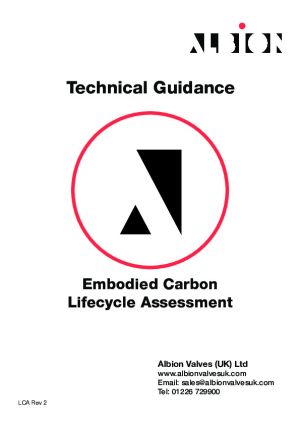

EPD

Available

Accompanying literature

Object User Guide

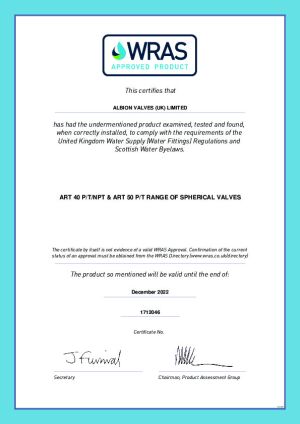

Product Certificates

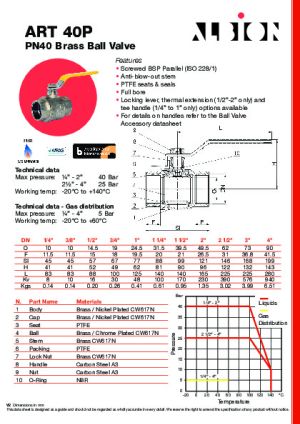

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-40p/document/object-user-guide
113.5 mm
21.0 mm
311.0 mm
420.0 mm
a9.0 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b5.0 mm
BIM Object NameAlbionValves_PipeAccessories_BallValve_ART40P
c3.0 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_06
Code Performancen/a
ColorNickel
Connection Radius5.0 mm
Connection Size10.0 mm
Constituentsn/a
Cover MaterialPVC Plastic - Yellow
Created Bysales@albionvalvesuk.com
Created On2019-08-29 T09:00:00
d8.0 mm
DescriptionART 40P Ball Valve
DN10.0 mm
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/art-40p/document/technical-data-sheet
Duration UnitYears
e20.0 mm
Expected Life0
F11.5 mm
Featuresn/a
FinishBrass/Nickel plated
Graden/a
H41.0 mm
Handle MaterialSteel
Handle Placement20.0 mm
Handle Thickness2.0 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
L82.0 mm
L152.0 mm
L2100.0 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialBrass/Nickel plated
Max Pressure40 Bar
ModelART 40P Brass Ball Valve
Model NumberDN 3/8"
Model ReferenceART 40P Brass Ball Valve
NBS DescriptionBall valves
NBS Object NameAlbion Valves - Ball valves
NBS Office Master Tagn/a
NBS Reference90-10-90/330
Nut Radius6.3 mm
Nut Width9.0 mm
O10.0 mm
Production Year2019
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SI45.0 mm
SizeDN 3/8"
Size DN10
Spare Partsn/a
Thread Inch3/8
Thread Millimetre9.5 mm
Type CommentsDN 3/8"
Type NameART 40P Brass Ball Valve
URLwww.albionvalvesuk.com/
Valve FinishNickel Plating
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight0.14kg
Working Temperature-20°C to +140°C
