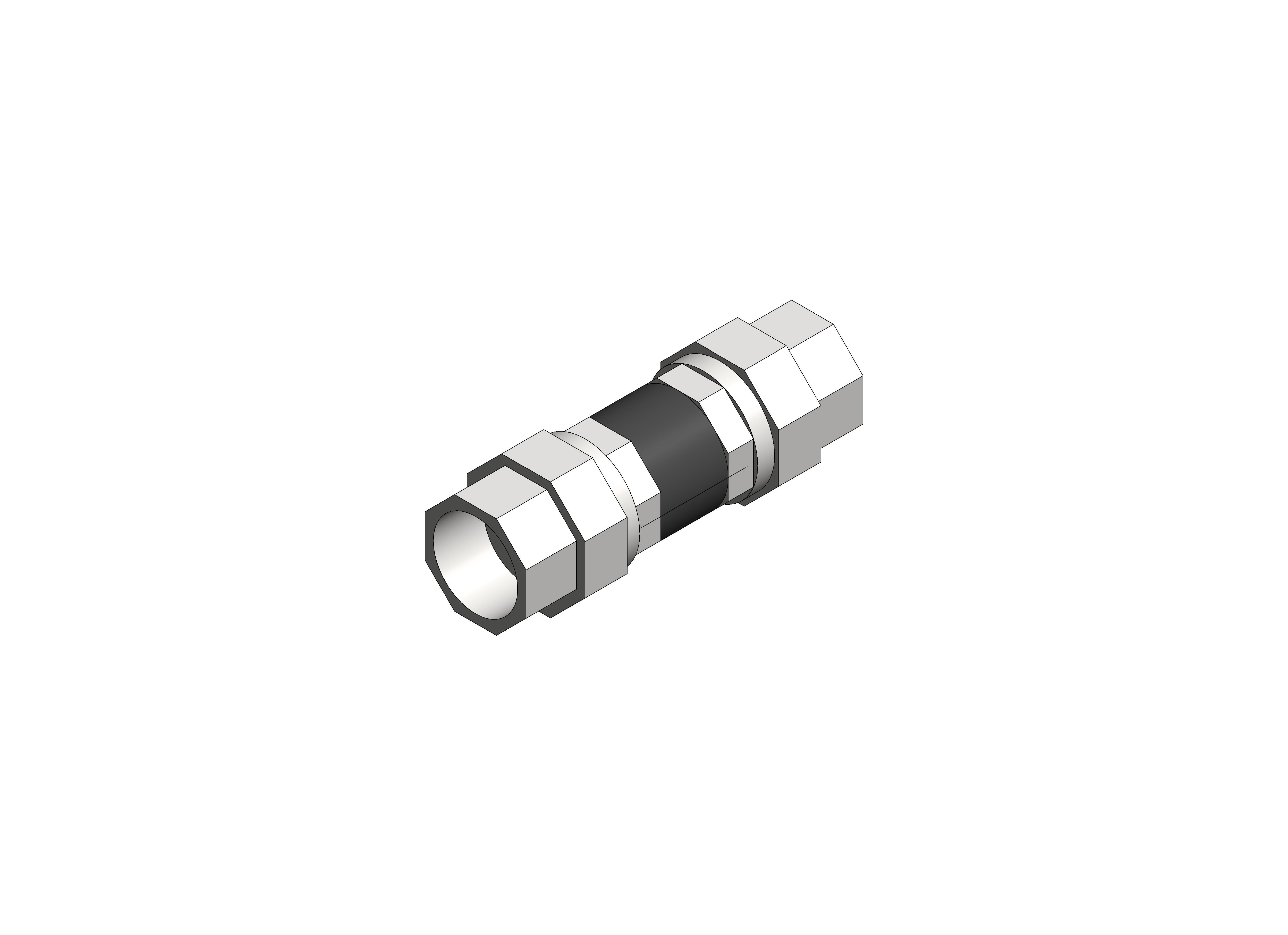

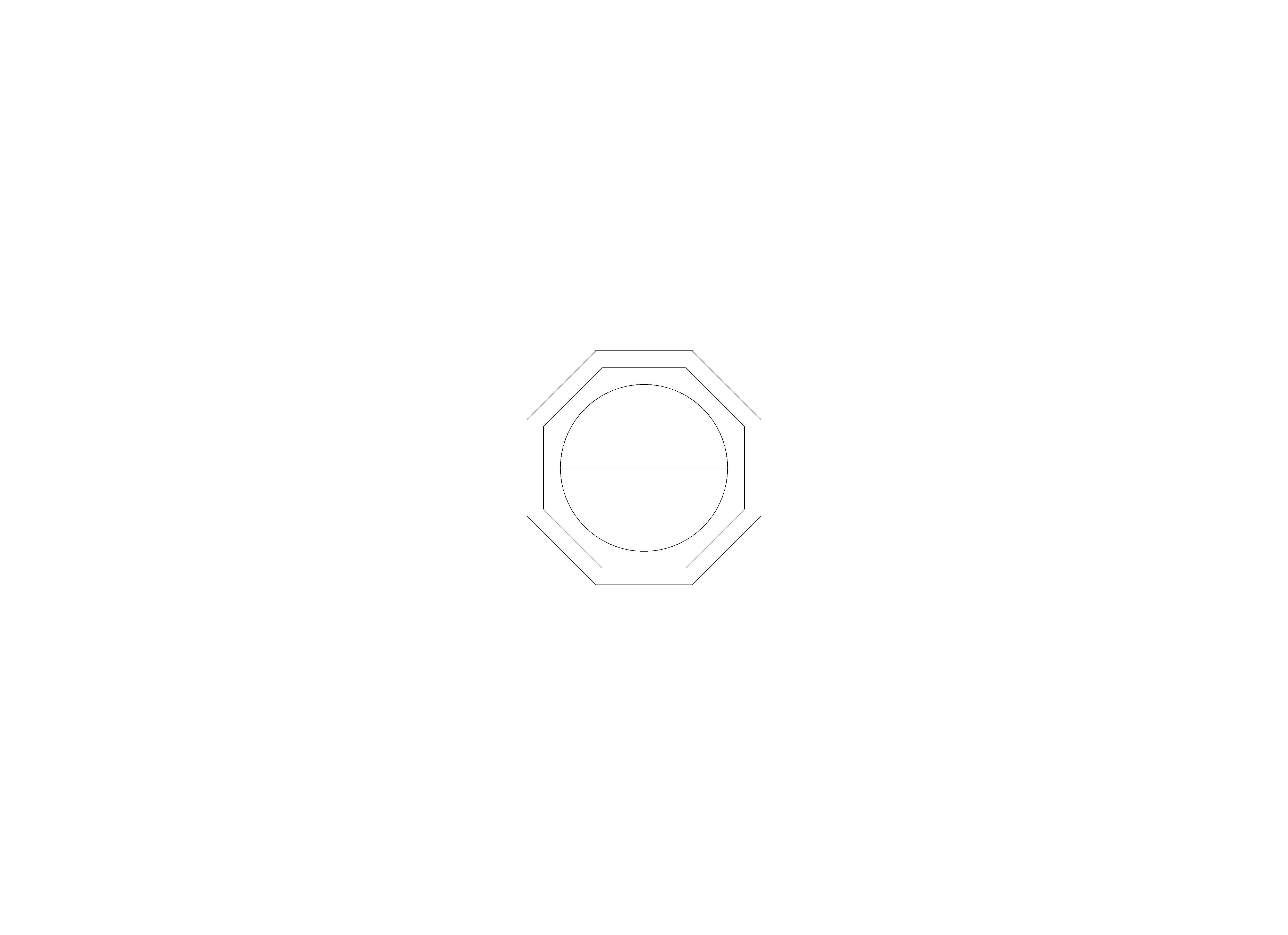

ART 400 - Flexible Connector

by Albion Valves

Download Add to collection

Description

Description
PN16 Screwed Flexible Connector. BSP Taper BS21 (ISO 7/1) or NPT (ANSI B1.20.1)

Stock Availability
NPT valves are subject to factory lead time.

Connection
Screwed BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)

Pressure
16 Bar Rated

Temperature
-20°C to +100°C EPDM
-20°C to +80°C NBR

Object Data

1 Revision

Last Updated

02/03/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

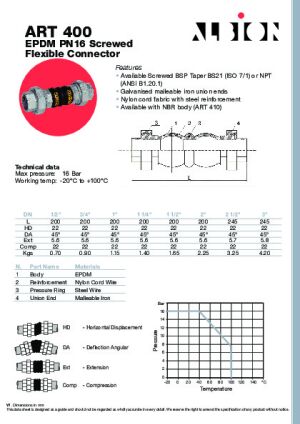

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-400/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
BIM Object NameAlbionValves_PipeAccessories_FlexibleConnector_ART400
BlackEPDM Plastic
Classification NameUniclass2015
Classification ValuePr_65_52_62_62
Code Performancen/a
ColorBlue
Connection Size15 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2019-07-01T09:00:00
Deflection Angular0.00 °
DescriptionFlexible Connector
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/art-400/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
FinishMalleable Iron and EPDM
Graden/a
Hex 225 mm
Hex 335 mm
Hex 425 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
Inside Diameter15 mm
KeynoteS
L200 mm
L215 mm
L325 mm
L430 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialMalleable Iron and EPDM
Max Pressure16 Bar
ModelFlexible Connector
Model NumberDN15 - DN1/2"
Model ReferenceFlexible Connector
NBS DescriptionPipeline connectors
NBS Object NameAlbion Valves - Pipeline connectors
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth35 mm
Nominal Height35 mm
Nominal Length200 mm
Outside Diameter25 mm
Outside Radius13 mm
Production Year2019
Radius8 mm
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN15 - DN1/2"
Size DN15
Socket Diameter117 mm
Spare Partsn/a
Symbol Width10 mm
Thread Dia30 mm
Thread Inch1/2
Thread Millimetre13 mm
Type CommentsDN15 - DN1/2"
Type NameFlexible Connector
URLwww.albionvalvesuk.com/
Valve FinishSteel, Carbon
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight0.70 kgs
Working Temperature-20°C to +100°C
