ART 38 - Single Check Valve

by Albion Valves

Download Add to collection

Description

DZR Brass Single Check Valve. F/F BSP Parallel (ISO 228/1). Conforms with EN13959. Suitable for Fluid Categories 1 & 2.

F/F BSP Parallel (ISO 228/1).

16 Bar Rated.

Max Working Temp: +85°C

Object Data

1 Revision

Last Updated

16/11/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Available

Accompanying literature

Object User Guide

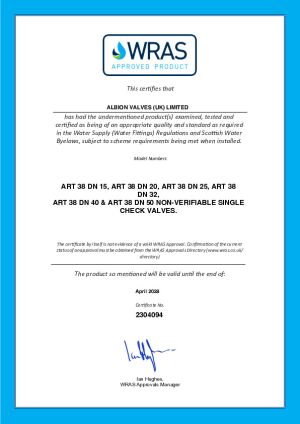

Product Certificates

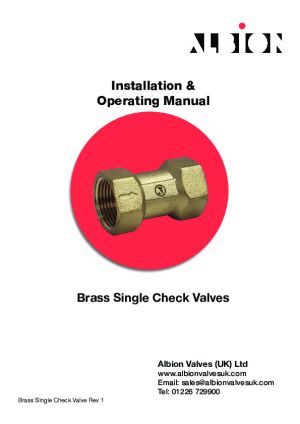

Installation Guide

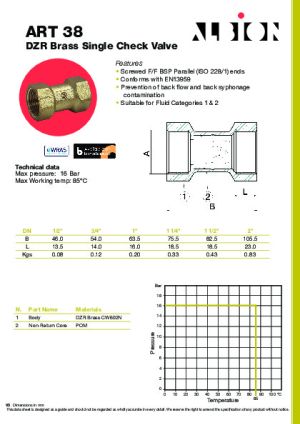

Product Literature

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-38-single-check-valve/document/object-user-guide
a10.0 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B82.5 mm
BIM Object NameAlbionValves_PipeAccessories_SingleCheckValve_ART38
BodyDZR Brass CW602N
Classification NameUniclass2015
Classification ValuePr_65_54_95_05
Code Performancen/a
ColorBrass
Connection Size40.0 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2023-08-07 T09:00:00
Default Elevation0.0 mm
DescriptionDZR Brass Single Check Valve
Documentation Certificateswww.bimstore.co/products/art-38-single-check-valve/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/art-38-single-check-valve/document/installation-guide
Documentation Literaturewww.bimstore.co/products/art-38-single-check-valve/document/product-literature
Documentation Maintenancewww.bimstore.co/products/art-38-single-check-valve/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/art-38-single-check-valve/document/technical-data-sheet
Duration UnitYear
Expected Life0
Features• Screwed F/F BSP Parallel (ISO 228/1) ends • Conforms with EN13959 • Prevention of back flow and back syphonage contamination
FinishDZR Brass
Graden/a
Hex Width52.0 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
L18.5 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialDZR Brass
Maximum Pressure16 bar
Maximum Working Temperature90°C
ModelART 38
Model Number1 1/2"
Model ReferenceART 38
NBS DescriptionBackflow prevention check valves
NBS Noten/a
NBS Object NameAlbion Valves - Backflow prevention check valves
NBS Office Master Tagn/a
NBS Reference90-10-90/440
Nominal Depth0.0 mm
Nominal Height0.0 mm
Nominal Length0.0 mm
Non Return CoreComposite Material
Production Year2023
Referenced StandardEN13959
Replacement Costn/a
Shapen/a
Size1 1/2"
Size DN40
Spare Partsn/a
Thread Inch1 1/2
Type Comments1 1/2"
Type NameART 38
URLwww.albionvalvesuk.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts5
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partssales@albionvalvesuk.com
Weight0.43kg

Sustainability & Environmental Data

Self Certified Sustainability Data

This data is supplied and self certified by the manufacturer.

Biogenic CO2e (A1-A3,B1-B5,C1-C4) 1 kg
Total CO2e (Fossil) kg
Manufacturing (A1-A3) kg
Transport to Site (A4) kg
On-Site Installation (A5) kg
Use & Maintenance (B1-B5) kg
End of Life (C1,C3,C4) kg
Recycled Content %
Recyclable Content %
Re-use Potential %
Energy Recovery Possibility %
Water Use L
Ozone Depletion Potential mg CFC-11eq
Expiry-

Self Certified Sustainability Data

This data is supplied and self certified by the manufacturer.

Biogenic CO2e (A1-A3,B1-B5,C1-C4) 1 kg
Total CO2e (Fossil) kg
Manufacturing (A1-A3) kg
Transport to Site (A4) kg
On-Site Installation (A5) kg
Use & Maintenance (B1-B5) kg
End of Life (C1,C3,C4) kg
Recycled Content %
Recyclable Content %
Re-use Potential %
Energy Recovery Possibility %
Water Use L
Ozone Depletion Potential mg CFC-11eq
Expiry-

Self Certified Sustainability Data

This data is supplied and self certified by the manufacturer.

Biogenic CO2e (A1-A3,B1-B5,C1-C4) 2 kg
Total CO2e (Fossil) kg
Manufacturing (A1-A3) kg
Transport to Site (A4) kg
On-Site Installation (A5) kg
Use & Maintenance (B1-B5) kg
End of Life (C1,C3,C4) kg
Recycled Content %
Recyclable Content %
Re-use Potential %
Energy Recovery Possibility %
Water Use L
Ozone Depletion Potential mg CFC-11eq
Expiry-

Self Certified Sustainability Data

This data is supplied and self certified by the manufacturer.

Biogenic CO2e (A1-A3,B1-B5,C1-C4) 3 kg
Total CO2e (Fossil) kg
Manufacturing (A1-A3) kg
Transport to Site (A4) kg
On-Site Installation (A5) kg
Use & Maintenance (B1-B5) kg
End of Life (C1,C3,C4) kg
Recycled Content %
Recyclable Content %
Re-use Potential %
Energy Recovery Possibility %
Water Use L
Ozone Depletion Potential mg CFC-11eq
Expiry-

Self Certified Sustainability Data

This data is supplied and self certified by the manufacturer.

Biogenic CO2e (A1-A3,B1-B5,C1-C4) 3 kg
Total CO2e (Fossil) kg
Manufacturing (A1-A3) kg
Transport to Site (A4) kg
On-Site Installation (A5) kg
Use & Maintenance (B1-B5) kg
End of Life (C1,C3,C4) kg
Recycled Content %
Recyclable Content %
Re-use Potential %
Energy Recovery Possibility %
Water Use L
Ozone Depletion Potential mg CFC-11eq
Expiry-

Self Certified Sustainability Data

This data is supplied and self certified by the manufacturer.

Biogenic CO2e (A1-A3,B1-B5,C1-C4) 7 kg
Total CO2e (Fossil) kg
Manufacturing (A1-A3) kg
Transport to Site (A4) kg
On-Site Installation (A5) kg
Use & Maintenance (B1-B5) kg
End of Life (C1,C3,C4) kg
Recycled Content %
Recyclable Content %
Re-use Potential %
Energy Recovery Possibility %
Water Use L
Ozone Depletion Potential mg CFC-11eq
Expiry-

Environmental Product Declarations

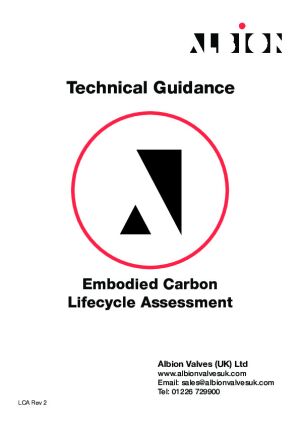

Environmental Product Declaration (EPD)

Expired on 8th Oct 2025
