ART 368 - Strainer

by Albion Valves

Download Add to collection

Description

Description

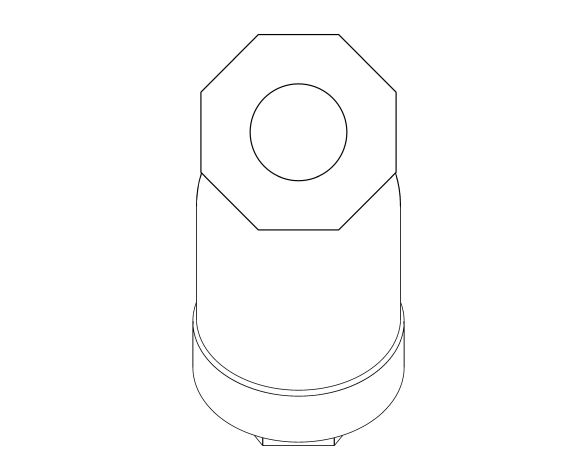

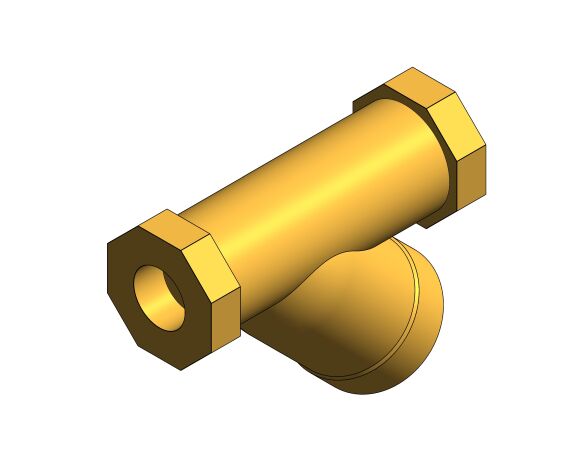

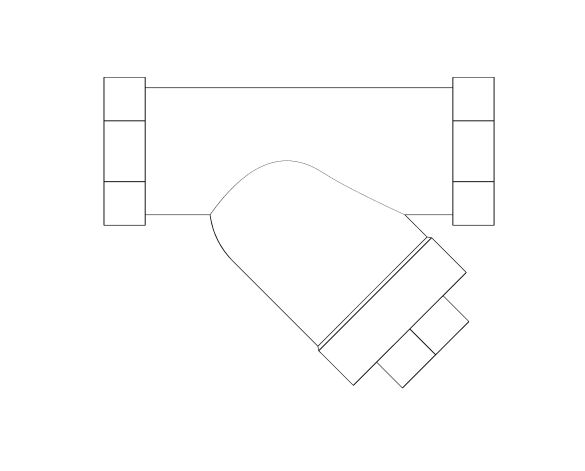

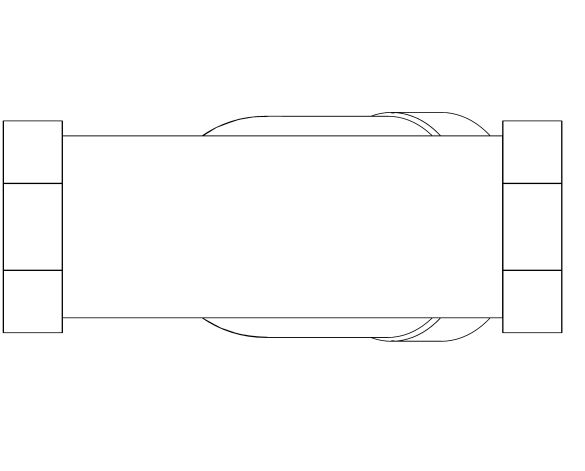

Bronze 'Y' Type Strainer.

Connection
BSP Taper F/F Ends (ISO 7/1) or NPT (ANSI B1.20.1)

Pressure
20 Bar Rated

Temperature
-10°C to +180°C

Object Data

1 Revision

Last Updated

02/03/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Available

Accompanying literature

Object User Guide

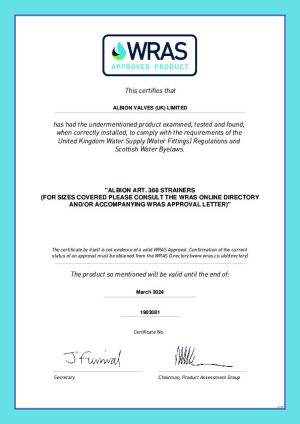

Product Certificates

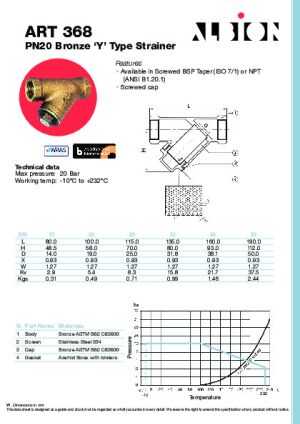

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-368/document/object-user-guide
130.3 mm
215.8 mm
a26.3 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b8.5 mm
BIM Object NameAlbionValves_PipeAccessories_Strainer_ART368
c51.5 mm
Classification NameUniclass2015
Classification ValuePr_65_57_96_99
Code Performancen/a
ColorYellow
Connection Size15.0 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2019-07-01T09:00:00
d10.8 mm
D14.0 mm
DescriptionPN20 Bronze Y-type Strainer
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/art-368/document/technical-data-sheet
Duration UnitYears
e8.9 mm
Expected Life0
Featuresn/a
FinishBronze-ASTM B62 C83600
Graden/a
H48.5 mm
Height Calc1.0 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
L80.0 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialBronze-ASTM B62 C83600
Max Pressure20 Bar
ModelPN20 Bronze Y-type Strainer
Model NumberDN15
Model ReferencePN20 Bronze Y-type Strainer
NBS DescriptionY-type water strainers
NBS Object NameAlbion Valves - Y-type water strainers
NBS Office Master Tagn/a
NBS Reference90-10-60/400
Nominal Depth30.3 mm
Nominal Height63.6 mm
Nominal Length80.0 mm
Nut Height7.5 mm
Nut Width19.2 mm
Production Year2019
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN15
Size DN15
Spare Partsn/a
Strainer Symbol Length40.0 mm
Strainer Symbol Width11.3 mm
Thread Inch1/2
Thread Millimetre12.7 mm
Type CommentsDN15
Type NamePN20 Bronze Y-type Strainer
URLwww.albionvalvesuk.com/
Valve FinishBrass
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight0.31 Kgs
Width Calc1.0 mm
Working Temperature-10°C to 180°C
