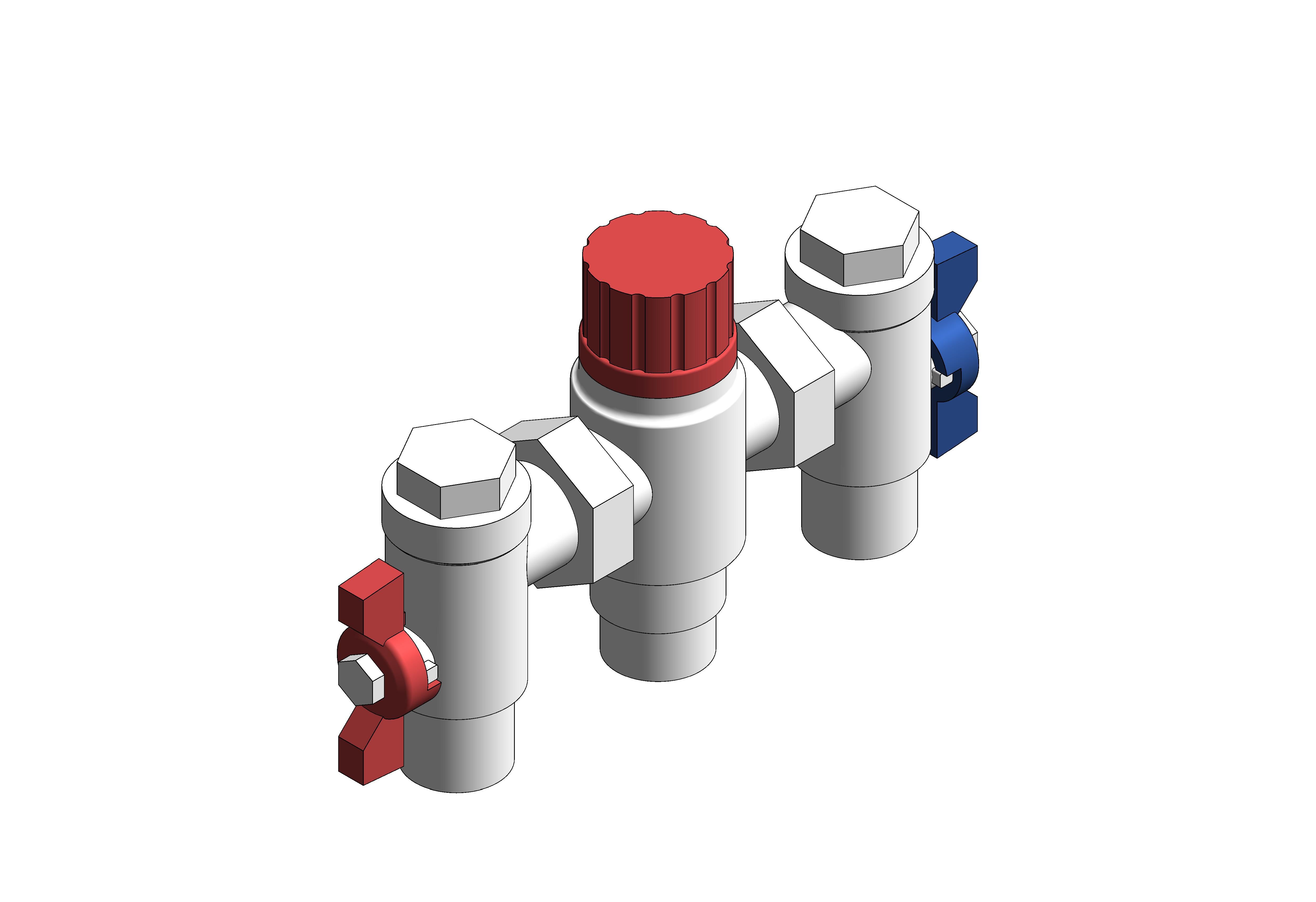

ART 35SV MBSP - Thermostatic Mixing Valve

by Albion Valves

Download Add to collection

Description

Screwed Male BSP Thermostatic Mixing Valve (TMV) complete with isolation valves

Connection	Screwed Male BSP
Pressure	Max pressure (Static) - 10 Bar Max Pressure (Dynamic) - 5 Bar
Temperature	Temperature adjustment range: +30°C to +48°C
Approvals	WRAS Approved, TMV 2, TMV 3

Object Data

1 Revision

Last Updated

13/03/2026

Available Software

BSB

Compliant

EPD

Not Available

Accompanying literature

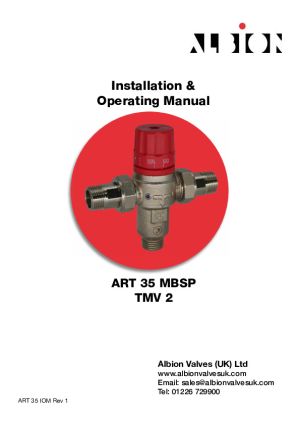

Installation Guide

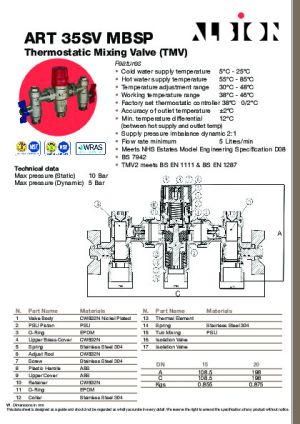

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
A15.00 mm
Accessibility Performancen/a
Accuracy Of Outlet Temperature±2°C
Assembly CodeD20
Asset TypeFixed
b14.00 mm
B59.00 mm
BIM Object NameAlbionValves_PipeAccessories_ThermostaticMixingValve_ART35SV_MBSP
c20.00 mm
C130.00 mm
Cap MaterialPlastic - Red
Classification NameUniclass2015
Classification ValuePr_65_54_95_88
Code Performancen/a
Cold Water Supply Temperature5°C - 25°C
ColorSilver
Connection Radius7.50 mm
Connection Size15.00 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2026-03-11T09:00:00
D198.00 mm
d13.25 mm
Default Elevation0.00 mm
Description15mm Art 35SV Screwed Male BSP Thermostatic Mixing Valve (TMV) complete with isolation valves
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.bimstore.co/products/3fbcfd06-64b5-4a21-921e-d853d90a1409/document/installation-guide
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/3fbcfd06-64b5-4a21-921e-d853d90a1409/document/technical-data-sheet
Duration UnitYears
E20.00 mm
End Valve Height108.50 mm
Expected Life0
Export Type to IFC AsIfcValve
F8.50 mm
f19.00 mm
Factory Set Thermostatic Controller38°C 0/2°C
Featuresn/a
FinishNickel Plated
Flow Rate Minimum5 Litres/min
g17.50 mm
G110.00 mm
Graden/a
Height A53.00 mm
Height B57.00 mm
Hot Water Supply Temperature55°C - 85°C
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialCW602N Nickel Plated
Max Pressure10Bar (Static). 5 Bar (Dynamic).
Max Thread Diameter20.96 mm
Minimum Temperature Differential12°C
ModelART35SV MBSP Thermostatic Mixing Valve
Model NumberATMV35SV15
Model ReferenceART35SV MBSP Thermostatic Mixing Valve
NBS DescriptionThermostatic mixing valves
NBS Object NameAlbion Valves - Thermostatic mixing valves
NBS Office Master Tagn/a
NBS Reference90-10-90/370
Nominal Depth40.00 mm
Nominal Height110.00 mm
Nominal Length198.00 mm
Nut Thickness9.00 mm
Nut Width25.75 mm
Nut Width 229.00 mm
Nut Width 317.25 mm
Production Year2026
Referenced StandardTMV2/3 BS EN 1111 and BS EN 1287. TMV3 BS 7942
Replacement Costn/a
Shapen/a
SizeDN15
Size DN15
Spare Partsn/a
Supply Pressure Imbalance Dynamic2:1
Temperature Adjustment Range30°C - 48°C
Thread Inch1/2
Thread Millimetre15.10 mm
Type CommentsDN15
Type IFC Predefined TypeIfcValveTypeEnum.CHECK
Type NameART35SV MBSP Thermostatic Mixing Valve
URLwww.albionvalvesuk.com/
Valve FinishDZR Brass - Chrome Plated
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight0.855 kgs

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
