ART 32 - DZR Brass Thermostatic Balancing Valve with Anti Legionella Device

by Albion Valves

Download Add to collection

Description

DZR Brass Thermostatic Balancing Valve with Anti Legionella Device

Features

BSP Parallel (ISO 7/1)
Fluid: Water
WRAS Approved
Automatic Legionella Disinfectant Feature
Improves efficiency of DHW systems
Automatically responds to changes in system temperature and flow requirements
Reduces heat loss through lower circulation of hot water
Keeps temperature evenly distributed & reduces dead-legs

Object Data

1 Revision

Last Updated

20/10/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Available

Accompanying literature

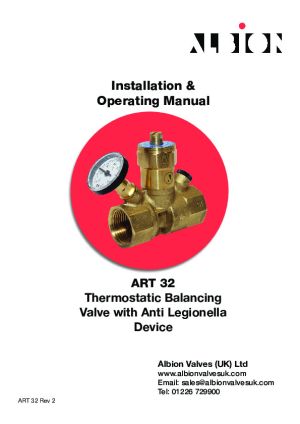

Installation Guide

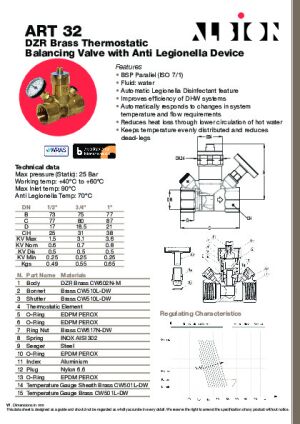

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-32-dzr-brass-thermostatic-balancing-valve-with-anti-legionella-device/document/object-user-guide
Accessibility Performancen/a
Angle45.00 °
Angle Length45 mm
Angle Offset Left35 mm
Angle Offset Right37 mm
Anti Legionella Temperature70°C
Assembly CodeD20
Asset TypeFixed
B73 mm
BIM Object NameAlbionValves_PipeAccessories_BalancingValve_ART32
C77 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_86
Code Performancen/a
ColorYellow
Connection Size15 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2020-08-19T09:00:00
D17 mm
DescriptionDZR Brass Thermostatic Balancing Valve with Anti Legionella Device
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/art-32-dzr-brass-thermostatic-balancing-valve-with-anti-legionella-device/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
FinishDZR Brass
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialDZR Brass
Maximum Inlet Temperature90°C
Maximum Working Pressure25 Bar
Max Pressure25 Bar
ModelDZR Brass Thermostatic Balancing Valve with Anti Legionella Device
Model NumberDN15 - DN1/2"
Model ReferenceDZR Brass Thermostatic Balancing Valve with Anti Legionella Device
N220 mm
NBS DescriptionThermostatic balancing valves
NBS Object NameAlbion Valves - Thermostatic balancing valves
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth39 mm
Nominal Height86 mm
Nominal Length77 mm
Nut Size25 mm
Nut Size 234 mm
Production Year2020
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN15 - DN1/2"
Size DN15
Spare Partsn/a
Thread Inch1/2
Thread Millimetre13 mm
Type CommentsDN15 - DN1/2"
Type NameDZR Brass Thermostatic Balancing Valve with Anti Legionella Device
URLwww.albionvalvesuk.com/
Valve FinishDZR Brass
Valve Finish 2DZR Brass
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor5
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight0.49 kg
Working Temperature40°C to 60°C

Sustainability & Environmental Data

Self Certified Sustainability Data

This data is supplied and self certified by the manufacturer.

Biogenic CO2e (A1-A3,B1-B5,C1-C4) 4 kg
Total CO2e (Fossil) kg
Manufacturing (A1-A3) kg
Transport to Site (A4) kg
On-Site Installation (A5) kg
Use & Maintenance (B1-B5) kg
End of Life (C1,C3,C4) kg
Recycled Content %
Recyclable Content %
Re-use Potential %
Energy Recovery Possibility %
Water Use L
Ozone Depletion Potential mg CFC-11eq
Expiry-

Self Certified Sustainability Data

This data is supplied and self certified by the manufacturer.

Biogenic CO2e (A1-A3,B1-B5,C1-C4) 4 kg
Total CO2e (Fossil) kg
Manufacturing (A1-A3) kg
Transport to Site (A4) kg
On-Site Installation (A5) kg
Use & Maintenance (B1-B5) kg
End of Life (C1,C3,C4) kg
Recycled Content %
Recyclable Content %
Re-use Potential %
Energy Recovery Possibility %
Water Use L
Ozone Depletion Potential mg CFC-11eq
Expiry-

Self Certified Sustainability Data

This data is supplied and self certified by the manufacturer.

Biogenic CO2e (A1-A3,B1-B5,C1-C4) 6 kg
Total CO2e (Fossil) kg
Manufacturing (A1-A3) kg
Transport to Site (A4) kg
On-Site Installation (A5) kg
Use & Maintenance (B1-B5) kg
End of Life (C1,C3,C4) kg
Recycled Content %
Recyclable Content %
Re-use Potential %
Energy Recovery Possibility %
Water Use L
Ozone Depletion Potential mg CFC-11eq
Expiry-

Environmental Product Declarations

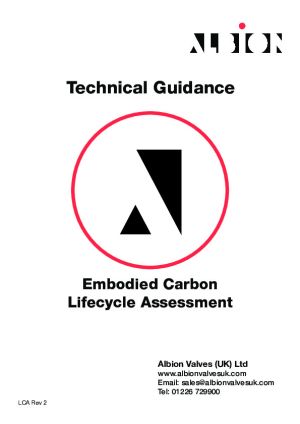

Environmental Product Declaration (EPD)
