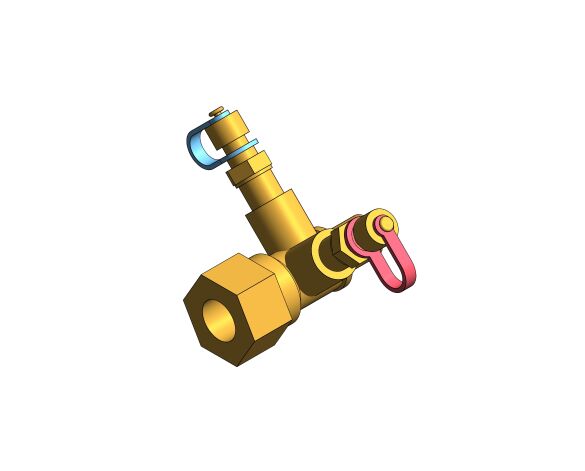

ART 27 - Metering Station

by Albion Valves

Download Add to collection

Description

Description
DZR Brass Metering Station. Fixed Orifice. Standard, Medium, Low, Ultra Low and Ultra Ultra Low versions available in ½".

Connection
BSP Parallel (½") Taper (¾ - 2") M/F Ends (ISO 7/1)

Approvals/ other
5 Year Guarantee

Pressure
20 Bar Rated

Temperature
-10°C to +120°C

Object Data

1 Revision

Last Updated

02/03/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Available

Accompanying literature

Object User Guide

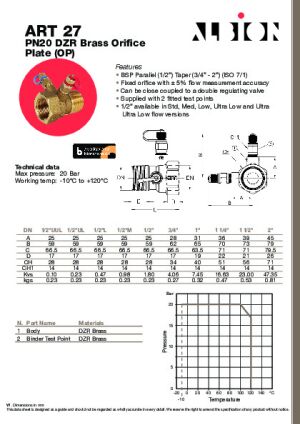

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-27/document/object-user-guide
17.5 mm
22.5 mm
323.0 mm
40.8 mm
52.4 mm
a10.0 mm
A25.0 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b10.8 mm
BIM Object NameAlbionValves_PipeAccessories_MeteringStation_ART27
c12.5 mm
C66.5 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_50
Code Performancen/a
ColorYellow
Connection Size15.0 mm
Connector Offset17.0 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2019-07-01T09:00:00
D17.0 mm
DescriptionPN25 DZR Metering Station
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/art-27/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
FinishDZR Brass
Graden/a
Hex Dim28.0 mm
Hex Thickness16.0 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveType
KeynoteS
Kvs1.80
LNo
MNo
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialDZR Brass
Max Pressure20 Bar
ModelPN25 DZR Metering Station
Model NumberDN15 - DN1/2"
Model ReferencePN25 DZR Metering Station
NBS DescriptionMetering valves
NBS Object NameAlbion Valves - Metering valves
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth73.0 mm
Nominal Height73.0 mm
Nominal Length66.5 mm
Production Year2019
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN15 - DN1/2"
Size DN15
Spare Partsn/a
Tag 1 Offset34.5 mm
Tag 2 Offset40.0 mm
Tag Length59.0 mm
Thread Inch1/2
Thread Millimetre12.7 mm
Type CommentsDN15 - DN1/2"
Type NamePN25 DZR Metering Station
ULNo
URLwww.albionvalvesuk.com/
UULNo
Valve FinishBrass
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor5
Warranty Duration Parts5
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight0.225 Kgs
Working Temperature-10°C to +120°C
