ART 242 - Differential Pressure Control Valve

by Albion Valves

Download Add to collection

Description

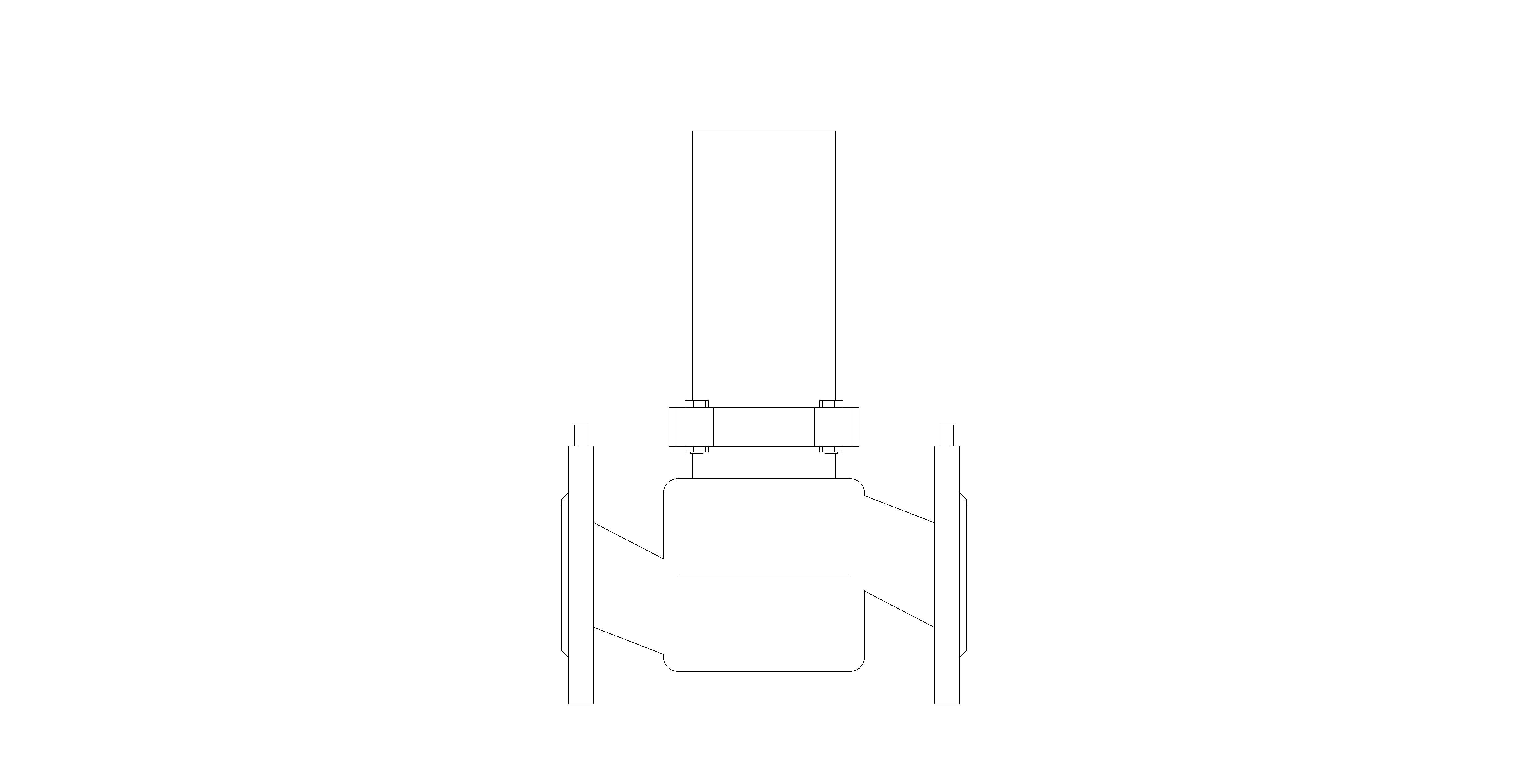

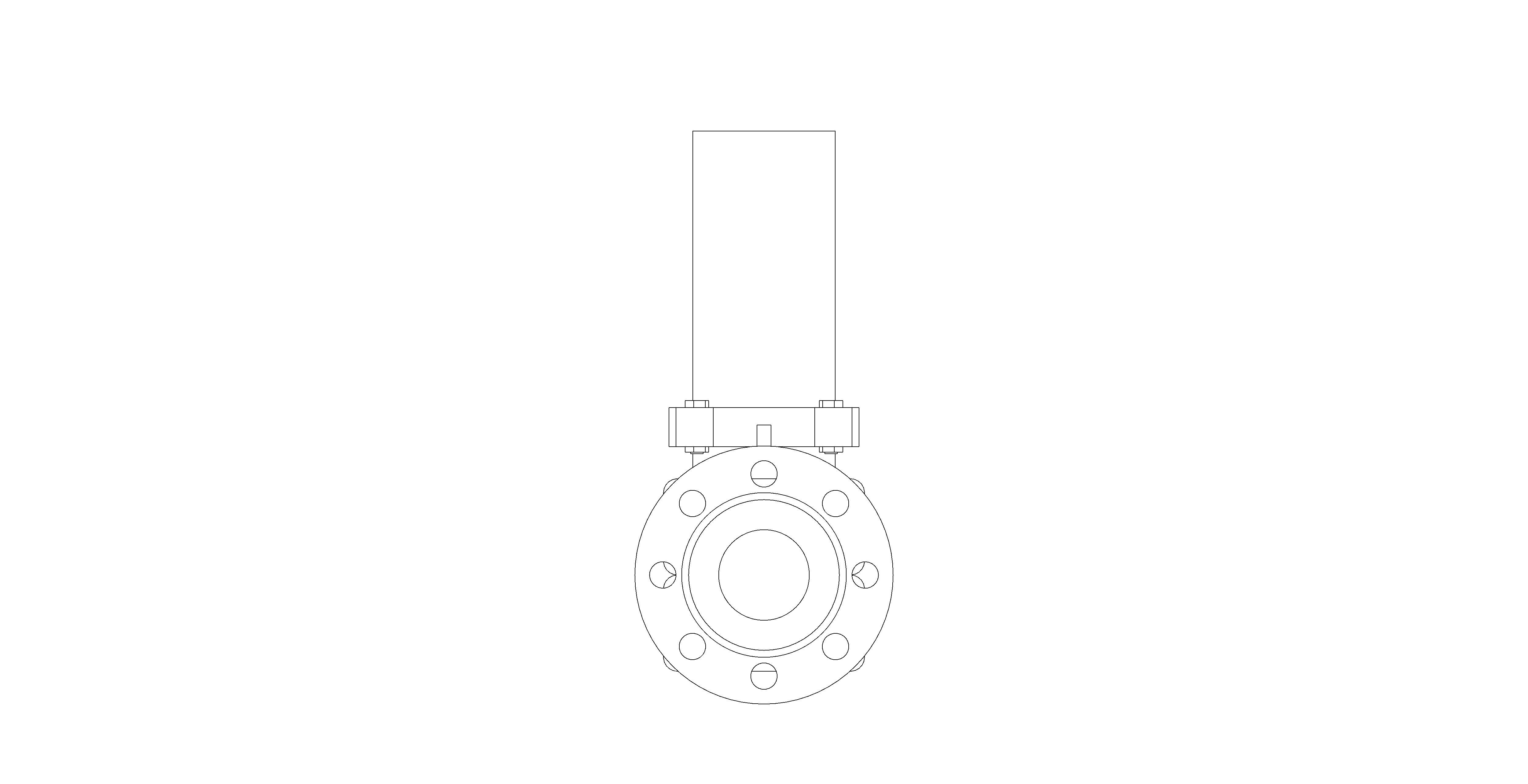

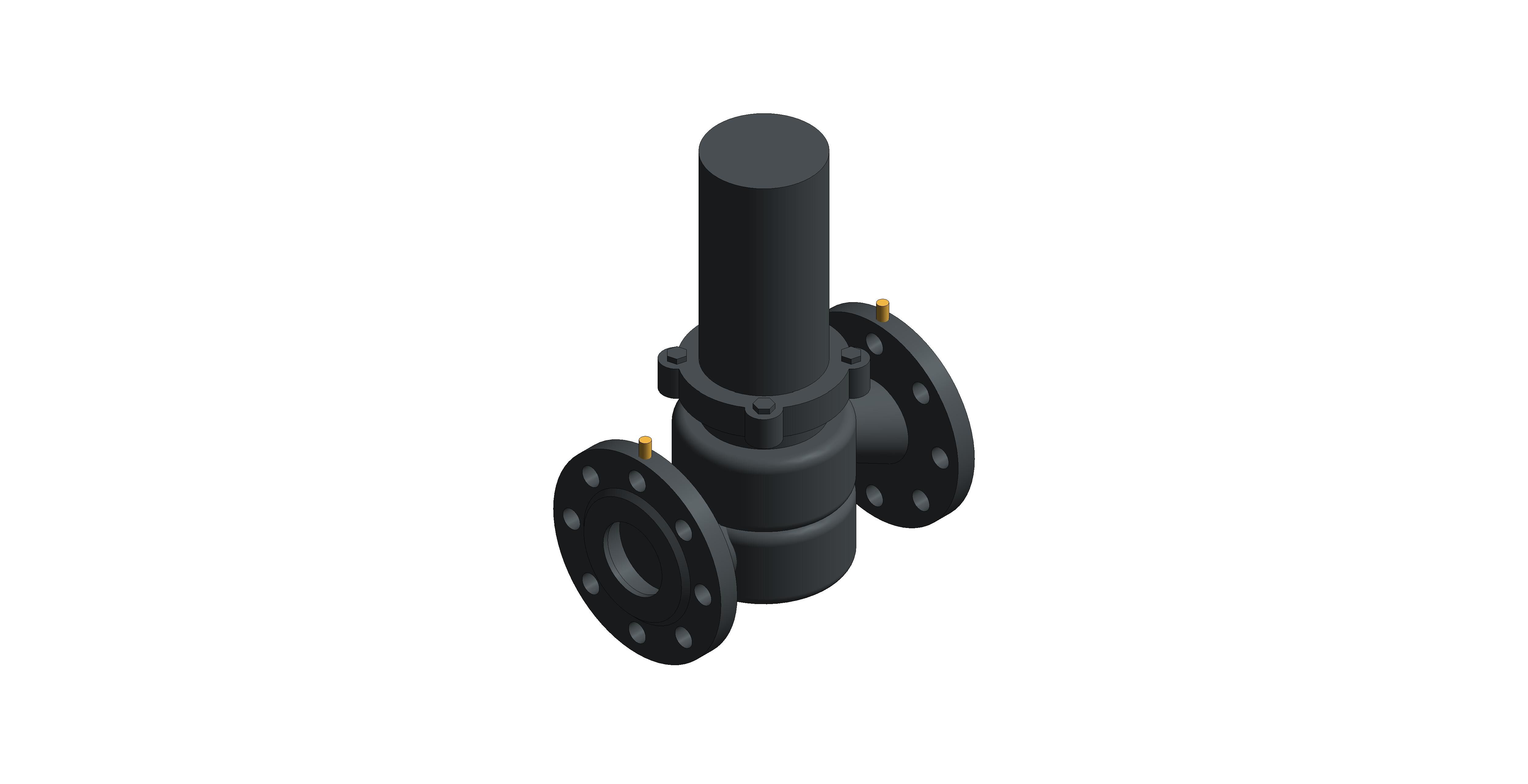

Differential Pressure Control Valve (DPCV). High flow rates up to 261m3/h. Higher Kvs values to offer the lowest possible pressure loss. Integrated P/T plugs for efficient commissioning and troubleshooting. Can be used as a flow limiter when combined with a partner valve.

Object Data

1 Revision

Last Updated

08/05/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

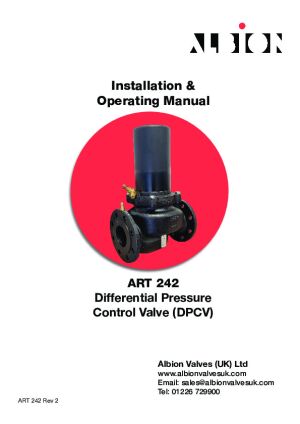

Object User Guide

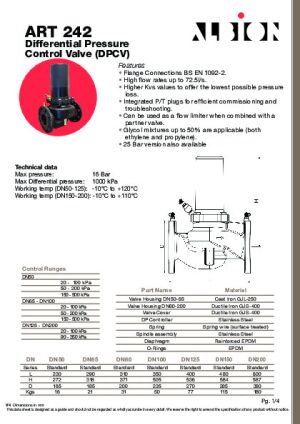

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/de3e1886-7792-4425-999f-2e7c13db9231/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B23 mm
BIM Object NameAlbionValves_PipeAccessories_Differential Pressure Control Valve_ART242
C129 mm
C235 mm
C3378 mm
CB144 mm
Centre Bottom88 mm
Centre O88 mm
Centre O182 mm
Centre O265 mm
Centre Top88 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_25
Code Performancen/a
ColorBlack
Connection Size100 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2025-04-25T09:00:00
CT144 mm
D235 mm
D2118 mm
Default Elevation0 mm
DescriptionDifferential Pressure Control Valve
Documentation Certificateswww.bimstore.co/products/de3e1886-7792-4425-999f-2e7c13db9231/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/de3e1886-7792-4425-999f-2e7c13db9231/document/installation-guide
Documentation Literaturewww.bimstore.co/products/de3e1886-7792-4425-999f-2e7c13db9231/document/product-literature
Documentation Maintenancewww.bimstore.co/products/de3e1886-7792-4425-999f-2e7c13db9231/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/de3e1886-7792-4425-999f-2e7c13db9231/document/technical-data-sheet
Duration UnitYears
Expected Life0
F3 mm
Featuresn/a
FinishAlkyd Paint Coat Finish
Flange D2156 mm
Flange Dia235 mm
Flange Holes Dia190 mm
Graden/a
H505 mm
Half L175 mm
H Dia200 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
L350 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialCast iron
Max Pressure16 Bar
ModelDifferential Pressure Control Valve
Model NumberDN100 - DN4"
Model ReferenceDifferential Pressure Control Valve
NBS DescriptionDifferential pressure control valves
NBS Object NameAlbion Valves - Differential pressure control valves
NBS Office Master Tagn/a
NBS Reference90-10-90/425
Nominal Depth235 mm
Nominal Height505 mm
Nominal Length350 mm
Nut Centre82 mm
Nut Dia21 mm
Nut Gap35 mm
Nut Height5 mm
Outside Diameter110 mm
Production Year2025
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN100 - DN4"
Size DN100
Spare Partsn/a
Thread Inch4
Thread Millimetre102 mm
Type CommentsDN100 - DN4"
Type NameDifferential Pressure Control Valve
URLwww.albionvalvesuk.com/
Valve FinishIron, Cast, Black
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight50 kgs
Working Temperature-10°C to +120°C
