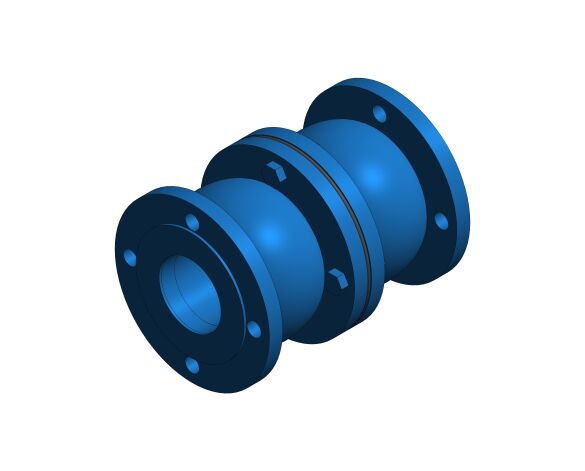

ART 236 - Check Valve

Object metadata

• _AuthorRL
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version16
• _Created Bywww.bimstore.co
• _Current Revision1
• _Distributed Bywww.bimstore.co
• _Object User Guidewww.bimstore.co/products/art-236/document/object-user-guide
• A100.00 mm
• Accessibility Performancen/a
• Assembly CodeD20
• Asset TypeFixed
• B220.00 mm
• BIM Object NameAlbionValves_PipeAccessories_CheckValves_ART236
• C315.00 mm
• C/2157.50 mm
• Classification NameUniclass2015
• Classification ValuePr_65_54_40_13
• Code Performancen/a
• ColorBlue
• Connection Radius50.00 mm
• Connection Size100.00 mm
• Constituentsn/a
• Created Bysales@albionvalvesuk.com
• Created On2019-08-29 T09:00:00
• DescriptionART 236 Ductile Iron PN16 Flanged Double Check Valve
• Documentation Certificateswww.albionvalvesuk.com/
• Documentation Installation Guidewww.albionvalvesuk.com/
• Documentation Literaturewww.albionvalvesuk.com/
• Documentation Maintenancewww.albionvalvesuk.com/

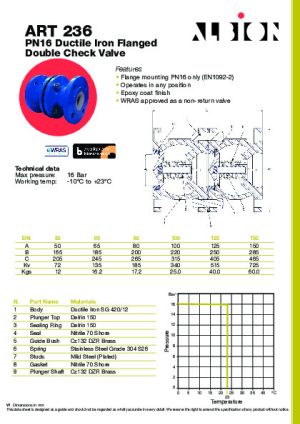

• Documentation Technicalwww.bimstore.co/products/art-236/document/technical-data-sheet
• Duration UnitYears
• Expected Life0
• Featuresn/a
• FinishDuctile Iron
• Flange Thickness20.00 mm
• Graden/a
• Ifc Export AsIfcValve
• Ifc Export TypeIfcValveTypeEnum.CHECK
• KeynoteS
• ManufacturerAlbion Valves
• Manufacturer NameAlbion Valves
• MaterialDuctile Iron
• Max Pressure16 bar
• ModelART 236 Double Check Valve
• Model NumberDN100
• Model ReferenceART 236 Double Check Valve
• NBS DescriptionCheck valves
• NBS Object NameAlbion Valves - Check valves
• NBS Office Master Tagn/a
• NBS Reference90-15-40/323
• Nominal Depth220.00 mm
• Nominal Height220.00 mm
• Nut Material<By Category>
• Nut Thickness10.00 mm
• Nut Width23.00 mm
• Production Year2019
• Referenced Standardn/a
• Replacement Costn/a
• Shapen/a
• SizeDN100
• Size DN100
• Spare Partsn/a
• Stud Bore Radius9.00 mm
• Thread Inch4
• Thread Millimetre101.60 mm
• Type CommentsDN100
• Type NameART 236 Double Check Valve
• URLwww.albionvalvesuk.com/
• Valve FinishDuctile Iron - Blue Epoxy
• Warranty DescriptionAgainst manufacturing defects.
• Warranty Duration Labor1
• Warranty Duration Parts1
• Warranty Duration UnitYears
• Warranty Guarantor Laborsales@albionvalvesuk.com
• Warranty Guarantor Partssales@albionvalvesuk.com
• Weight25 kgs
• Working Temperature0°C to +23°C
