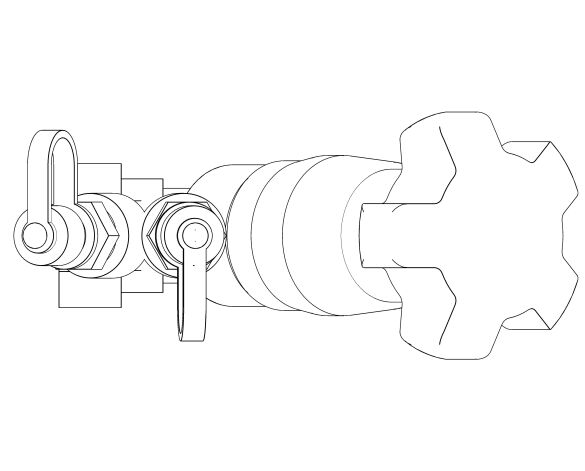

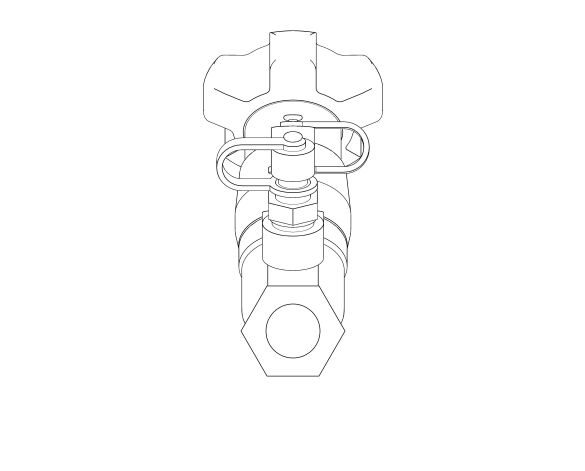

ART 22 - Double Regulating Valve

by Albion Valves

Download Add to collection

Description

Description
DZR Fixed Orifice Double Regulating Valve. Handwheel with shut off function and clear 360° reading. Digital scale with lock function. Conforms to BS 7350 / BS 5154.

Connection
BSP Parallel (ISO 228 Threads) F/F Ends

Approvals/ other
WRAS Approved

Pressure
25 Bar

Temperature
-10°C to +120°C

Object Data

1 Revision

Last Updated

02/03/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Available

Accompanying literature

Object User Guide

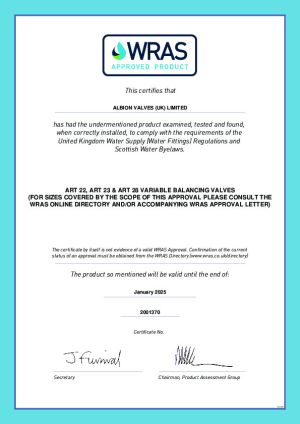

Product Certificates

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-22/document/object-user-guide
110 mm
22 mm
311 mm
48 mm
a20 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b8 mm
B83 mm
BIM Object NameAlbionValves_PipeAccessories_DoubleRegulatingValve_ART22
c33 mm
C73 mm
C1113 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_26
Code Performancen/a
ColorYellow & Blue
Connection Size15 mm
Connector Offset13 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2019-07-01T09:00:00
D13 mm
DescriptionDZR Fixed Orifice Double Regulating Valve (FODRV)
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/art-22/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
FinishDZR Brass
Graden/a
Handle Angle40.00 °
Handle FinishNylon 6 - Blue
Handle Length91 mm
Handle Offset6 mm
Hex Dim25 mm
Hex VisYes
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.REGULATING
KeynoteS
Kv2.00
Kvs2.3
LNo
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialDZR Brass
Max Pressure25 Bar
MLNo
ModelDZR Fixed Orifice Double Regulating Valve (FODRV)
Model NumberDN15 - DN1/2"
Model ReferenceDZR Fixed Orifice Double Regulating Valve (FODRV)
NBS DescriptionDouble regulating valves
NBS Object NameAlbion Valves - Double regulating valves
NBS Office Master Tagn/a
NBS Reference90-10-90/356
Nominal Depth25 mm
Nominal Height96 mm
Nominal Length113 mm
Oct Dim66 mm
Oct VisNo
Production Year2019
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN15 - DN1/2"
Size DN15
Spare Partsn/a
Symbol Placement 12 mm
Symbol Placement 25 mm
Symbol Placement 36 mm
Symbol Placement 48 mm
Tag 1 Angle25.00 °
Tag 1 Length60 mm
Tag 1 Offset16 mm
Tag 2 Angle5.00 °
Tag 2 Length60 mm
Tag 2 Offset14 mm
Thread Inch1/2
Thread Millimetre13 mm
Type CommentsDN15 - DN1/2"
Type NameDZR Fixed Orifice Double Regulating Valve (FODRV)
URLwww.albionvalvesuk.com/
Valve FinishBrass
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor5
Warranty Duration Parts5
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight0.38 Kgs
Working Temperature-10°C to +120°C
