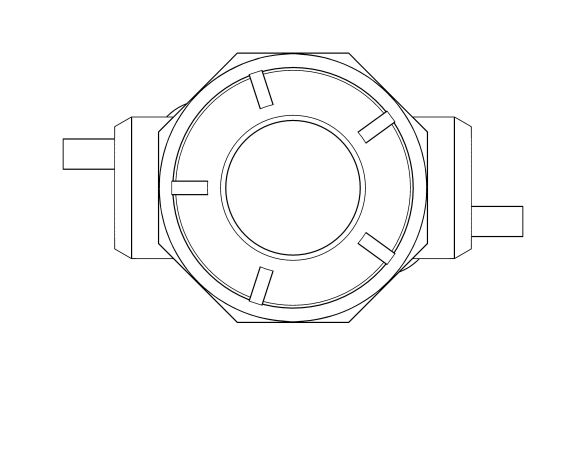

ART 20C - Pressure Independent Control Valve

by Albion Valves

Download Add to collection

Description

Description
DZR Pressure Independent Control & Balancing Valve (PICV). Union Tail Pieces & Gaskets required (2 per valve for BSP male connection)

Connection
Screwed BSP Parallel (ISO 228/1)

Approvals/ other
5 Year Guarantee

Pressure
25 Bar Rated

Temperature
-10°C to +120°C

Object Data

1 Revision

Last Updated

02/03/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Available

Accompanying literature

Object User Guide

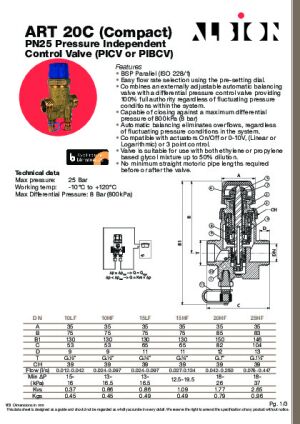

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-20c/document/object-user-guide
A35.0 mm
Accessibility Performancen/a
Angled Tap Offset0.0 mm
Angled Tap VisibilityNo
Assembly CodeD20
Asset TypeFixed
b18.5 mm
B75.0 mm
B1130.0 mm
BIM Object NameAlbionValves_PipeAccessories_PressureIndependentControlValve_ART20C
Bottom Section VisibilityNo
c31.5 mm
C53.0 mm
Cap MaterialNylon 6 - Blue
Classification NameUniclass2015
Classification ValuePr_65_54_95_63
Code Performancen/a
ColorYellow
Connection Radius5.0 mm
Connection Size10.0 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2019-08-29 T09:00:00
D9.0 mm
d3.2 mm
DescriptionART 20C (Compact) PN25 Pressure Independent Control Valve (PICV or PIBCV)
Differential Pressure Range4 Bar (400 kPa)
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/art-20c/document/technical-data-sheet
Duration UnitYears
e25.5 mm
Expected Life0
f10.0 mm
Featuresn/a
FinishDZR Brass
Flow Range0.024-0.097 (l/s)
g18.7 mm
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
Kvs0.24-0.86
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialDZR Brass
Max Pressure25 Bar
Min Delta P3-16.5 (kPa)
ModelART 20C Pressure Independent Control valve
Model NumberDN10HF
Model ReferenceART 20C Pressure Independent Control valve
NBS DescriptionPressure independent control valves
NBS Object NameAlbion Valves - Pressure independent control valves
NBS Office Master Tagn/a
NBS Reference90-10-90/420
Production Year2019
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN10HF
Size DN10
Spare Partsn/a
Straight Tap VisibilityYes
Symbol Calc2.9 mm
Symbol Calc/21.5 mm
Symbol Height5.5 mm
Symbol Width17.7 mm
T21.0 mm
Tag Material LeftNylon 6 - Tag Red
Tag Material RightNylon 6 - Tag Blue
Tap Back Offset5.0 mm
Tap Front Offset5.0 mm
Tap Height54.0 mm
Tap Left Offset13.0 mm
Tap Right Offset13.0 mm
Thread Inch3/8
Thread Millimetre9.5 mm
Type CommentsDN10HF
Type NameART 20C Pressure Independent Control valve
URLwww.albionvalvesuk.com/
Valve FinishBrass
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor5
Warranty Duration Parts5
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight0.45 kgs
Working Temperature-10°C to +120°C
