ART 202 - Pressure Independent Control Valve

by Albion Valves

Download Add to collection

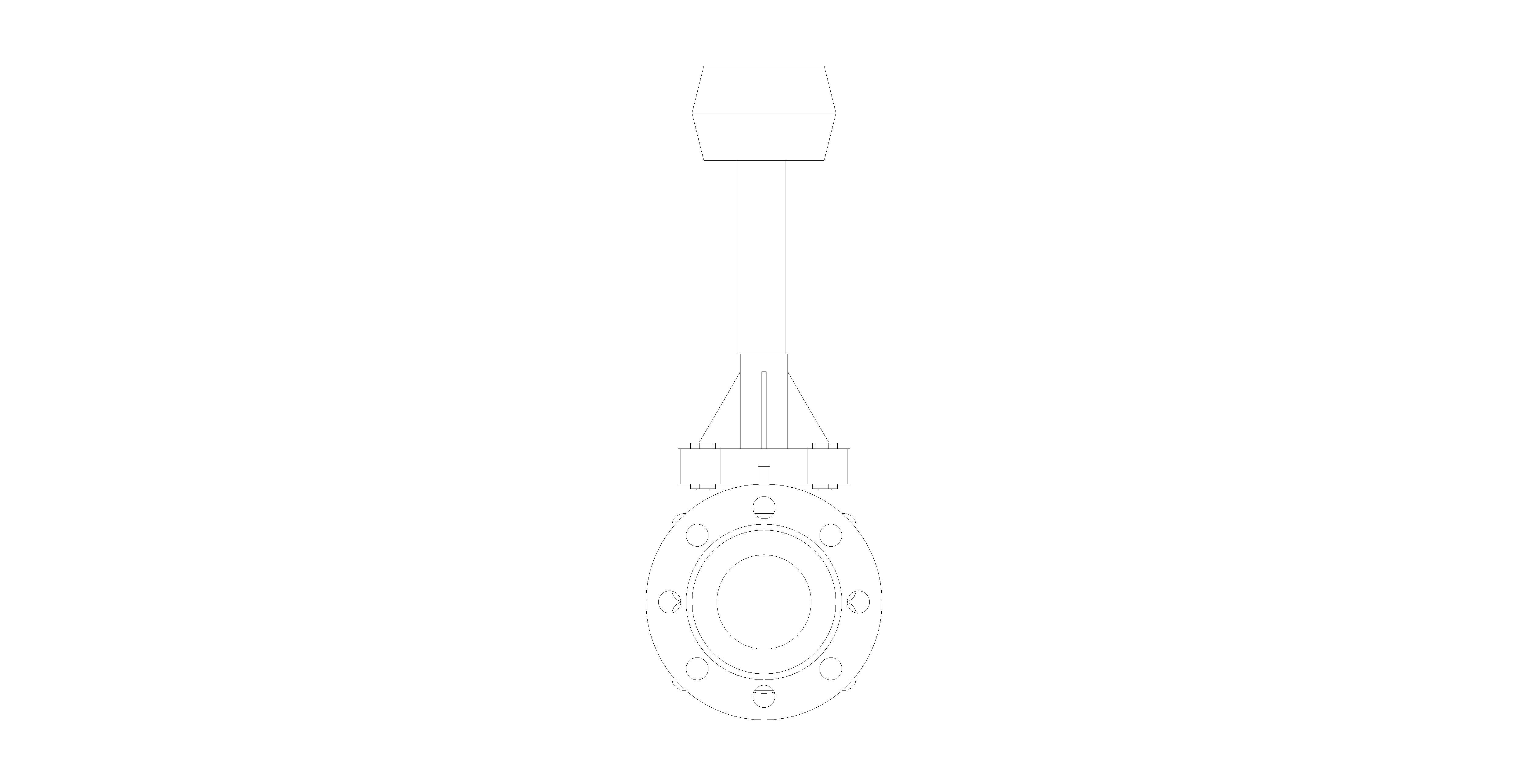

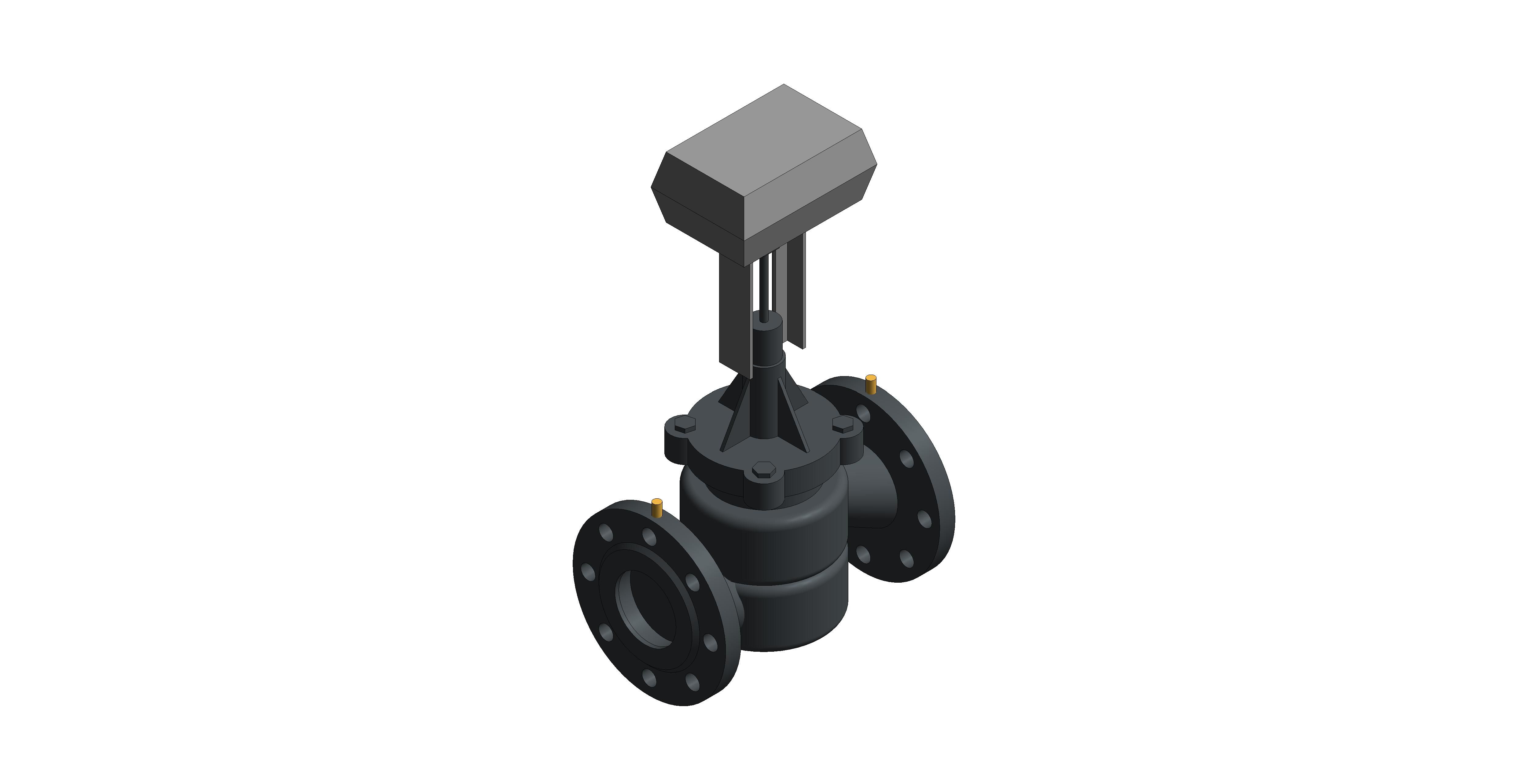

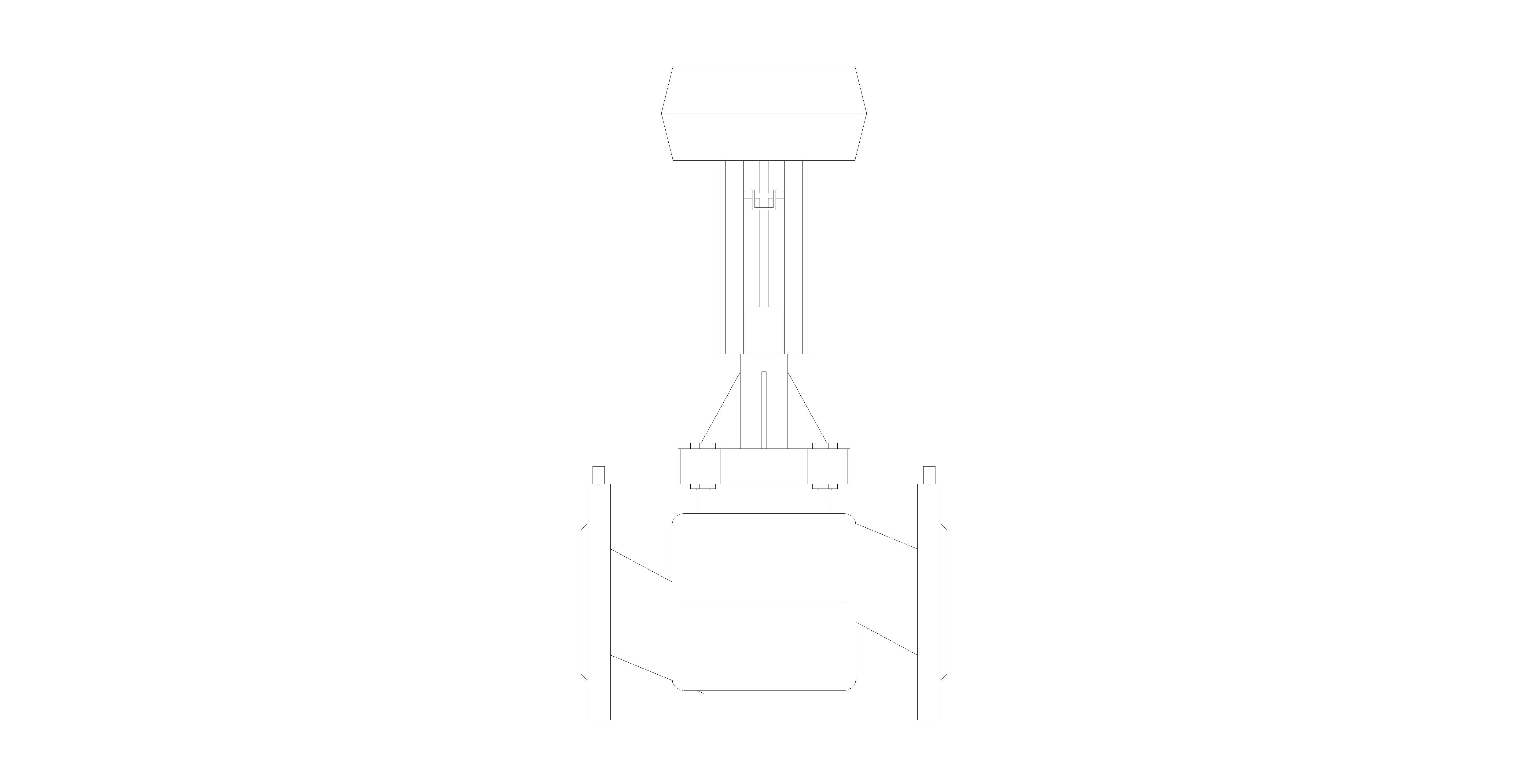

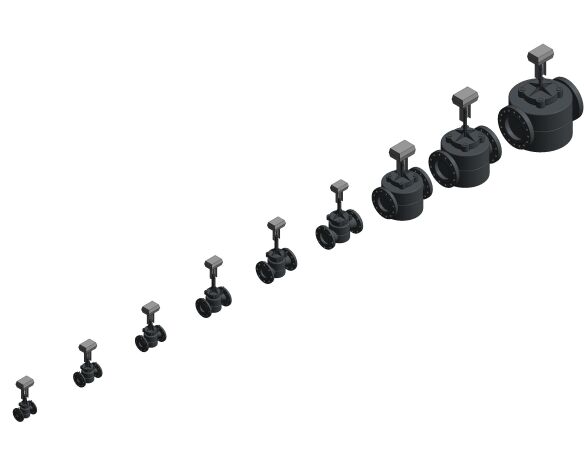

Description

Pressure Independent Control Valve (PICV). Measurement of flow and minimum differential pressure due to valve design with 3 P/T plugs. Full stroke modulation at all times, regardless of the preset flow. The constant differential pressure across the modulating control component guarantees 100% authority. Can be flushed and commissioned before the actuator is installed. Once the flow is set, the actuator can be mounted and the valve ready to operate.

Object Data

1 Revision

Last Updated

08/05/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

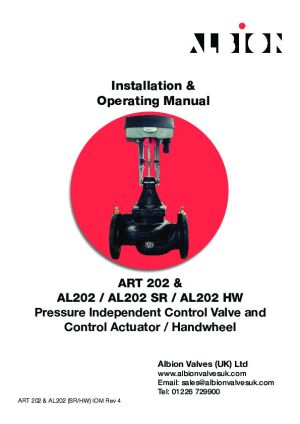

Object User Guide

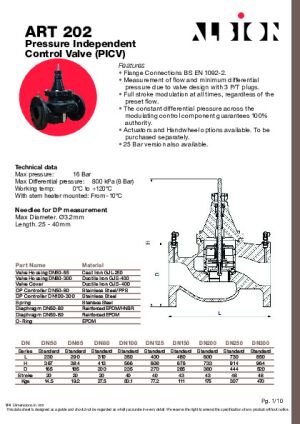

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/f225e3b1-05eb-4b85-b716-0b422ce33e2f/document/object-user-guide
Accessibility Performancen/a
ActuatorYes
Assembly CodeD20
Asset TypeFixed
B23 mm
BIM Object NameAlbionValves_PipeAccessories_PressureIndependentControlValve_ART202
C129 mm
C235 mm
C3378 mm
CB144 mm
Centre Bottom88 mm
Centre O88 mm
Centre O182 mm
Centre O265 mm
Centre Top88 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_63
Code Performancen/a
ColorBlack
Connection Size100 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2025-04-25T09:00:00
CT144 mm
D235 mm
D2118 mm
Default Elevation0 mm
DescriptionPressure Independent Control Valve
Documentation Certificateswww.bimstore.co/products/f225e3b1-05eb-4b85-b716-0b422ce33e2f/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/f225e3b1-05eb-4b85-b716-0b422ce33e2f/document/installation-guide
Documentation Literaturewww.bimstore.co/products/f225e3b1-05eb-4b85-b716-0b422ce33e2f/document/product-literature
Documentation Maintenancewww.bimstore.co/products/f225e3b1-05eb-4b85-b716-0b422ce33e2f/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/f225e3b1-05eb-4b85-b716-0b422ce33e2f/document/technical-data-sheet
Duration UnitYears
Expected Life0
F3 mm
Featuresn/a
FinishAlkyd Paint Coat Finish
Flange D2156 mm
Flange Dia235 mm
Flange Holes Dia190 mm
Graden/a
H190 mm
H1700 mm
H232 mm
Half L175 mm
H Dia200 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
L350 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialCast iron
Max Pressure16 Bar
ModelPressure Independent Control Valve
Model NumberDN100 - DN4"
Model ReferencePressure Independent Control Valve
NBS DescriptionPressure-independent control valves
NBS Object NameAlbion Valves - Pressure-independent control valves
NBS Office Master Tagn/a
NBS Reference90-10-90/420
Nominal Depth235 mm
Nominal Height700 mm
Nominal Length350 mm
Nut Centre82 mm
Nut Dia21 mm
Nut Gap35 mm
Nut Height5 mm
Outside Diameter110 mm
Production Year2025
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN100 - DN4"
Size DN100
Spare Partsn/a
Thread Inch4
Thread Millimetre102 mm
Type CommentsDN100 - DN4"
Type NamePressure Independent Control Valve
URLwww.albionvalvesuk.com/
Valve FinishIron, Cast, Black
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight50.1 kgs
Working Temperature0°C to +120°C
