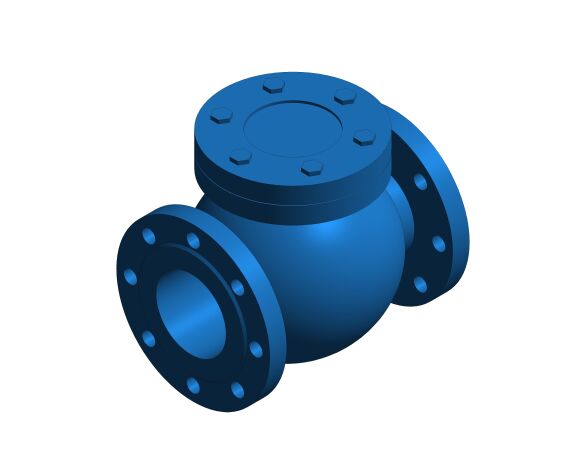

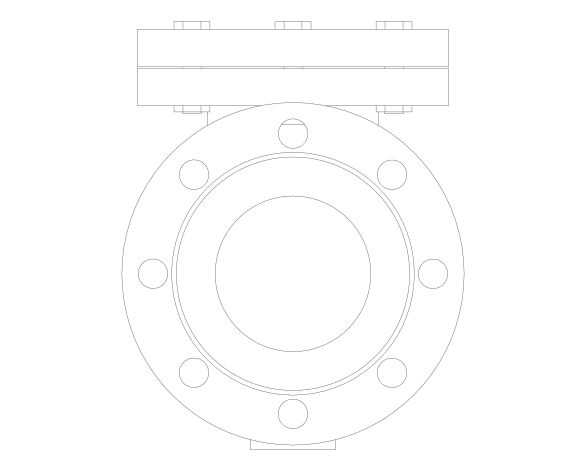

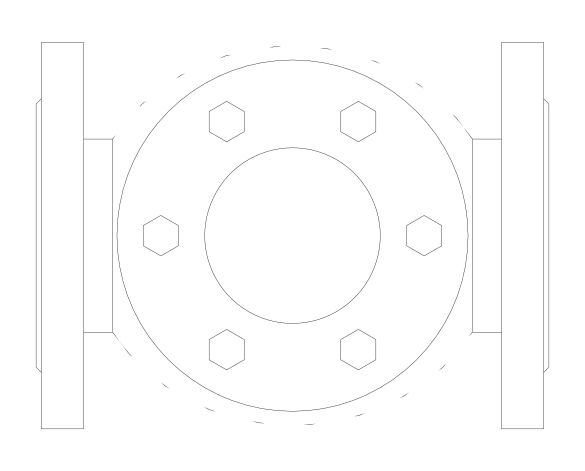

ART 170 - Swing Check Valve

by Albion Valves

Download Add to collection

Description

Description
Cast Iron PN16 Flanged Swing Check Valve. Bronze Trim

Connection
Flanged PN16

Approvals/ other
BS EN12334 (BS 5153)
CE Approved

Pressure
16 Bar Rated

Temperature
-10°C to +230°C

Object Data

1 Revision

Last Updated

03/03/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Available

Accompanying literature

Object User Guide

Installation Guide

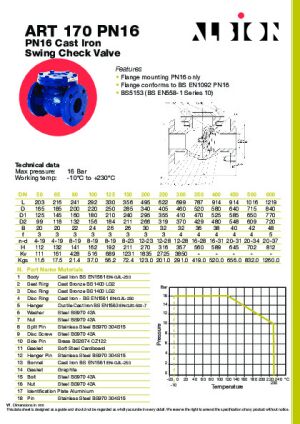

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-170/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B24 mm
BIM Object NameAlbionValves_PipeAccessories_SwingCheckValve_ART170
Circle Height108 mm
Circle Width119 mm
Classification NameUniclass2015
Classification ValuePr_65_54_40_13
Code Performancen/a
ColorBlue
Connection Size100 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2019-07-01T09:00:00
DescriptionPN16 Cast Iron Swing Check Valve
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/art-170/document/technical-data-sheet
Duration UnitYears
Expected Life0
F3 mm
Featuresn/a
FinishAlkyd Paint Coat Finish
Graden/a
H162 mm
H124 mm
H224 mm
Half L146 mm
H Dia200 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
L292 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialCast iron
Max Pressure16 Bar
ModelSwing Check Valve
Model NumberDN100 - DN4"
Model ReferenceSwing Check Valve
NBS DescriptionCheck valves
NBS Object NameAlbion Valves - Check valves
NBS Office Master Tagn/a
NBS Reference90-15-40/323
Nominal Depth200 mm
Nominal Height162 mm
Nominal Length292 mm
Nut Centre75 mm
Nut Dia20 mm
Nut Gap49 mm
Nut Height5 mm
Outside Diameter110 mm
Production Year2019
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN100 - DN4"
Size DN100
Spare Partsn/a
Thread Inch4
Thread Millimetre102 mm
Type CommentsDN100 - DN4"
Type NameSwing Check Valve
URLwww.albionvalvesuk.com/
Valve FinishIron, Cast, Blue
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight37 kgs
Working Temperature-10°C to +230°C
