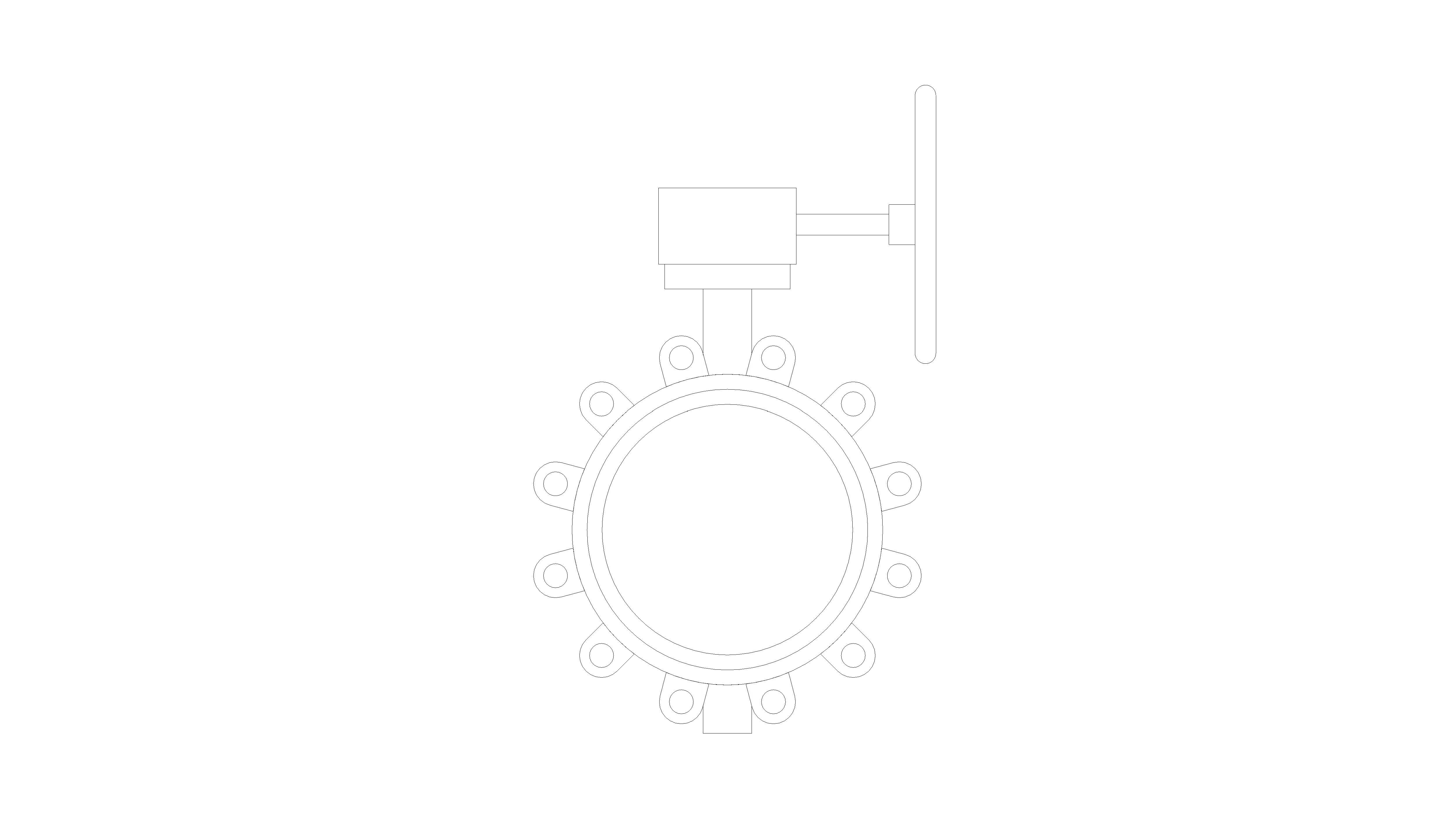

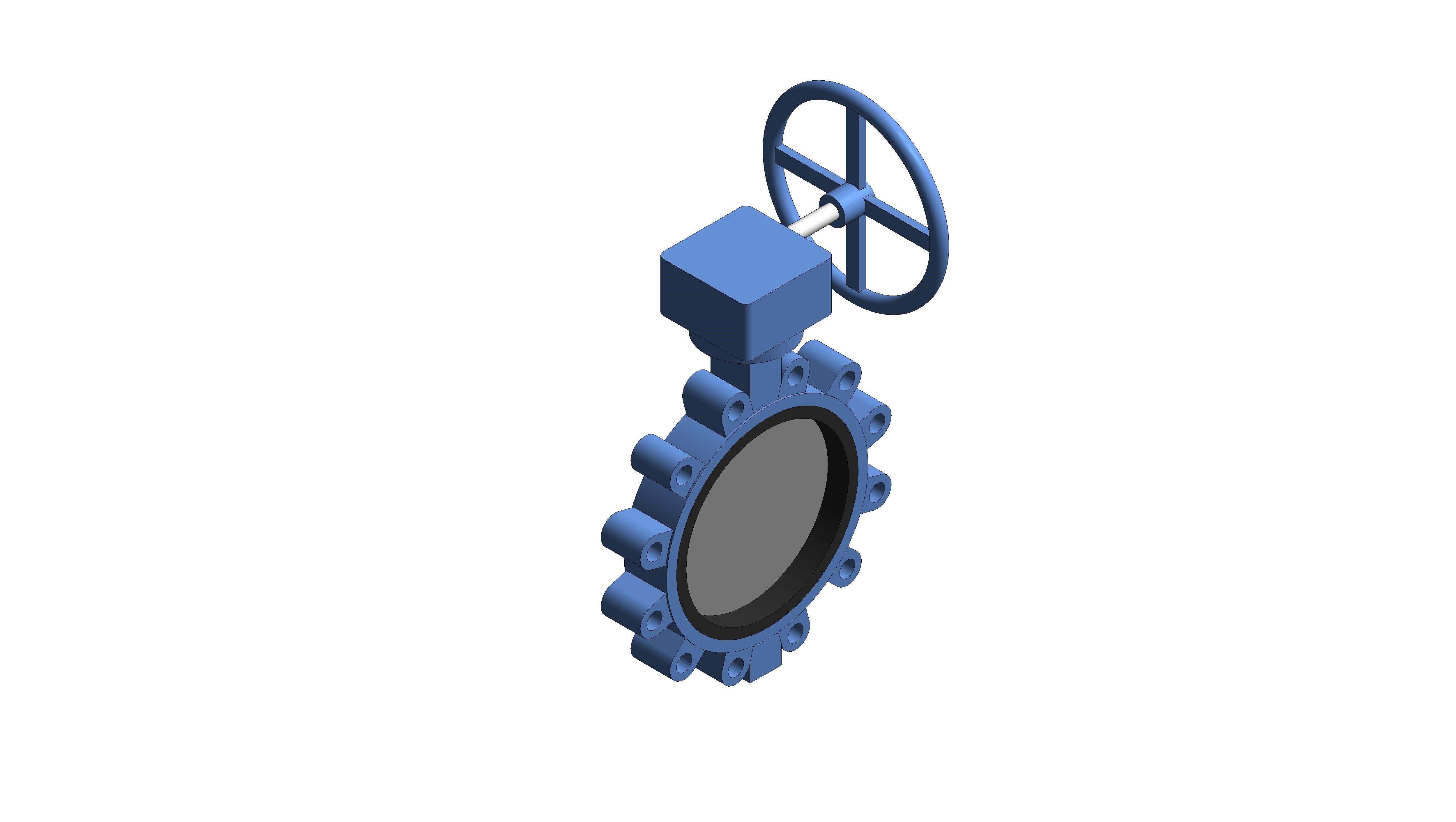

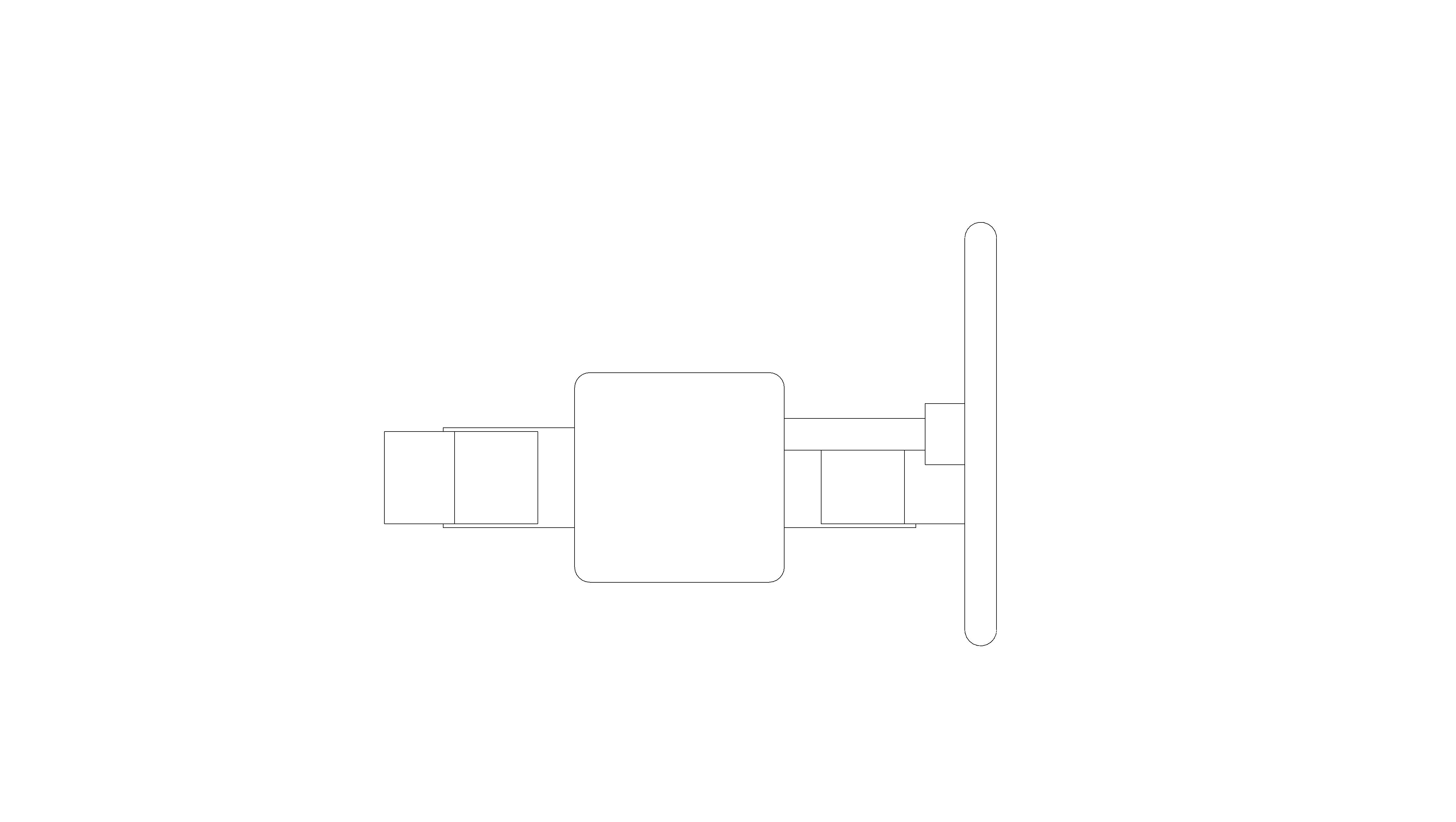

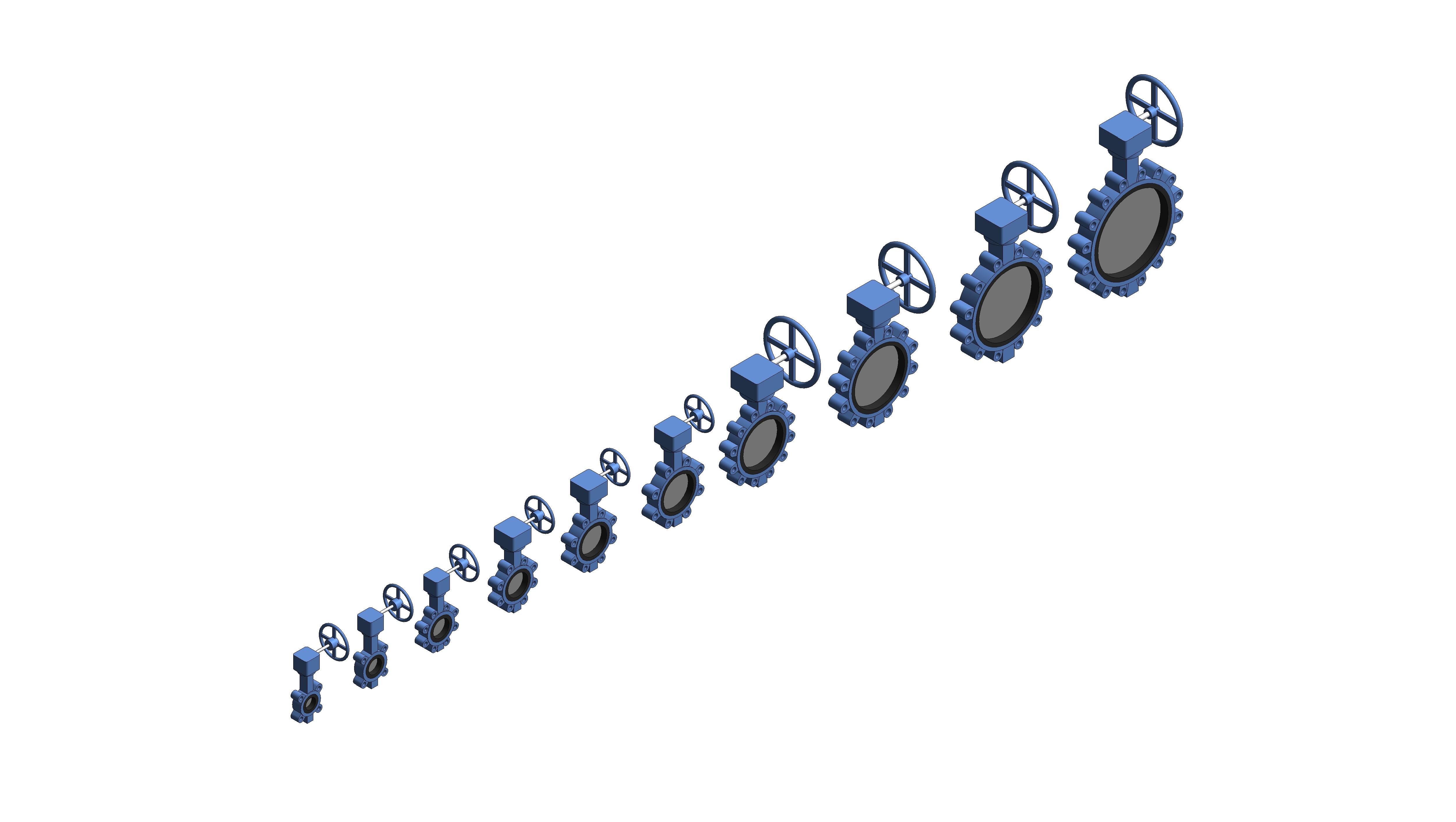

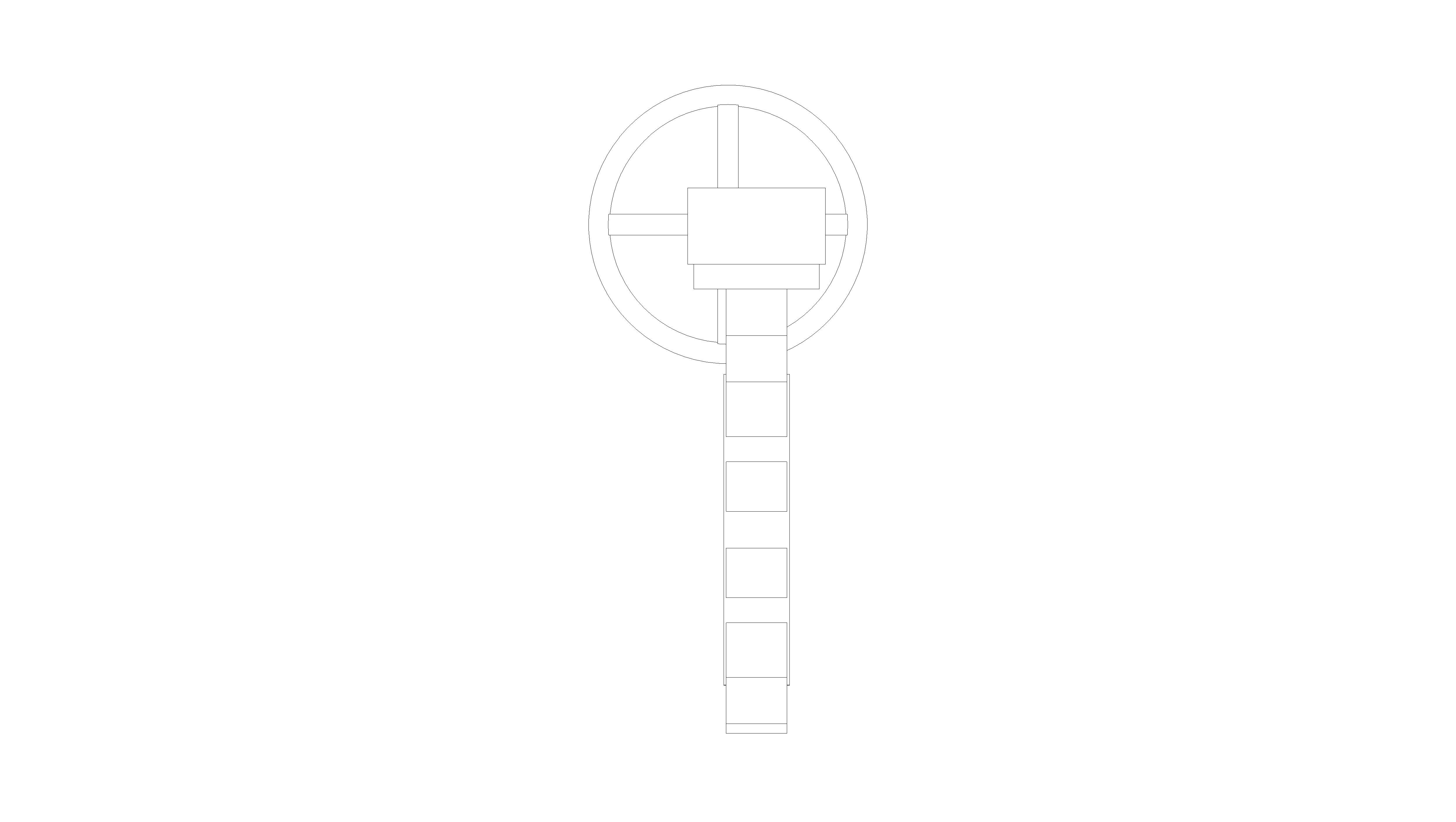

ART 140GB - Butterfly Valve [DN50-350]

by Albion Valves

Download Add to collection

Description

Ductile Iron Lugged and Tapped Butterfly Valve. EPDM Liner. Stainless Steel disc.

Lugged and Tapped.

16 Bar Rated.

-10°C to +110°C

Object Data

1 Revision

Last Updated

16/11/2023

Available Software

EPD

Available

Accompanying literature

Object User Guide

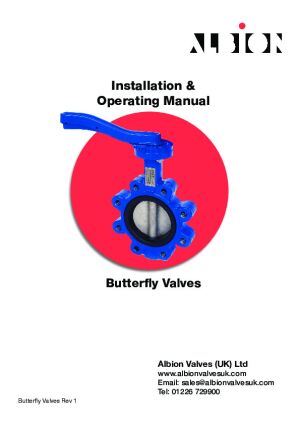

Installation Guide

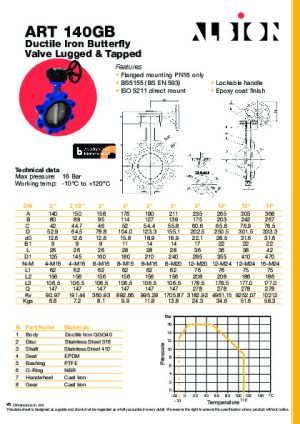

Technical Data Sheet

Installation Guide

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-140gb-butterfly-valve/document/object-user-guide
a140.0 mm
A265.0 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b48.5 mm
B203.0 mm
B122.0 mm
BIM Object NameAlbionValves_PipeAccessories_ButterflyValve_ART140GB
BodyDuctile Iron GGG40
BushingPTFE
c25.0 mm
C65.6 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_08
Code Performancen/a
ColorBlue
Connection Size250.0 mm
Connection Size Rad125.0 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2023-08-07 T09:00:00
d137.5 mm
D250.5 mm
d 028.5 mm
D1355.0 mm
D1 Rad177.5 mm
Default Elevation0.0 mm
DescriptionDuctile Iron Butterfly Valve Lugged & Tapped
DiscStainless Steel 316
Documentation Certificateswww.bimstore.co/products/art-140gb-butterfly-valve/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/art-140gb-butterfly-valve/document/installation-guide
Documentation Literaturewww.bimstore.co/products/art-140gb-butterfly-valve/document/product-literature
Documentation Maintenancewww.bimstore.co/products/art-140gb-butterfly-valve/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/art-140gb-butterfly-valve/document/technical-data-sheet
Duration UnitYear
Expected Life0
f21.0 mm
Features• Flanged mounting PN16 only • BS5155 (BS EN 593) • Lockable handle • ISO 5211 direct mount • Epoxy coat finish
FinishDuctile Iron
g29.0 mm
GearCast Iron
Graden/a
HandwheelCast Iron
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
K125.0 mm
KeynoteS
Kv4576
L36.0 mm
L176.0 mm
L2208.0 mm
L3178.5 mm
Lug 10 Angle165.00 °
Lug 11 Angle165.00 °
Lug 12 Angle135.00 °
Lug 13 Angle135.00 °
Lug 14 Angle135.00 °
Lug 15 Angle135.00 °
Lug 16 Angle135.00 °
Lug 17 Angle135.00 °
Lug 18 Angle135.00 °
Lug 19 Angle135.00 °
Lug 1 Angle15.00 °
Lug 20 Angle135.00 °
Lug 2 Angle15.00 °
Lug 3 Angle105.00 °
Lug 4 Angle105.00 °
Lug 5 Angle45.00 °
Lug 6 Angle45.00 °
Lug 7 Angle75.00 °
Lug 8 Angle75.00 °
Lug 9 Angle135.00 °
Lug Hole Rad12.0 mm
Lug Thickness60.6 mm
Lug Top Rad22.0 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialDuctile Iron
Maximum Pressure16 bar
ModelART 140GB
Model Number10"
Model ReferenceART 140GB
N-M12-M24
NBS DescriptionButterfly valves
NBS Noten/a
NBS Object NameAlbion Valves - Butterfly valves
NBS Office Master Tagn/a
NBS Reference90-10-90/332
Nominal Depth0.0 mm
Nominal Height0.0 mm
Nominal Length0.0 mm
O-RingNBR
Outer Rad155.0 mm
Production Year2023
Q278.0 mm
Q/2139.0 mm
Referenced StandardBS5155 (BS EN 593), ISO 5211
Replacement Costn/a
SeatEPDM
ShaftStainless Steel 410
Shapen/a
Size10"
Size DN250
Spare Partsn/a
Thread Inch10
Type Comments10"
Type NameART 140GB
URLwww.albionvalvesuk.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts5
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partssales@albionvalvesuk.com
Weight34.6kg
Working Temperature-10°C to +110°C
