ART 140 - Butterfly Valve

by Albion Valves

Download Add to collection

Description

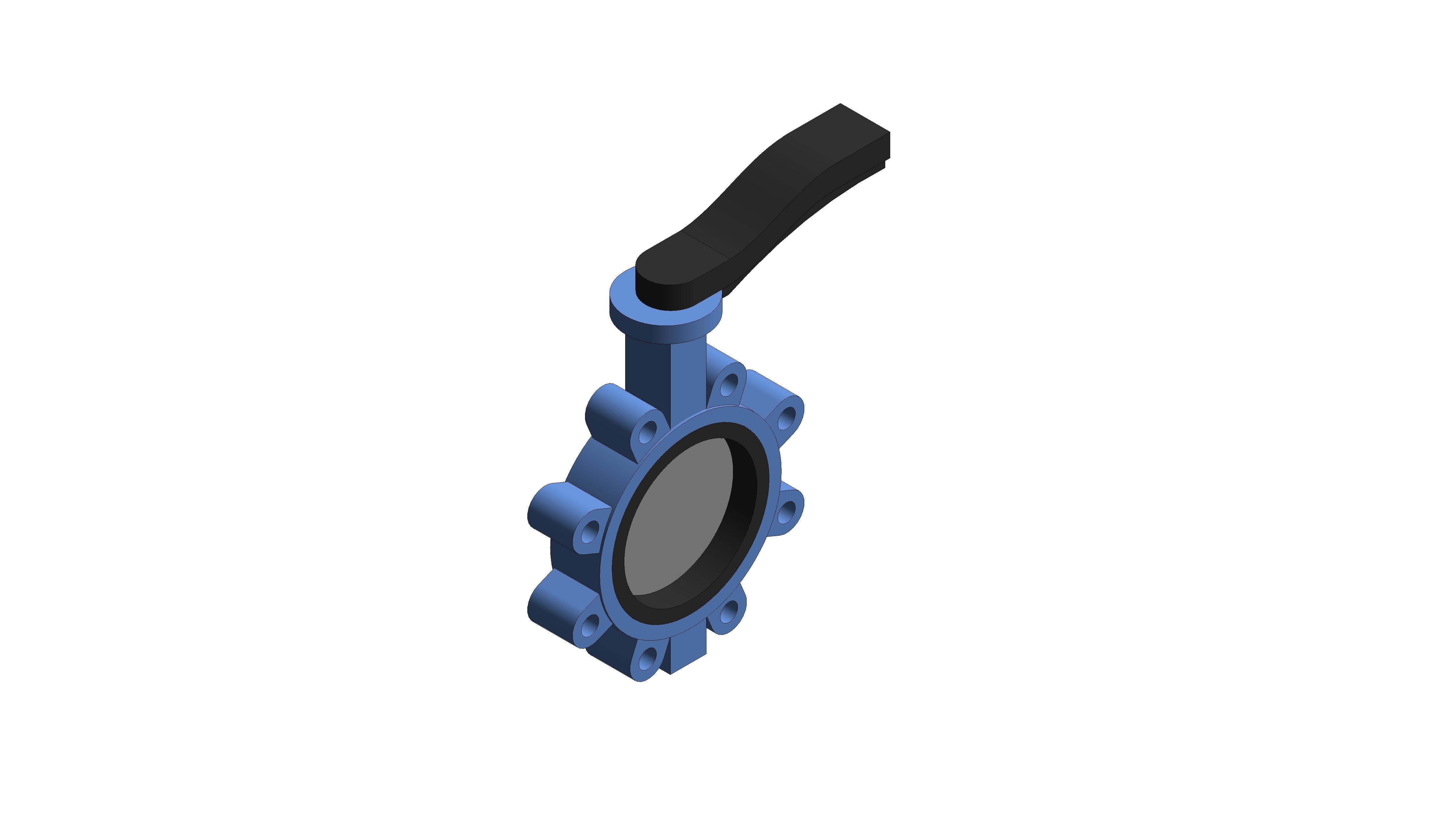

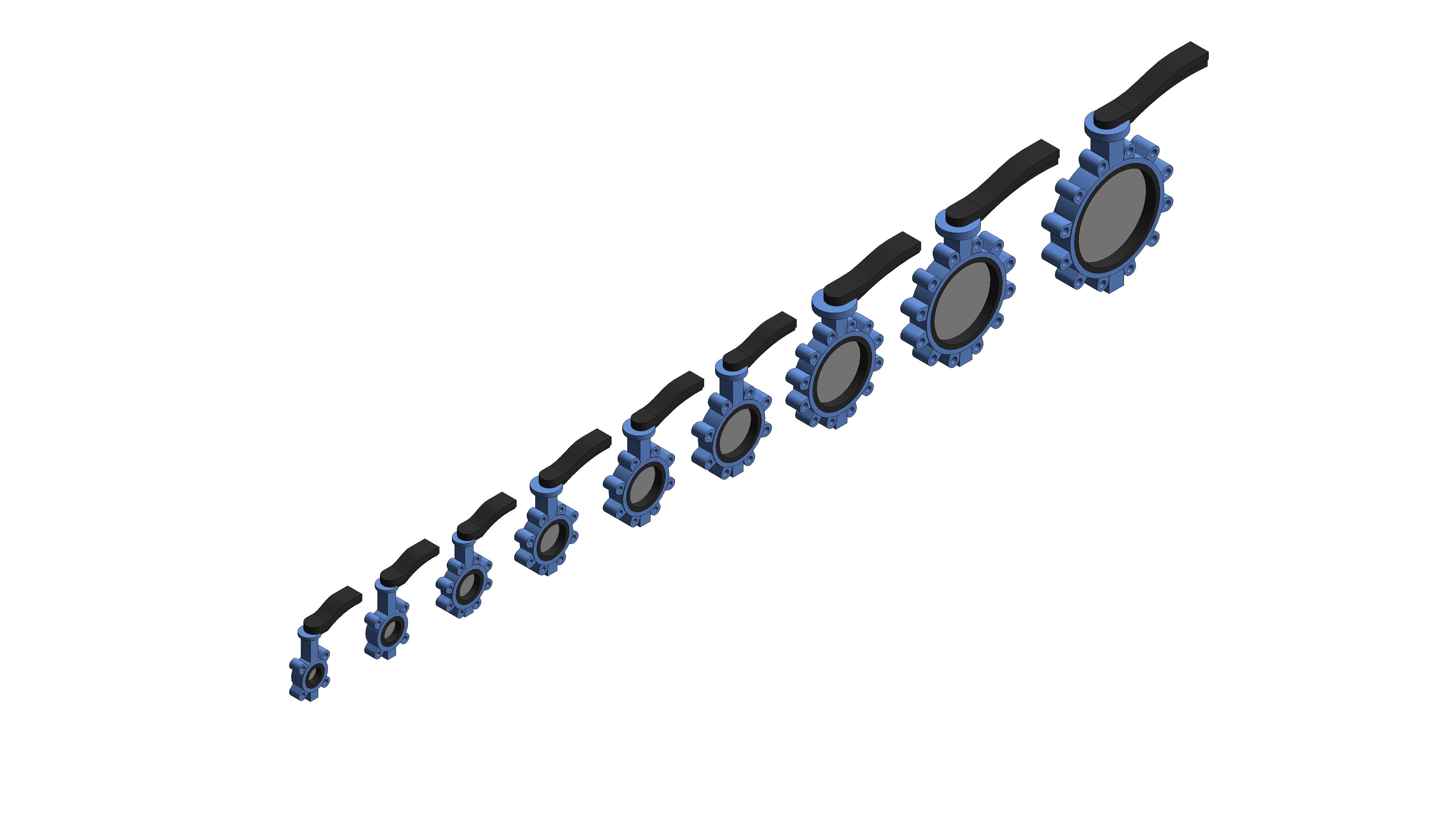

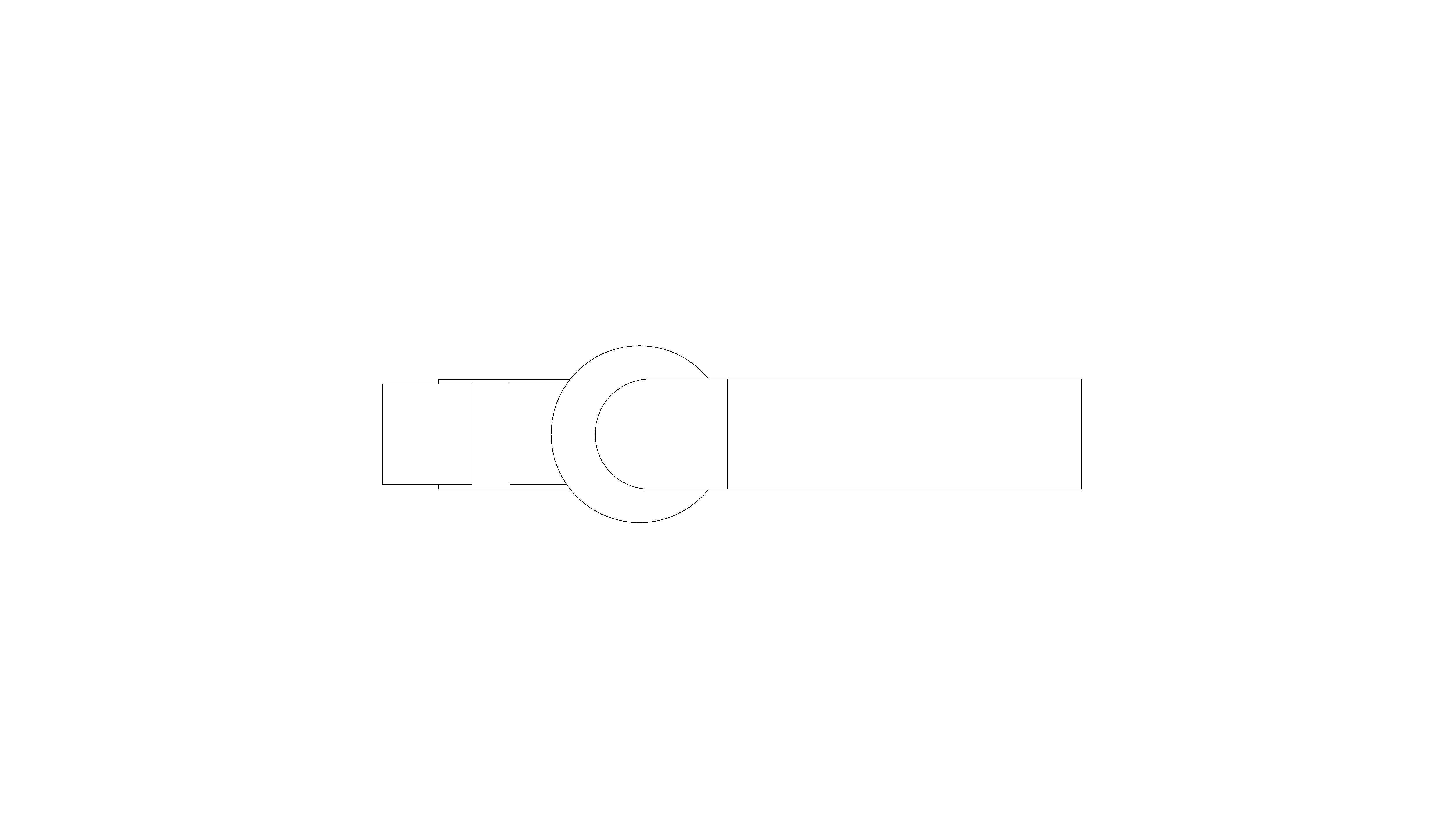

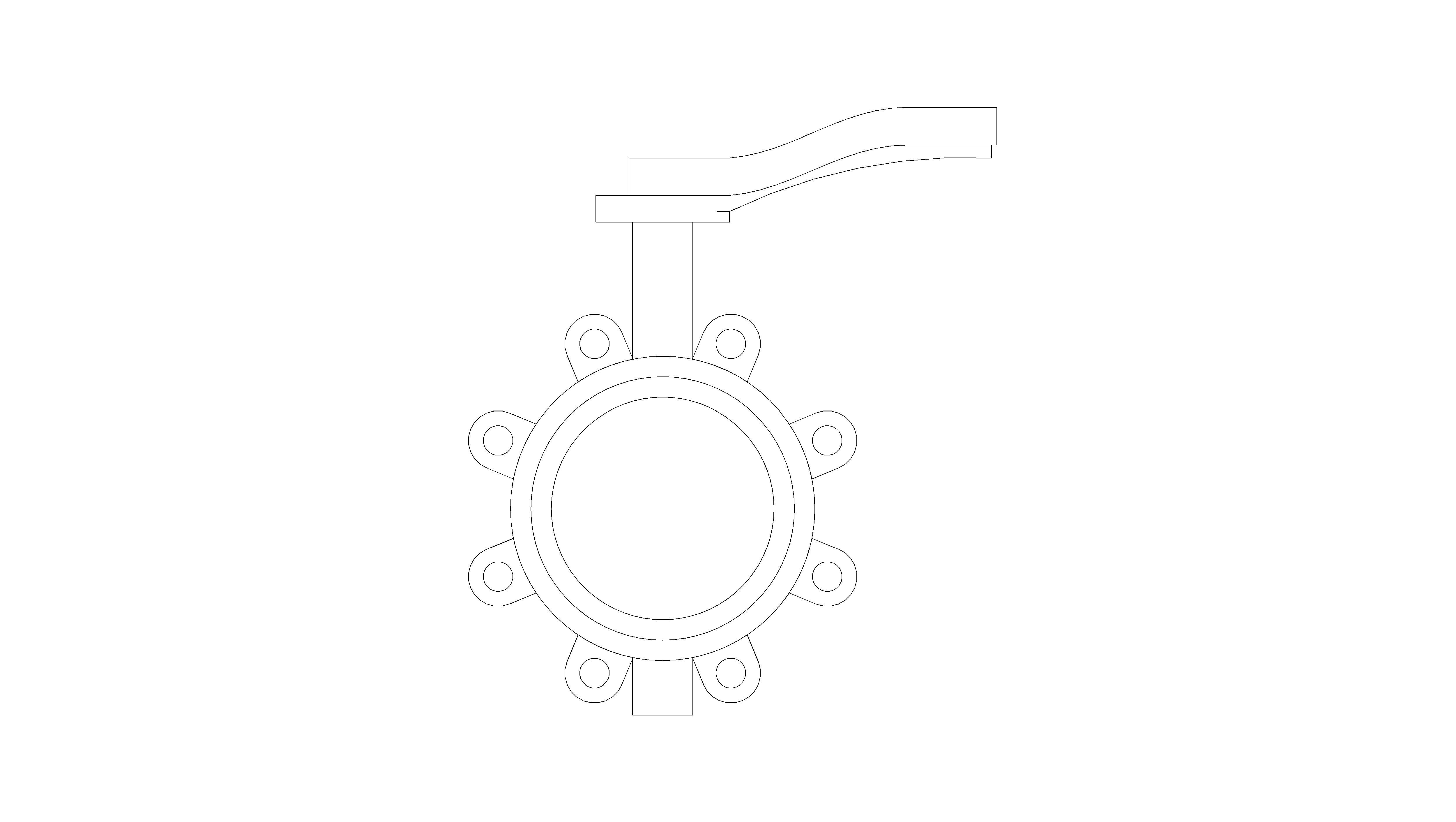

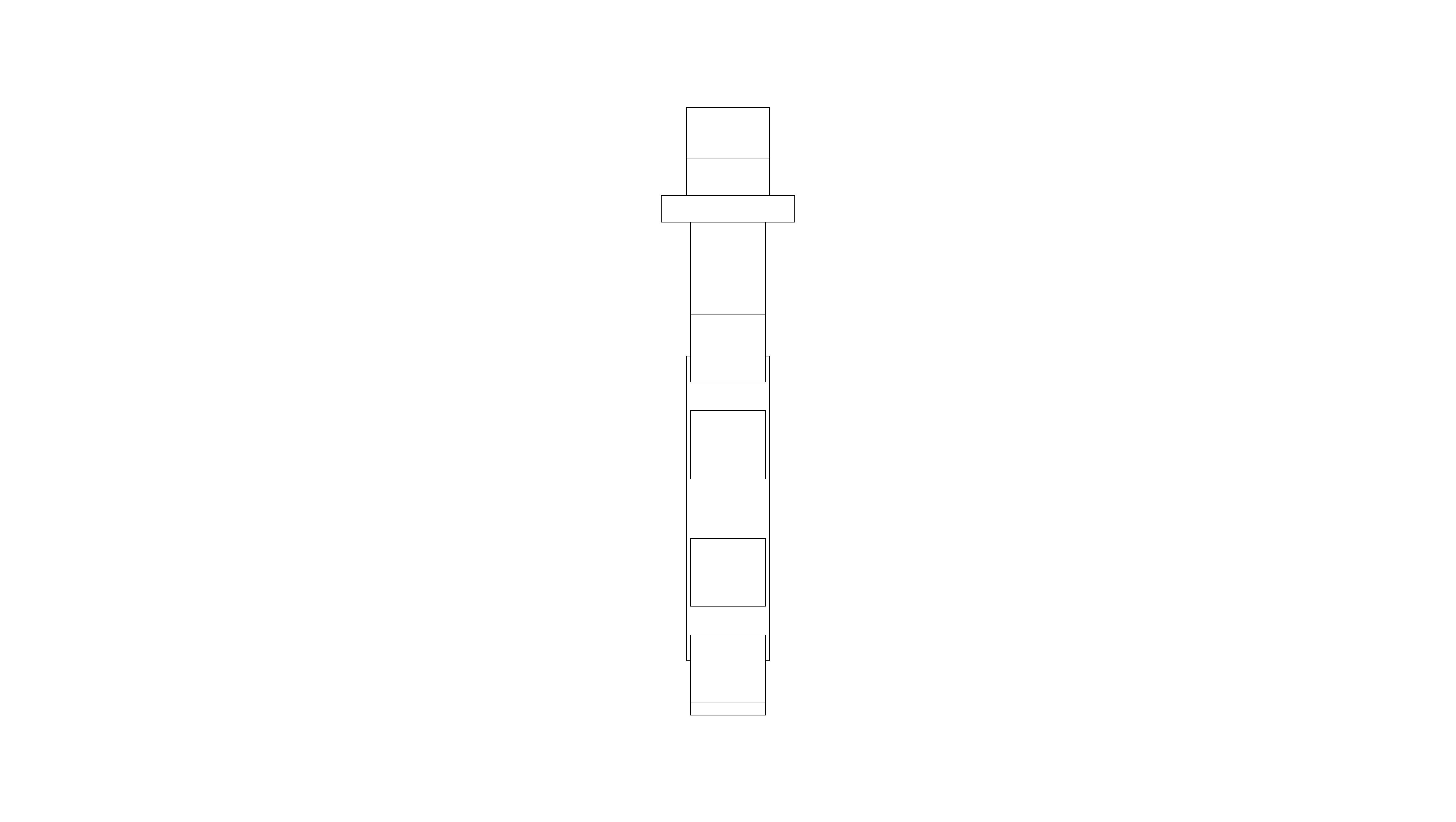

Ductile Iron Butterfly Valve Lugged and Tapped Type. Available from 2" to 12". EPDM Liner. Stainless Steel Disc. ISO Top. To suit PN16 Flanges only. Gearbox available. Note: We strongly advise gearbox on all 8", 10" and 12".

Lugged and Tapped.

16 Bar Rated.

-10°C to +110°C

Object Data

1 Revision

Last Updated

16/11/2023

Available Software

EPD

Not Available

Accompanying literature

Object User Guide

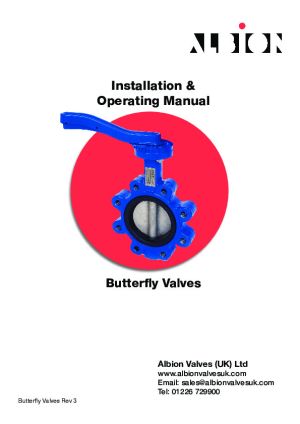

Installation Guide

Product Literature

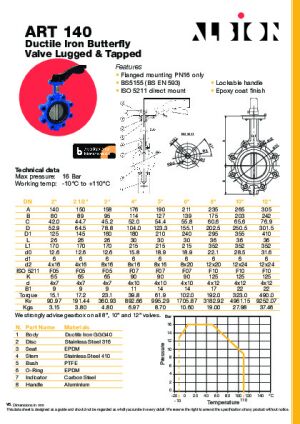

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-140-butterfly-valve/document/object-user-guide
a140.0 mm
A265.0 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b48.5 mm
B203.0 mm
B122.0 mm
BIM Object NameAlbionValves_PipeAccessories_ButterflyValve_ART140
BodyDuctile Iron GGG40
BushPTFE
c25.0 mm
C65.6 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_08
Code Performancen/a
ColorBlue
Connection Size250.0 mm
Connection Size Rad125.0 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2023-08-07 T09:00:00
d4x12
D250.5 mm
d 028.5 mm
d 16.0 mm
D1355.0 mm
D1 Rad177.5 mm
d 212x24
Default Elevation0.0 mm
DescriptionDuctile Iron Butterfly Valve Lugged & Tapped
DiscStainless Steel 316
Documentation Certificateswww.bimstore.co/products/art-140-butterfly-valve/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/art-140-butterfly-valve/document/installation-guide
Documentation Literaturewww.bimstore.co/products/art-140-butterfly-valve/document/product-literature
Documentation Maintenancewww.bimstore.co/products/art-140-butterfly-valve/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/art-140-butterfly-valve/document/technical-data-sheet
Duration UnitYear
e14.9 mm
Expected Life0
f21.0 mm
Features• Flanged mounting PN16 only • BS5155 (BS EN 593) • Lockable handle • ISO 5211 direct mount • Epoxy coat finish
FinishDuctile Iron
g29.0 mm
Graden/a
HandleAluminium
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
IndicatorCarbon Steel
ISO5211F10
K125.0 mm
KeynoteS
Kv4576
L36.0 mm
Lug 10 Angle165.00 °
Lug 11 Angle165.00 °
Lug 12 Angle135.00 °
Lug 13 Angle135.00 °
Lug 14 Angle135.00 °
Lug 15 Angle135.00 °
Lug 16 Angle135.00 °
Lug 17 Angle135.00 °
Lug 18 Angle135.00 °
Lug 19 Angle135.00 °
Lug 1 Angle15.00 °
Lug 20 Angle135.00 °
Lug 2 Angle15.00 °
Lug 3 Angle105.00 °
Lug 4 Angle105.00 °
Lug 5 Angle45.00 °
Lug 6 Angle45.00 °
Lug 7 Angle75.00 °
Lug 8 Angle75.00 °
Lug 9 Angle135.00 °
Lug Hole Rad12.0 mm
Lug Thickness60.6 mm
Lug Top Rad22.0 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialDuctile Iron
Maximum Pressure16 bar
ModelART 140
Model Number10"
Model ReferenceART 140
NBS DescriptionButterfly valves
NBS Noten/a
NBS Object NameAlbion Valves - Butterfly valves
NBS Office Master Tagn/a
NBS Reference90-10-90/332
Nominal Depth0.0 mm
Nominal Height0.0 mm
Nominal Length0.0 mm
O-RingEPDM
Outer Rad155.0 mm
Production Year2023
Referenced StandardBS5155 (BS EN 593), ISO 5211
Replacement Costn/a
SeatEPDM
Shapen/a
Size10"
Size DN250
Spare Partsn/a
StemStainless Steel 410
Thread Inch10
Torque323
Type Comments10"
Type NameART 140
URLwww.albionvalvesuk.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts5
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partssales@albionvalvesuk.com
Weight27.98kg
Working Temperature-10°C to +110°C
