2 Piece Stainless Steel Ball Valve [00/0087]

Description

2 Piece 316 Stainless Steel Full Bore Ball Valve, Carbon Filled PTFE Seats & Seals, Class 1000, Lever Handle with Locking Device, Screwed BSP Female Ends.

Object Data

1 Revision

Last Updated

23/02/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

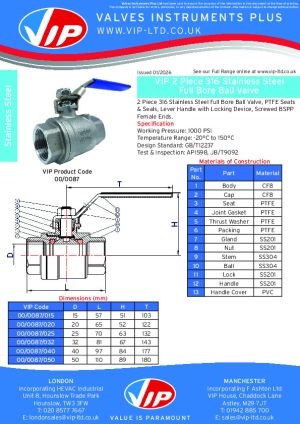

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorEllis Lee / Adam Grant
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version0
_Created ByEllis Lee / Adam Grant
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/63d9f60f-037f-4f99-88a6-aff06a72e93e/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD15
Asset TypeFixed
B14 mm
BIM Object NameVIP_STAINLESS_STEEL_BALL_VALVE(00/0087)
Bolt H4 mm
Bolt W10 mm
C35 mm
C228 mm
Classification NameUniclass 2024
Classification ValuePR_65_54_95_06
Code Performancen/a
ColorSilver & Blue
Constituentsn/a
Created Bysales@vip-ltd.co.uk
Created On2025-04-14T09:00:00
D15 mm
Default Elevation0 mm
DescriptionLever Operated Stainless Steel Ball Valve
DN15 mm
Documentation Certificateswww.bimstore.co/products/63d9f60f-037f-4f99-88a6-aff06a72e93e/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/63d9f60f-037f-4f99-88a6-aff06a72e93e/document/installation-guide
Documentation Literaturewww.bimstore.co/products/63d9f60f-037f-4f99-88a6-aff06a72e93e/document/product-literature
Documentation Maintenancewww.bimstore.co/products/63d9f60f-037f-4f99-88a6-aff06a72e93e/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/63d9f60f-037f-4f99-88a6-aff06a72e93e/document/technical-data-sheet
Duration UnitYears
E27 mm
Expected Life0
F18 mm
Featuresn/a
Finishn/a
Graden/a
H51 mm
KeynoteS
L57 mm
Lever CoverVIP - Blue PVC
ManufacturerVIP
Manufacturer NameVIP
Max Working Pressure1000 PSI
ModelLever Operated Ball Valve
Model Number00/0087/015
Model ReferenceBall Valves
NBS Descriptionn/a
NBS Noten/a
NBS Object Namen/a
NBS Office Master Tagn/a
NBS Referencen/a
Production Year2024
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN15
Spare Partssales@vip-ltd.co.uk
T103 mm
Thread StandardBSPP
Type Comments00/0087/015
Type NameDN15
URLwww.vip-ltd.co.uk/Valves/VIP_Stainless_Steel_Products/00_0087/
Valve Body MaterialVIP - Stainless Steel
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@vip-ltd.co.uk
Warranty Guarantor Partssales@vip-ltd.co.uk
Working Temperature-20°C to 150°C

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
