Y222 - Y-Pattern Strainer

by Watts Water Technologies EMEA B.V.

Download Add to collection

Description

Protection of pumps, valves, pressure reducing valves, against any impurity in the piping system (dirt, rust, seal fragments, foreign bodies)
Filtration : 500 microns

Object Data

1 Revision

Last Updated

02/12/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Certificates

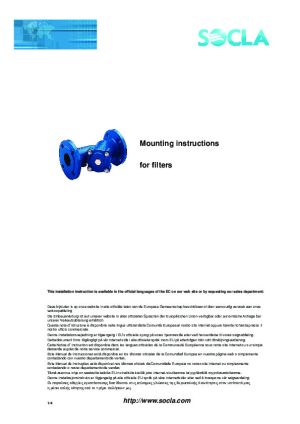

Installation Guide

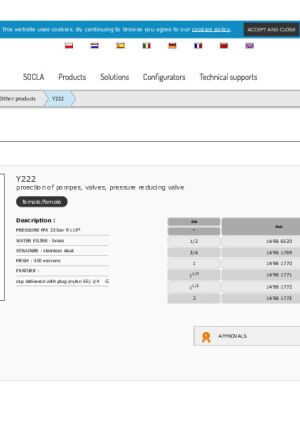

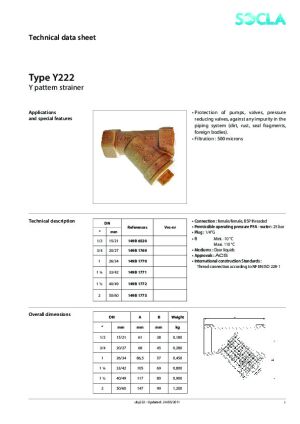

Technical Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/y222-y-pattern-strainer/document/object-user-guide
A62.50 mm
a27.80 mm
Accessibility Performancen/a
Assembly CodeD2040100
Asset TypeFixed
b11.20 mm
B38.00 mm
BIM Object NameWATTS_Valve_Y-PatternStrainer_Y222
c13.00 mm
C26.00 mm
Classification NameUniclass2015
Classification ValuePr_65_57_96_99
Code Performancen/a
ColorBrass
Connection TypeFemale/Female (BSP)
Constituentsn/a
Created Bycontact@wattswater.com
Created On2021-10-12 T09:00:00
d8.30 mm
D122.00 mm
D222.00 mm
DescriptionY222 Strainer DN15, F/F,body in brass, strainer stainless steel, PN25 , Filtration 500µ. Cap delivered with plug (nylon 66) 1/4 G.
DN15.00 mm
Documentation Certificateswww.bimstore.co/products/y222-y-pattern-strainer/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/y222-y-pattern-strainer/document/installation-guide
Documentation Literaturewww.bimstore.co/products/y222-y-pattern-strainer/document/product-literature
Documentation Maintenancewww.bimstore.co/products/y222-y-pattern-strainer/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/y222-y-pattern-strainer/document/technical-data-sheet
Duration UnitYear
e14.00 mm
EAN Code3660770346264
ETIM ClassEC010151
Expected Life0
f6.50 mm
FeaturesFiltration: 500 microns
FinishBrass
g11.00 mm
Graden/a
h7.50 mm
Hex Width12.00 mm
i3.00 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcFilterTypeEnum.STRAINER
KeynoteS12
ManufacturerSOCLA
Manufacturer NameSOCLA
MaterialCasing - Brass; Strainer - Stainless steel
ModelY222 Y-pattern strainer
Model Number149B6520
Model ReferenceY222 Y-pattern strainer
NBS DescriptionY-type water strainers
NBS Object NameWATTS - Y-type water strainers
NBS Office Master Tagn/a
NBS Reference90-10-60/400
Nominal Depth26.00 mm
Nominal Height49.00 mm
Nominal Length62.50 mm
Operating Temperature-10°C to 110°C
PFA Water25
Production Year2021
Reference149B6520
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size62.5 mm(L) x 49 mm(H) x 26 mm(D)
Spare Partsn/a
Strainer Length45.50 mm
Strainer Offset5.14 mm
Symbol Size10.00 mm
Thread Inch1/2
Type CommentsY222 Y-pattern strainer DN15
Type NameY222 Y-pattern strainer DN15
URLsocla.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborcontact@wattswater.com
Warranty Guarantor Partscontact@wattswater.com
Weight0.18 kg
