X-POT XXP

by VEXO International

Download Add to collection

Description

Side stream filtration including magnet filter, bag filter, air and dirt separator and dosing unit for large to very large commercial systems.

The precision design of the X-POT offers the only all in one solution to water treatment on the market.

The X-POT XXP contains 13 rare earth magnets encased within a stainless steel magnet grate for easy removal and cleaning. Along with the magnets, the bag filter offers superior cleaning and exceptional retention of system debris. The X-POT XXP also includes excellent air and micro bubble removal via the on board AAV, supplied in the contractor pack, making it advantageous for all systems. The X-POT XXP is suitable for operation up to 30 Bar.

Object Data

1 Revision

Last Updated

23/08/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

BS8541-2

Compliant

EPD

Not Available

_AuthorCH
_Authorized ByVexo Int
_Bim Spec Guid0
_BS Bible Version16
_Created ByVexo Int
_Current Revision1
_Distributed ByVexo Int
13Off 8,500 Gauss Neodymium MagnetsEach magnet is fully encased in 304SS shell, easily removable from the 316SS Magnet Grate for cleaning and fully submerged in the system flow for increased filtration.
25L Dosing Pot CapacityEnables installers and maintenance personnel to quickly dose the system with water treatment chemicals.
Accessibility Performancen/a
ApplicationSide Stream Filtration & Dosing Unit
Assembly CodeD20
AssetIdentifier (default)Please record on commissioning
Asset TypeFixed
Automatic Air SeparatorEnsures the system micro-bubbles and air are emitted from the system and helps to reduce corrosion rates and decreases stress on system components.
Automatic Air VentBrass
Baffle Plate316 Stainless Steel
BarCode (default)Please record on commissioning
Bespoke Insulation JacketSupplied as part of the Starter Pack. The bespoke insulation jacket ensures heat losses are minimised.
BIM Object NameVexo_PipeAccessories_XPotXXP
Cartridge FilterPolypropylene Spun Bonded Fibre
CE / EMC CompatibilityIEC 61010-1: 2010 + A1: 2019 and EN 61010-1: 2010 + A1:2019
Classification NameUniclass2015
Classification ValuePr_75_51_17_78
Code PerformanceN/A
ColorGrey & Green
ComplianceFully compliant with BSRIA Guidelines BG29 and BG50 for Chemical Dosing, Magnetic Filtration, Fine Filtration, Passive Deaeration and Side Stream Filtration.
Connections 2” BSPSuitable for all types of closed loop LTHW Heating and Cooling Water Systems up to 302,400Litres in volume.
ConstituentsN/A
Created ByCain Harbut
Created On15/10/2020 T10:00:00
Default Elevation1200 mm
DescriptionX-Pot XXP Side Stream Filter                        
Documentation Certificateswww.vexoint.com/
Documentation Installation Guidewww.bimstore.co/products/x-pot-xp/document/installation-guide
Documentation Maintenancewww.vexoint.com/
Documentation Technicalwww.bimstore.co/products/x-pot-xp/document/technical-data-sheet
Dosing Capacity25L
Duration Unitn/a
Enhanced PerformanceThe ingenious design ensures that the filter will continue to perform should regular maintenance not be carried out. filter will not inhibit system performance.
Expected Lifen/a
Featuresn/a
Filter Body MountingFloor Standing
Filtration RateDown to 1 Micron
FinishStainless Steel
Fittings304 Stainless Steel
Full Bore Ball Valve isolation ValvesThe 304SS isolation valves do not restrict system flow and increases ease of installation.
General DescriptionSide stream filtration including magnet filter, bag filter, air and dirt separator and dosing unit for large to very large commercial systems.
Graden/a
Handed LeftNo
Handed RightYes
IFC Export AsN/A
IFC Export TypeN/A
Installation Bracket & RodFor simple installation to wall + 4 off bolt holes in feet
InstallationDate (default)Please record on commissioning
Insulation Jacket VisibleNo
Isolation Valve Connections2” BSP Female
Isolation Valves304 Stainless Steel
KeynoteS                                          
Magnet Grate316 Stainless Steel
Magnetic FilterRemoves magnetic system debris, increases the lifespan of the boiler, chiller and cooling system components, reduces carbon emissions, increases fuel efficiency and increases the lifespan of the Bag Filter.
MagnetsNeodymium Rare Earth
ManufacturerVexo Int
Manufacturer NameVexo Int
Material304 Stainless Steel
Max Flow Rate210L/min
Max System Volume302,400 Litres
Max Working Pressure30Bar
Max Working Temperature95oC
Min Flow Rate4.98L/min
Min Working Temperature0oC
ModelX-Pot XXP Side Stream Filter
Model NumberX-Pot XXP Side Stream Filter
Model ReferenceX-Pot XXP Side Stream Filter
NBS DescriptionSide Stream Filtration & Dosing Unit Side Stream Filtration & Dosing Unit Side Stream Filtration & Dosing Unit
NBS Object NameVexo Products - Side Stream Filtration & Dosing Unit
NBS Office Master TagN/A
NBS ReferenceN/A
Nominal Depth670 mm
Nominal Height1585 mm
Nominal Length875 mm
Nominal Width875 mm
Non Return Valve304 Stainless Steel
Output Connection800 mm
Polypropylene Needlefelt Bag FilterRemoves non-magnetic system debris, available in 100, 50, 25, 5 & 1 micron filtration rates, ensures coalescence micro-bubble formation on the surface of the filter & surpasses BSRIA Guidance for filtration rates. micron filtration rates, ensures coalescence micro-bubble formation on the surface of the filter & surpasses BSRIA Guidance for filtration rates.
Product CodeV-XPOTXXP
Production Year2021
Referenced Standardn/a
SerialNumber (default)Please record on commissioning
ServicingThe cleaning of the filters can simply be achieved without the need to shut the main system down and the dosing of water treatment chemicals is achieved simply and safely, again without the need to shut the system down.
ShapeCylindrical
Sizen/a
Stainless Steel ComponentsAll major components are manufactured from 304SS or 316SS for improved lifecycle and reliability.
Starter Pack Product CodeV-XPOTXXP(CONT)PACK
Type CommentsX-Pot XXP Side Stream Filter
Type NameX-Pot XXP Side Stream Filter
URLwww.vexoint.com/
Vessel Body304 Stainless Steel – complies with PED 2014/68/EU CE Marked
Warranty Description5 Years Standard (6 Years if VEXOTM X-PO10 Inhibitor is used)
Warranty Duration Laborn/a
Warranty Duration Parts5 Years Standard (6 Years if VEXOTM X-PO10 Inhibitor is used)
Warranty Duration UnitYears
Warranty Guarantor Partsn/a
WarrantyStartDate (default)Please record on commissioning
Weight (Empty)45kg
Weight (Full)85kg
X-PO10 Inhibitor 10LVX-XPO10-10LTR
X-PO20 De-Scaler 10LVX-XPO20-10LTR
X-PO35 Non-Flush Cleanser 10LVX-XPO35-10LTR
X-PO40 De-Sludger 10LVX-XPO40-10LTR
X-PO45 New System 10LVX-XPO45-10LTR
X-PO50 Anti-Freeze 20LVX-XPO50-20LTR
X-PO55 Anti-Freeze 20LVX-XPO55-20LTR
X-PO80 Biocide 5LVX-XPO80-5LTR

Bimstore on 18 May 2026

Be the first to write a comment...

X-POT XXP

Description

Object Data

Last Updated

Available Software

BS1192:4

BSB

BS8541-2

EPD

Accompanying literature

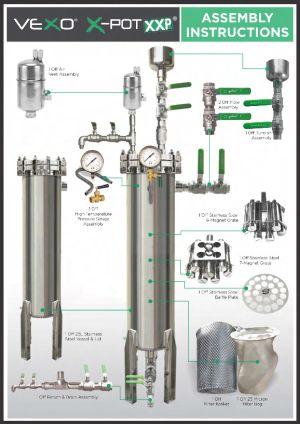

Installation Guide

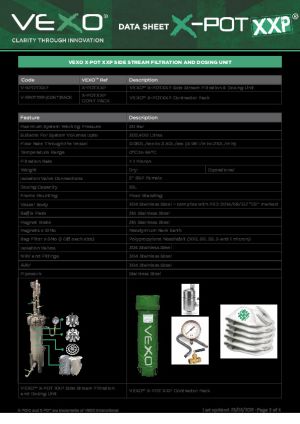

Technical Data Sheet
