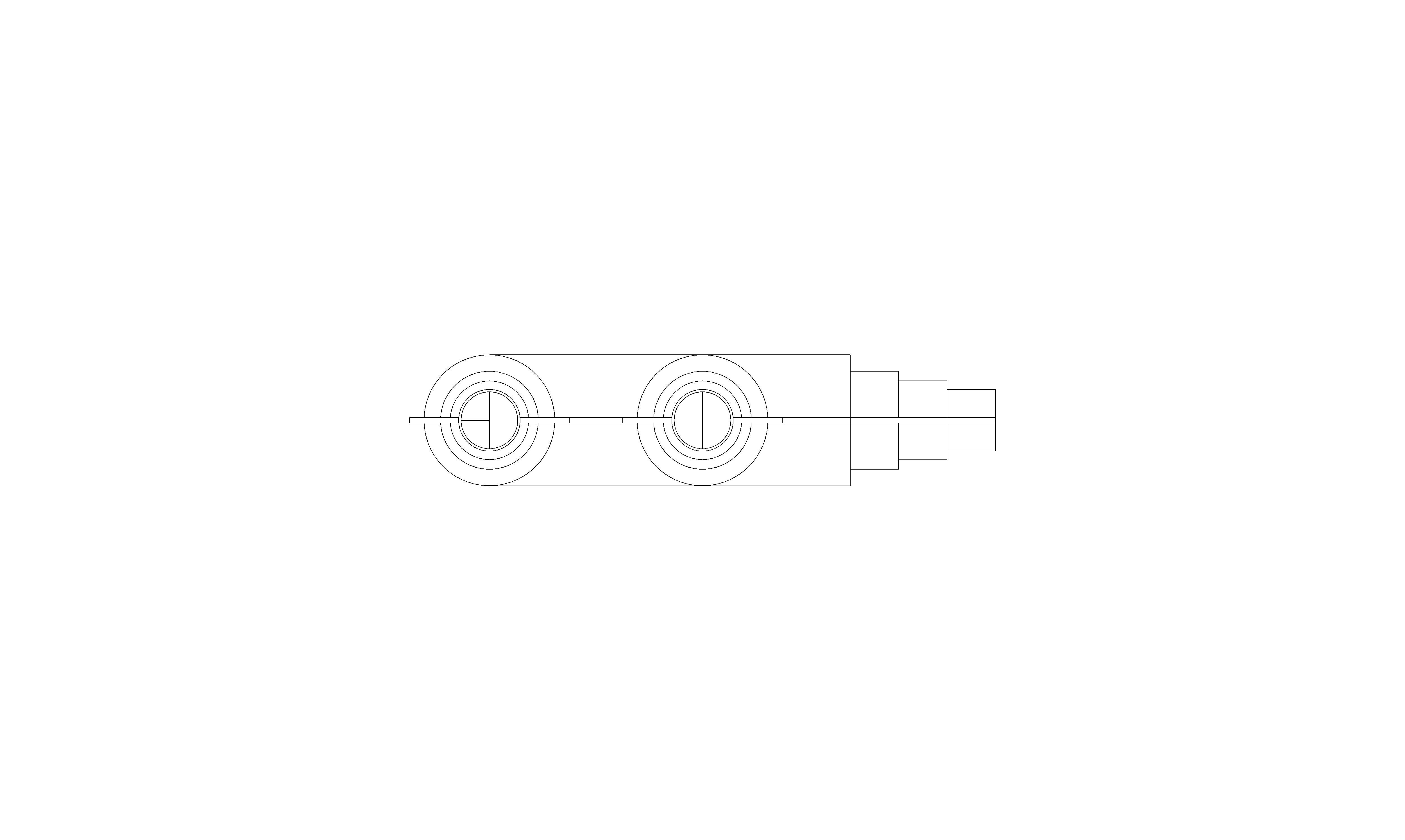

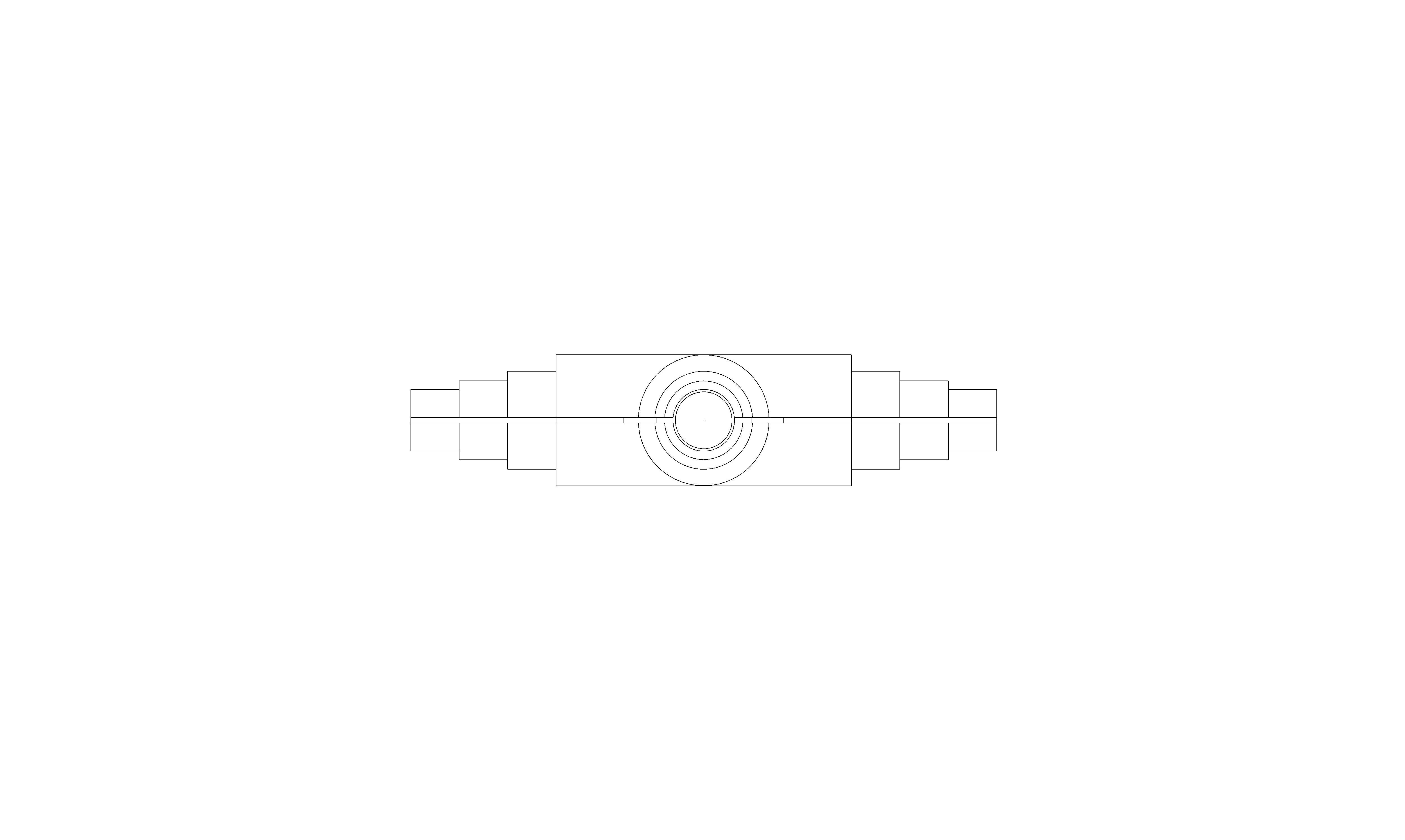

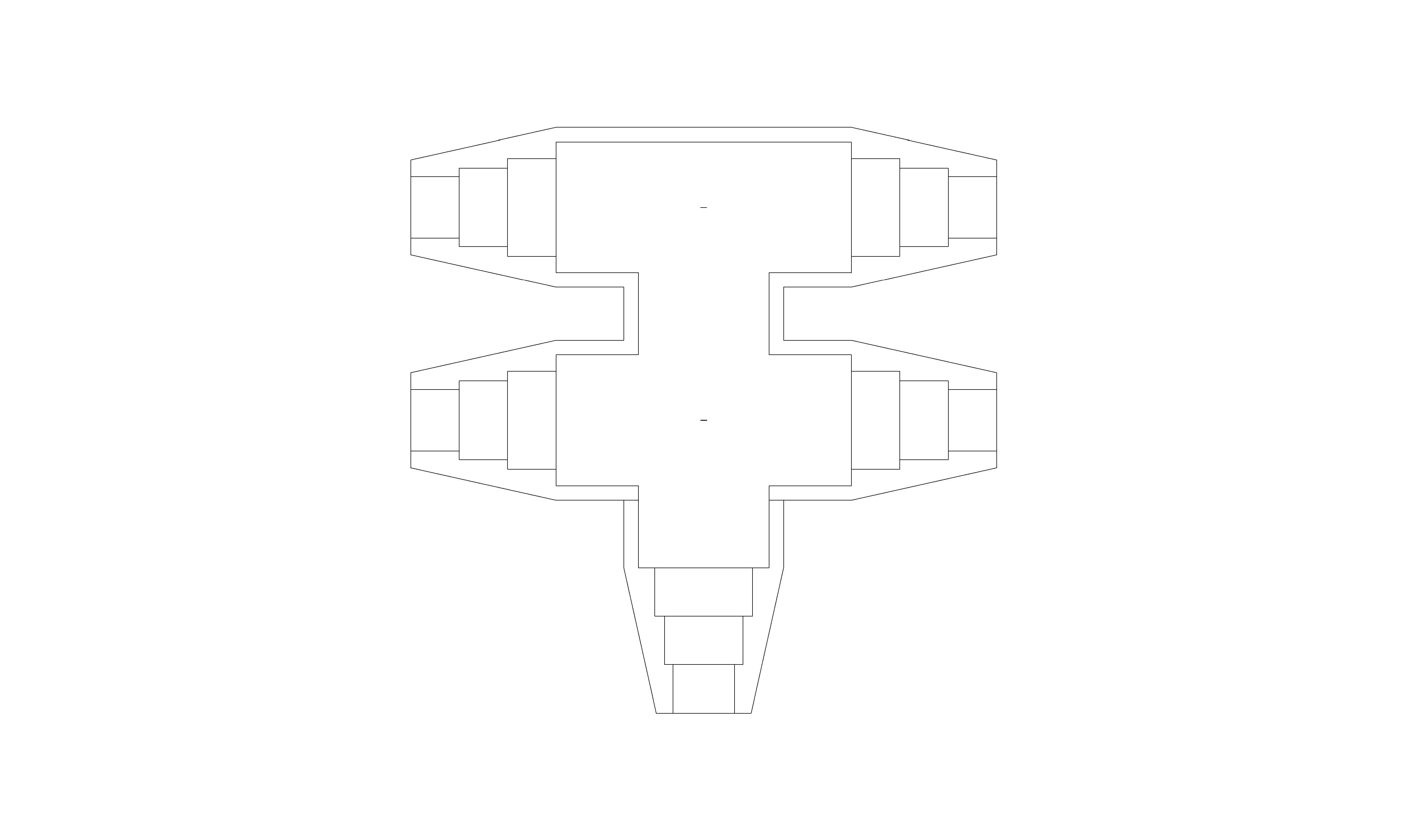

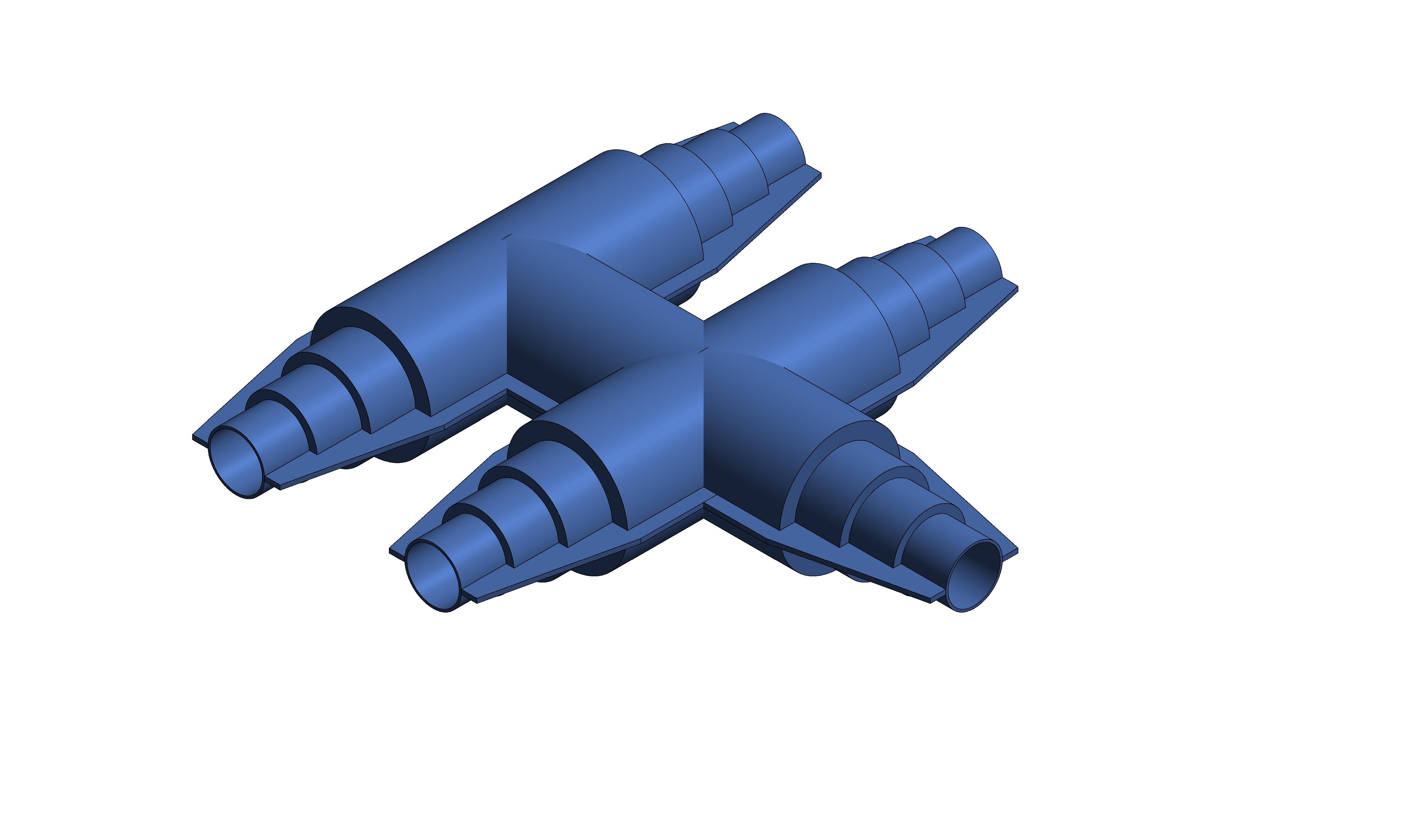

Microflex pre-insulated piping - Insulated double T-piece kit

Description

Guarantees complete insulation and sealing of branch connections between Uno, Duo and Quadro pipes. Kit comprises 2 halves in HDPE, rock wool insulation, sealer kit, stainless steel bolts and assembly instructions.

Art. No.	Microflex pipe with casing dout (mm)	L (mm)	W (mm)	H (mm)	Weight (kg)
MDT201612	200/160/125мм	1170	1200	270	21.5

Object Data

1 Revision

Last Updated

04/12/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/watts-microflex-pre-insulated-double-t-piece-kit/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2040100
Asset TypeFixed
BIM Object NameWatts_Microflex_InsulatedDoubleTPieceKit
Classification NameUniclass2015
Classification ValuePr_65_52_63_68
Code Performancen/a
ColorDark Blue
Connection Typen/a
Connector Length1010.0 mm
Constituentsn/a
Created Bycontact@wattswater.com
Created On2024-01-18 T09:00:00
D1127.0 mm
D2162.0 mm
D3202.0 mm
D4270.0 mm
Default Elevation0.0 mm
DescriptionGuarantees complete insulation and sealing of branch connections between Uno, Duo and Quadro pipes. Kit comprises 2 halves in HDPE, rock wool insulation, sealer kit, stainless steel bolts and assembly instructions.
Documentation Certificateswww.bimstore.co/products/watts-microflex-pre-insulated-double-t-piece-kit/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/watts-microflex-pre-insulated-double-t-piece-kit/document/installation-guide
Documentation Literaturewww.bimstore.co/products/watts-microflex-pre-insulated-double-t-piece-kit/document/product-literature
Documentation Maintenancewww.bimstore.co/products/watts-microflex-pre-insulated-double-t-piece-kit/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/watts-microflex-pre-insulated-double-t-piece-kit/document/technical-data-sheet
Duration UnitYear
EAN Code8019001118838
ETIM Classn/a
Expected Life0
External Sleeve Diameter125.0 mm
Featuresn/a
Finishn/a
Graden/a
Ifc Export AsIfcPipeFittingType
Ifc Export TypeJUNCTION
KeynoteS12
L1100.0 mm
L2100.0 mm
L3100.0 mm
Length1210.0 mm
ManufacturerWatts
Manufacturer NameWatts
MaterialPlastic
ModelMicroflex pre-insulated piping - Insulated double T-piece kit
Model NumberMDT201612
Model ReferenceMicroflex pre-insulated piping - Insulated double T-piece kit
NBS DescriptionPre-insulated pipelines
NBS Noten/a
NBS Object NameWatts - Pre-insulated pipelines
NBS Office Master Tagn/a
NBS Reference90-10-65/385
Nominal Depth1210.0 mm
Nominal Height270.0 mm
Nominal Length1210.0 mm
Operating Temperaturen/a
PFA Water0
Primary MaterialWatts - Plastic - Dark Blue
Production Year2024
ReferenceMDT201612
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeMicroflex pipe with casing dout - 200/160/125mm
Spare Partsn/a
T1196.0 mm
T2330.0 mm
Tee Connection Length505.0 mm
Tee Length770.0 mm
Type CommentsMDT201612
Type NameMDT201612
URLwww.watts.eu/en/products/eu/microflex-pre-insulated-piping/accessories/pipe-insulation-sets/insulated-double-t-piece-kit
Void Offset0.0 mm
Wall Thickness5.0 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partscontact@wattswater.com
Weight21.50 kg

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
