bimstore - Trade Washrooms - Vanity Unit Panel Pack

2.5k
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

31/01/2023

Download BIM

Add to collection

Available for:

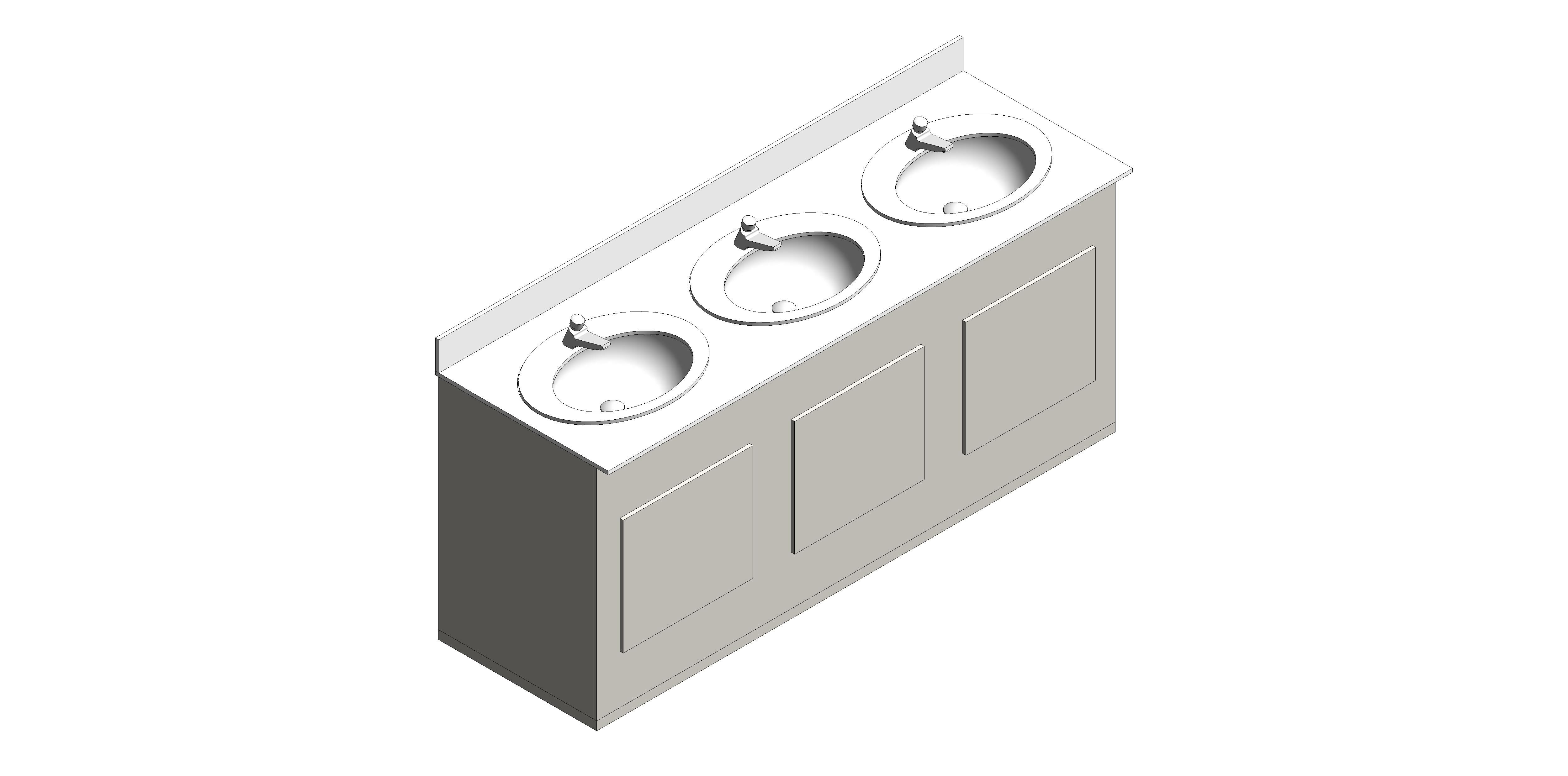

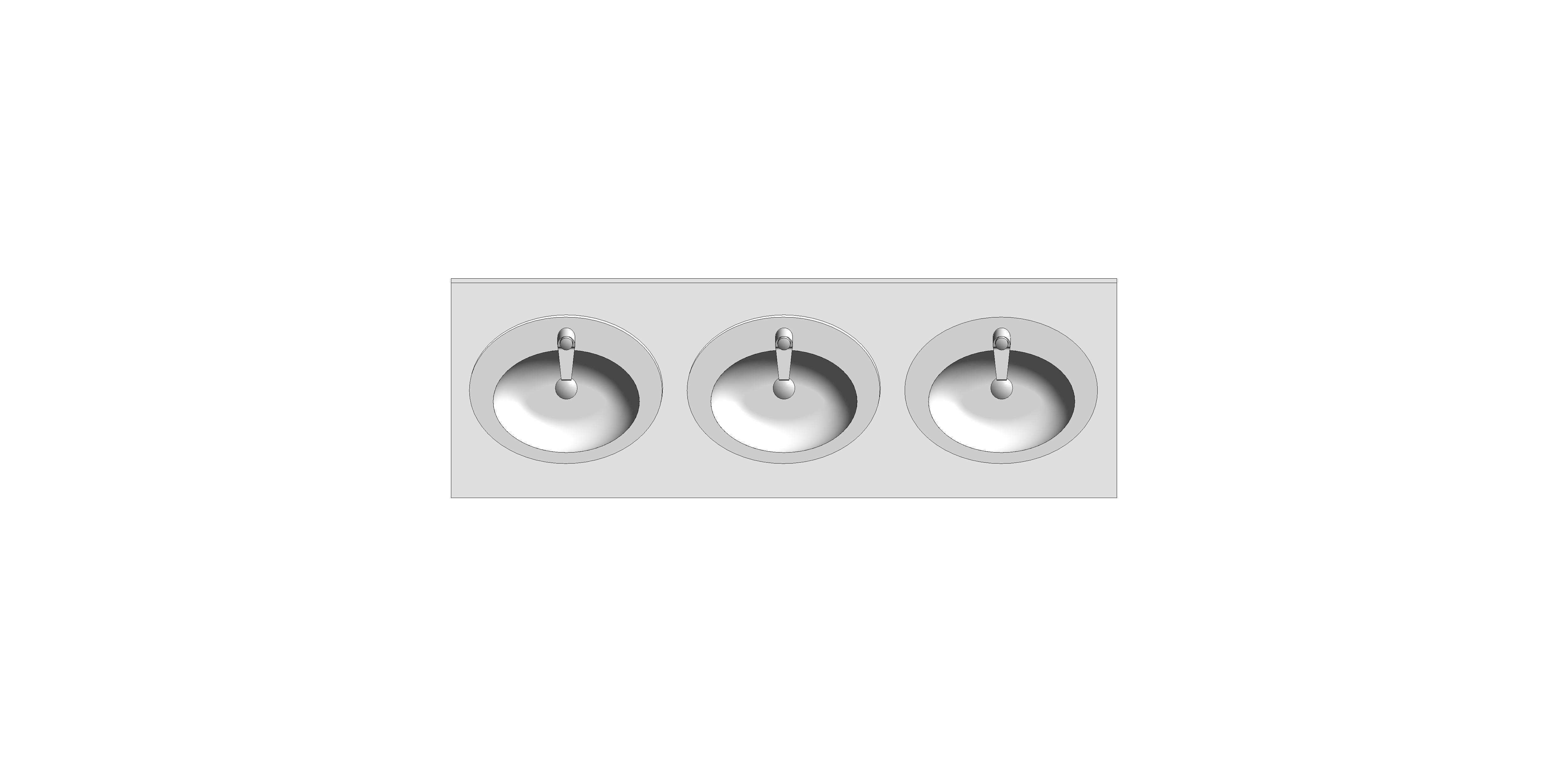

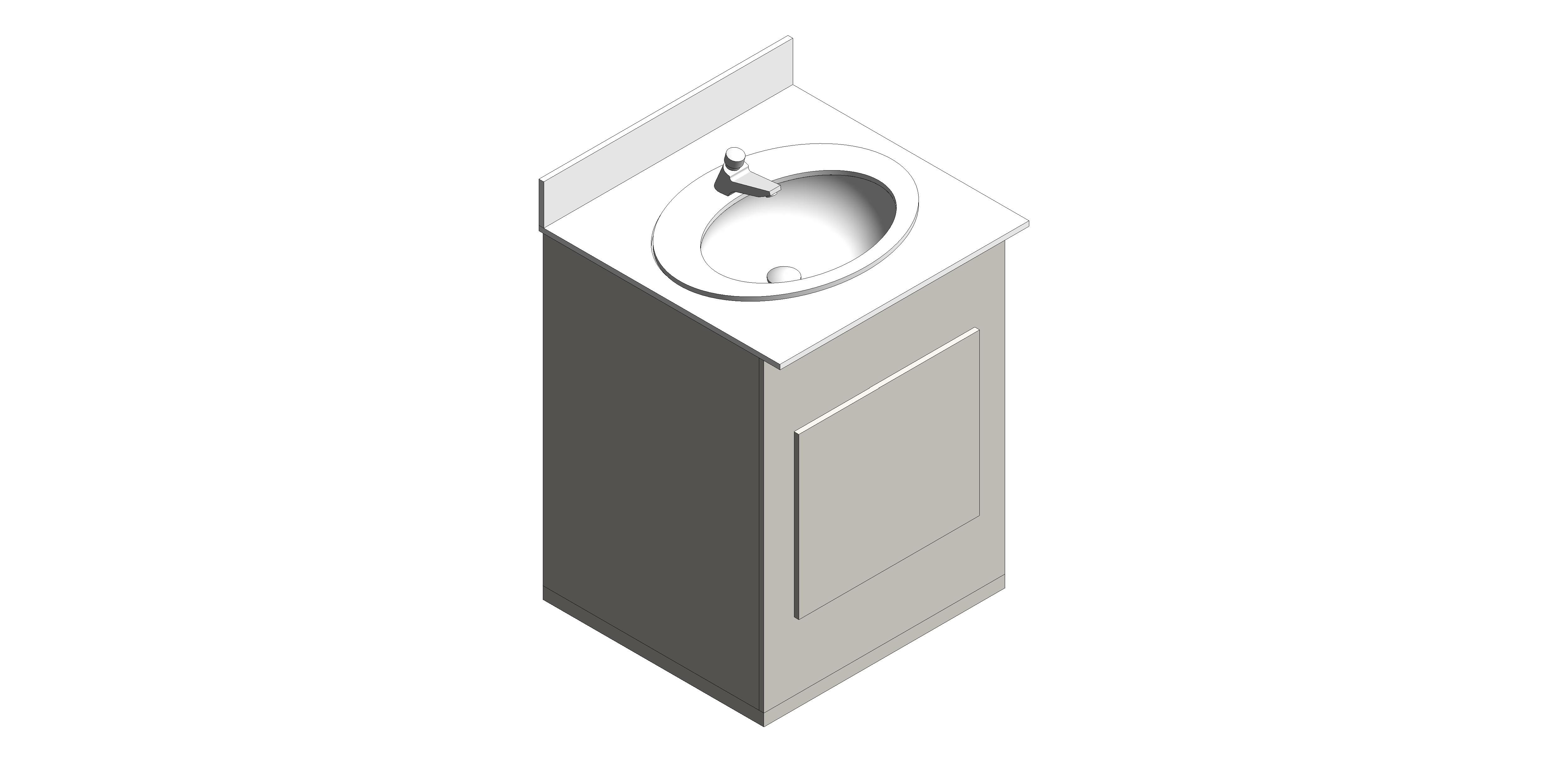

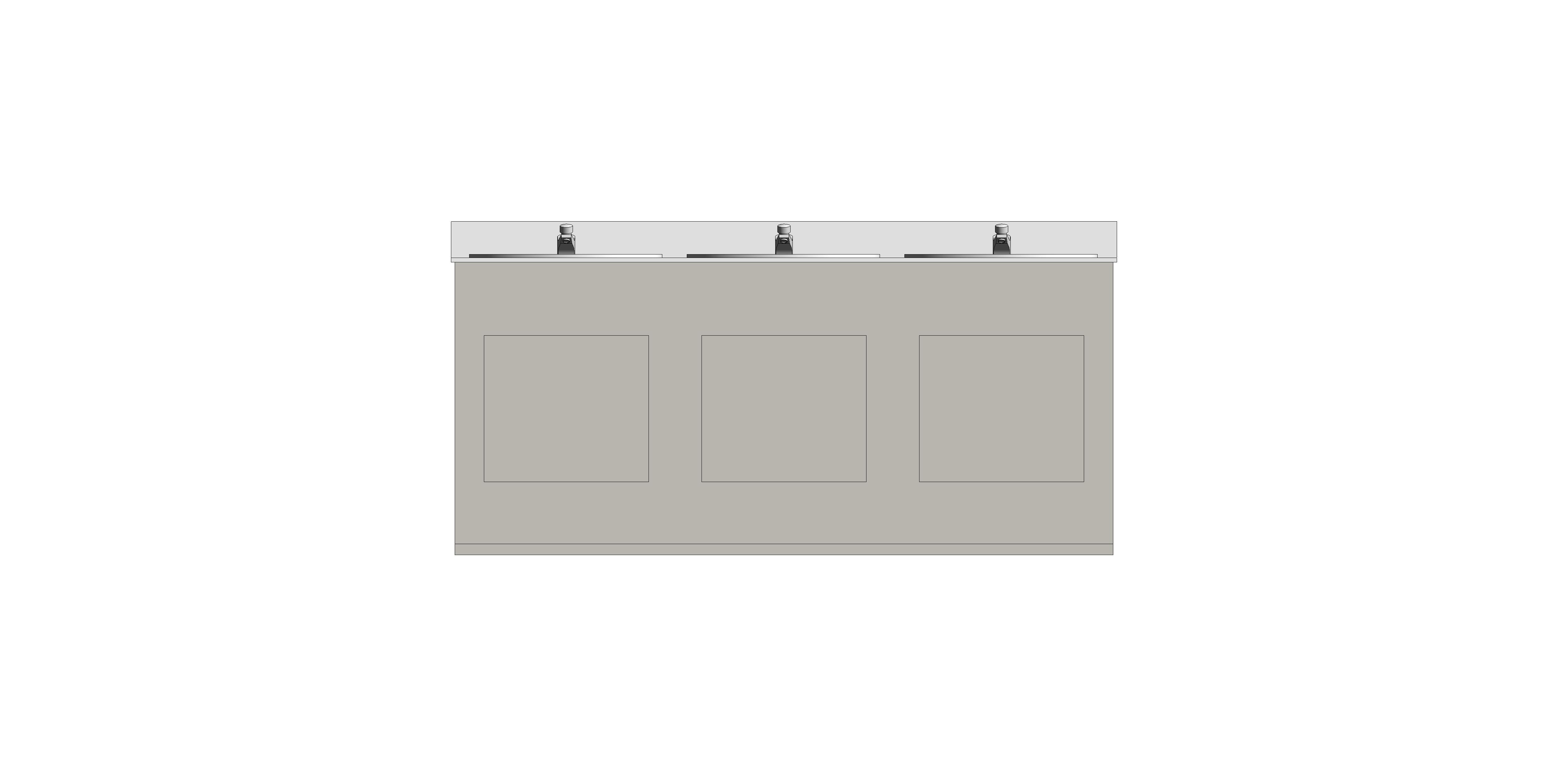

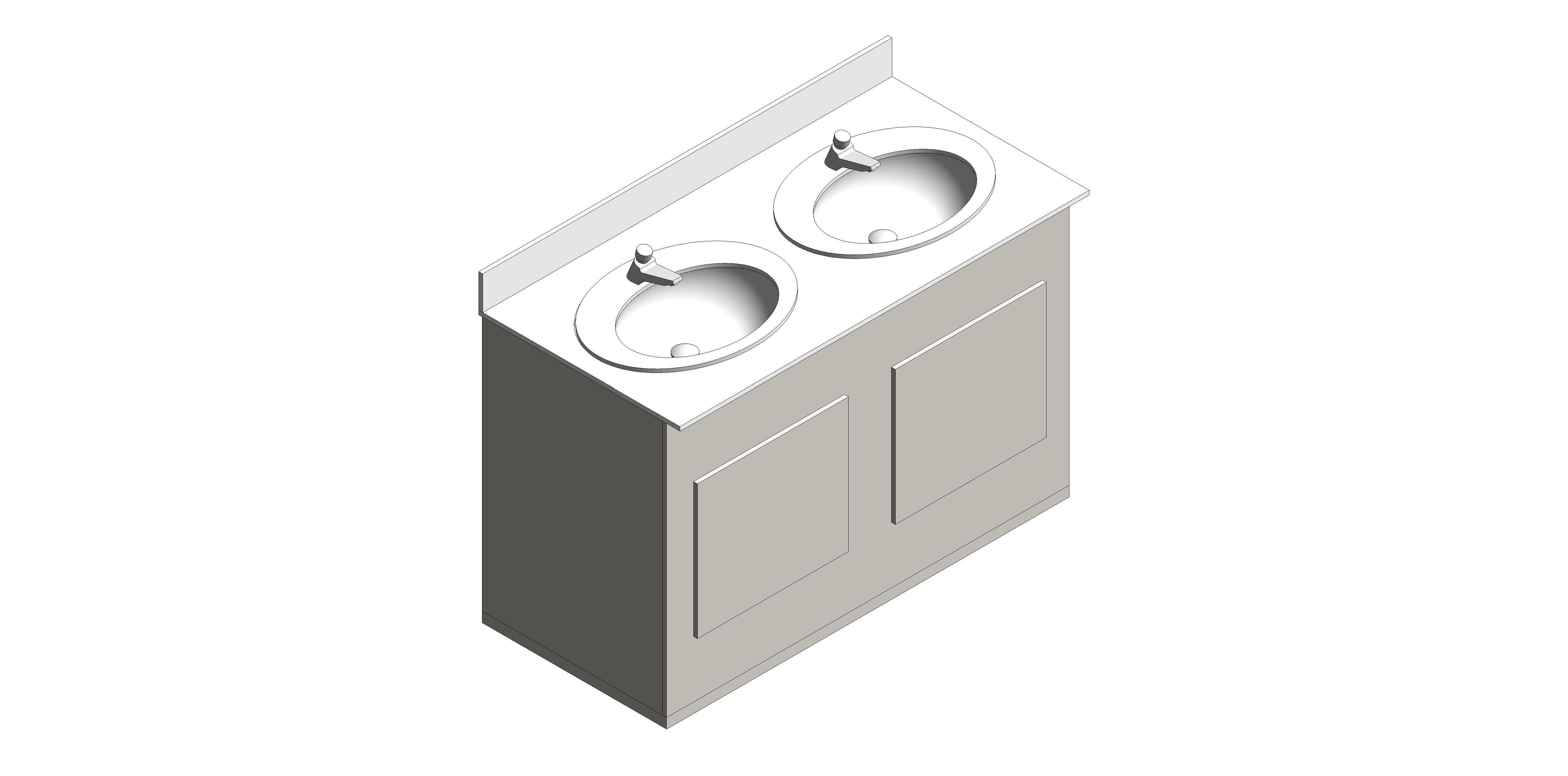

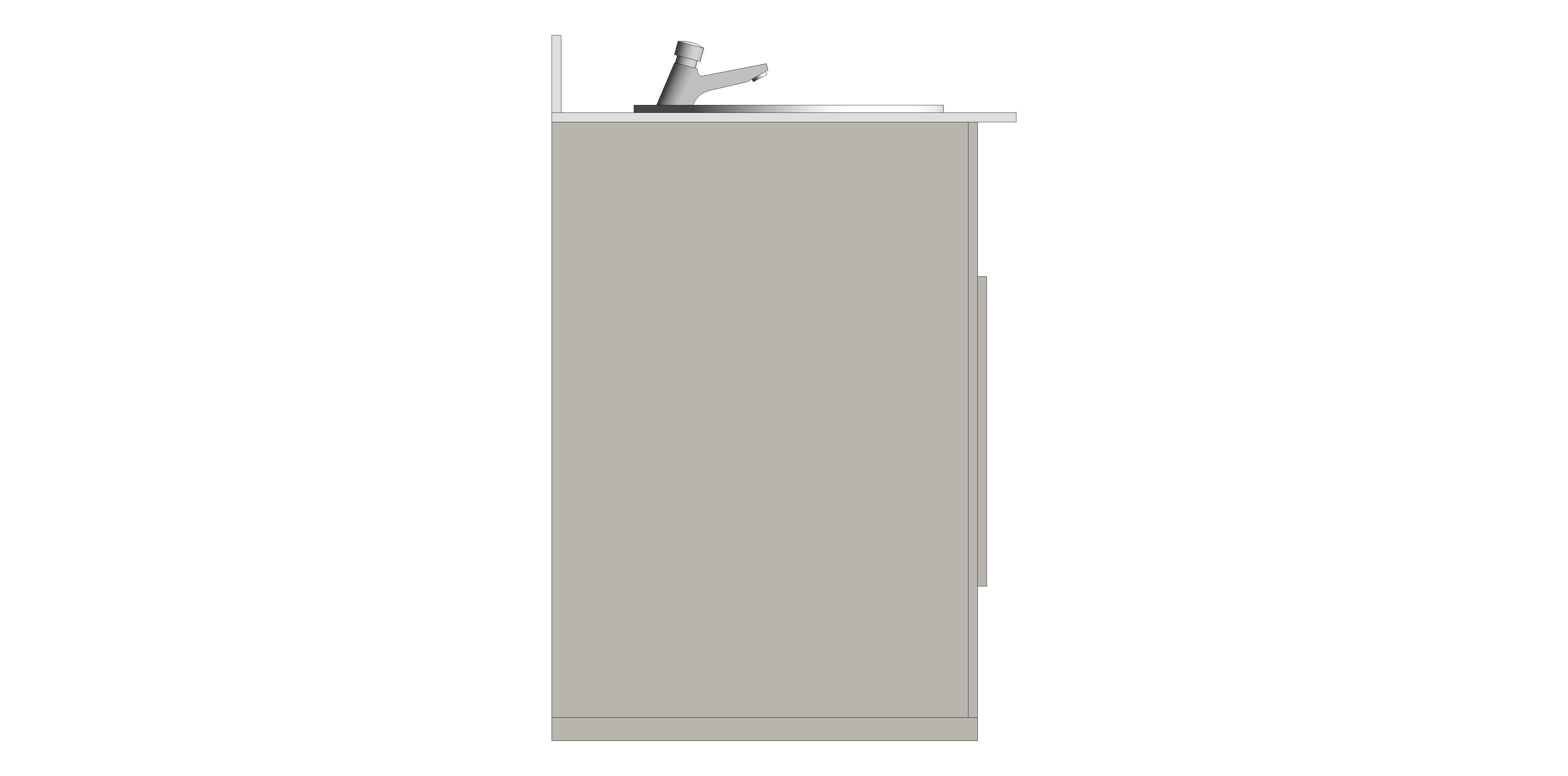

Build a commercial vanity unit up to 1800mm long with this handy panel pack available off-the-shelf.

Suitable for up to three basins (sold separately), the solid surface vanity top is ultra-hygienic and inhibits mould and bacteria growth. Under panels are Light Grey to match our toilet cubicle and IPS panel packs.

Supplied flat-packed and designed to be cut to size on-site with cut edges hidden against the wall or in the floor channels provided.

Object metadata

_AuthorRW
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
Access Panel Height400 mm
Access Panel Width450 mm
Assembly CodeD2010900
Asset TypeFixed
BIM Object NameTradeWashrooms_VanityUnit_PanelPack
CategoryPr_40_20_76_94 Vanity units
Classification NameUniclass2015
Classification ValuePr_40_20_76_94
Code Performancen/a
ColorLight Grey
ConstituentsVanity Unit Panel Pack
Counter Top Depth12 mm
Counter Top Overhang Front50 mm
Counter Top Overhang Side10 mm
Created Byspec@tradewashrooms.co.uk
Created On2023-01-11T09:00:00
CT1Yes
CT1 Offset100 mm
CT2No
CT2 Offset0 mm
CT3No
CT3 Offset100 mm
CW ConnectionYes
CWFU0
Default Elevation0 mm
DescriptionVanity Unit Panel Pack - Cubicle Store
Documentation Certificateswww.bimstore.co/products/vanity-unit-panel-pack/document/product-certificates

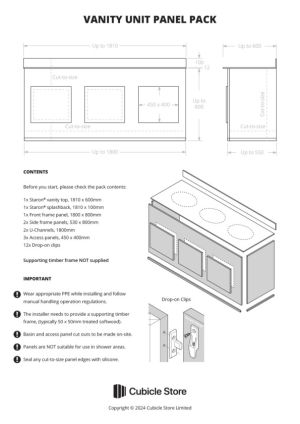

Documentation Installation Guidewww.bimstore.co/products/vanity-unit-panel-pack/document/installation-guide
Documentation Literaturewww.bimstore.co/products/vanity-unit-panel-pack/document/product-literature
Documentation Maintenancewww.bimstore.co/products/vanity-unit-panel-pack/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/vanity-unit-panel-pack/document/technical-data-sheet
Duration UnitYears
Expected Life10
FeaturesBuild a commercial vanity unit up to 1800mm long with this handy panel pack available off-the-shelf.
Finishn/a
Graden/a
HW ConnectionYes
HWFU0
Ifc Export AsIfcFlowTerminalType
Ifc Export TypeIfcSanitaryTerminalTypeEnum.SINK
KeynoteN13
Manufacturerspec@tradewashrooms.co.uk
Manufacturer Nameorders@tradewashrooms.co.uk
MaterialMelamine Faced Chipboard and Acrylic Solid Surface
Material Thickness12 mm
ModelCSVANITY
Model Number1 Basin
Model ReferenceVanity Unit Panel Pack - Cubicle Store
Multiple UnitsNo
NameVanity Unit Panel Pack - Cubicle Store
NBS DescriptionVanity units
NBS Object NameTrade Washrooms - Vanity units
NBS Office Master Tagn/a
NBS Reference45-35-72/378
Nominal Depth600 mm
Nominal Height800 mm
Nominal Length1800 mm
No Of Units Calc2
Number Of Units1
Plinth Height30 mm
Production Year2020
Referenced StandardHBN 00-10 Part C and ISO 22196: 2011
Replacement Costn/a
Shapen/a
Single UnitYes
Sink Offset Rear300 mm
Sink Offset Side50 mm
Size1800 x 600 x 800mm
Spare Partsn/a
Splashback Height100 mm
Sustainability Performancen/a
Type Comments1 Basin
Type NameCSVANITY
URLwww.tradewashrooms.co.uk/
Vanity Unit Depth550 mm
Vanity Unit Height812 mm
Vanity Unit Length600 mm
Vanity Unit Length Calc600 mm
Vent ConnectionNo
VU Max1800 mm
VU Min600 mm
Warranty Description0
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsorders@tradewashrooms.co.uk
Waste ConnectionYes
WFU0
