URBAN Dual Flush Plate Chrome (USW0602)

by SONAS Bathrooms

Download Add to collection

Description

URBAN Dual Flush Plate Chrome

Mechanical Actuation
Material ABS
Fixings Supplied
Front and Top Installation based on cistern model
Size 210mm x 138mm x 10mm

For more information visit the SONAS website here.

Object Data

1 Revision

Last Updated

17/12/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

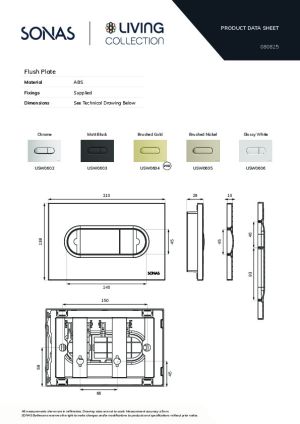

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized ByBS
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/11e58a6e-8b8e-4d0d-9a2b-0fd5b4f981b5/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameSONAS_Urban_DualFlushPlate_USW0602
Classification NameUniclass 2015
Classification ValuePr_40_20_93
Code Performancen/a
Colorn/a
Constituentsn/a
Created Byinfo@sonasbathrooms.com
Created On2025-12-08T09:00:00
Default Elevation0 mm
Descriptionn/a
Documentation Certificateswww.bimstore.co/products/11e58a6e-8b8e-4d0d-9a2b-0fd5b4f981b5/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/11e58a6e-8b8e-4d0d-9a2b-0fd5b4f981b5/document/installation-guide
Documentation Literaturewww.bimstore.co/products/11e58a6e-8b8e-4d0d-9a2b-0fd5b4f981b5/document/product-literature
Documentation Maintenancewww.bimstore.co/products/11e58a6e-8b8e-4d0d-9a2b-0fd5b4f981b5/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/11e58a6e-8b8e-4d0d-9a2b-0fd5b4f981b5/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Ifc Export AsIfcFlowTerminalType
Ifc Export TypeIfcSanitaryTerminalType
KeynoteN13
ManufacturerSONAS
Manufacturer NameSONAS
MaterialABS
ModelUrban Dual Flush Plate
Model NumberUSW0602
Model ReferenceUrban Dual Flush Plate
NBS DescriptionUrinal and WC fittings
NBS Noten/a
NBS Object NameSONAS - Urinal and WC fittings
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth10 mm
Nominal Height138 mm
Nominal Length210 mm
Primary MaterialSONAS - Polished Chrome
Production Year2025
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsinfo@sonasbathrooms.com
Type CommentsUrban Dual Flush Plate
Type NameUrban Dual Flush Plate
URLwww.sonasbathrooms.com/en/urban-dual-flush-plate-chrome.html
Warranty Description2 Years
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@sonasbathrooms.com
Warranty Guarantor Partsinfo@sonasbathrooms.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
