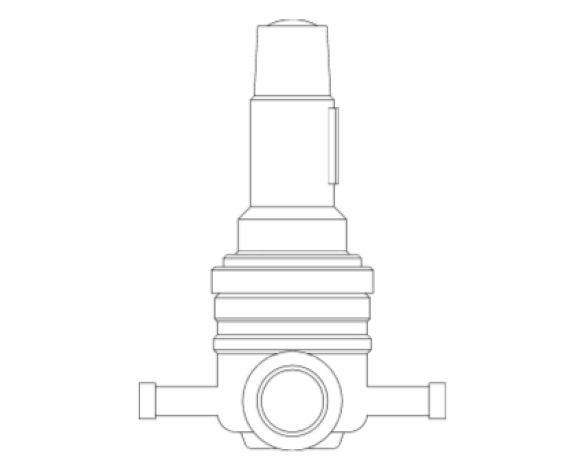

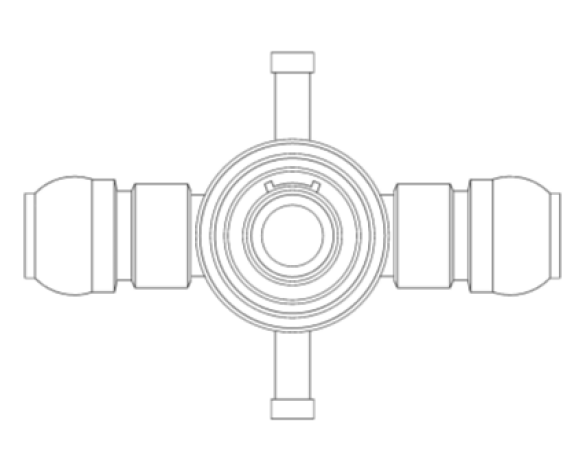

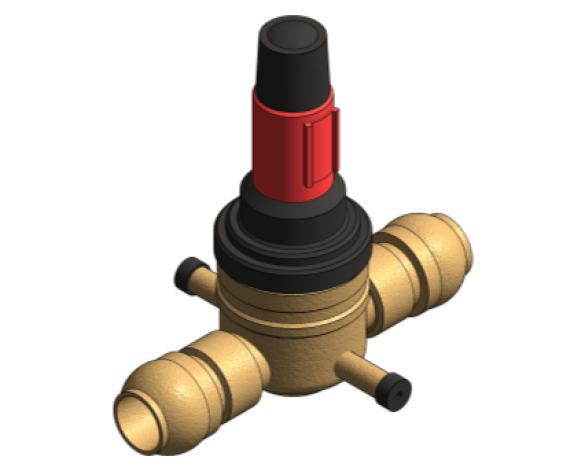

Sharkbite 314 Commercial Pressure Reducing Valve

5.2k
0
- / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

31/08/2016

Download BIM

Add to collection

Available for:

- For up to 16 bar and 80˚C- Adjustable between 1.5 – 6.0 bar- Drop tight valve – controls the pressure under flow and no-flow conditions- One piece, easy to replace cartridge contains all working parts- Integral strainer to protect the seat of the valve and is fully serviceable- Installation flexibility – can be installed in any orientation- Cold version up to 45˚C also available- Gauge ports located on either side of the base of the valve

SBPRED314001SBPRED314005

_authorized byKris Atkinson
_BIMspec_GUID1
_created byPeter Winterburn
_current revision1
_distributed bywww.bimstore.co.uk
Accessibility Performancen/a
Assembly CodeD2020300
Asset TypeFixed
B_Center To Cap Top92 mm
Classification NameUniclass
Classification ValuePr_65_54_40_44
Code Performancen/a
ColorBrass
Connection Type15mm Comp
Constituentsn/a
Created Bytechnical@rwc.co.uk
Created On2016
DescriptionThe Reliance Water Controls brand specialises in pressure, temperature, flow control and washroom products and has a long history in supplying the sanitary plumbing market and hot water system manufacturers. With our heritage and expertise, Reliance Worldwide Corporation (UK) Ltd (RWC UK) played a key role in the development of thermostatic technology and unvented hot water systems in the UK. Today we remain at the forefront of the industry delivering new innovations each year to drive water efficiency and improve water safety in both domestic and commercial applications.
Duration UnitYears
Expected Life0
FeaturesFor up to 16 bar and 45oC. Adjustable between 1.5 – 6.0 bar. Drop tight valve – controls the pressure under flow and no-flow conditions. One piece, easy to replace cartridge contains all working parts. Integral strainer to protect the seat of the valve and is fully serviceable. Installation flexibility – can be installed in any orientation. Hot version up to 80oC also available. Gauge ports located on either side of the base of the valve.
FinishDRZ Brass
Fittings MaterialRWC DRZ Brass Sandblasted
Graden/a
Inlet 1_Diameter15 mm
Inlet 1_Radius8 mm
KeynoteS12
ManufacturerReliance Water Controls
Manufacturer AddressReliance Worldwide Corporation (UK) Ltd, Worcester Road, Evesham, Worcestershire, WR11 4RA, UK
Manufacturer Fax+44 (0) 1386 712401
Manufacturer Tel+44 (0) 1386 712400
MaterialDRZ Brass
Maximum Pressure16.0 bar
Max Pressure6.0 bar
Max Temperature45 °C
Min Pressure1.5 bar
ModelSBPRED314001
Model NumberPlease record on commissioning
NBS DescriptionIsolating valves;
NBS Object Name90-15-40/325 Isolating valves;
NBS Reference90-15-40/325
Nominal Height0 mm
Nominal Length62 mm
Nominal Width74 mm
Outlet 1_Diameter15 mm
Outlet 1_Radius8 mm
Pressure Reduction Ratio10:1
Product CodeSBPRED314001
Production Year2016
Referenced StandardWRAS Approved, DVGW, BS EN 1567
Replacement Costn/a
ShapeElbow
Size70 x 92 x 26mm
Spare Partsn/a
Type NameSBPRED314001
URLwww.rwc.co.uk
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
