IDROSET Series CF

by Watts Water Technologies EMEA B.V.

Download Add to collection

Description

The static balancing valves Series CF, belonging to the iDROSET family are devices designed to calibrate and regulate the water flow in heating and cooling systems and domestic hot or cold water distribution systems. Thanks to its innovative design
based in new patented technology, the flow rate can be easily calibrated and read it without the requirement of special tools. These valves can be used as an instant diagnostic tool for monitoring the system performance according to the flow rate.

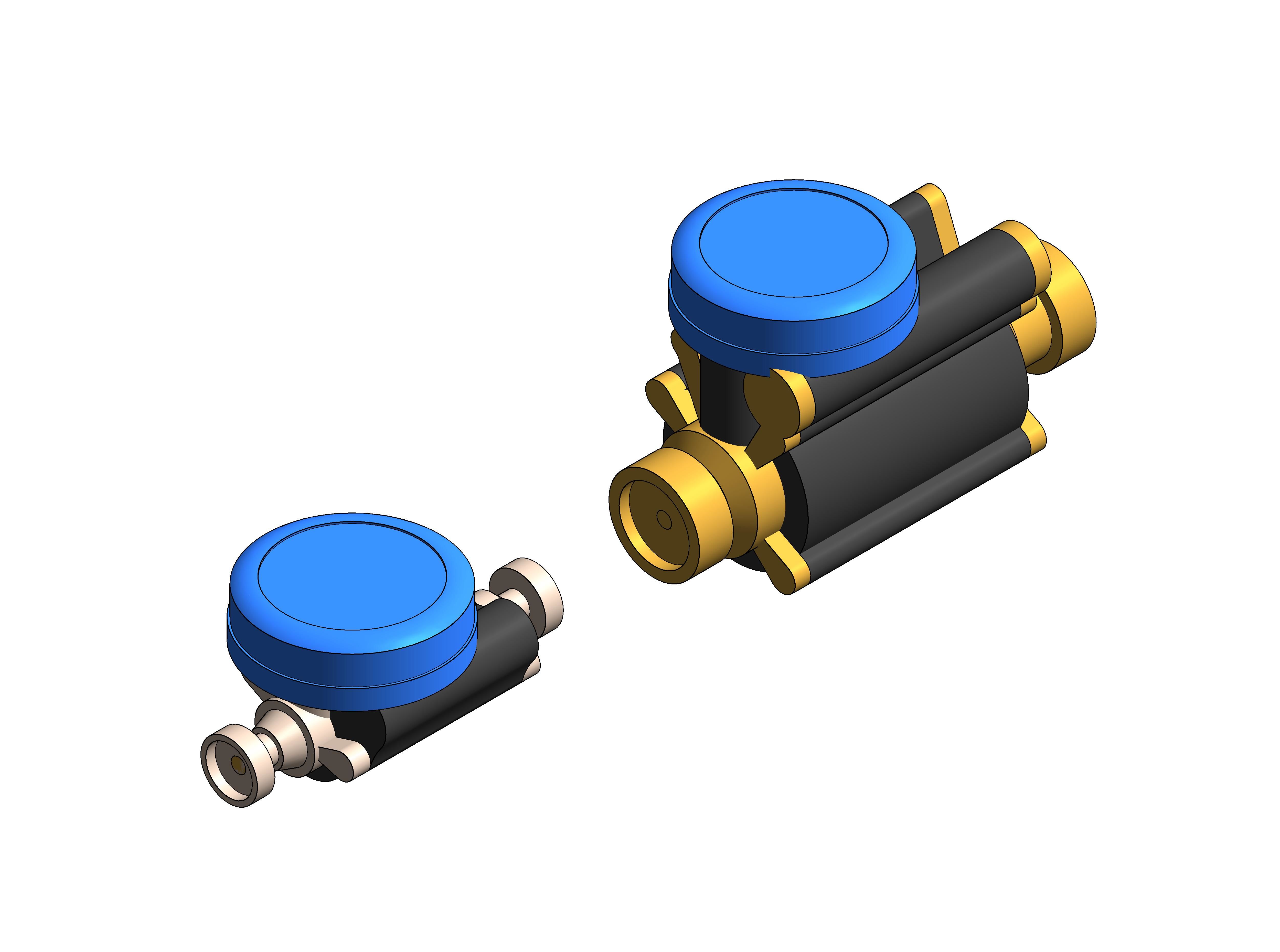

Available in the following sizes

PAP-S015
PAP-S020
PAP-M025
PAP-L032
PAP-L040
PAPXL050

Object Data

1 Revision

Last Updated

02/03/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Literature

Product Data Sheet

Object metadata

_AuthorWatts
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywattsuk@wattswater.com
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co
Accessibility Performancen/a
Assembly CodeD2020
Asset TypeFixed
BIM Object NameWATTS_PipeAccessories_Valve_StaticBalancing_SeriesCF
Classification NameUniclass2015
Classification ValuePr_65_54_95_86
Code Performancen/a
ColorYellow, Black, Blue
Connection Diameter114
Connection Radius1
Connection TypeBSP Connection
Constituentsn/a
Created Bywattsuk@wattswater.com
Created On2019-12-05T09:00:00
DescriptionThe static balancing valves Series CF, belonging to the iDROSET family are devices designed to calibrate and regulate the water flow in heating and cooling systems and domestic hot or cold water distribution systems. Thanks to its innovative design based in new patented technology, the flow rate can be easily calibrated and read it without the requirement of special tools. These valves can be used as an instant diagnostic tool for monitoring the system performance according to the flow rate.
Documentation Certificateswattsindustries.co.uk/
Documentation Installation Guidewattsindustries.co.uk/
Documentation Literaturewattsindustries.co.uk/wp-content/uploads/2019/09/CF-TS-IT-W-UK-05-19-Rev0-new-1.pdf
Documentation Maintenancewattsindustries.co.uk/
Documentation Technicalwattsindustries.co.uk/wp-content/uploads/2019/09/CF-TS-IT-W-UK-05-19-Rev0-new-1.pdf
Duration UnitYears
Expected Life0
Features15 second installation time. Easy to set. Easy to read. Precision calibration without any external device for the check. New patented, accurate technology.
FinishPrime Paint
Graden/a
Height5732
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.MIXING
Length778
ManufacturerWATTS
Manufacturer NameWATTS
MaterialBrass
Maximum Flow Rate6000
Maximum Operating PressurePN16
Maximum Operation Temperature230°F (110°C)
Minimum Operation Temperature-10
ModeliDROSET Series CF
Model NumberPAP-L032
Model ReferenceiDROSET Series CF
NBS DescriptionThermostatic balancing valves
NBS Object NameWATTS - Thermostatic balancing valves
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth12932
Nominal Diameter114
Nominal Height5732
Nominal Length778
Production Year2019
Product Page URLwattsindustries.co.uk/seriescf/
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size1 1/4"
Spare Partsn/a
Threaded ConnectionsFemale – Female
Type CommentsPAP-L032
Type NamePAP-L032
URLwattsindustries.co.uk/
Valve GeometryPAP-L032
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborwattsuk@wattswater.com
Warranty Guarantor Partswattsuk@wattswater.com
Width12932
