RA1 90° Angle Half Round

142
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

05/04/2024

Download BIM

Add to collection

Available for:

Rainwater Systems

FloPlast rainwater systems offer a wide choice of profile design, both traditional and modern, in a range of colours to suit all tastes and applications.

The FloPlast reputation for technical excellence, competitively priced and quality finished products have established the company as a leading supplier of PVC-U Plastic Building products.

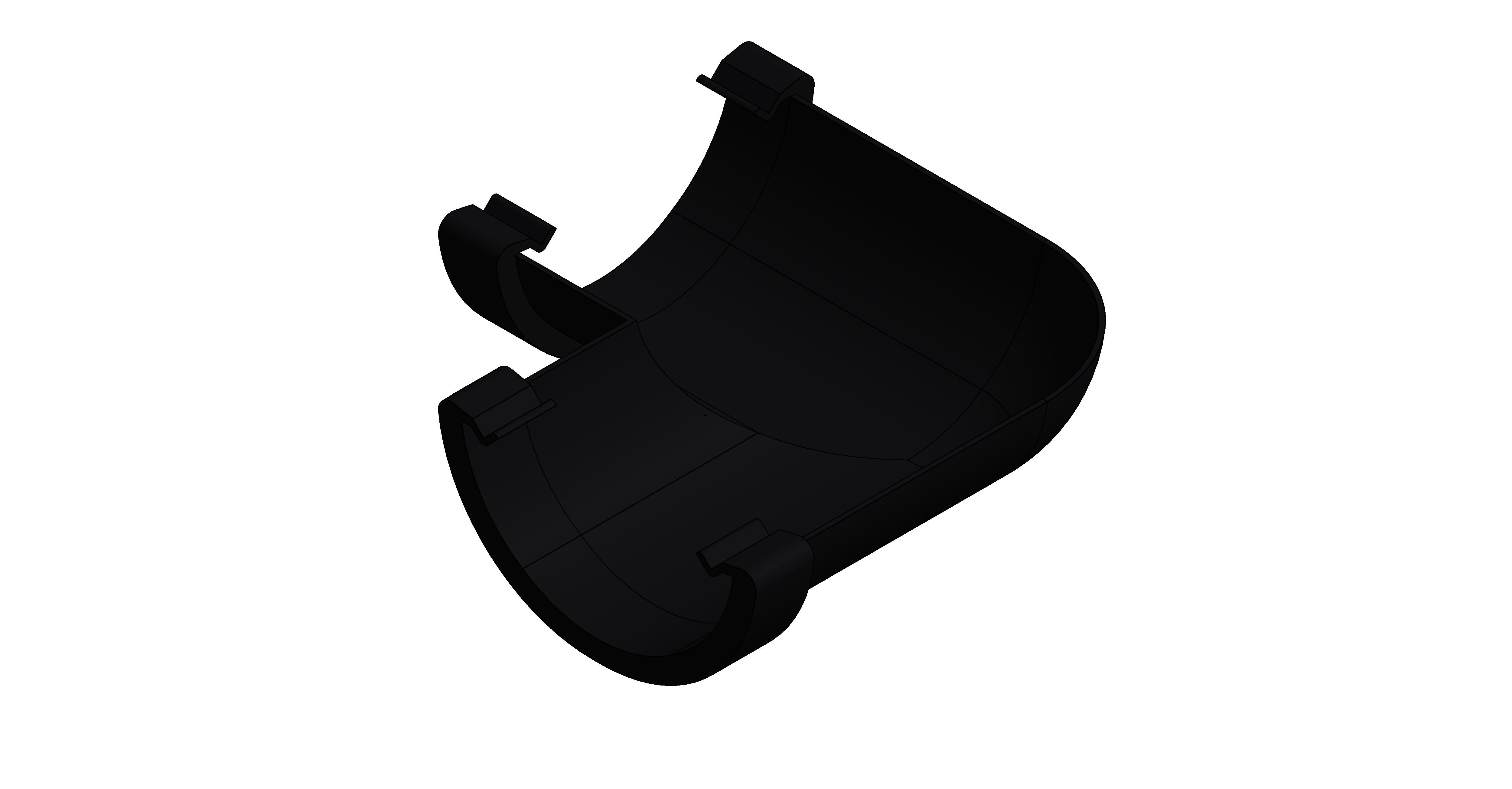

This download contains RA1 90° Angle Half Round

Click here to visit FloPlast for more information.

_AuthorMM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.wienerberger.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
_Object User Guiden/a
Accessibility Performancen/a
Assembly CodeD2040100
Asset TypeFixed
BIM Object NameFloPlast_SpecialtyEquipment_RA1B_90DegAngleHalfRound
Classification NameUniclass2015
Classification ValuePr_65_52_03_88
Code Performancen/a
Color"Cast Iron" Style
ConstituentsMoulded PVC Body, Moulded PVC Clips, EDPM Rubber Seals
Created Bywbukdesignservices@wienerberger.co.uk
Created On2024-01-17T09:00:00
Default Elevation0 mm
Description90° Angle Half Round
Documentation Certificateswww.floplast.co.uk/rainwater

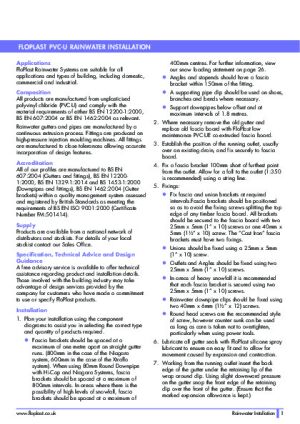

Documentation Installation Guidewww.floplast.co.uk/rainwater
Documentation Literaturewww.floplast.co.uk/rainwater
Documentation Maintenancewww.floplast.co.uk/rainwater
Documentation Technicalwww.floplast.co.uk/rainwater
Duration UnitYears
Expected Life0
Featuresn/a
FinishHigh Gloss
Flo Plast MaterialFloPlast_CastIronStylePVC-U
Graden/a
Ifc Export AsIfcDuctFitting
Ifc Export TypeIfcDuctFittingTypeEnum.BEND
KeynoteR10/350
ManufacturerFloPlast LTD
Manufacturer NameFloPlast LTD
MaterialPVC-U, EDPM Rubber
ModelRA1B 90° Angle Half Round
Model Numbern/a
Model Referencen/a
NBS DescriptionUnplasticized polyvinyl chloride (PVC-U) rainwater pipes and fittings
NBS Noten/a
NBS Object NameFloPlast - Unplasticized polyvinyl chloride (PVC-U) rainwater pipes and fittings
NBS Office Master Tagn/a
NBS Reference90-10-30/318
Nominal Depth196 mm
Nominal Height66 mm
Nominal Length196 mm
NoteTo be used in conjuction with: 68mm Round
Production Year2024
Referenced Standardn/a
Replacement Costn/a
ShapeHalf Round
Size196 x 196 x 66mm
Spare Partsn/a
Type CommentsRA1B "Cast Iron" Style 90° Angle Half Round
Type NameRA1B "Cast Iron" Style 90° Angle Half Round
URLwww.floplast.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Labortechnical@floplast.co.uk
Warranty Guarantor Partstechnical@floplast.co.uk
