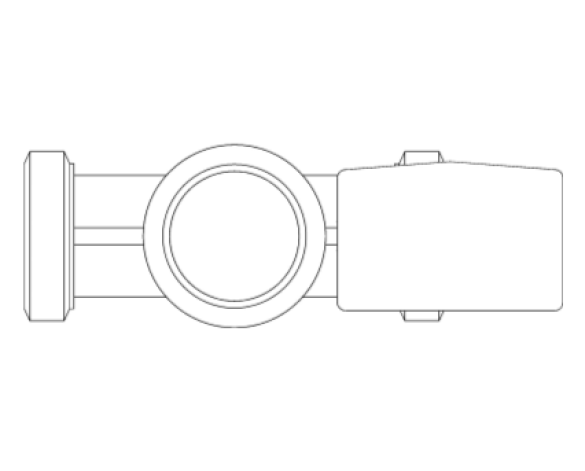

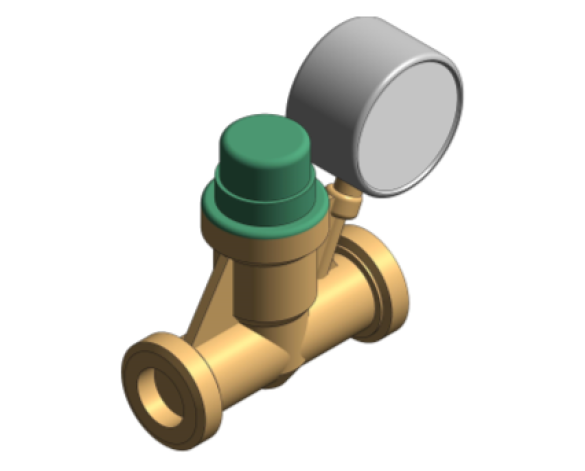

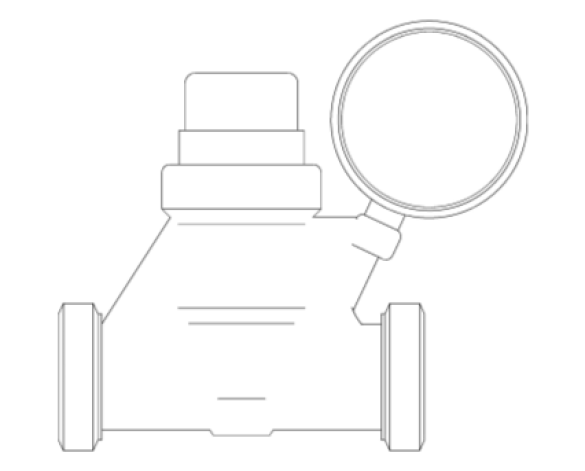

Predator Pressure Reducing Valve

Object metadata

• _authorized byKris Atkinson
• _BIMspec_GUID1
• _created byElisabeth Matuki
• _current revision1
• _distributed bywww.bimstore.co.uk
• Accessibility Performancen/a
• Assembly CodeD2020300
• Asset TypeFixed
• Classification NameUniclass
• Classification ValuePr_65_54_40_44
• Code Performancen/a
• ColorBrass
• Connection Type15mm FF, 1/4in Gauge connection
• Constituentsn/a
• Created Bytechnical@rwc.co.uk
• Created On2016
• DescriptionThe Reliance Water Controls brand specialises in pressure, temperature, flow control and washroom products and has a long history in supplying the sanitary plumbing market and hot water system manufacturers. With our heritage and expertise, Reliance Worldwide Corporation (UK) Ltd (RWC UK) played a key role in the development of thermostatic technology and unvented hot water systems in the UK. Today we remain at the forefront of the industry delivering new innovations each year to drive water efficiency and improve water safety in both domestic and commercial applications.
• Duration UnitYears
• Expected Life0
• Factory Pressure Preset3 bar (+/- 0.3
• FeaturesFor use up to 16 bar at temperatures up to 80oC. Adjustable between 1.0-6.0 bar. Drop-tight valve – controls the pressure under both flow and no-flow conditions. Integral strainer protects the seat of the valve and is fully serviceable. Can be installed in any orientation providing the ultimate installation flexibility. Supplied complete with both pressure gauge and gauge port plug. Suitable for hot or cold applications.
• FinishDRZ Brass
• Fittings MaterialRWC Brass
• Gauge MaterialRWC Nickel Plated
• Gauge Settings0-6 bar
• Graden/a
• Inlet 1_Diameter15 mm
• Inlet 1_Radius8 mm
• KeynoteS12
• ManufacturerReliance Worldwide Corporation
• Manufacturer AddressReliance Worldwide Corporation (UK) Ltd, Worcester Road, Evesham, Worcestershire, WR11 4RA, UK
• Manufacturer Fax+44 (0) 1386 712401
• Manufacturer Tel+44 (0) 1386 712400
• MaterialDRZ Brass
• Maximum Inlet Working Pressure16.0 bar
• Maximum Pressure1.0 bar
• Minimum Pressure6.0 bar
• ModelPredator® Pressure Reducing Valve
• Model NumberPlease record on commissioning
• NBS DescriptionIsolating valves;
• NBS Object Name90-15-40/325 Isolating valves;
• NBS Reference90-15-40/325
• Nominal Height94 mm
• Nominal Length98 mm
• Nominal Width43 mm
• Operating Temperature80 °C
• Outlet 1_Diameter15 mm
• Outlet 1_Radius8 mm
• Product CodePRED800015
• Production Year2016
• Referenced StandardWRAS Approved
• Replacement Costn/a
• ShapeElbow
• Size98 x 94 x 43mm
• Spare Partsn/a
• Type NamePredator® Pressure Reducing Valve
• URLwww.rwc.co.uk
• Warranty Descriptionn/a
• Warranty Duration Laborn/a
• Warranty Duration Partsn/a
• Warranty Duration UnitYears
• Warranty Guarantor Laborn/a
• Warranty Guarantor Partsn/a
