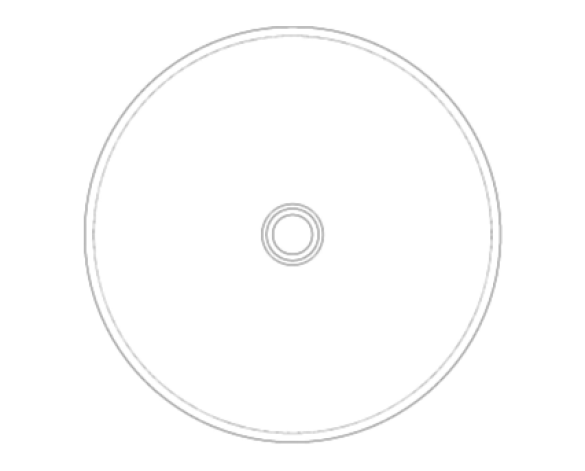

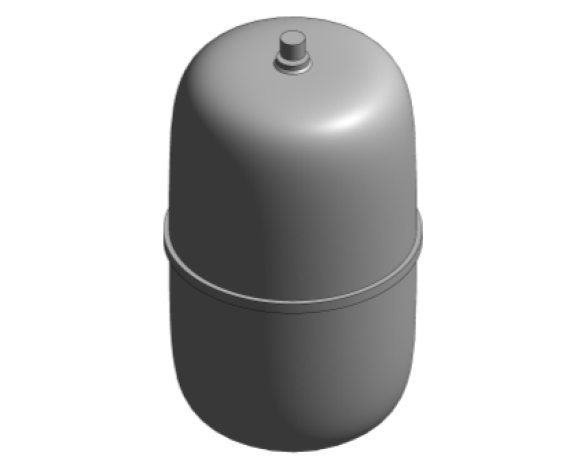

Potable Water Shock Arrestors (Vessel)

Object metadata

• _authorized byKris Atkinson
• _BIMspec_GUID1
• _created byPeter Winterburn
• _current revision1
• _distributed bywww.bimstore.co.uk
• Accessibility Performancen/a
• Assembly CodeD2090600
• Asset TypeFixed
• Bottom Entry_Diameter15 mm
• Bottom Entry_Radius8 mm
• Capacity(Ltr)0.16 m³
• Casing MaterialRWC Stainless Steel
• Classification NameUniclass
• Classification ValuePr_60_50_20_28
• Code Performancen/a
• ColorSilver
• Connection Type½" MBSP
• Constituentsn/a
• Created Bytechnical@rwc.co.uk
• Created On2016
• DescriptionThe Reliance Water Controls brand specialises in pressure, temperature, flow control and washroom products and has a long history in supplying the sanitary plumbing market and hot water system manufacturers. With our heritage and expertise, Reliance Worldwide Corporation (UK) Ltd (RWC UK) played a key role in the development of thermostatic technology and unvented hot water systems in the UK. Today we remain at the forefront of the industry delivering new innovations each year to drive water efficiency and improve water safety in both domestic and commercial applications.
• Duration UnitYears
• Expected Life0
• FeaturesCompact mini vessels can be fitted at the point of use to stop water hammer. Stainless steel shell and flange to prevent corrosion. Complete with pre-charge valve for topping up air pressure. 0.16L arrestor also available with a SharkBite® push-fit connector or SharkBite push-fit tee.
• FinishStainless Steel
• Graden/a
• KeynoteS12
• ManufacturerReliance Worldwide Corporation
• Manufacturer AddressReliance Worldwide Corporation (UK) Ltd, Worcester Road, Evesham, Worcestershire, WR11 4RA, UK
• Manufacturer Fax+44 (0) 1386 712401
• Manufacturer Tel+44 (0) 1386 712400
• MaterialShell - Stainless Steel, Membrane - EPDM, Clenched Flange - Stainless Steel
• Max Temperature99 °C
• Min Temperature10 °C
• ModelXVES050000
• Model NumberPlease record on commissioning
• NBS DescriptionExpansion vessels;
• NBS Object Name90-40-75/340 Expansion vessels;
• NBS Reference90-40-75/340
• Nominal Diameter65 mm
• Nominal Height105 mm
• Nominal Length65 mm
• Nominal Width65 mm
• Pre Set Pressure5 bar
• Product CodeXVES050000
• Production Year2016
• Referenced StandardWRAS Approved
• Replacement Costn/a
• ShapeCapsule
• Size105 x 65Ømm
• Spare Partsn/a
• Top Entry_Diameter15 mm
• Top Entry_Radius8 mm
• Type NameXVES050000
• URLwww.rwc.co.uk
• Warranty Descriptionn/a
• Warranty Duration Laborn/a
• Warranty Duration Partsn/a
• Warranty Duration UnitYears
• Warranty Guarantor Laborn/a
• Warranty Guarantor Partsn/a
• Working Pressure Max15 bar
