OS29+ Sliding Door

by Origin Doors & Windows

Download Add to collection

Description

Experience the next generation of slimline design with OS29+. Featuring industry-leading thermal efficiency with U-Values as low as 0.78, flush stacking and refined aesthetics, OS29+ delivers in both style and performance for the long-term.

The following configurations are available for download:

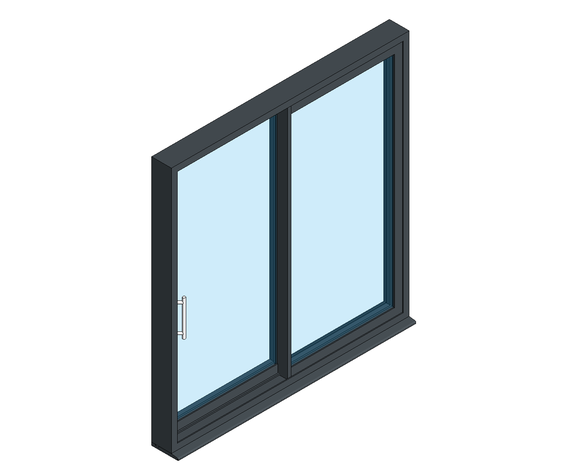

XO (2 Panel)

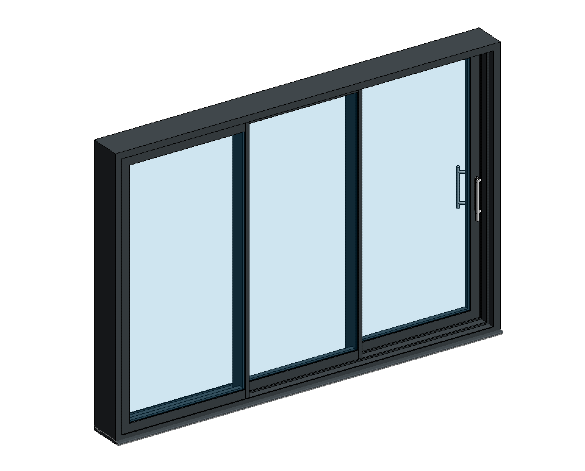

XXO (3 Panel)

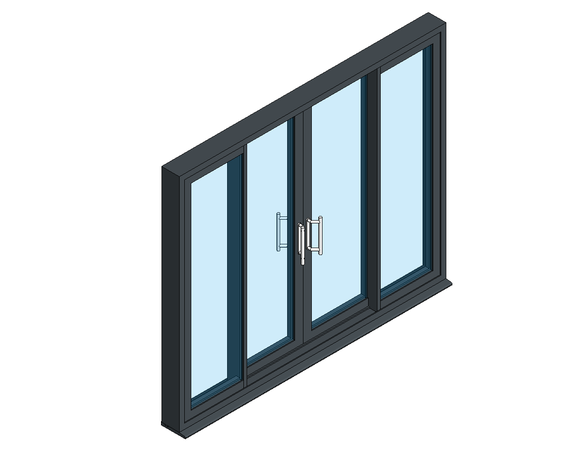

OXXO (4 Panel)

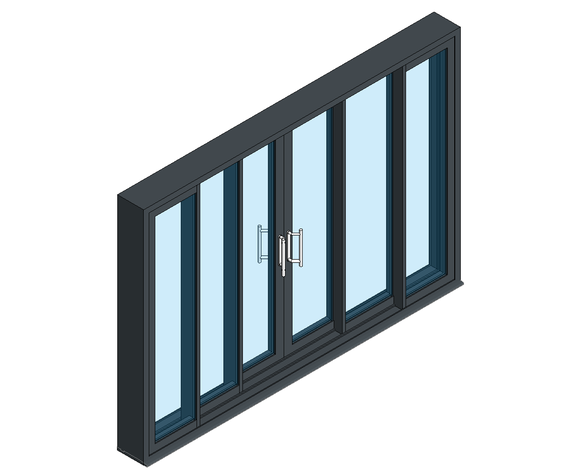

OXXXXO (6 Panel)

Object Data

1 Revision

Last Updated

16/06/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Literature

Product Data Sheet

Object metadata

_AuthorHarry Toor
_Authorized ByOrigin Global
_Bim Spec Guid0
_BS Bible Version1
_Created ByHarry Toor
_Current Revision1
_Distributed Bywww.origin-global.com
_Object User Guideorigin.turtl.co/story/os-29plus-sliding-door-specification-guide/page/1
Accessibility Performancen/a
Analytic Construction<None>
Assembly CodeB2030110
Asset TypeFixed
BIM Object NameOriginGlobal_Doors_InlineSlider_OS29+_2Panel_1Fixed1Sliding
Classification NameUniclass2015
Classification ValuePr_30_59_24_81
Code PerformanceISO 14001 / PAS 24:2022 Certified (Document Q Compliant) / Weather testing BS 6375 part 1, 2 and 3 certified
ColorAvailable in over 150 RAL colours
Constituentsn/a
Created Byenquiry@origin-global.com
Created On2025-05-05T09:00:00
Define Thermal Properties bySchematic Type
Depth167 mm
DescriptionThermally Broken Aluminium Patio Slider
Documentation Certificatestrade.origin-global.com/products#sliding-doors
Documentation Installation Guideorigin.turtl.co/story/sliding-door-installation-guide/page/1
Documentation Literatureorigin.turtl.co/story/sliding-door-installation-guide/page/1
Documentation Maintenanceorigin-global.com/
Documentation Technicalorigin.turtl.co/story/sliding-door-installation-guide/page/1
Door Leaf Offset8 mm
Duration UnitYears
Expected Life0
Export Type to IFC AsIfcDoor
FeaturesThermally broken
FinishHigh grade powder coating
FunctionExterior
GradeHigh grade Aluminium
Height2100 mm
Ifc Export AsIfcDoor
Ifc Export TypeIfcDoorTypeEnum.DOOR
Internal Reveal Thickness25 mm
KeynoteL20/530
ManufacturerOrigin Global
Manufacturer NameOrigin Global
MaterialAluminium
ModelOS-29+
Model NumberOS-29+
Model ReferenceInline Patio Sliding Doors - 2 Panel - 1 Sliding, 1 Fixed
NBS DescriptionSliding folding doorsets
NBS Noten/a
NBS Object NameOrigin Global - Sliding folding shutter doorsets
NBS Office Master Tagn/a
Nominal Depth167 mm
Nominal Height2100 mm
Nominal Length2000 mm
Production Year2025
Referenced StandardPAS 24:2022 (Document Q Compliant)
Replacement Costn/a
Rough Height2100 mm
Rough Width2000 mm
ShapeRectangle
Show HandlesYes
Size2000mm (w) x 2100mm (h)
Spare Partsn/a
Thickness167 mm
Type CommentsInline Patio Sliding Doors - 2 Panel - 1 Sliding, 1 Fixed
Type IFC Predefined TypeIfcDoorTypeEnum.DOOR
Type NameInline Patio Sliding Doors - 2 Panel - 1 Sliding, 1 Fixed
URLorigin-global.com/
Wall ClosureBy host
Warranty DescriptionUp to a 20-year guarantee (Guarantee based on location of where the doors will be installed. Full terms and conditions can be found on the Origin website - origin-global.com/terms-and-conditions).
Warranty Duration Laborn/a
Warranty Duration Parts20
Warranty Duration UnitYears
Warranty Guarantor Laborenquiry@origin-global.com
Warranty Guarantor Partsenquiry@origin-global.com
Width2000 mm

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
