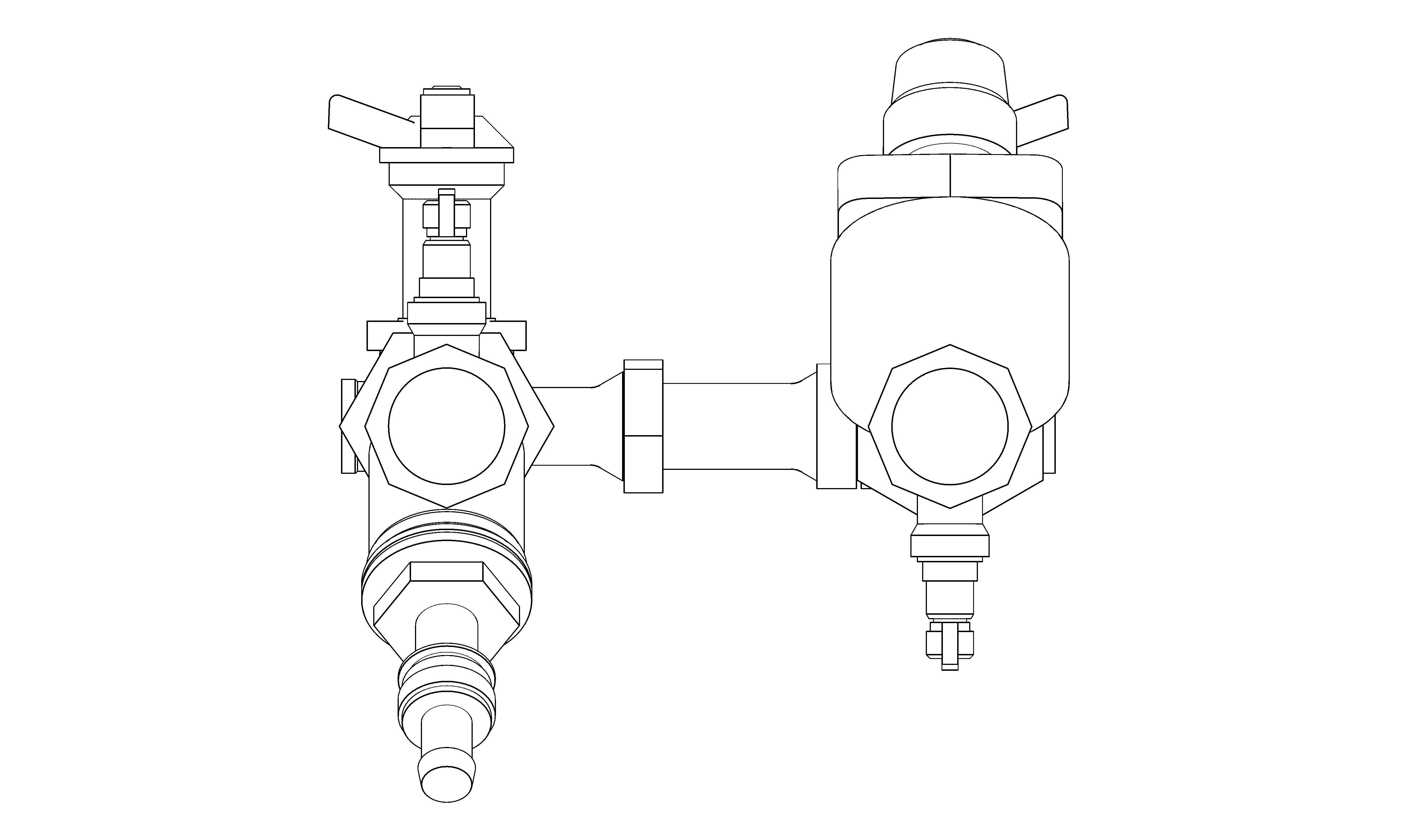

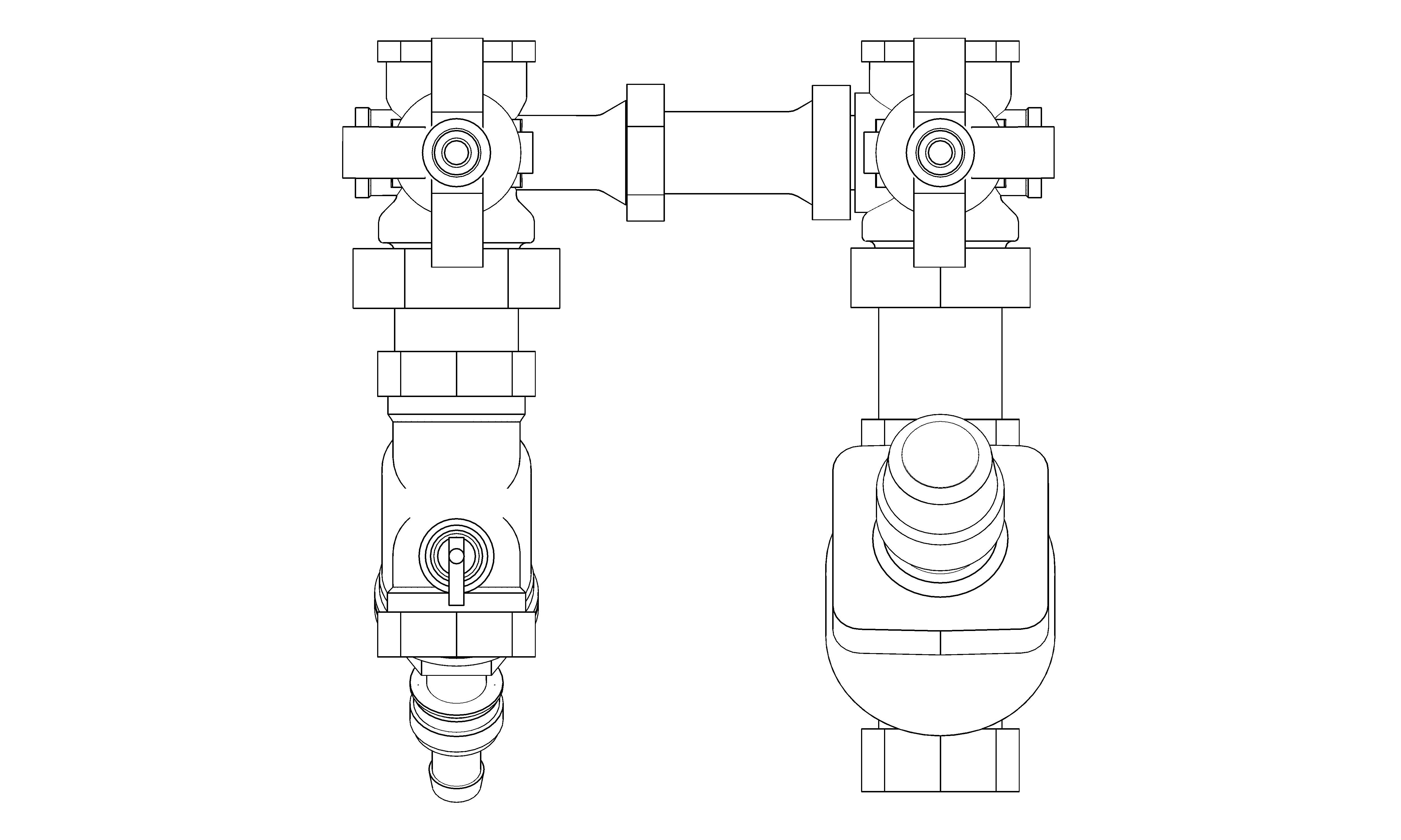

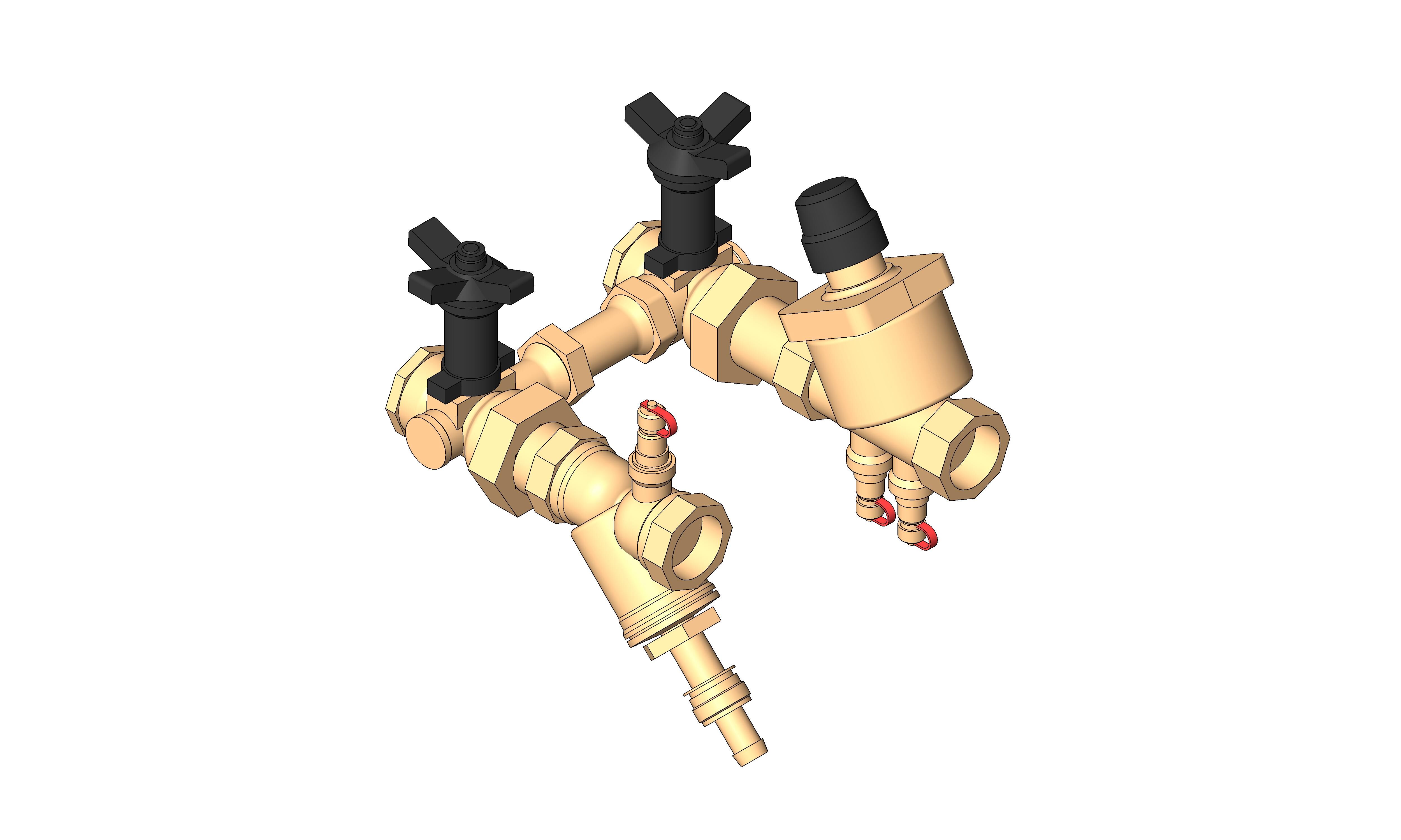

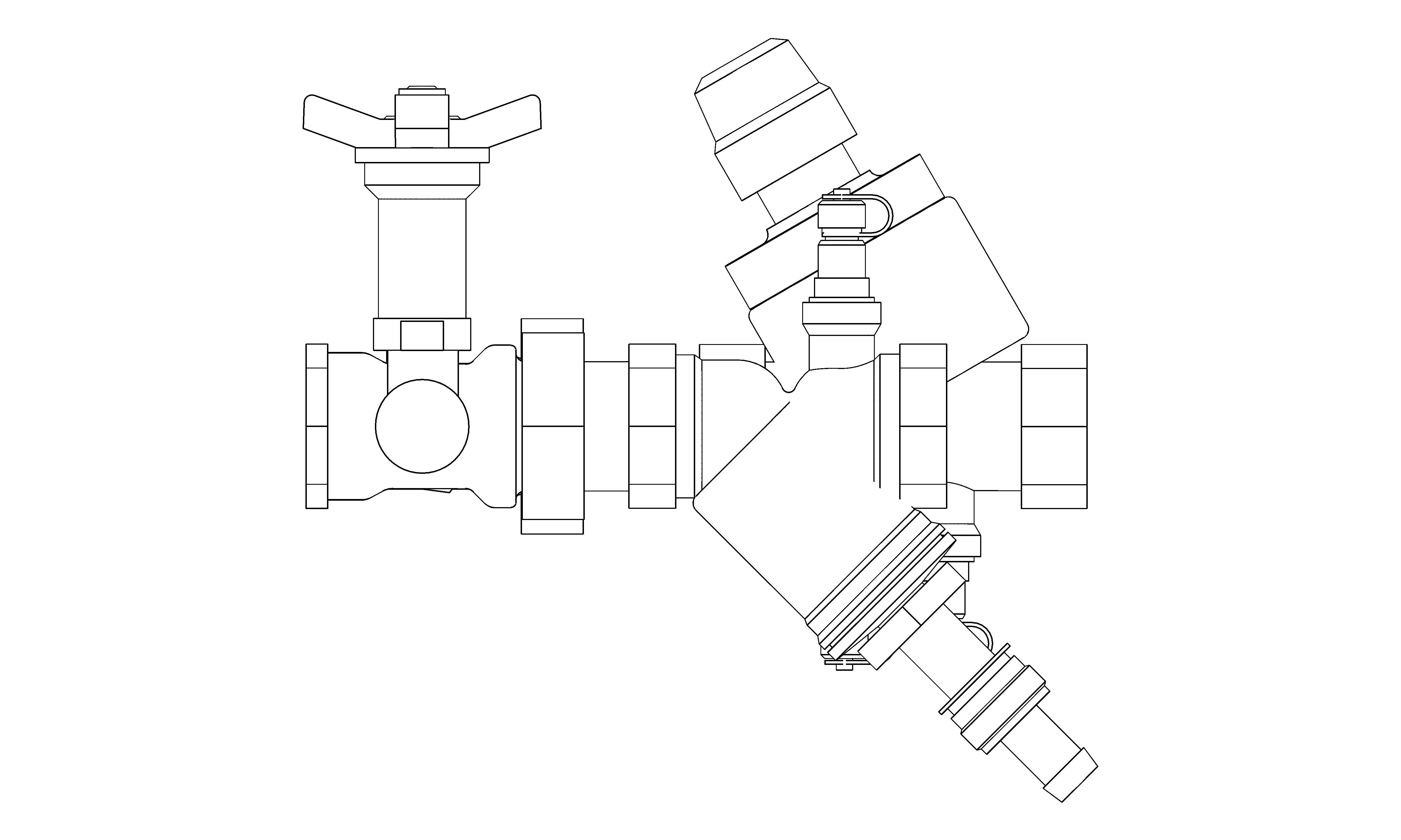

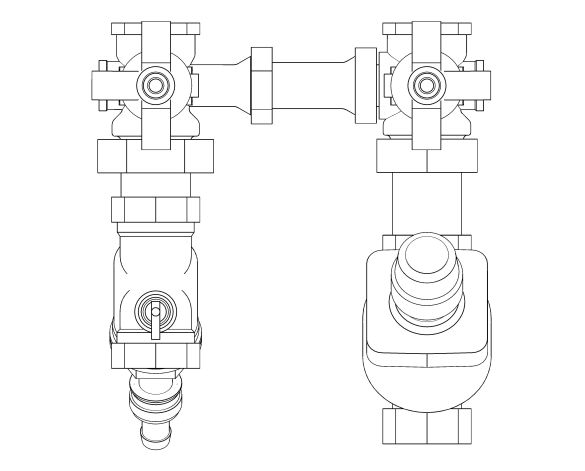

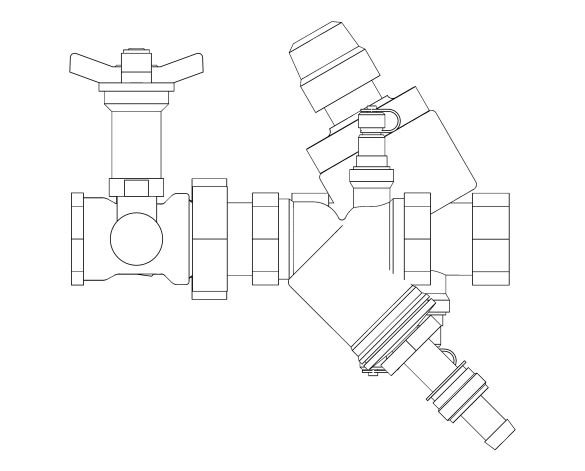

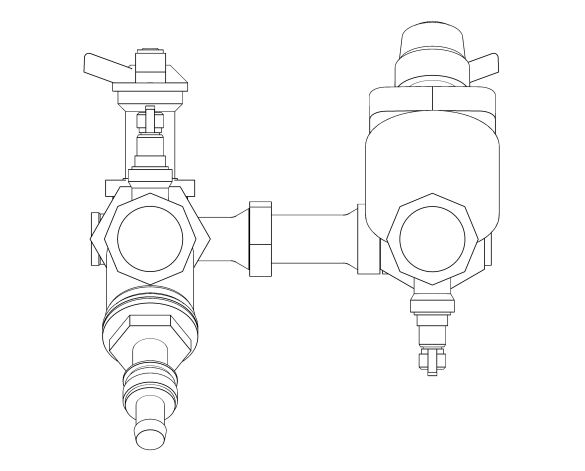

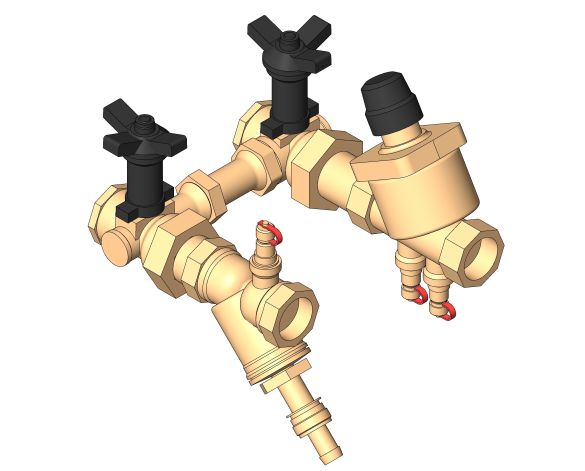

MODULA - Bypass Units

Description

MODULA is a compact and versatile valve system that combines the range of dynamic flow, pressure and temperature control valves with isolation, flushing, draining and measurement components within a prefabricated, tested and ready to install terminal bypass unit.

MODULA integrates one of the following valve solutions:

• OPTIMA Compact (Pressure Independent Control Valve - PICV)
• ALPHA (Dynamic Flow Limiting Valve)
• SIGMA Compact (Externally Adjustable Dynamic Flow Limiting Valve)
• PV Compact (Adjustable Differential Pressure Control Valve)
• STBV range (Adjustable Manual Balancing Valve)

Each unit can be supplied with isolation valves, strainer, drain/hose connection & P/T plug.

Benefits

The MODULA Bypass Unit combines the many benefits of the OPTIMA Compact, ALPHA, SIGMA Compact, EVA, PV Compact and STBV range in addition to:

Installation benefits

• Compact design for limited space availability
• Minimized installation and commissioning costs
• Allows easy flushing and coil isolation
• Easy lagging of spindle extensions

Operation benefits

• High comfort with minimized operation and maintenance costs
• Efficient flow, temperature and pressure control
• 5 modes of operation
