MERLYN - 8 Series Walkin

4.2k
0
- / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

02/11/2021

Download BIM

Add to collection

Available for:

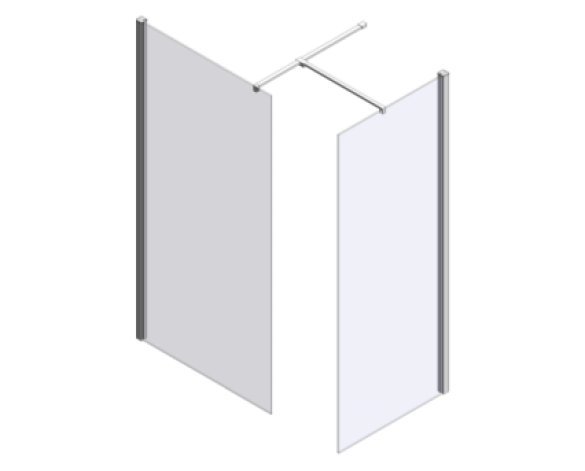

The 8 Series Walk In is stylish yet functional by design - the simplicity of large glass panels forming a luxurious walk-in shower in your bathroom is not only very practical but the ease of walking into your shower with no doors to negotiate needs little explanation.

This download contans the 8 Series Walkin Range created by bimstore.co.uk for Merlyn.

This component is created in Revit 2014 and is in line with 2015 industry standards.

Object metadata

_AuthorRyan Lashley
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co.uk
_Current Revision2
_Distributed Bywww.bimstore.co.uk
_Object User Guidewww.bimstore.co/products/merlyn-8-series-walkin/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010100
Asset TypeFixed
BIM Object NameMerlyn_Casework_Series8_WalkIn
Classification NameUniclass2015
Classification ValuePr_40_20_06_79
Code Performancen/a
ColorChrome
Constituentsn/a
Created Bybarratt@merlyn.ie
Created On2016-09-01-T00:00:00
Depth800 mm
DescriptionThe 8 Series Walk In is stylish yet functional by design - the simplicity of large glass panels forming a luxurious walk-in shower in your bathroom is not only very practical but the ease of walking into your shower with no doors to negotiate needs little explanation.
Documentation Certificateswww.bimstore.co/products/merlyn-8-series-walkin/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/merlyn-8-series-walkin/document/installation-guide
Documentation Literaturewww.bimstore.co/products/merlyn-8-series-walkin/document/product-literature
Documentation Maintenancewww.bimstore.co/products/merlyn-8-series-walkin/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/merlyn-8-series-walkin/document/technical-data-sheet
Duration UnitYears
Expected Life30
FeaturesHeight: 2015mm (including rail). 8mm toughened glass. Easy clean Mershield Stayclear protected glass. Lifetime Guarantee. Suitable for wetroom and shower tray application. Reversible.
Glass Offset14 mm
Glass Thickness8 mm
Graden/a
Height2015 mm
Ifc Export AsIfcBuildingElementProxy
Ifc Export TypeSurface
KeynoteN13/375
ManufacturerMerlyn
Manufacturer NameMerlyn
MaterialGlass & Chrome
Material Merlyn ChromeMerlyn - Chrome
Material Merlyn GlassMerlyn - Glass
Material Merlyn RubberMerlyn - Rubber
ModelSeries 8 Walk In
Model NumberSeries 8 Walk In
Model ReferenceSeries 8 - 1000mm x 800mm
NBS DescriptionShower enclosures
NBS Object NameMerlyn - Shower enclosures
NBS Office Master Tagn/a
NBS Reference45-35-70/332
Nominal Depth800 mm
Nominal Height2015 mm
Production Year2016
Referenced StandardCE Standards
Replacement Costn/a
ShapeRectangular
Size1000mm x 800mm
Spare Partsn/a
Type CommentsSeries 8 - 1000mm x 800mm
Type NameSeries 8 - 1000mm x 800mm
URLmerlynshowering.com/
Warranty DescriptionLifetime
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborbarratt@merlyn.ie
Warranty Guarantor Partsbarratt@merlyn.ie
Wetroom Opening500 mm
Width1000 mm
