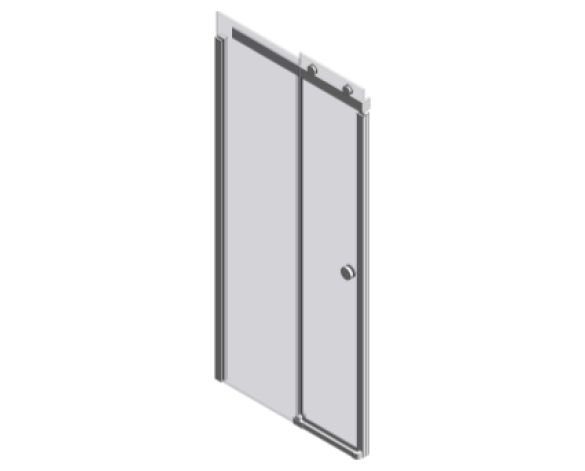

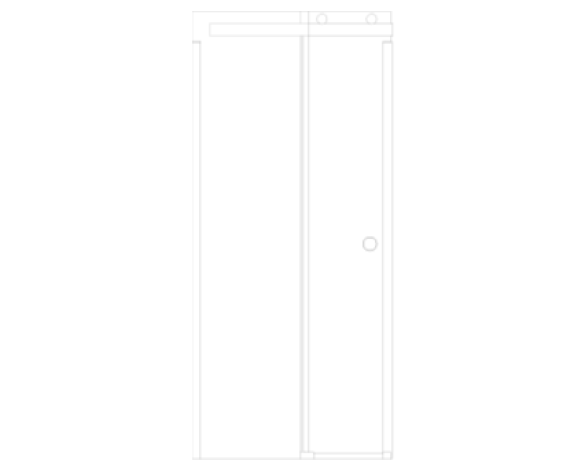

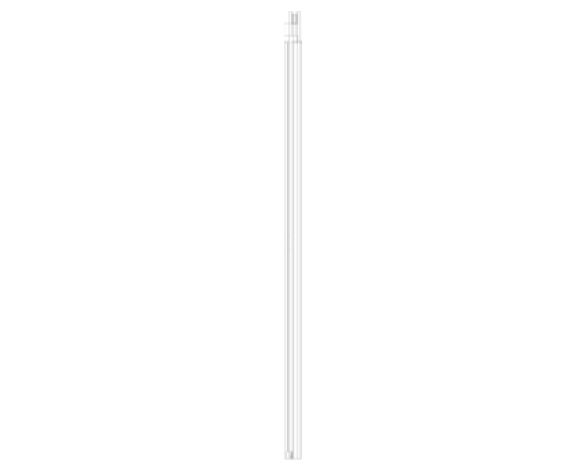

MERLYN - 10 Series Sliding Recess Door

by MERLYN

Download Add to collection

Description

Series 10 Sliding Door in a Recess is a spectacular enclosure that makes a difinitive style statement. Contemporary style lovers will delight in the options smoked black glass and it's roller action.

This download contans the 10 Series Sliding Recess Door Range created by bimstore.co.uk for Merlyn.

This component is created in Revit 2014 and is in line with 2015 industry standards.

Object Data

1 Revision

Last Updated

07/11/2016

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

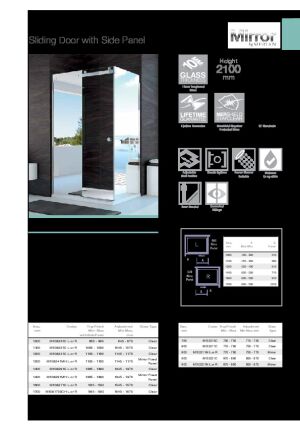

Product Literature

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRyan Lashley
_Bim Spec Guid0
_Bimstore Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Adjustment/Wetroom Max985.000000000000 mm
Adjustment/Wetroom Min950.000000000000 mm
Assembly CodeD2010100
Asset TypeFixed
BIM Object NameCaseworkEnclosures_Merlyn_Series10_SlidingRecessDoor
Classification NameUniclass2015
Classification ValuePr_40_20_06_79
Code Performancen/a
ColorChrome
Constituentsn/a
Created Bybarratt@merlyn.ie
Created On2016-09-01-T00:00:00
DescriptionSeries 10 Sliding Door in a Recess is a spectacular enclosure that makes a difinitive style statement. Contemporary style lovers will delight in the options smoked black glass and it's roller action.
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicalspecifi.bimstore.co.uk/document/share/1877
Duration UnitYears
Expected Life30
FeaturesSeries 10 - Height 2100mm, 10mm toughened safety glass, Mershield Stayclear protected glass, Lifetime Guarantee, Extra Smooth roller action, Left/right handed - specify when ordering, Smoked Black glazing option available, Eyelet handle with chrome eyelet and circular filler plate options available, Wetroom compatible
Glass Offset20.300000000000 mm
Glass Thickness10.000000000000 mm
Graden/a
Height2100.000000000000 mm
Ifc Export AsIfcBuildingElementProxy
Ifc Export TypeSurface
KeynoteN13/375
ManufacturerMerlyn
Manufacturer NameMerlyn
MaterialGlass & Chrome
Material Merlyn ChromeMerlyn - Chrome
Material Merlyn GlassMerlyn - Glass
Material Merlyn RubberMerlyn - Rubber
Material Merlyn Smoked BlackMerlyn - Mirror
ModelSeries 10
Model NumberSeries 10
Model Reference10mm Sliding Recess - 1000mm
NBS DescriptionShower enclosures
NBS Object NameMerlyn - Shower enclosures
NBS Office Master Tagn/a
NBS Reference45-35-70/332
Nominal Height2100.000000000000 mm
Nominal Length950.000000000000 mm
Production Year2016
Referenced StandardCE Standards
Replacement Costn/a
ShapeRectangular
Side Panel Max730.000000000000 mm
Side Panel Min710.000000000000 mm
Size1000mm
Spare Partsn/a
Type Comments10mm Sliding Recess - 1000mm
Type Name10mm Sliding Recess - 1000mm
URLmerlynshowering.com/
Warranty DescriptionLifetime
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborbarratt@merlyn.ie
Warranty Guarantor Partsbarratt@merlyn.ie
Width950.000000000000 mm
