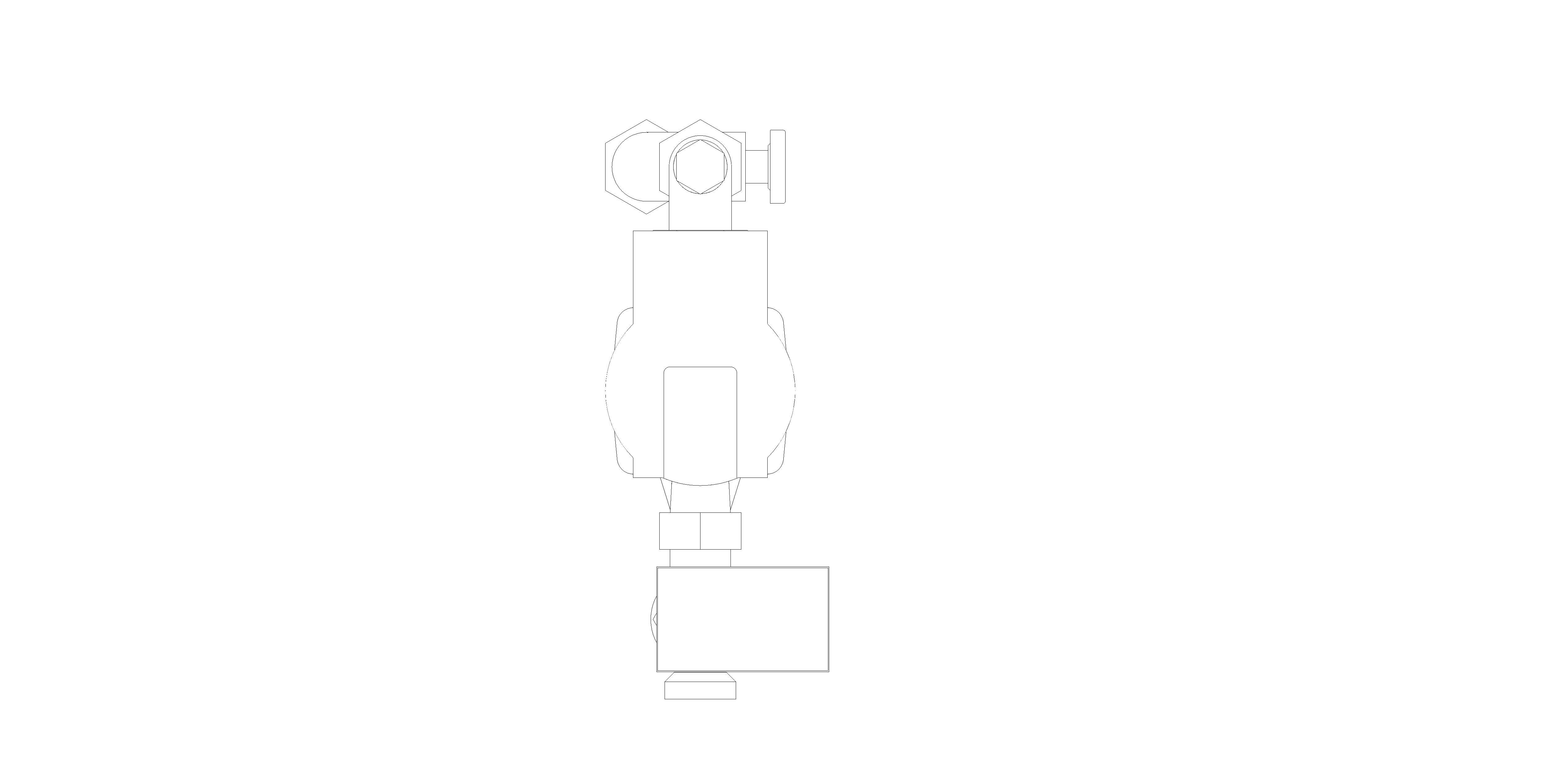

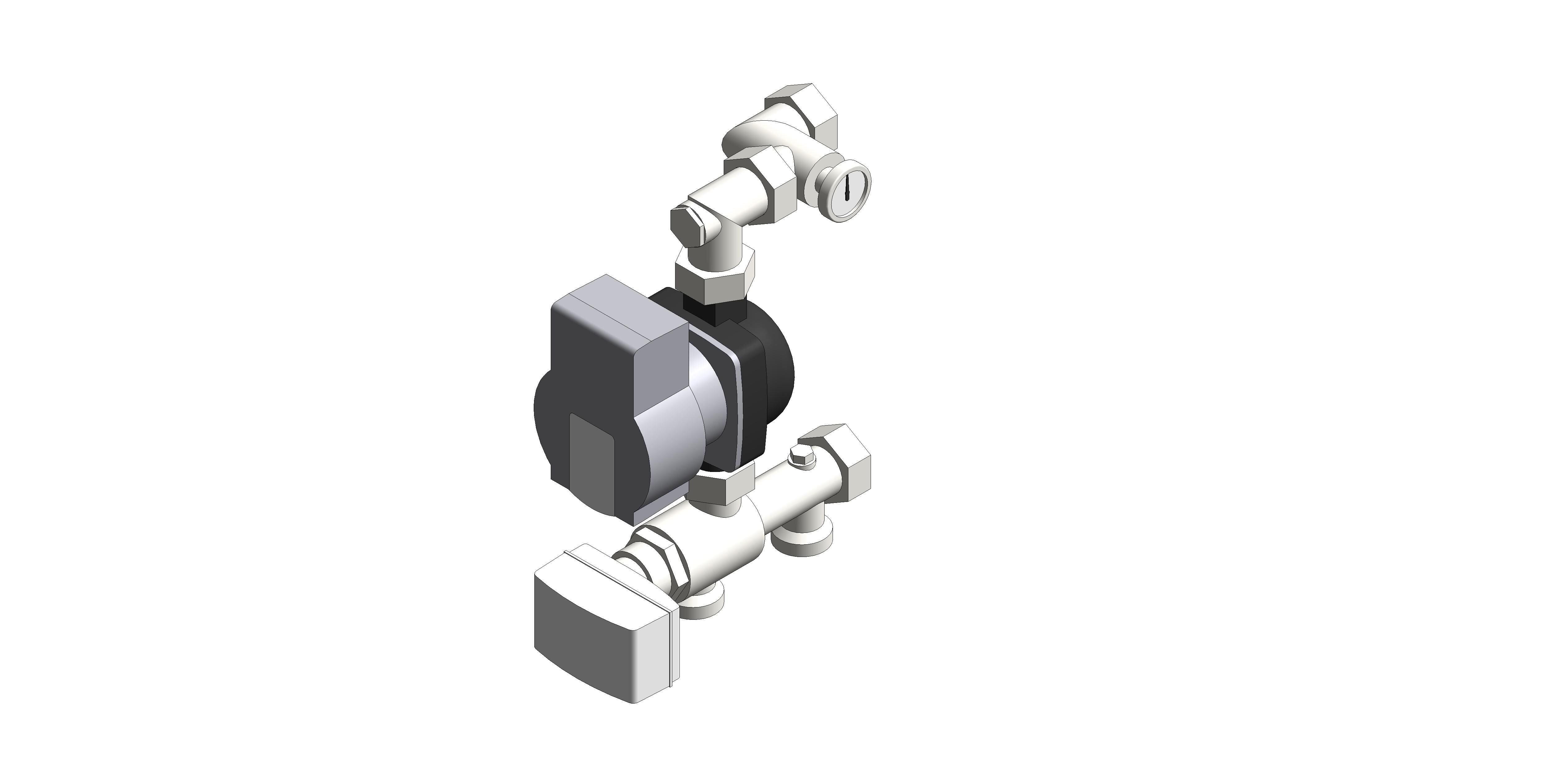

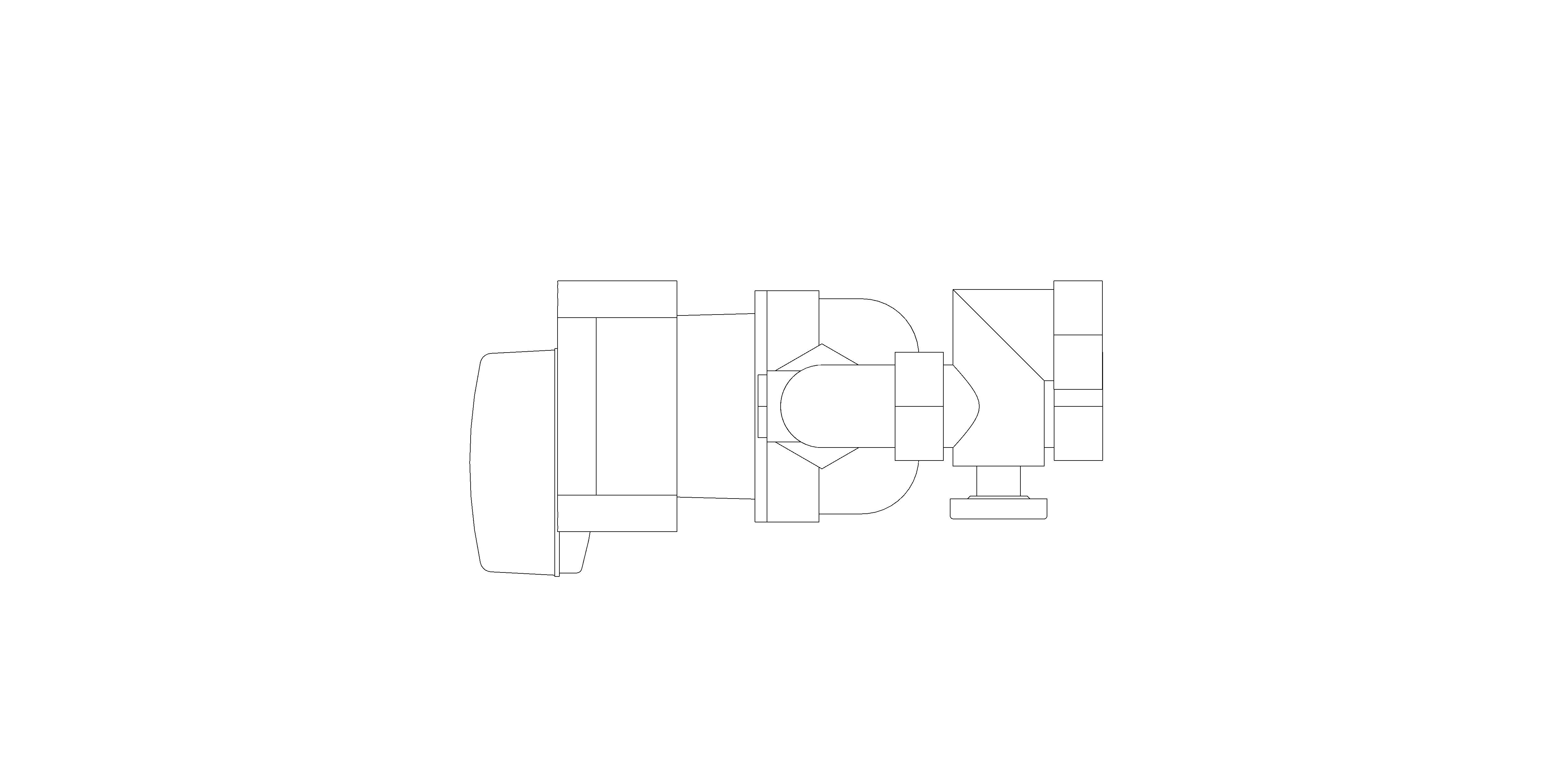

ISOMIX-HC - Control unit for panel heating/cooling systems including Weather Compensation Control

Object metadata

• _AuthorAM
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version17
• _Created Bywww.bimstore.co/
• _Current Revision1
• _Distributed Bywww.bimstore.co/
• _Object User Guidewww.bimstore.co/products/isomix-hc-control-unit-for-panel-heating-cooling-systems-including-weather-compensation-control/document/object-user-guide
• Accessibility Performancen/a
• Assembly CodeD2040100
• Asset TypeFixed
• BIM Object NameWatts_ControlUnit_ISOMIX-HC
• Classification NameUniclass2015
• Classification ValuePr_65_54_30_50
• Code Performancen/a
• Colorn/a
• Connection Radius12.5 mm
• Connection Size25.0 mm
• Connections Primary Circuit1" M with flat seals
• Connections Secondary Circuit1" union nut with flat seals
• Constituentsn/a
• Created Bycontact@wattswater.com
• Created On2024-01-18 T09:00:00
• Default Elevation0.0 mm
• DescriptionThe ISOMIX-HC is a control unit with weather-compensated control in radiant panel heating / cooling systems. The supply temperature is regulated by the integrated HEATING/COOLING controller in accordance with the external temperature by means of a selectable heating/cooling curve.
• Differential Pressuremax. 500 mbar
• Documentation Certificateswww.bimstore.co/products/isomix-hc-control-unit-for-panel-heating-cooling-systems-including-weather-compensation-control/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/isomix-hc-control-unit-for-panel-heating-cooling-systems-including-weather-compensation-control/document/installation-guide

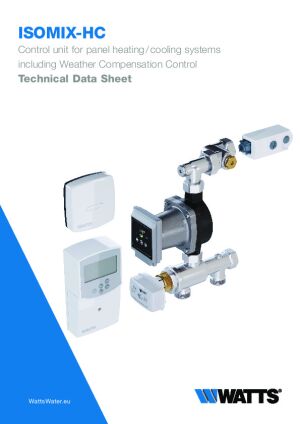

• Documentation Literaturewww.bimstore.co/products/isomix-hc-control-unit-for-panel-heating-cooling-systems-including-weather-compensation-control/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/isomix-hc-control-unit-for-panel-heating-cooling-systems-including-weather-compensation-control/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/isomix-hc-control-unit-for-panel-heating-cooling-systems-including-weather-compensation-control/document/technical-data-sheet
• Duration UnitYear
• Expected Life0
• Featuresn/a
• Finishn/a
• FittingsBrass CW617 N, nickel plated
• Flat SealsAFM 34/2
• Graden/a
• Heat Demandapprox. 14 kW, ΔT = 10 K
• Ifc Export AsIfcValve
• Ifc Export TypeIfcValveTypeEnum.USERDEFINED
• KeynoteS12
• Kvs Value3,2
• ManufacturerWatts
• Manufacturer NameWatts
• Materialn/a
• Maxiumum Operating Pressure0 - 80°C
• ModelISOMIX-HC
• Model NumberISOMIX-HC
• Model ReferenceControl unit
• NBS DescriptionMultiple control valves
• NBS Noten/a
• NBS Object NameWatts - Multiple control valves
• NBS Office Master Tagn/a
• NBS Reference90-35-95/410
• Nominal Depth0.0 mm
• Nominal Height0.0 mm
• Nominal Length0.0 mm
• O-RingsEPDM
• Operating Ambient Temperature0 - 40°C
• Operating Medium Temperature10 bar
• PlasticsImpact and temperature resistant
• Production Year2024
• Referenced Standardn/a
• Replacement Costn/a
• Setting Range Of Supply Temperature5 - 100°C
• Shapen/a
• Sizen/a
• Spare Partsn/a
• Type CommentsControl unit
• Type NameISOMIX-HC
• URLwww.watts.com/
• Voltage230 V - 50 Hz
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYear
• Warranty Guarantor Laborn/a
• Warranty Guarantor Partscontact@wattswater.com
• Weight4.72 kg
