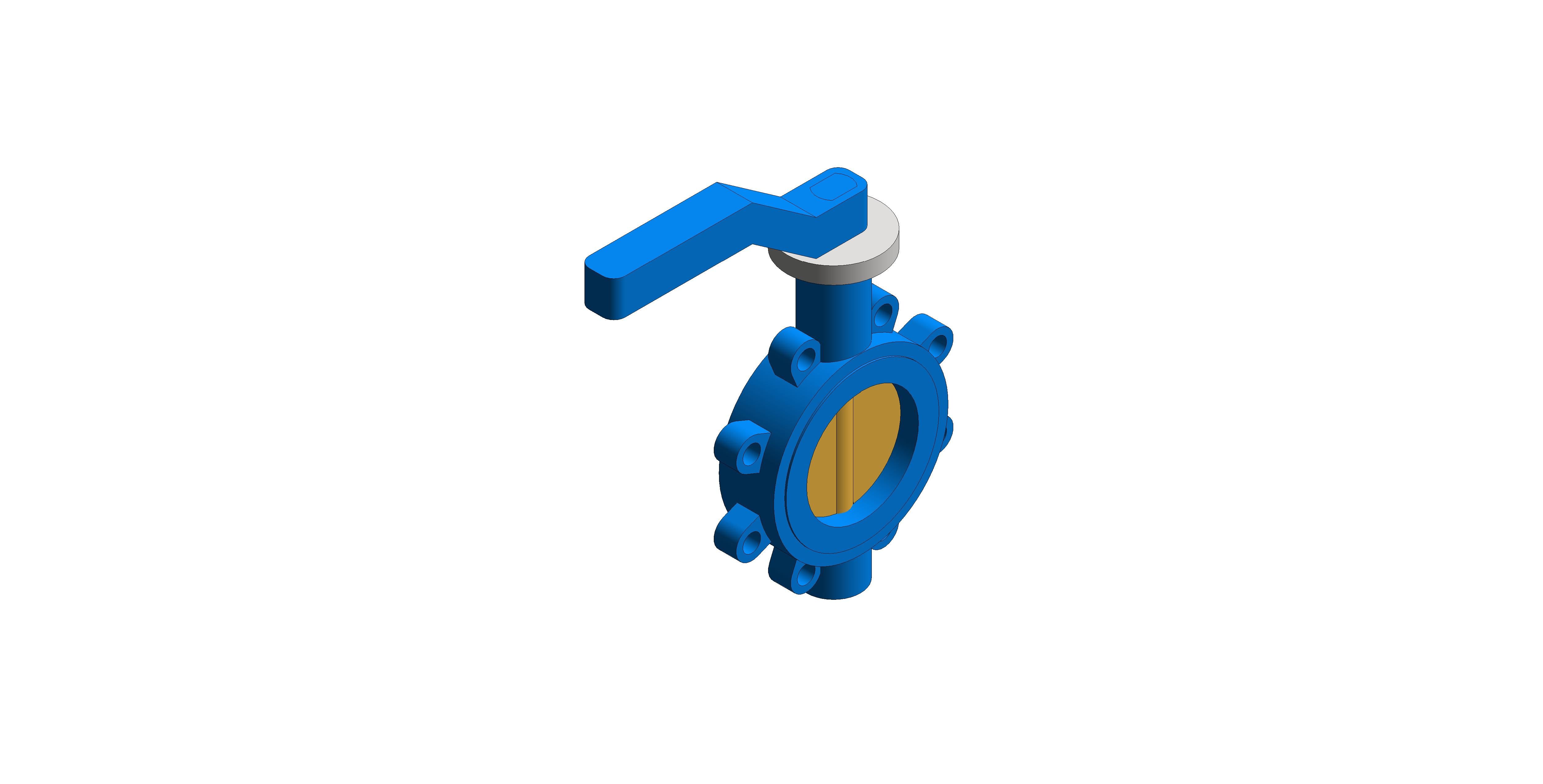

Fully-Lugged Lever Operated Butterfly Valve - Ductile Iron

Fig. 970W



Features & Benefits

  • Ductile Iron Body
  • Aluminium Bronze Disc
  • Liner bonded to steel backing ring
  • High strength, low friction bearings for upper and lower shafts, to restrain shaft deflection and ensure effective stem sealing
  • Long neck for insulation
  • Maintenance free



Size

50mm to 200mm

Pressure Rating

PN16

Product Material

Ductile Iron

Test Pressure

Hydrostatic
Body: 24 bar
Seat: 17.6 bar
