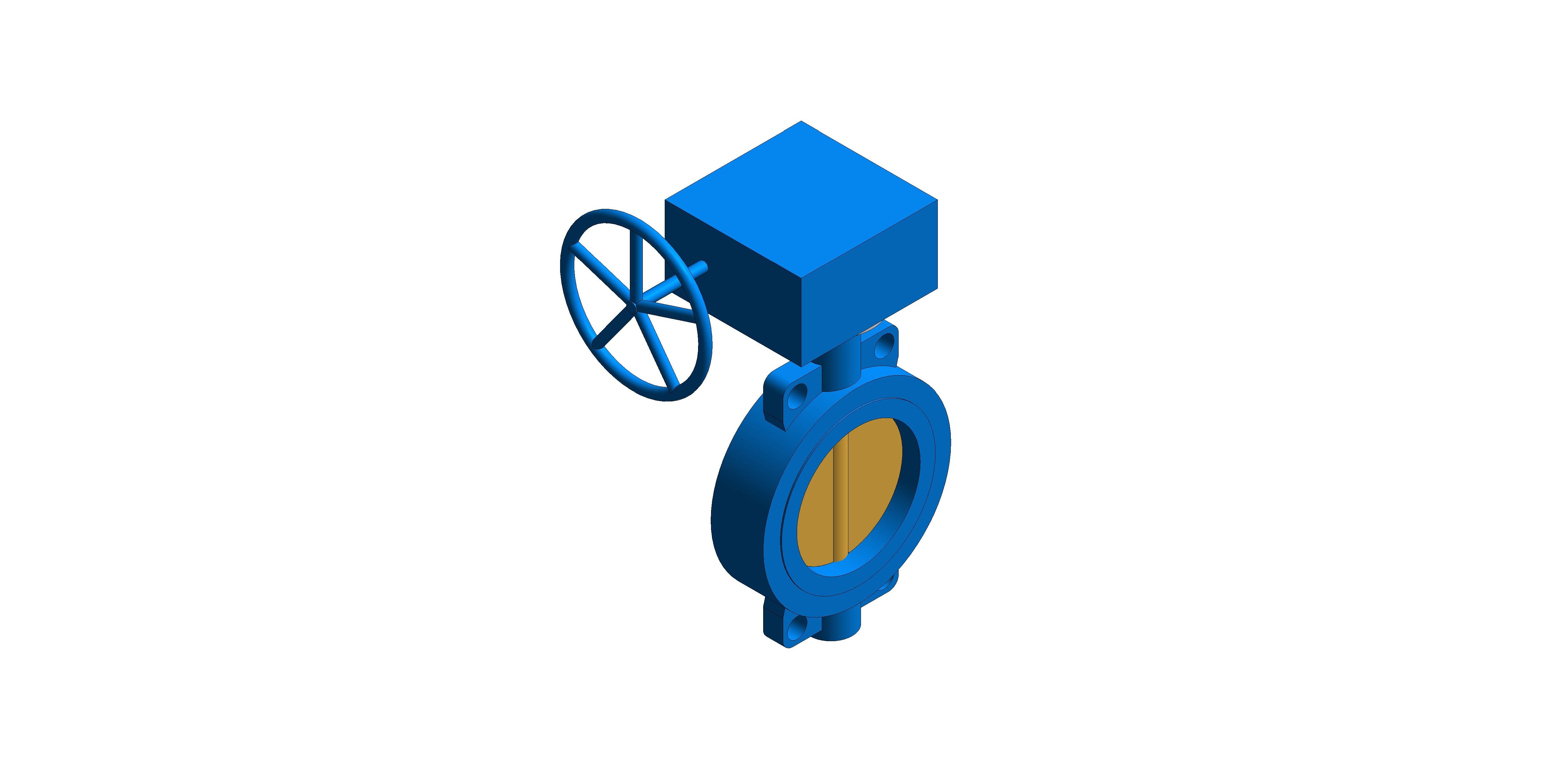

Fig. 950G - Semi-Lugged Gearbox Operated Wafer Pattern Butterfly Valve - Ductile Iron

by Hattersley

Download Add to collection

Description

Semi-Lugged Gearbox Operated Wafer Pattern Butterfly Valve - Ductile Iron

Fig. 950G

Features & Benefits

Ductile Iron Body
Aluminium Bronze Disc
Liner bonded to steel backing ring
High strength, low friction bearings for upper and lower shafts, to restrain shaft deflection and ensure effective stem sealing
Long neck for insulation
Maintenance free

Size	50mm to 600mm
Pressure Rating	PN16
Product Material	Ductile Iron
End Connections	To suit flange connections BS EN 1092-2 PN16
Test Pressure	Hydrostatic Body: 24 bar Seat: 17.6 bar

Object Data

1 Revision

Last Updated

12/08/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

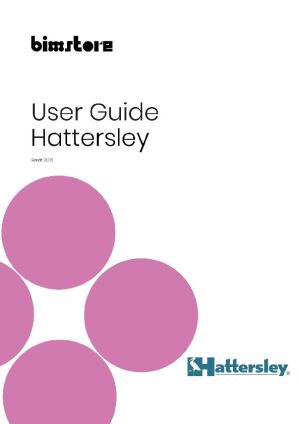

Object User Guide

Installation Guide

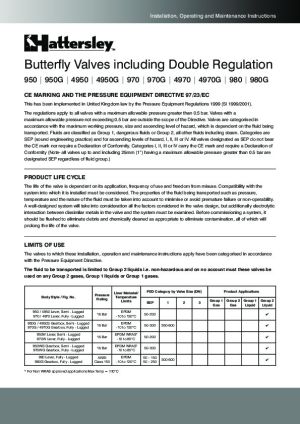

Maintenance Information

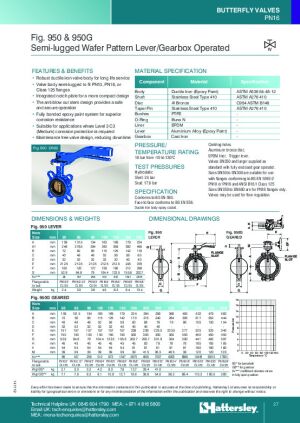

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/hattersley-fig-950g/document/object-user-guide
10202.00 mm
284.00 mm
383.00 mm
443.00 mm
570.00 mm
625.00 mm
7205.00 mm
8107.00 mm
964.20 mm
A163.00 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B115.00 mm
BIM Object NameHattersley_ButterflyValve_SemiLuggedGearboxOperated_Fig950G
C52.00 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_08
Code Performancen/a
Colorn/a
Connection Size100.00 mm
Connection Size Radius50.00 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2021-08-10T:09:00:00
D32.00 mm
DescriptionFig. 950G - Semi-Lugged Gearbox Operated Wafer Pattern Butterfly Valve - Ductile Iron
Disc MaterialHattersley - Metal - Bronze
Documentation Certificateswww.bimstore.co/products/hattersley-fig-950g/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/hattersley-fig-950g/document/installation-guide
Documentation Literaturewww.bimstore.co/products/hattersley-fig-950g/document/product-literature
Documentation Maintenancewww.bimstore.co/products/hattersley-fig-950g/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/hattersley-fig-950g/document/technical-data-sheet
Duration UnitYear
E157.00 mm
Expected Life0
F150.00 mm
Featuresn/a
Finishn/a
G104.40 mm
Graden/a
H45.00 mm
h54.00 mm
Handwheel MaterialHattersley - Metal - Iron - Ductile Epoxy Paint - Blue
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
Inner Radius50.00 mm
K Coefficient512
KeynoteS
Loss MethodK Coefficient
M39.00 mm
ManufacturerHattersley
Manufacturer NameHattersley
Materialn/a
Mid Radius68.25 mm
ModelFig. 950G - Semi-Lugged Gearbox Operated Wafer Pattern Butterfly Valve - Ductile Iron
Model NumberFig. 950G
Model ReferenceFig. 950G - Semi-Lugged Gearbox Operated Wafer Pattern Butterfly Valve - Ductile Iron
NBS DescriptionButterfly valves
NBS Noten/a
NBS Object NameHattersley - Butterfly valves
NBS Office Master Tagn/a
NBS Reference90-10-90/332
Nominal Depth52.00 mm
Nominal Height392.00 mm
Nominal Length235.00 mm
Outer Radius78.00 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN100
Spare Partsn/a
Symbol Length60.00 mm
Type CommentsFig. 950G - Semi-Lugged Gearbox Operated Wafer Pattern Butterfly Valve - Ductile Iron
Type NameFig. 950G - Semi-Lugged Gearbox Operated Wafer Pattern Butterfly Valve - Ductile Iron
URLwww.hattersley.com/
Valve MaterialHattersley - Metal - Iron - Ductile Epoxy Paint - Blue
