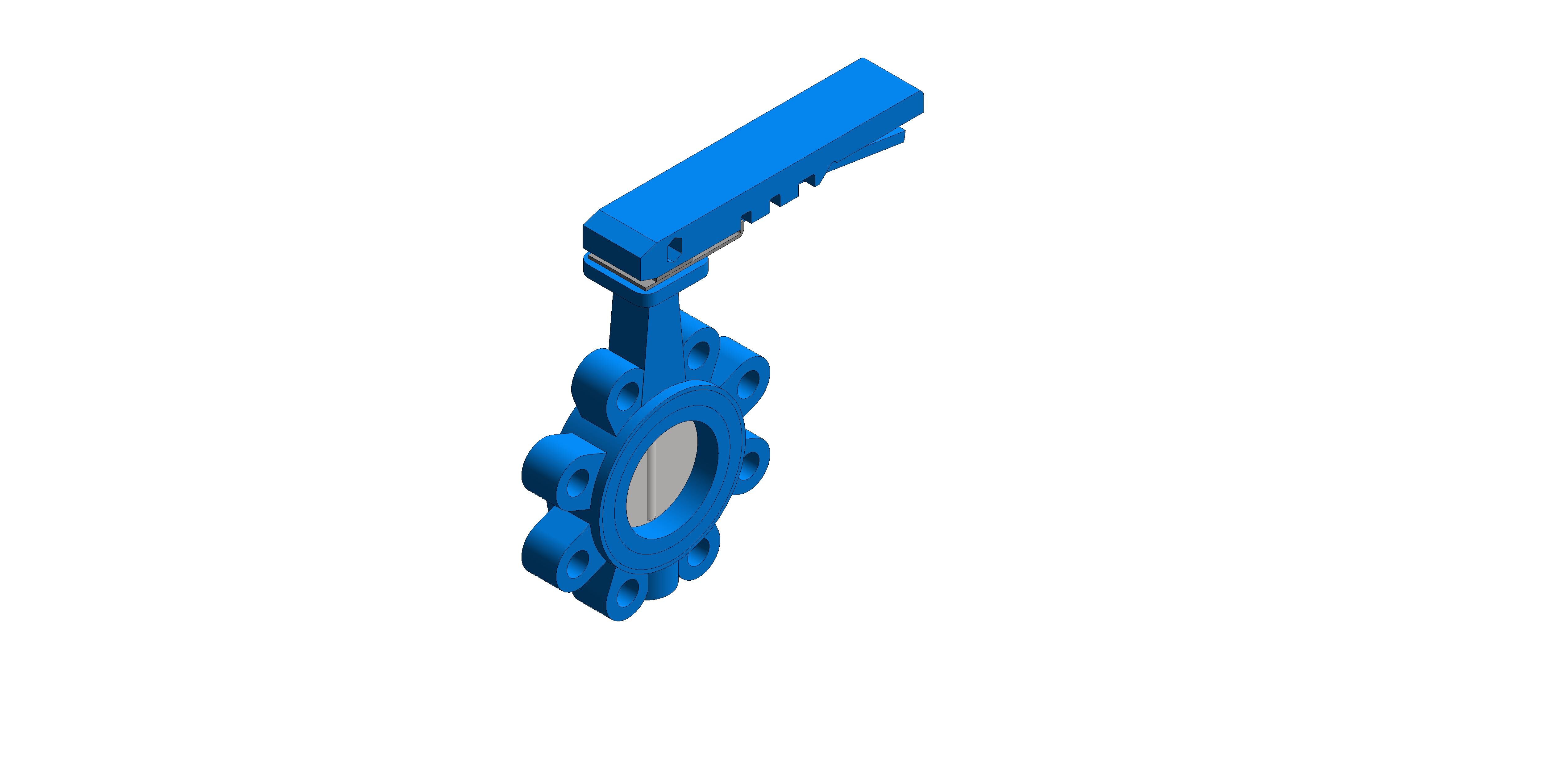

Fig. 4925 - Lever Operated Butterfly Valve - Ductile Iron

by Hattersley

Download Add to collection

Description

Lever Operated Butterfly Valve - Ductile Iron

Fig. 4925

Features & Benefits

Fully lugged for secure installation
Stainless steel disc provides a greater level of resistance
Rated to PN25 for higher pressure applications
Lever (4925) and Gearbox (4925G) options available
Extended size range (DN50 to DN600) for application requirements.

Pressure Rating	PN25
Temperature Rating	25 Bar from -10°C to 120°C
Product Material	Ductile Iron
Test Pressure	Each valve is tested to BS EN 12266-1

Object Data

1 Revision

Last Updated

12/08/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Installation Guide

Maintenance Information

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/hattersley-fig-4925/document/object-user-guide
124.00 mm
4 HoleNo
8 HoleYes
A178.00 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B105.50 mm
BIM Object NameHattersley_ButterflyValve_FullyLuggedLeverOperated_Fig4925
BSYes
C52.00 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_08
Code Performancen/a
Colorn/a
Connection Size100.00 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2021-08-10T:09:00:00
D190.00 mm
DescriptionFig. 4925 - Lever Operated Butterfly Valve - Ductile Iron
Disc Dia Calc50.00 mm
Disc MaterialHattersley - Metal - Stainless Steel
Disc Shaft Cover Calc14.00 mm
Disc Thickness10.00 mm
Documentation Certificateswww.bimstore.co/products/hattersley-fig-4925/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/hattersley-fig-4925/document/installation-guide
Documentation Literaturewww.bimstore.co/products/hattersley-fig-4925/document/product-literature
Documentation Maintenancewww.bimstore.co/products/hattersley-fig-4925/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/hattersley-fig-4925/document/technical-data-sheet
Duration UnitYear
Expected Life0
Featuresn/a
Finishn/a
Flange Length36.00 mm
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
Inner Casing Dia Calc79.50 mm
K Coefficient586
KeynoteS
L265.00 mm
Loss MethodK Coefficient
ManufacturerHattersley
Manufacturer NameHattersley
Materialn/a
Middle Casing Dia Calc64.75 mm
ModelFig. 4925 - Lever Operated Butterfly Valve - Ductile Iron
Model NumberFig. 4925
Model ReferenceFig. 4925 - Lever Operated Butterfly Valve - Ductile Iron
N96.00 mm
NBS DescriptionButterfly valves
NBS Noten/a
NBS Object NameHattersley - Butterfly valves
NBS Office Master Tagn/a
NBS Reference90-10-90/332
Nominal Depth52.00 mm
Nominal Height315.50 mm
Nominal Length360.00 mm
Outer Casing Dia165.00 mm
Outer Casing Dia Calc82.50 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shaft Dia9.00 mm
Shapen/a
SizeDN100
Spare Partsn/a
Symbol Line60.00 mm
T12.00 mm
Type CommentsFig. 4925 - Lever Operated Butterfly Valve - Ductile Iron
Type NameFig. 4925 - Lever Operated Butterfly Valve - Ductile Iron
URLwww.hattersley.com/
Valve MaterialHattersley - Metal - Iron - Ductile Epoxy Paint - Blue
