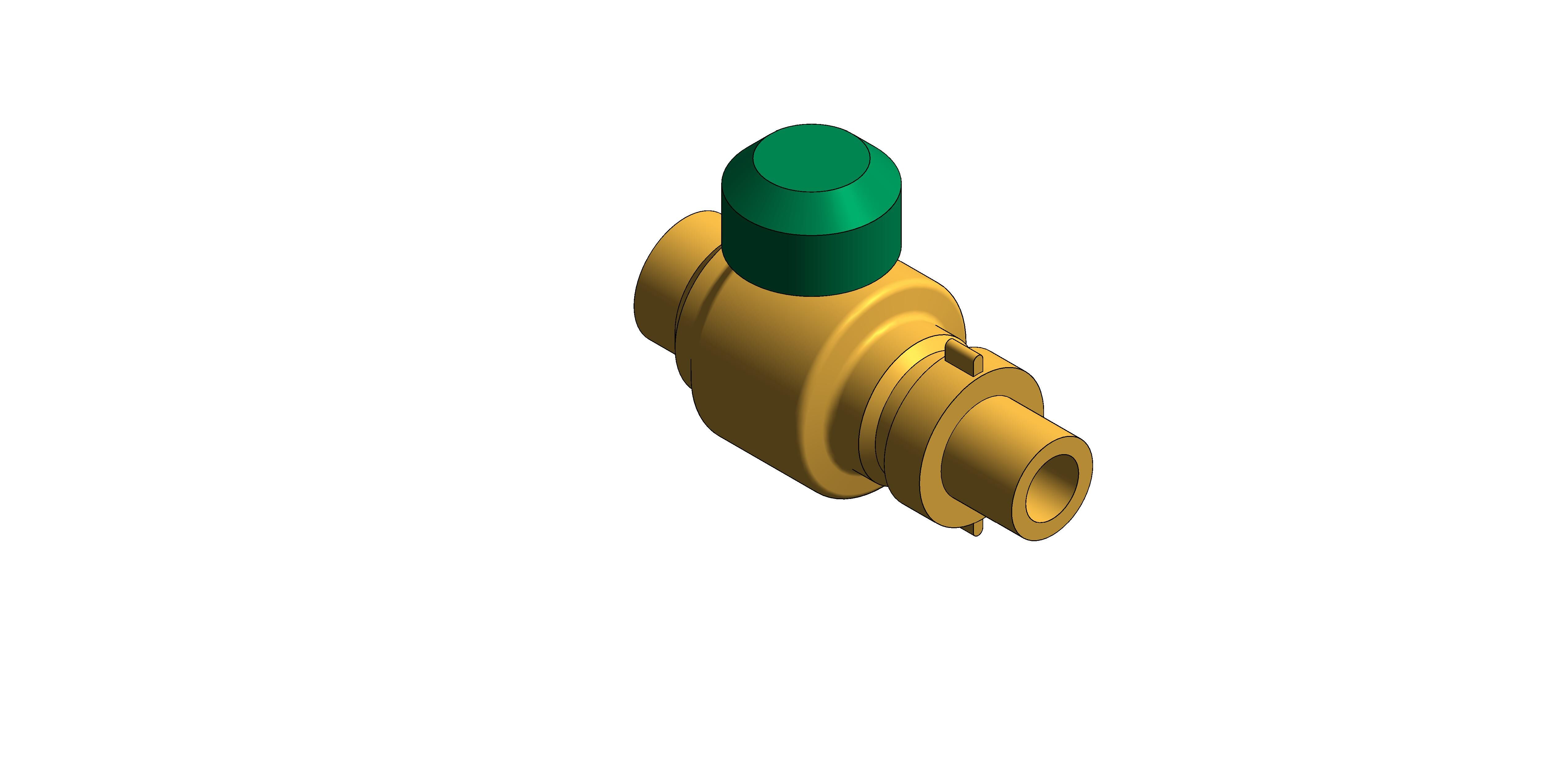

Fig. 100HU - Male Hose Union - DZR Brass

by Hattersley

Download Add to collection

Description

Male Hose Union - DZR Brass

Fig. 100HU

Features & Benefits

High quality range.
Long and trouble-free service life.
Full bore.

Size	DN15, DN20 & DN25
Pressure Rating	PN25
Product Material	DZR Brass
End Connections	Hose Union

Object Data

1 Revision

Last Updated

31/08/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Certificates

Installation Guide

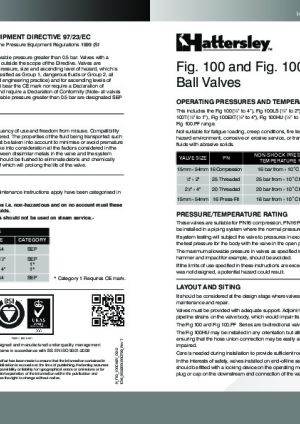

Maintenance Information

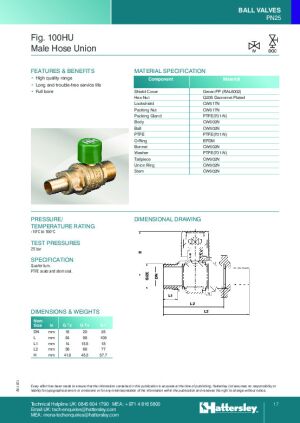

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/hattersley-fig-100hu/document/object-user-guide
1"Yes
1/2"No
3/4"No
A147.00 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
BIM Object NameHattersley_MaleHoseUnion_Fig100HU
BSYes
C158.00 mm
Classification NameUniclass 2015
Classification Valuen/a
Code Performancen/a
Colorn/a
Connection Calc18.50 mm
Connection Size25.00 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2021-08-31T:09:00:00
D139.00 mm
DescriptionFig. 100HU - Male Hose Union - DZR Brass
Dim X15.00 mm
Documentation Certificateswww.bimstore.co/products/hattersley-fig-100hu/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/hattersley-fig-100hu/document/installation-guide
Documentation Literaturewww.bimstore.co/products/hattersley-fig-100hu/document/product-literature
Documentation Maintenancewww.bimstore.co/products/hattersley-fig-100hu/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/hattersley-fig-100hu/document/technical-data-sheet
Duration UnitYear
E34.20 mm
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Handle MaterialHattersley - PVC - Green
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHANGEOVER
K Coefficient47
KeynoteS
LH End Calc16.50 mm
LHS Calc24.00 mm
Lockshield Offset23.00 mm
Loss MethodK Coefficient
ManufacturerHattersley
Manufacturer NameHattersley
Materialn/a
ModelFig. 100HU - Male Hose Union - DZR Brass
Model NumberFig. 100HU
Model ReferenceFig. 100HU - Male Hose Union - DZR Brass
NBS Descriptionn/a
NBS Noten/a
NBS Object NameHattersley - n/a
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth68.40 mm
Nominal Height92.20 mm
Nominal Length147.00 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
RH End Calc19.50 mm
RHS Calc15.00 mm
Shapen/a
Size1"
Sizemm12.50 mm
Spare Partsn/a
Symbol Length18.75 mm
Type CommentsFig. 100HU - Male Hose Union - DZR Brass
Type NameFig. 100HU - Male Hose Union - DZR Brass
URLwww.hattersley.com/
Valve MaterialHattersley - Metal - Brass
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@hattersley.com
Warranty Guarantor Partsenquiries@hattersley.com
